Built-In Electric Cooktop - JP201CBSS
This product is discontinued and has been replaced by the model below.

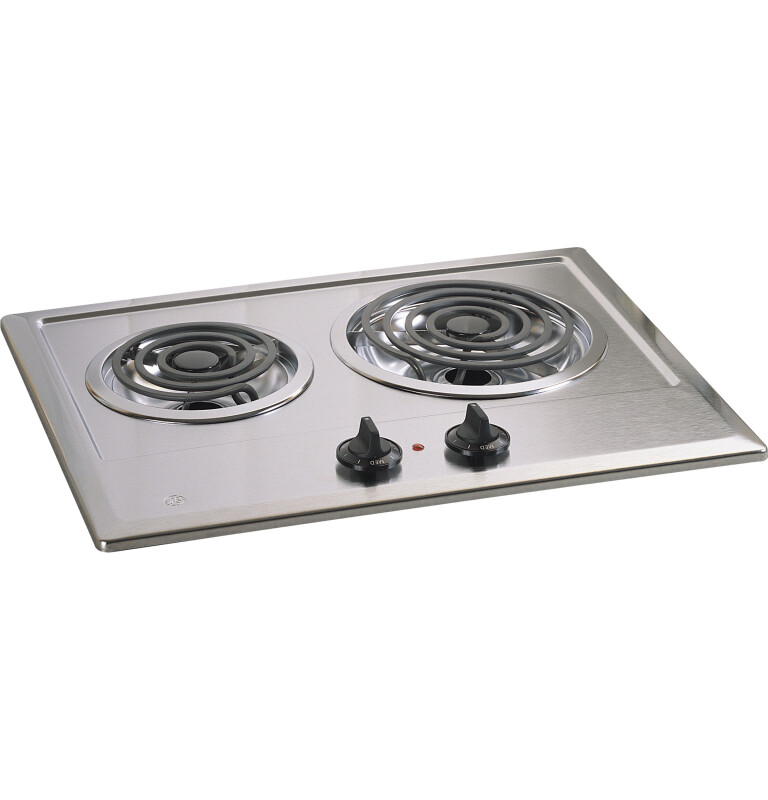

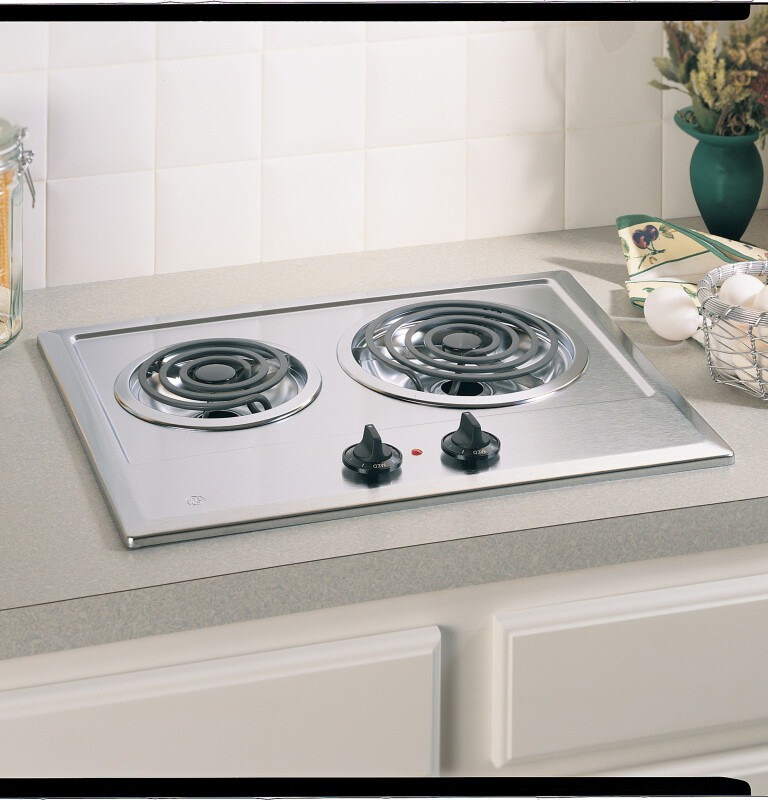

Built-In Electric Cooktop
Model: JP201CBSS
This product is discontinued and has been replaced by the model below.
Built-In Electric Cooktop
Model: JP201CBSS
Color : Stainless Steel
Replaced By
Key Features
Compact cooktop
Coil heating elements
Removable drip bowls
Heating element "On" light
Description
Provide even heat and easy cleanup.Removable for easy cleaning.3 H x 21 1/4 W x 16 5/8 D
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Specifications
Certifications
Features
Compact cooktop
21" cooktop for specialty installations

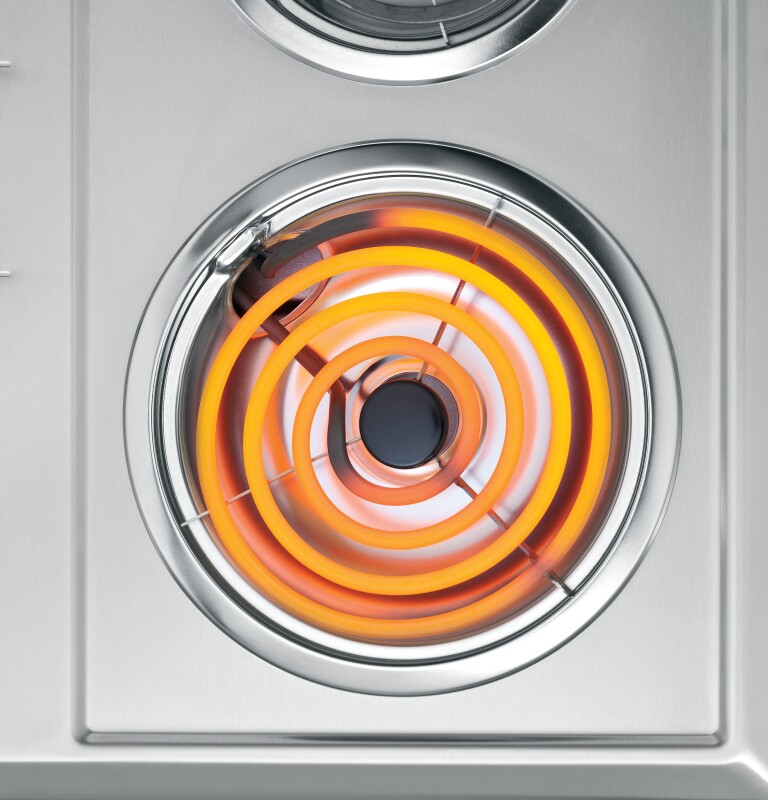

Coil heating elements
Provide even heat and easy cleanup
Removable drip bowls
Removable for easy cleaning
Heating element "On" light
Know when an element is on
Certifications
California Prop 65
UL
Specifications
WEIGHTS & DIMENSIONS
| Overall Height | 3 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 18 lb |
| Net Weight | 13 lb |
| Cooktop Size | 21 1/4 in |
| Overall Depth | 16 5/8 in |
| Overall Width | 21 1/4 in |
| Cutout Width (in) | 20.125 |
| Cutout Depth (in) | 16.125 |
Other
| Cooktop Size | 21.25 in |
Dimensions & Weight
| Width | 21.25 in. |
| Height | 3 in. |
| Length | 16.63 in. |
| Weight | 13 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 26.25 in. |
| Shipping Height | 8 in. |
| Shipping Length | 21.63 in. |
| Shipping Weight | 53 lbs. |
| Total of Shipping Weight | 53 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.61 ft³ |
| Dimensional Weight | 6.38 lbs. |
| Total of Cubes | 0.61 ft³ |
| Total of Dimensional Weight | 6.38 lbs. |
FEATURES
| Cooktop Burner Type | 2 Coil |
| Element - Left Front | 6" 1250W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 8" 2100W |
| Control Location | Upfront |
| Cooktop Surface | Stainless Steel |
| Control Type | Infinite Heat Rotary |
| Removable One-Piece Drip Bowls | Chrome with Removable Trim Rings |
APPEARANCE
| Color Appearance | Stainless Steel |
POWER / RATINGS
| KW Rating at 208V | 2.5 |
| Amp Rating at 240V | 20 |
| KW Rating at 240V | 3.4 |
| Amp Rating at 208V | 20 |
Warranty
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |
