30" Built-In Electric Cooktop - JP328WKWW
30" Built-In Electric Cooktop
Model: JP328WKWW
Product Video
30" Built-In Electric Cooktop
Model: JP328WKWW
Color : White on White
Replaced By
Key Features
Fit Guarantee
Coil heating elements
Removable drip bowls
Lift up cooktop with support rod
Upfront controls
Heating element "On" light
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

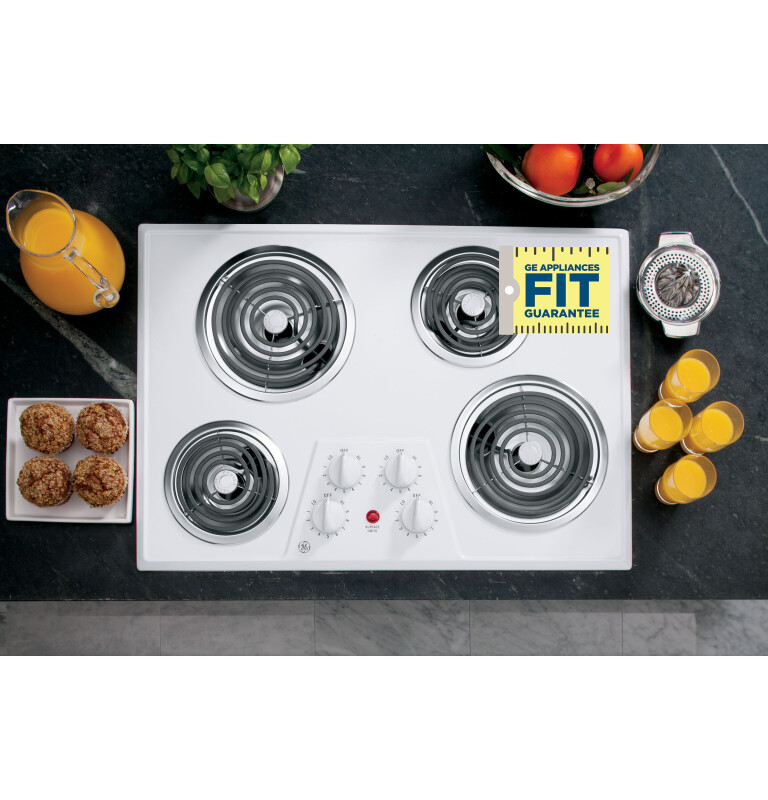

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details
Coil heating elements
Provide even heat and easy cleanup
Removable drip bowls
Removable for easy cleaning
Lift up cooktop with support rod
Access messes under the cooktop for easy cleanability
Upfront controls
Easy-to-read graphics and one-touch control makes everyday cooking easy as ever
Heating element "On" light
Know when an element is on
Certifications
California Prop 65
Specifications

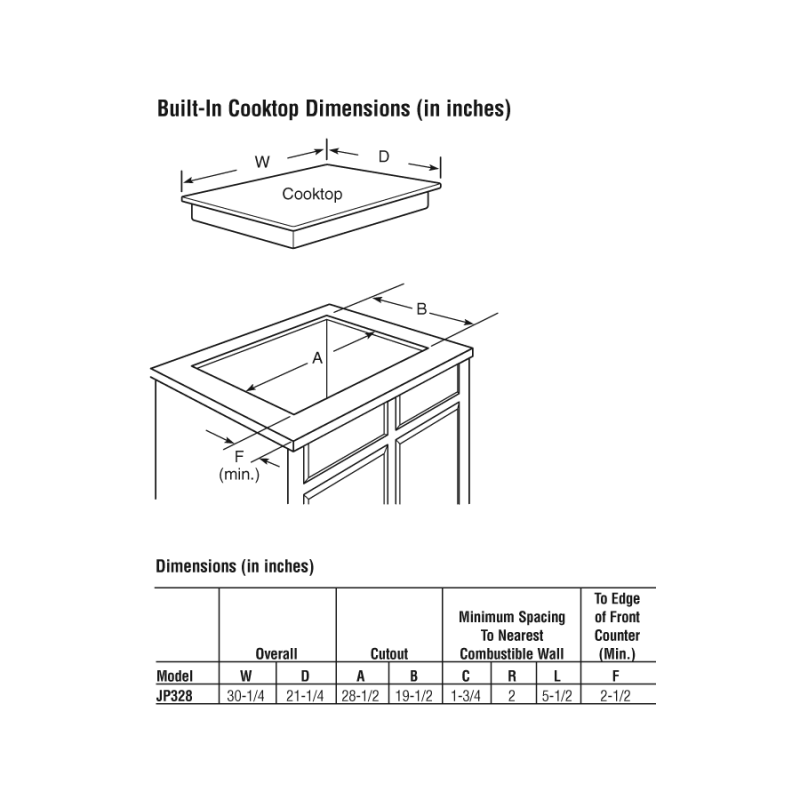

WEIGHTS & DIMENSIONS
| Overall Height | 3 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 32 lb |
| Net Weight | 27 lb |
| Overall Depth | 21 1/4 in |
| Overall Width | 30 1/4 in |
| Cutout Width (in) | 28.5 |
| Cutout Depth (in) | 19.5 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 30.25 in. |
| Height | 3 in. |
| Length | 21.25 in. |
| Weight | 27 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35.25 in. |
| Shipping Height | 8 in. |
| Shipping Length | 26.25 in. |
| Shipping Weight | 67 lbs. |
| Total of Shipping Weight | 67 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.12 ft³ |
| Dimensional Weight | 13.87 lbs. |
| Total of Cubes | 1.12 ft³ |
| Total of Dimensional Weight | 13.87 lbs. |
FEATURES
| Cooktop Burner Type | Coil |
| Lift-Up Cooktop With Support Rods | Yes |
| Element - Left Front | 6" 1300W |
| Indicator Lights | Surface Element "ON" |
| Element - Right Front | 8" 2400W |
| Control Location | Front Center |
| Cooktop Type | Coil |
| Cooktop Surface | White Porcelain-Enamel |
| Element - Left Rear | 8" 2400W |
| Control Type | Infinite Heat Rotary |
| Element - Right Rear | 6" 1300W |
| Removable One-Piece Drip Bowls | Chrome with Removable Trim Rings |
| Cooktop Burner Type | 4 Plug-In Calrod™ |
APPEARANCE
| Color Appearance | White on White |
POWER / RATINGS
| KW Rating at 208V | 5.6 |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 7.4 |
| Amp Rating at 208V | 30 |
Warranty
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |
