Select-Top Modular Downdraft Cooktop - JP389BJBB
Select-Top Modular Downdraft Cooktop
Model: JP389BJBB
Select-Top Modular Downdraft Cooktop
Model: JP389BJBB
Color : Black
Key Features
Modular cooking options
Downdraft exhaust
Three speed downdraft fan
Upfront controls
Heating element "On" light
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Modular cooking options
Customize your kitchen to meet personal style and taste
Downdraft exhaust
Powerful exhaust system helps aim smoke, grease, odors and moisture into the downdraft venting system
Three speed downdraft fan
Three speed fan control helps removes the smoke, grease, odors and moisture created when cooking
Upfront controls
Easy-to-read graphics and one-touch control makes everyday cooking easy as ever
Heating element "On" light
Illuminates when the cooking surface is activated
Certifications
California Prop 65
ADA Compliant
Specifications

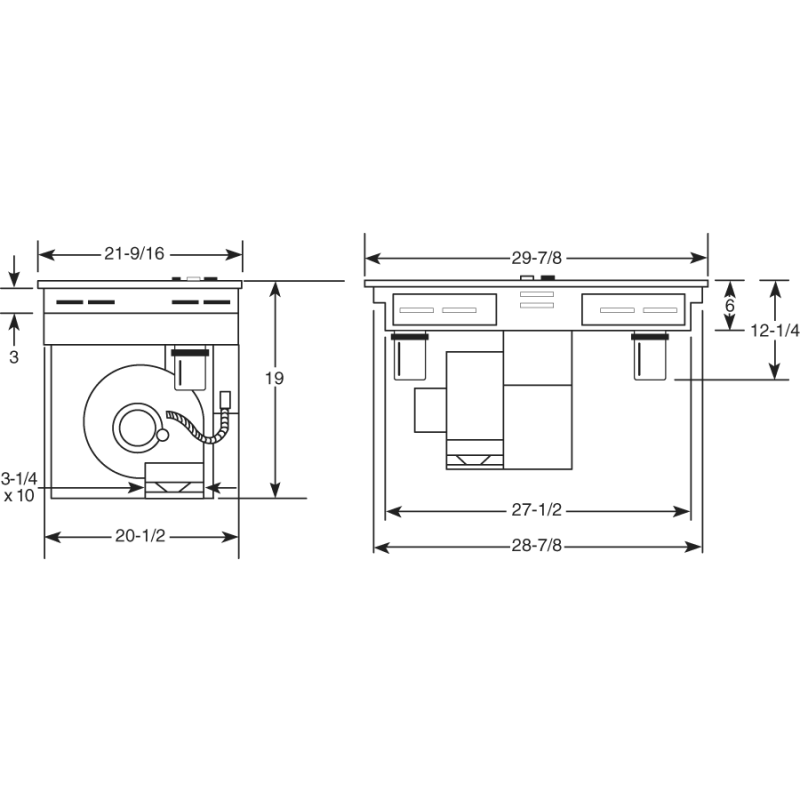

WEIGHTS & DIMENSIONS
| Overall Height | 19 in |
| Cooktop Size | 30 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 74 lb |
| Net Weight | 52 lb |
| Overall Depth | 21 9/16 in |
| Overall Width | 29 7/8 in |
| Cutout Width (in) | 28.875 |
| Cutout Depth (in) | 20.625 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 19 in. |
| Length | 21.56 in. |
| Weight | 52 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 24 in. |
| Shipping Length | 26.56 in. |
| Shipping Weight | 92 lbs. |
| Total of Shipping Weight | 92 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.08 ft³ |
| Dimensional Weight | 88.05 lbs. |
| Total of Cubes | 7.08 ft³ |
| Total of Dimensional Weight | 88.05 lbs. |
FEATURES
| Grill Module | JXDL44N (Optional) |
| Cooktop Burner Type | Both Sides Accept Optional Cooking Modules |
| Downdraft Exhaust (CFM) | 400 |
| Style | Downdraft |
| Indicator Lights | Surface Element "ON" |
| Control Location | Upfront |
| Cooktop Surface | Black Porcelain-Enamel |
| Calrod™ Module (One 8" & One 6" w/drip bowls) | JXDC43RBL (Optional Black Porcelain-Enameled) |
| Control Type | Infinite Heat Rotary |
| Downdraft Vent Fan Speeds | 3 |
| Grill Cover | JXDM2 (Optional; Black on Black) |
| Configuration | Dual Modular - Both sides accept optional modules |
ACCESSORIES
| Ribbon Element Module (One 8" & One 6") | JXDR50VB (Optional) |
| Griddle Accessory | JXDD44R (Use With Optional Grill Module) |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
APPEARANCE
| Color Appearance | Black on Black |
POWER / RATINGS
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 8.0 |
