Select-Top Modular Downdraft Cooktop - JP389WJWW
Select-Top Modular Downdraft Cooktop
Model: JP389WJWW
Select-Top Modular Downdraft Cooktop
Model: JP389WJWW
Color : White
Key Features
Modular cooking options
Downdraft exhaust
Three speed downdraft fan
Upfront controls
Heating element "On" light
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Modular cooking options
Customize your kitchen to meet personal style and taste
Downdraft exhaust
Powerful exhaust system helps aim smoke, grease, odors and moisture into the downdraft venting system
Three speed downdraft fan
Three speed fan control helps removes the smoke, grease, odors and moisture created when cooking
Upfront controls
Easy-to-read graphics and one-touch control makes everyday cooking easy as ever
Heating element "On" light
Illuminates when the cooking surface is activated
Certifications
ADA Compliant
California Prop 65
Specifications
FEATURES
| Grill Module | JXDL44N (Optional) |
| Downdraft Exhaust (CFM) | 400 |
| Style | Downdraft |
| Indicator Lights | Surface Element "ON" |
| Control Location | Upfront |
| Cooktop Surface | White Porcelain-Enamel |
| Calrod™ Module (One 8" & One 6" w/drip bowls) | JXDC44RWH (Optional White Porcelain-Enameled) |
| Downdraft Vent Fan Speeds | 3 |
| Control Type | Infinite Heat Rotary |
| Grill Cover | JXDM3 (Optional; White on White) |
| Configuration | Dual Modular - Both sides accept optional modules |
ACCESSORIES
| Ribbon Element Module (One 8" & One 6") | JXDR50VW (Optional) |
| Griddle Accessory | JXDD44R (Use With Optional Grill Module) |

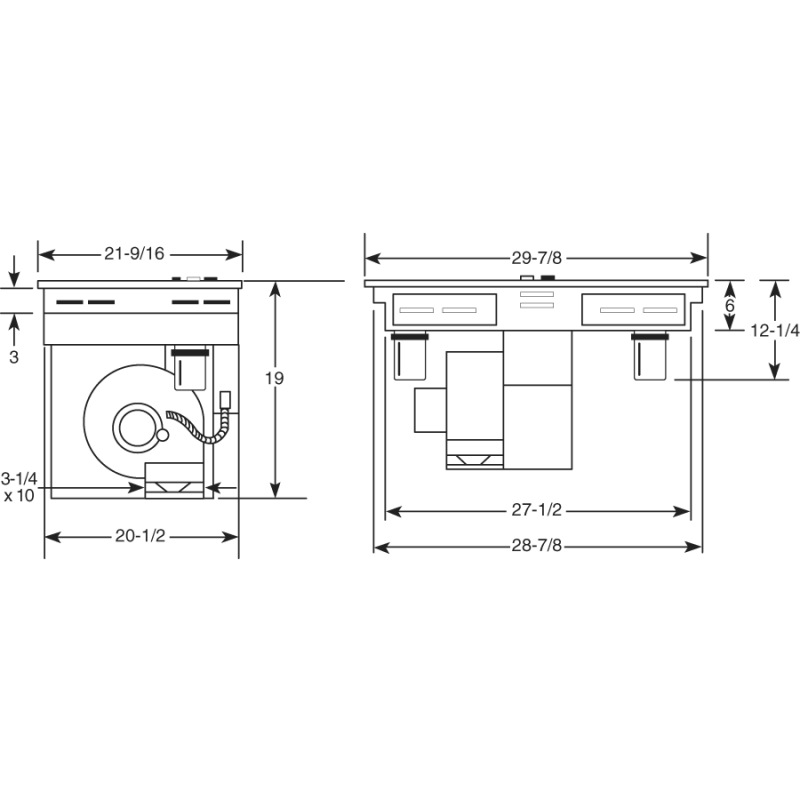

WEIGHTS & DIMENSIONS
| Cooktop Size | 30 in |
| Overall Height | 19 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 74 lb |
| Net Weight | 52 lb |
| Overall Depth | 21 9/16 in |
| Overall Width | 29 7/8 in |
| Cutout Width (in) | 28.875 |
| Cutout Depth (in) | 20.625 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
APPEARANCE
| Color Appearance | White on White |
POWER / RATINGS
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 8.0 |
Other
| Cooktop Size | 30 in |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 19 in. |
| Length | 21.56 in. |
| Weight | 52 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 24 in. |
| Shipping Length | 26.56 in. |
| Shipping Weight | 92 lbs. |
| Total of Shipping Weight | 92 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.08 ft³ |
| Dimensional Weight | 88.05 lbs. |
| Total of Cubes | 7.08 ft³ |
| Total of Dimensional Weight | 88.05 lbs. |
