36" Built-In Gas Cooktop - JGP630CEKCC

GEGE brand logo
This product is discontinued and has been replaced by the model below.

36" Built-In Gas Cooktop

Model: JGP630CEKCC

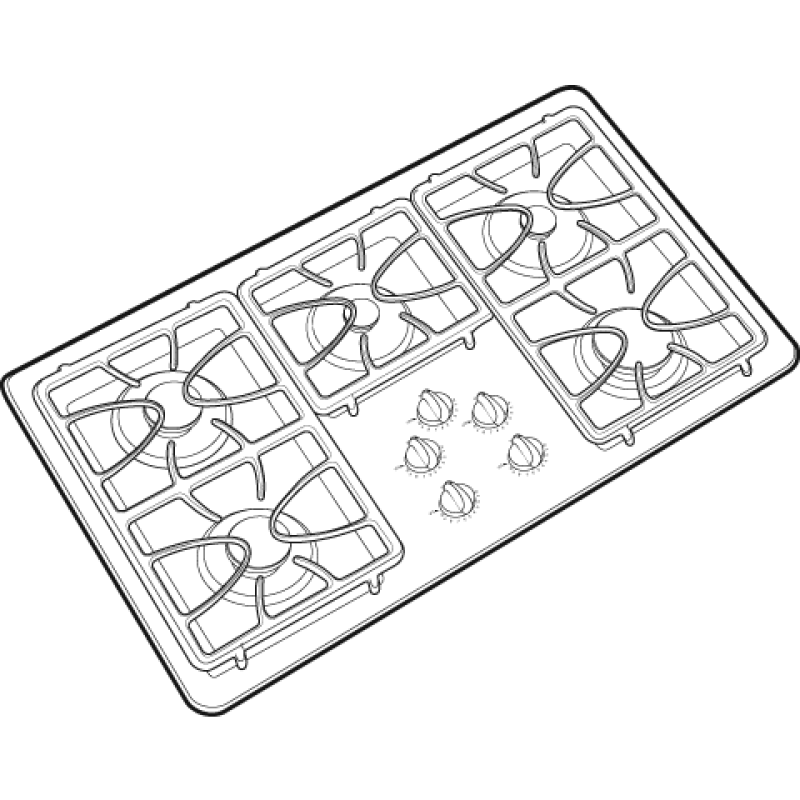

36" Built-In Gas Cooktop JGP630CEKCC, product image 1 of 336" Built-In Gas Cooktop JGP630CEKCC, product image 2 of 336" Built-In Gas Cooktop JGP630CEKCC, product image 3 of 3
36" Built-In Gas Cooktop JGP630CEKCC, thumbnail image 1 of 3
36" Built-In Gas Cooktop JGP630CEKCC, thumbnail image 2 of 3
36" Built-In Gas Cooktop JGP630CEKCC, thumbnail image 3 of 3

Color : Bisque

36" Built-In Gas Cooktop JGP630CEKCC
Bisque
Replaced By

36" Built-In Gas Cooktop with 5 Burners and Dishwasher Safe Grates

Model: JGP5036SLSS

Product - JGP5036SLSS

$999.00

Was$1,699.00Save $700.00 (41%)

View Product

Key Features

  • Sealed cooktop burners

  • All purpose burners

  • Precise Simmer burner

  • Continuous grates

  • Dishwasher-safe grates and knobs

  • Medium cast grates

Description

Deliver a wide range of heat output ideal for most cooking needs.Delivers a low setting of 140 degrees, ideal for delicate foods and sauces.3 3/16 H x 36 W x 21 D

Available from Appliances Outlet, serving customers throughout Cinnaminson.

Features
Specifications
Certifications

Features

Sealed cooktop burners

Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

All purpose burners

Deliver a wide range of heat output ideal for most cooking needs

Precise Simmer burner

Delivers a low setting of 140 degrees, ideal for delicate foods and sauces

Continuous grates

Provide a flat, sturdy surface allowing easy movement of pans between burners

Dishwasher-safe grates and knobs

Feature durable construction for worry-free, effortless cleaning and maintenance

Medium cast grates

Constructed from a durable cast iron material for long-lasting performance and reliability

Certifications

ADA Compliant certification

ADA Compliant

California Prop 65 certification

California Prop 65

Specifications

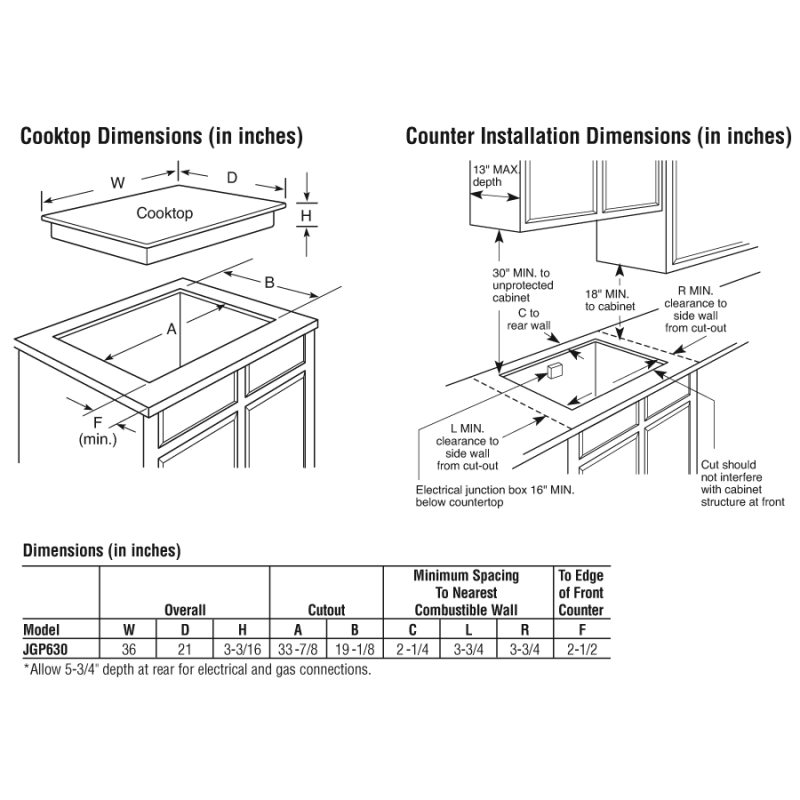

WEIGHTS & DIMENSIONS

Overall Width36 in
Overall Depth21 in
Cabinet Width36 in
Approximate Shipping Weight51 lb
Net Weight46 lb
Overall Height3 3/16 in
Cutout Width (in)33.875
Cutout Depth (in)19.125

Dimensions & Weight

Width36 in.
Height3.19 in.
Length21 in.
Weight46 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width41 in.
Shipping Height8.19 in.
Shipping Length26 in.
Shipping Weight86 lbs.
Total of Shipping Weight86 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.39 ft³
Dimensional Weight17.34 lbs.
Total of Cubes1.39 ft³
Total of Dimensional Weight17.34 lbs.

FEATURES

Dishwasher Safe KnobsYes
Cooktop Burner Type5 Sealed
All-Purpose Burners(2) 9,500 BTU/150F degree simmer
Fuel TypeNatural Gas
Control LocationUpfront
Ignition SystemElectronic
Cooktop SurfaceDeep Porcelain-Enamel
High Output Burner(1) 11,000 BTU/150F degree simmer
Cooktop Burner Grate MaterialMedium Cast
Cooktop Burner Grate FeaturesDishwasher Safe
Precise Simmer Burner(2) 5,000 BTU/140F degree simmer
Cooktop Burner Grate FeaturesContinuous Grates

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas(1) 10.0; (2) 9.1; (2) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas(1) 11.0; (2) 9.5; (2) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A

WARRANTY

Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance

ACCESSORIES

LP Conversion KitIncluded

APPEARANCE

Color AppearanceBisque on Bisque
