This product has been discontinued by the manufacture and is no longer available.

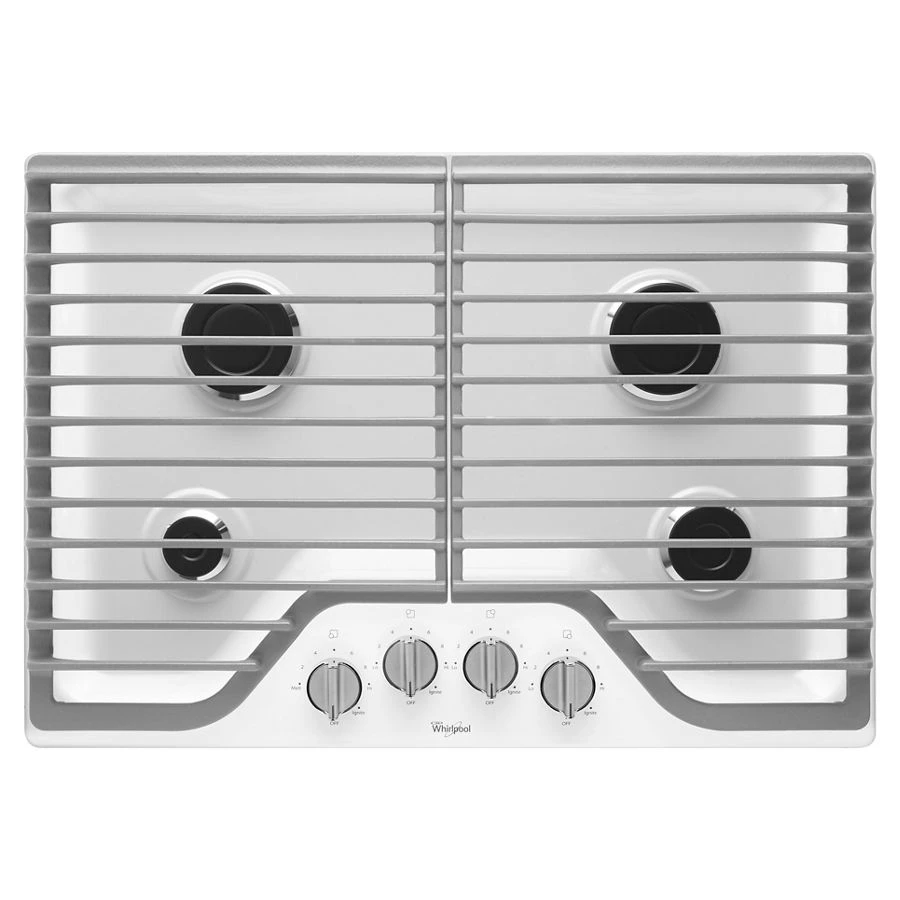

Whirlpool 30 inch Gas Cooktop with Multiple SpeedHeat™ Burners
Model: WCG51US0DW
Color : White
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Specifications
Specifications
Certifications
| ADA Compliant | ADA Height and Side Reach Compliant |
| Prop 65 | Standard |
| UL | Yes |
Cooktop Details
| Combination Match with Oven | WOS11EM4, WOS51EC0, WOS51EC7, WOS51ES4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS97ES0, WOSA2EC0 |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Installs Over Built-In Oven | Yes |
Exterior Details
| Knob Color | Color Coordinated |
| Knob Type | Dishwasher-Safe Plastic |
Element/Burner Details
| Automatic Pan Detection | No |
| Cooktop Element Style | Sealed Burner |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 5,000 BTU |
| Left Front Element-Burner Type | Simmer |
| Left Rear Element-Burner Power | 15,000 BTU |
| Left Rear Element-Burner Type | SpeedHeat™ |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | 2 |
| Power Boost | No |
| Right Front Element-Burner Power | 9,100 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | 12,000 BTU |
| Right Rear Element-Burner Type | SpeedHeat™ |
Ventilation Details
| Downdraft Vent | No |
Controls
| Control Location | Front |
| Control Type | Knobs |
Details
| Digital Display | No |
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
Grate Details
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
Refinements
| Features | High BTU Burner, SpeedHeat™ Burner, SpillGuard™ Cooktop |
Electrical
| Amps | 15 |
| Hz | 60 |
| Power Cord Included | Yes |
| Volts | 120 |
Features
| Cooktop Features | High BTU Burner, SpeedHeat™ Burner, SpillGuard™ Cooktop |
Dimensions & Weight
| Width | 30 in. |
| Height | 4.13 in. |
| Length | 21 in. |
| Weight | 59.4 lbs. |
| Cutout Depth | 19 in |
| Cutout Depth Max | 20 in |
| Cutout Width | 28-1/2 in |
| Gross Weight | 59-2/5 lbs |
| Maximum Height | 4-1/8 in |
| Minimum Height | 3-3/8 in |
| Net Weight | 53-2/5 lbs |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 9.13 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 99.4 lbs. |
| Total of Shipping Weight | 99.4 lbs. |
| Source | Calculation |
Other
| Common Size | 30 in |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.51 ft³ |
| Dimensional Weight | 18.72 lbs. |
| Total of Cubes | 1.51 ft³ |
| Total of Dimensional Weight | 18.72 lbs. |
