Whirlpool 36-inch Gas Cooktop with EZ-2-Lift™ Hinged Cast-Iron Grates
Model: WCG55US6HB
Color : Black
Key Features
Fifth Burner
Sealed Burners
Full Width Grates
Wall Oven Compatible
AccuSimmer® Burner
EZ-2-Lift™ Hinged Cast-Iron Grates
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Fifth Burner
Make sure everyone gets their favorite with an extra, Fifth Burner that gives you more room to choose the right one for the dish.

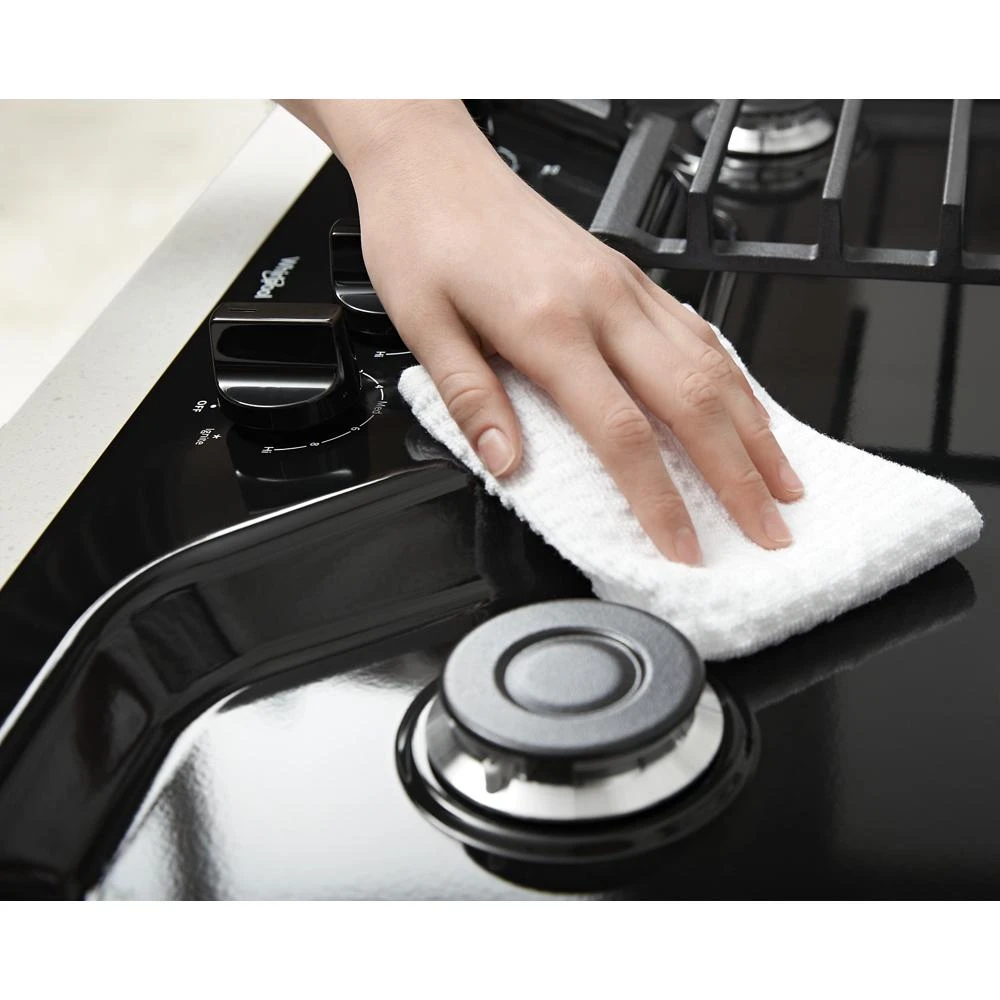

Sealed Burners
Cut down on cleanup with burners that are sealed to prevent food from falling into them.
Full Width Grates
Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.
Wall Oven Compatible
Install this cooktop to work with a wall oven or on its own for more flexibility.
AccuSimmer® Burner
Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer® Burner, which reduces power for better control at lower temperatures.

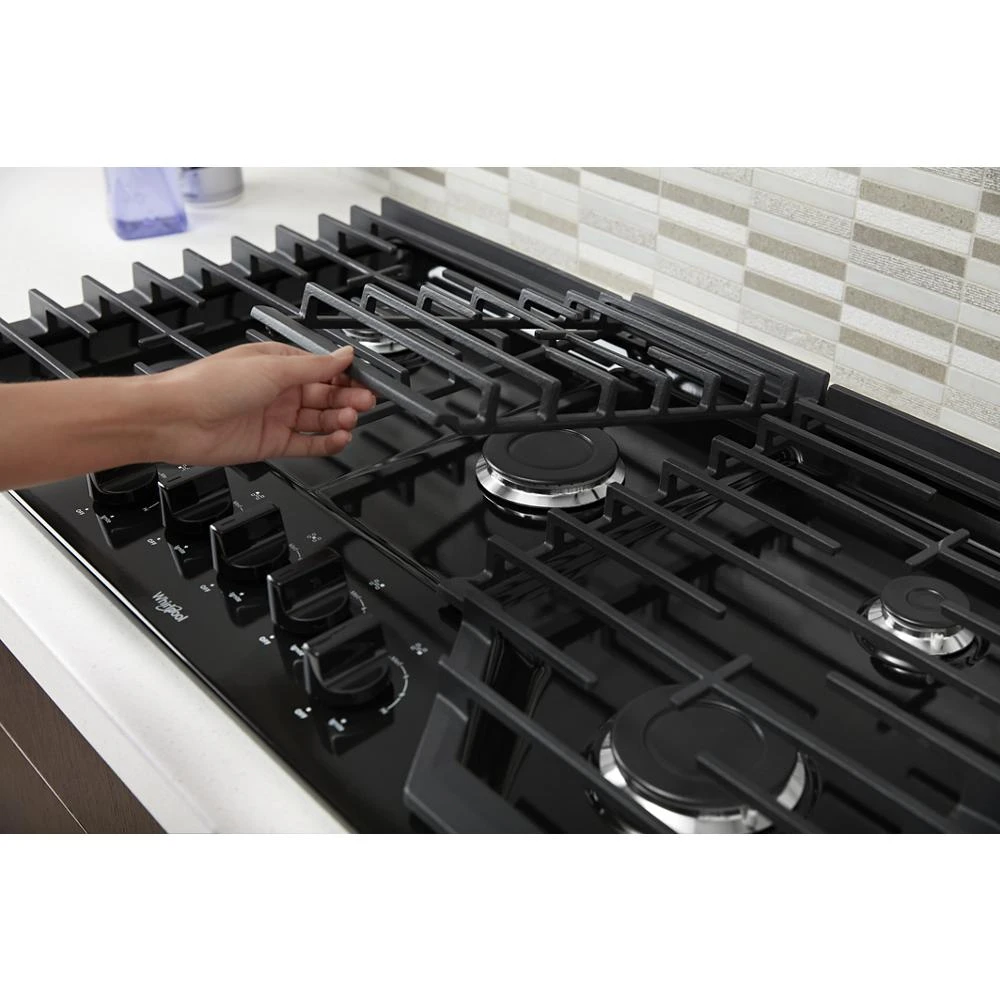

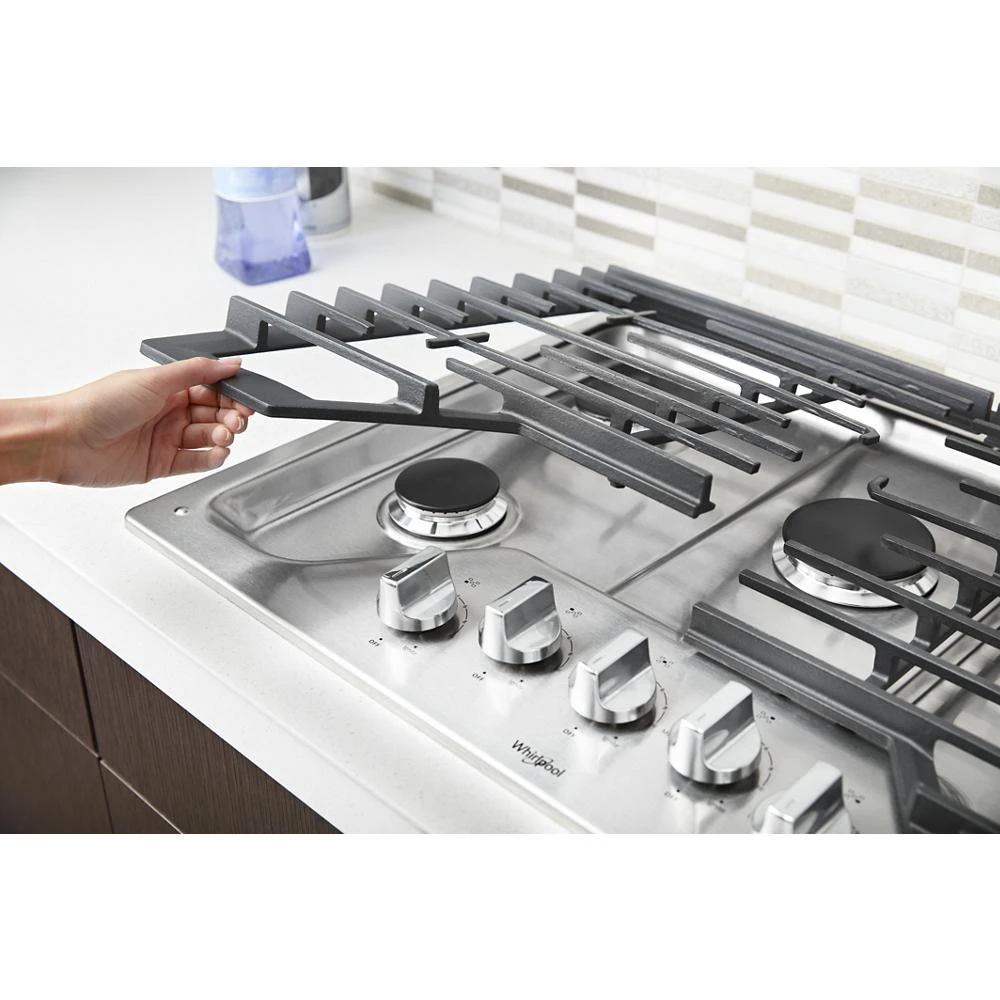

EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without removing them. For a more thorough clean, the grates are also dishwasher safe.
Specifications

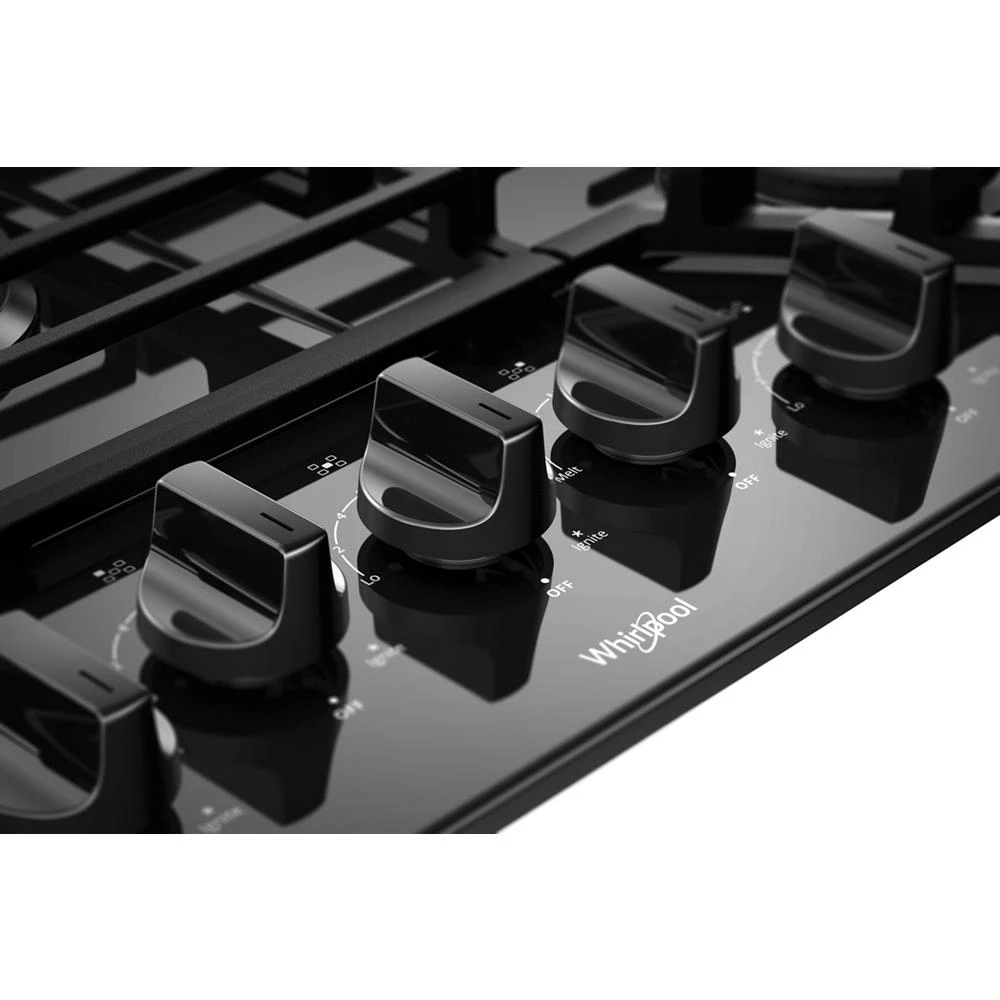

Controls
| Control Location | Front |
| Control Type | Knobs |
| Infinite Heat Controls | Yes |
Cooktop Details
| Ignition Type | Direct Spark Ignition |
| Number of Open Bays | N/A |
| Cooktop Surface Material | Stainless/Porcelain Coated Steel |
| Digital Display | No |
| Griddle Included | Optional Accessory |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
Certifications
| ADA Compliant | ADA Height and Side Reach Compliant |
| UL | Yes |
| prop65 | Standard |
Electrical
| Power Cord Included | Yes |
Details
| Automatic Pan Detection | No |
| Automatic Pan Size Adjustment | No |
| Fuel Type | Gas |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Outage Compatible | Yes |
Element/Burner Details
| Center Element Burner Power | 15, 000 BTU |
| Center Element Burner Type | Power |
| Center Front Element-Burner Power | 15, 000 BTU |
| Center Front Element-Burner Type | SpeedHeat |
| Cooktop Type | Standard |
| Left Front Element-Burner Power | 9, 100 BTU |
| Left Rear Element-Burner Power | 9, 100 BTU |
| Number of Cooking Element-Burners | 5 |
| Power Boost | No |
| Right Front Element-Burner Power | 12, 000 BTU |
| Right Rear Element-Burner Power | 5, 000 BTU |
| Right Rear Element-Burner Type | Simmer |
Grate Details
| Grate Details | Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish |
| Number of Grates | 3 |
Ventilation Details
| Downdraft Vent | No |
Product Details
| Combination Match with Oven | WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC0A; WOS51EC7; WOS51EC7A; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC7A |

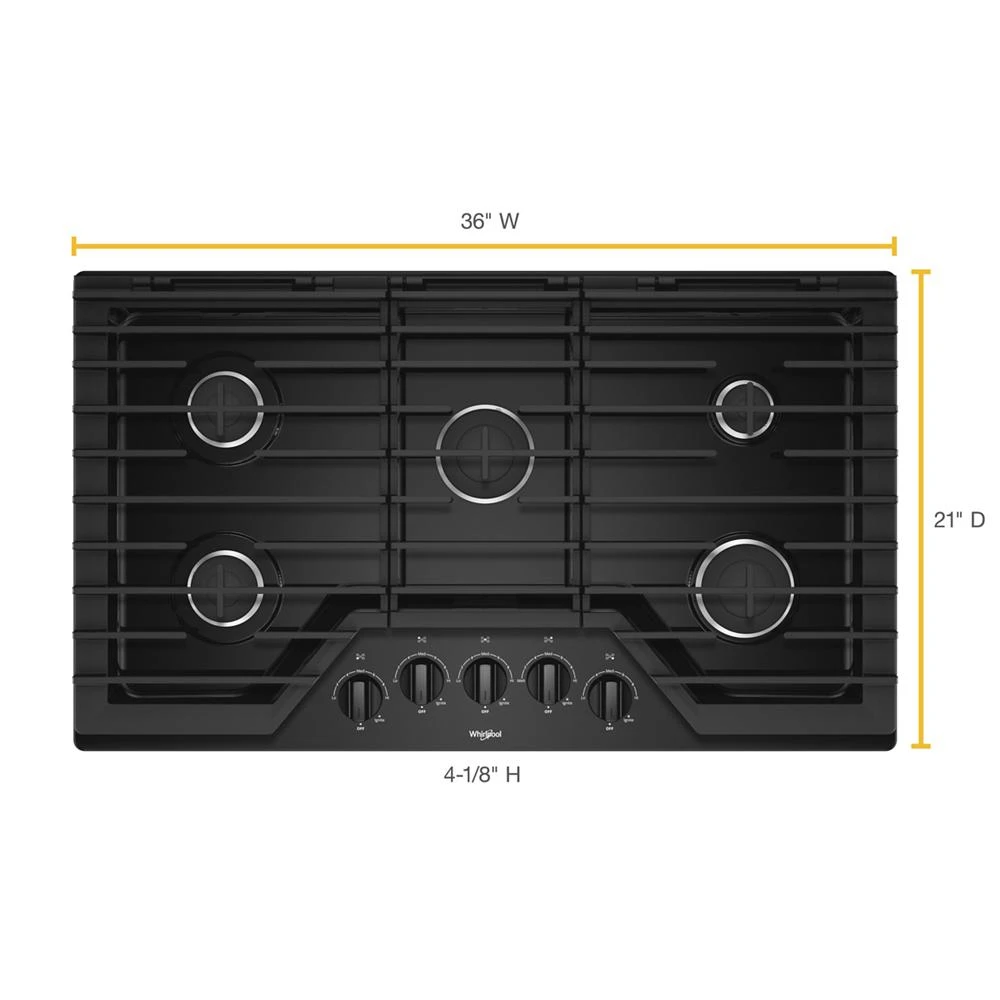

Dimensions & Weight
| Width | 36 in. |
| Height | 4.13 in. |
| Length | 21 in. |
| Weight | 63 lbs. |
| Carton Depth | 25 |
| Carton Height | 12 1/2 |
| Carton Width | 40 1/2 |
| Cutout Depth (in) | 19 |
| Cutout Width (in) | 33 7/8 |
| Gross Weight | 63 |
| Net Weight | 52.7 |
| Cutout Depth(IN,inches) | 19.0000 |
| Cutout Width(IN,inches) | 33.8750 |
| Net Weight(LB,pounds) | 53 |
| Carton Depth(IN,inches) | 25.0000 |
| Carton Height(IN,inches) | 12.5000 |
| Carton Width(IN,inches) | 40.5000 |
| Gross Weight(LB,pounds) | 63 |
| Cutout Depth | 19 |
| Cutout Depth Max | 19 |
| Cutout Width | 33.875 |
| Cutout Width Max | 33.875 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40.5 in. |
| Shipping Height | 12.5 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 103 lbs. |
| Total of Shipping Weight | 103 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.81 ft³ |
| Dimensional Weight | 22.46 lbs. |
| Total of Cubes | 1.81 ft³ |
| Total of Dimensional Weight | 22.46 lbs. |
