GE 27" Built-In Convection/Thermal Wall Oven
Model: JKP75BMBB
Color : Black
Replaced By
27" Smart Built-In Convection Double Wall Oven with No Preheat Air Fry
Model: JKD5000DVBB
$2,599.00
Was$3,649.00Save $1,050.00 (29%)
Key Features
True European Convection with Precise Air
Flat back convection (upper oven)
Convection Bake (upper oven only)
Hidden bake oven interior
Heavy-duty oven racks
TrueTemp oven system
Extra-large oven capacity
Interior oven light(s)
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
True European Convection with Precise Air
A reversing fan circulates heat and air for evenly browned and baked foods
Flat back convection (upper oven)
Convection fan system is only 1" deep to provide additional room for cookware
Convection Bake (upper oven only)
This setting is optimal for baking casseroles or lasagnas, yeast breads, pies and pizzas with no need to turn the pan
Hidden bake oven interior
Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning
Heavy-duty oven racks
Tough, durable racks include 50% thicker crossbars for extra strength
TrueTemp oven system
Even heat distribution and maximum oven control
Extra-large oven capacity
Enough room to cook an entire meal at once
Interior oven light(s)
Bright interior light helps you check on the progress of your cooking
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Height | 51 in |
| Cabinet Width | 27 in |
| Net Weight | 180 lb |
| Oven Interior Dimensions (upper) | 21 1/2 x 17 x 18 1/4 |

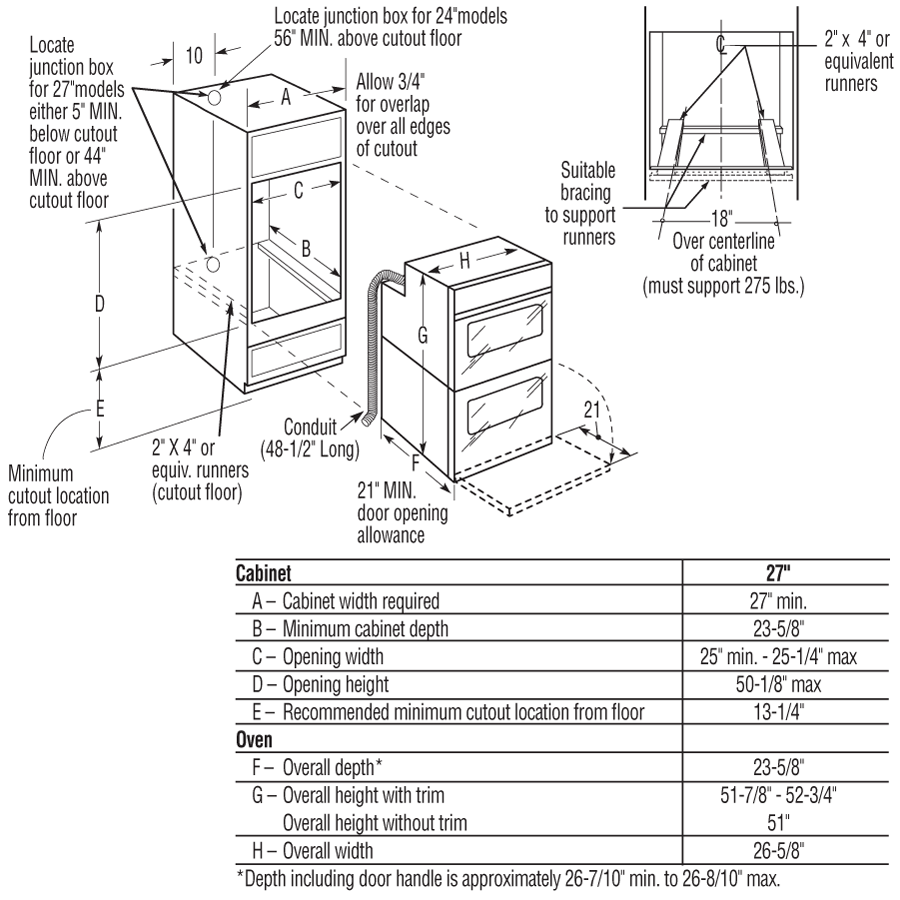

| Cutout Dimensions (w x h x d) (in.) | 25 x 50-1/8 x 23-5/8 |
| Oven Interior Dimensions (lower) | 21 1/2 x 17 x 18 1/4 |
| Approximate Shipping Weight | 201 lb |
| Overall Depth | 23 5/8 in |
| Overall Width | 26 5/8 in |
Other
| Oven Interior Dimensions (upper) | 21 1/2 x 17 x 18 1/4 |
| Cutout Dimensions (w x h x d) (in.) | 25 x 50-1/8 x 23-5/8 |
Dimensions & Weight
| Width | 26.63 in. |
| Height | 51 in. |
| Length | 23.63 in. |
| Weight | 180 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.63 in. |
| Shipping Height | 56 in. |
| Shipping Length | 28.63 in. |
| Shipping Weight | 220 lbs. |
| Total of Shipping Weight | 220 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 18.56 ft³ |
| Dimensional Weight | 230.79 lbs. |
| Total of Cubes | 18.56 ft³ |
| Total of Dimensional Weight | 230.79 lbs. |
POWER / RATINGS
| Bake Wattage | 2100W |
| Convection Wattage | 2500W |
| KW Rating at 240V | 6.8 |
| Amp Rating at 208V | 30 |
| Broiler Wattage | 3400W |
| Amp Rating at 240V | 30 |
| KW Rating at 208V | 5.1 |
APPEARANCE
| Frameless Oven Door(s) | Color-Matched |
| Oven Door Features | Big Clear View Oven Window |
| Color Appearance | Black on Black |
| Installation | Flush Appearance |
| Handle | High-Gloss Color-Matched Sculptured |
FEATURES
| Oven Interior | Hidden Bake |
| Cooking Technology | Convection Upper; Traditional Lower |
| Cleaning Time | Variable with Delay Clean Option |
| Configuration | Double Oven |
| Oven Rack Positions (Single or Upper/Lower) | 4 / 4 |
| Interior Oven Light | Yes |
| Temperature Management System | True Temp System |
| Oven Rack Features | Embossed Rack Positions (Both Ovens) |
| Self-Clean Oven Door Lock | Automatic (Upper & Lower) |
| Cooking System | True European Convection with Precise Air |
| Control Type | SmartSet |
| Style | Built-In |
| Oven Cleaning Type | Self-Clean |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Cooking Modes | Convection Roast (Upper) |
| Oven Features | 8-Pass Bake Element |
| Oven Cooking Modes | Thermal Bake / Thermal Roast |
| Oven Features | Closed Door Broiling |
| Oven Control Features | Variable Broil |
| Oven Control Features | Auto Recipe Conversion (Upper) |
| Oven Control Features | Convection Conversion (Upper) |
| Oven Control Features | Delay Bake Option With Warm Mode |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Oven Light Pad |
| Oven Control Features | Start Pad |
| Oven Control Features | Light Self Clean Mode (Both Ovens) |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Digipad Numeric Entry |
| Oven Control Features | Optional Clock Display |
| Oven Control Features | Temperature Display |
| Oven Cooking Modes | Convection Bake (Upper Oven) |
| Oven Features | 4-Pass Broil Element |
| Oven Rack Features | 3 Heavy-Duty Oven Racks Upper / 2 Heavy-Duty Oven Racks (Lower) |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
CAPACITY
| Capacity (Cu. Ft.) | 3.9 Upper / 3.9 Lower |
