This product has been discontinued by the manufacture and is no longer available.

KitchenAid 30" Double Wall Oven With Even-heat™ True Convection

Model: KODE500EWH

30" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 1 of 830" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 2 of 830" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 3 of 830" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 4 of 830" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 5 of 830" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 6 of 830" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 7 of 830" Double Wall Oven With Even-heat™ True Convection KODE500EWH, product image 8 of 8
30" Double Wall Oven With Even-heat™ True Convection KODE500EWH, thumbnail image 1 of 8
30" Double Wall Oven With Even-heat™ True Convection KODE500EWH, thumbnail image 2 of 8
30" Double Wall Oven With Even-heat™ True Convection KODE500EWH, thumbnail image 3 of 8
30" Double Wall Oven With Even-heat™ True Convection KODE500EWH, thumbnail image 4 of 8
30" Double Wall Oven With Even-heat™ True Convection KODE500EWH, thumbnail image 5 of 8
+3more

Color : White

30" Double Wall Oven With Even-heat™ True Convection KODE500EWH
White

Key Features

  • Temperature Probe (both ovens)

  • 5.0 Cu. Ft. Capacity (each oven)

  • Glass-Touch Display with Control Lock Function

  • FIT System Guarantee

  • Even-Heat™ True Convection Oven (both ovens)

  • Even-Heat™ Preheat

  • EasyConvect™ Conversion System

  • SatinGlide™ Roll-Out Extension Rack (both ovens)

Read More

Description

This 30" Double Wall Oven with Even-Heat™ True Convection provides consistent heating and even cooking. A unique bow-tie shaped design and convection fan helps ensure there are no burnt edges or undercooked centers. The Temperature Probe delivers accurate measurement of internal temperatures of meats, poultry, and casseroles without opening the oven. Bold design details are the perfect balance of elegance and functionality.
Read More

Available from Appliances Outlet, serving customers throughout Cinnaminson.

Features
Specifications

Features

Temperature Probe (both ovens)

Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.

5.0 Cu. Ft. Capacity (each oven)

Provides an extra-large cooking capacity that’s unsurpassed among 30" wall ovens and is perfect for large turkeys and roasts. It can even make multiple dishes at once.

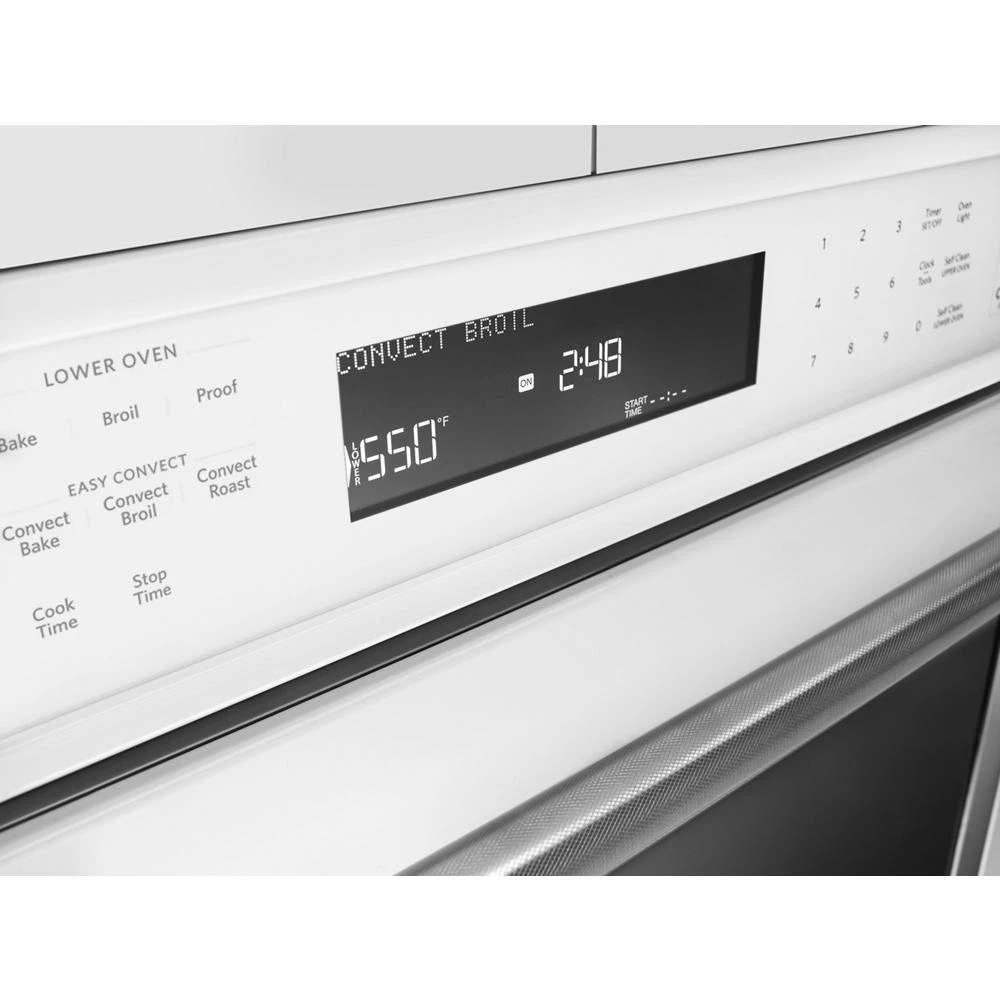

Glass-Touch Display with Control Lock Function

Gives an intuitive glass touch screen experience that’s easy to wipe clean.

FIT System Guarantee

Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.

Even-Heat™ True Convection Oven (both ovens)

features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

Even-Heat™ Preheat

Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.

EasyConvect™ Conversion System

Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.

SatinGlide™ Roll-Out Extension Rack (both ovens)

Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.

Self-Cleaning Cycle

uses high temperatures to loosen baked-on food without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.

Specifications

Controls

Control TypeGlass Touch Digital Display
Display ColorWhite
Electronic Display TypeDigital
Language ConversionEnglish/French
Light ControlOven Light Touch Pad

Details

Oven Automatic Shut-OffYes
Delay CleanYes
Flush Installation ApprovedYes
Fuel TypeElectric
LP ConvertibleNo
Oven ConfigurationDouble Oven
Oven SelectionsClock, Control Lock, Delay Start, Proofing, Sabbath Mode, Star K, Temperature Probe, Time Bake, Timer
Oven TypeDouble

Certifications

CULYes
Prop 65Standard
ULYes

Electrical

Amps40
Volts240

Other

Capacity(FT3,cubic feet)10.00
Lower Oven Capacity (Cu Ft.)5.0

Dimensions & Weight

Width30 in.
Height51.25 in.
Length27.13 in.
Weight280 lbs.
Carton Depth30 13/16
Carton Height53 1/2
Carton Width34 13/16
Cutout Depth (in)24
Cutout Height (in)50 1/4
Cutout Width (in)28 1/2
Depth Closed Excluding Handles24 1/2
Depth With Door Open 90 Degree46 3/4
Gross Weight280
Net Weight260.0
Cutout Depth(IN,inches)24.0000
Cutout Height(IN,inches)50.2500
Cutout Width(IN,inches)28.5000
Depth Closed Excluding Handles(IN,inches)24.5000
Depth With Door Open 90 Degree(IN,inches)46.7500
Net Weight(LB,pounds)260
Carton Depth(IN,inches)30.8125
Carton Height(IN,inches)53.5000
Carton Width(IN,inches)34.8125
Cutout Height Min(IN,inches)50.2500
Gross Weight(LB,pounds)280

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height56.25 in.
Shipping Length32.13 in.
Shipping Weight320 lbs.
Total of Shipping Weight320 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement24.13 ft³
Dimensional Weight300.03 lbs.
Total of Cubes24.13 ft³
Total of Dimensional Weight300.03 lbs.

Oven Cavity Details

Bake Element Power2,800 W Both
Broiler Element Power4,000 W Both
Broiler LocationTop of Oven
Convection Element TypeTrue
Convection FunctionsBake Broil Roast Both
Door Broil PositionClosed
Door LockYes
Door RemovableYes
Hidden Bake ElementYes
Installable Under CooktopNo
Interior CoatingPorcelain
Interior ColorBlue
Light TypeHalogen
Lower Oven Number of Oven Lights2
Number of Bake Elements1
Number of Broil Elements1
Number of Lower Oven Racks3
Number of Lower Rack Guides6
Number of Upper Oven Racks3
Number of Upper Rack Guides6
Oven Cleaning TypeAdjustable Self Cleaning
Oven Cooking SystemConvection Both
Self-Cleaning Oven RacksNo
Temperature ConversionYes
Upper Oven Number of Oven Lights2
Convection Element Power3,200 w
Lower Oven Capacity5 cu. ft.
Upper Oven Capacity5 cu. ft.

Exterior Details

Door LockYes
Door TypeMetal & Glass
Handle ColorStainless Steel
Handle MaterialMetal
Oven Window SizeExtra Large

Dimensions

Capacity10 cu. ft.
Common Size30 in
Cutout Depth24 in
Cutout Height50-1/4 in
Cutout Width28-1/2 in
Depth27-1/8 in
Depth Closed Excluding Handles24-1/2 in
Depth With Door Open 90 Degree46-3/4 in
Height51-1/4 in
Lower Oven Interior Depth19 in
Lower Oven Interior Height18 in
Lower Oven Interior Width25 in
Upper Oven Interior Depth19 in
Upper Oven Interior Height18 in
Upper Oven Interior Width25 in
Width30 in
Gross Weight296 lbs
Net Weight291 lbs
