KitchenAid 30" Double Wall Oven with Even-Heat Thermal Bake/Broil
Model: KODT100ESS
Color : Stainless Steel
Key Features
Even-Heat Ovens with Thermal Bake/Broil (both ovens)
5.0 Cu. Ft. Capacity (each oven)
Even-Heat Preheat
Glass-Touch Display with Control Lock Function
FIT System Guarantee
Self Cleaning Cycle
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Even-Heat Ovens with Thermal Bake/Broil (both ovens)
Delivers balanced baking and roasting by cycling the bake and broil elements to maintain temperatures. Even-Heat Preheat ensures the entire oven reaches the correct temperature to help remove cold spots.
5.0 Cu. Ft. Capacity (each oven)
Provides an extra-large cooking capacity that’s unsurpassed among 30" wall ovens and is perfect for large turkeys and roasts. It can even make multiple dishes at once.
Even-Heat Preheat
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.

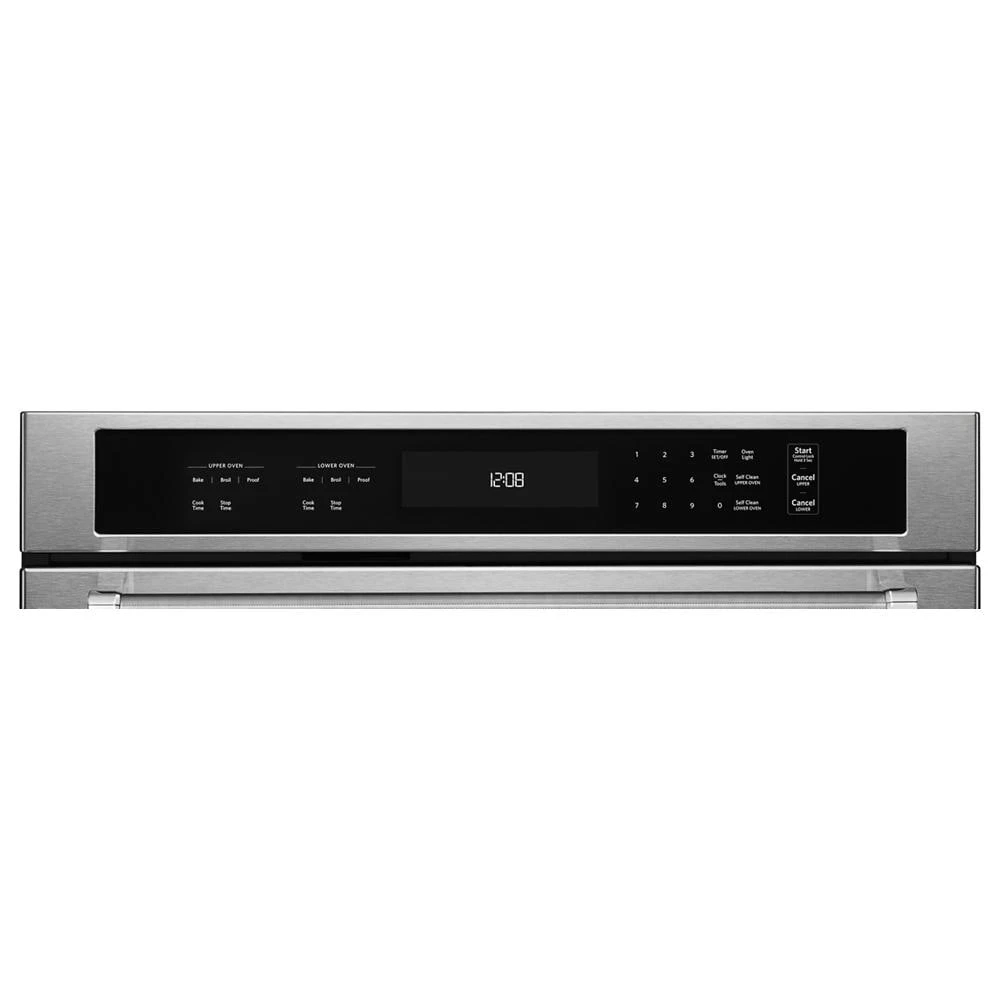

Glass-Touch Display with Control Lock Function
Gives an intuitive glass touch screen experience that’s easy to wipe clean.
FIT System Guarantee
Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Specifications
Description
| Fuel Type | Electric |
| Oven Type | Double |
| Size (in.) | 30 |
Exterior
| Door Lock | Yes |
| Door Removable | Yes |
| Door Type | Metal & Glass |
| Flush Installation Approved | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Oven Window Size | Extra Large |
Controls
| Control Type | Touch Screen |
| Display Color | White |
| Electronic Display Type | Digital |
Features
| Language Conversion | English/French |
| LP Convertible | No |
| Oven Selections | Clock, Control Lock, Delay Start, Proofing, Sabbath Mode, Star K, Time Bake, Timer |
| Temperature Conversion | Yes |
Details
| Oven Automatic Shut-Off | Yes |
| Bake Element Power | 2, 800 W Both |
| Hidden Bake Element | Yes |
| Number of Bake Elements | 1 |
| Broiler Element Power | 4, 000 W Both |
| Broiler Location | Top of Oven |
| Door Broil Position | Closed |
| Number of Broil Elements | 1 |
| Interior Coating | Porcelain |
| Interior Color | Blue |
| Light Control | Oven Light Touch Pad |
| Light Type | Halogen |
| Lower Oven Number of Oven Lights | 2 |
| Upper Oven Number of Oven Lights | 2 |
| Number of Lower Oven Racks | 2 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 2 |
| Number of Upper Rack Guides | 6 |
| Oven Rack 1 Type | Standard |
| Oven Rack 2 Type | Standard |
| Lower Oven Interior Depth(IN,inches) | 19.000 |
| Lower Oven Interior Height(IN,inches) | 18 |
| Lower Oven Interior Width(IN,inches) | 25.000 |
| Upper Oven Interior Depth(IN,inches) | 19.0000 |
| Upper Oven Interior Height(IN,inches) | 18 |
| Upper Oven Interior Width(IN,inches) | 25.0000 |
| Delay Clean | Yes |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Self-Cleaning Oven Racks | No |
| Oven Cooking System | Thermal Both |
| Style | Wall Ovens |
Certifications
| Kosher Consumer Friendly | Yes |
| CUL | Yes |
| Prop 65 | Standard |
| UL | Yes |
| Energy Rating (kWh/year) | 338 |
Specifications
| Width Doors Open 90 Degrees | 46.750 |
| Accessory Relationships | Yes |
| Even-Heat Thermal Bake/Broil | Even-Heat Thermal Bake/Broil |
| Even-Heat™ Preheat | Even-Heat™ Preheat |
| FIT System | FIT System |
| Self Clean | Self Clean |
Electrical
| Amps | 40 |
| Power Cord Included | No |
| Volts | 240 |
Configuration
| Oven Configuration | Double Oven |
Other
| Capacity(FT3,cubic feet) | 10.00 |
| Lower Oven Capacity (Cu Ft.) | 5.0 |
Dimensions & Weight
| Width | 30 in. |
| Height | 51.25 in. |
| Length | 26.88 in. |
| Weight | 280 lbs. |
| Carton Depth | 30 13/16 |
| Carton Height | 53 1/2 |
| Carton Width | 34 13/16 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 50 1/4 |
| Cutout Width (in) | 28 1/2 |
| Depth With Door Open 90 Degree | 46 3/4 |
| Gross Weight | 280 |
| Net Weight | 256.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 50.2500 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth With Door Open 90 Degree(IN,inches) | 46 3/4 |
| Net Weight(LB,pounds) | 256 |
| Carton Depth(IN,inches) | 30.8125 |
| Carton Height(IN,inches) | 53 1/2 |
| Carton Width(IN,inches) | 34.8125 |
| Cutout Height Min(IN,inches) | 50 1/4 |
| Gross Weight(LB,pounds) | 280 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 56.25 in. |
| Shipping Length | 31.88 in. |
| Shipping Weight | 320 lbs. |
| Total of Shipping Weight | 320 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.91 ft³ |
| Dimensional Weight | 297.27 lbs. |
| Total of Cubes | 23.91 ft³ |
| Total of Dimensional Weight | 297.27 lbs. |
