30" Built-In Single Wall Oven - JTP30DPBB
30" Built-In Single Wall Oven
Model: JTP30DPBB
Product Video
30" Built-In Single Wall Oven
Model: JTP30DPBB
Color : Black
Replaced By
30" Smart Built-In Self-Clean Convection Single Wall Oven with No Preheat Air Fry
Model: JTS5000DVBB
$1,599.00
Was$2,649.00Save $1,050.00 (40%)
Key Features
Self-clean oven
4.4 cu. ft. oven capacity
Electronic oven controls
TrueTemp oven system
Hidden bake oven interior
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Cleans the oven cavity without the need for scrubbing
4.4 cu. ft. oven capacity
Enough room to cook an entire meal at once
Electronic oven controls
Electronic touch pads are easy to operate
TrueTemp oven system
Even heat distribution and maximum oven control
Hidden bake oven interior
Conceals the lower oven element to simplify cleaning
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |

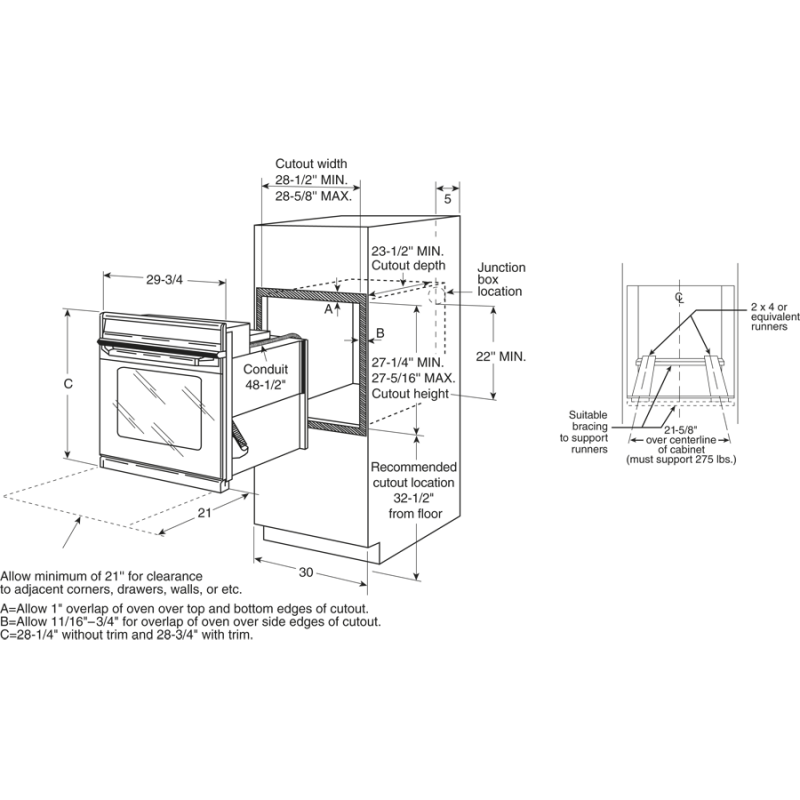

| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 27-1/4 x 23-1/2 |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 28.25 in. |
| Length | 23.5 in. |
| Weight | 100 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 33.25 in. |
| Shipping Length | 28.5 in. |
| Shipping Weight | 140 lbs. |
| Total of Shipping Weight | 140 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.43 ft³ |
| Dimensional Weight | 142.09 lbs. |
| Total of Cubes | 11.43 ft³ |
| Total of Dimensional Weight | 142.09 lbs. |
POWER / RATINGS
| Bake Wattage | 2100W |
| KW Rating at 240V | 3.8 |
| Amp Rating at 208V | 20 |
| Broiler Wattage | 3600W |
| Amp Rating at 240V | 20 |
| KW Rating at 208V | 3.4 |
FEATURES
| Oven Cooking Modes | Thermal Bake |
| Oven Interior | Hidden Bake |
| Cooking Technology | Traditional |
| Cleaning Time | Variable with Delay Clean Option |
| Configuration | Single Oven |
| Oven Rack Positions (Single or Upper/Lower) | 7 |
| Temperature Management System | True Temp System |
| Oven Rack Features | Embossed Rack Positions |
| Self-Clean Oven Door Lock | Automatic |
| Oven Cleaning Type | Self-Clean |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Delay Bake Option |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Light Self Clean Mode |
| Oven Control Features | Optional Clock Display |
| Oven Interior | Auto Oven Interior Light |
| Oven Rack Features | 2 Oven Racks |
APPEARANCE
| Frameless Oven Door(s) | Black Glass |
| Oven Door Features | Big Hearth Oven Window |
| Handle Color | Color-Matched |
| Color Appearance | Black |
| Handle Design | D-shaped |
| Installation | Under Cooktop |
| Installation | Undercounter |
| Installation | Above Warming Drawer |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Cabinet Width | 30 in |
| Net Weight | 100 lb |
| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 27-1/4 x 23-1/2 |
| Approximate Shipping Weight | 117 lb |
| Overall Depth | 23 1/2 in |
| Overall Height | 28 1/4 in |
| Overall Width | 29 3/4 in |
CAPACITY
| Total Capacity (cubic feet) | 4.40 cu ft |
