GE 30" Built-In Single Wall Oven
Model: JTS10DPBB
Color : Black
Replaced By
30" Smart Built-In Self-Clean Convection Single Wall Oven with No Preheat Air Fry
Model: JTS5000DVBB
$1,599.00
Was$2,649.00Save $1,050.00 (40%)
Key Features
Standard clean oven
4.4 cu. ft. oven capacity
Electronic oven controls
Interior oven light
Hidden bake oven interior
Heavy-duty oven racks
Variable broil
Certified Sabbath mode
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Standard clean oven
Smooth surface makes cleaning by hand easier
4.4 cu. ft. oven capacity
Enough room to cook an entire meal at once
Electronic oven controls
Electronic touch pads are easy to operate
Interior oven light
Illuminates the oven interior
Hidden bake oven interior
Conceals the lower oven element to simplify cleaning
Heavy-duty oven racks
Thicker racks offer additional strength
Variable broil
Broil settings provide added flexibility
Certified Sabbath mode
Prepared foods can stay warm in accordance with kosher restrictions
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
Dimensions & Weight
| Width | 29.75 in. |
| Height | 28.25 in. |
| Length | 23.5 in. |
| Weight | 98 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 33.25 in. |
| Shipping Length | 28.5 in. |
| Shipping Weight | 138 lbs. |
| Total of Shipping Weight | 138 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.43 ft³ |
| Dimensional Weight | 142.09 lbs. |
| Total of Cubes | 11.43 ft³ |
| Total of Dimensional Weight | 142.09 lbs. |
POWER / RATINGS
| Bake Wattage | 2100W |
| KW Rating at 240V | 3.8 |
| Amp Rating at 208V | 20 |
| Broiler Wattage | 3600W |
| Amp Rating at 240V | 20 |
| KW Rating at 208V | 1.8 |
FEATURES
| Oven Cooking Modes | Thermal Bake |
| Oven Interior | Oven Interior Light (switch) |
| Cooking Technology | Traditional |
| Configuration | Single Oven |
| Oven Rack Positions (Single or Upper/Lower) | 7 |
| Temperature Management System | True Temp System |
| Oven Rack Features | Embossed Rack Positions |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Electronic Oven Controls |
| Oven Cleaning Type | Standard Clean |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Delay Bake Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Optional Clock Display |
| Oven Interior | Hidden Bake |
| Oven Rack Features | 2 Heavy-Duty Oven Racks |
APPEARANCE
| Frameless Oven Door(s) | Black Glass |
| Oven Door Features | Hearth Oven Window |
| Handle Color | Color-Matched |
| Color Appearance | Black |
| Handle Design | D-shaped |
| Installation | Under Cooktop |
| Installation | Undercounter |
| Installation | Above Warming Drawer |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17-1/2 x 18-1/4 |
| Cabinet Width | 30 in |
| Net Weight | 98 lb |

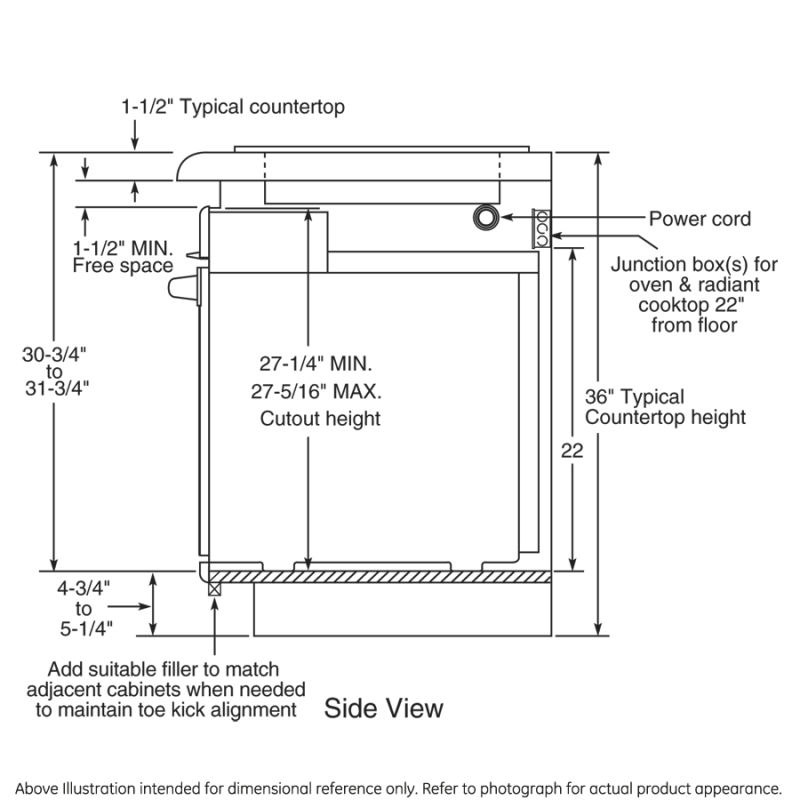

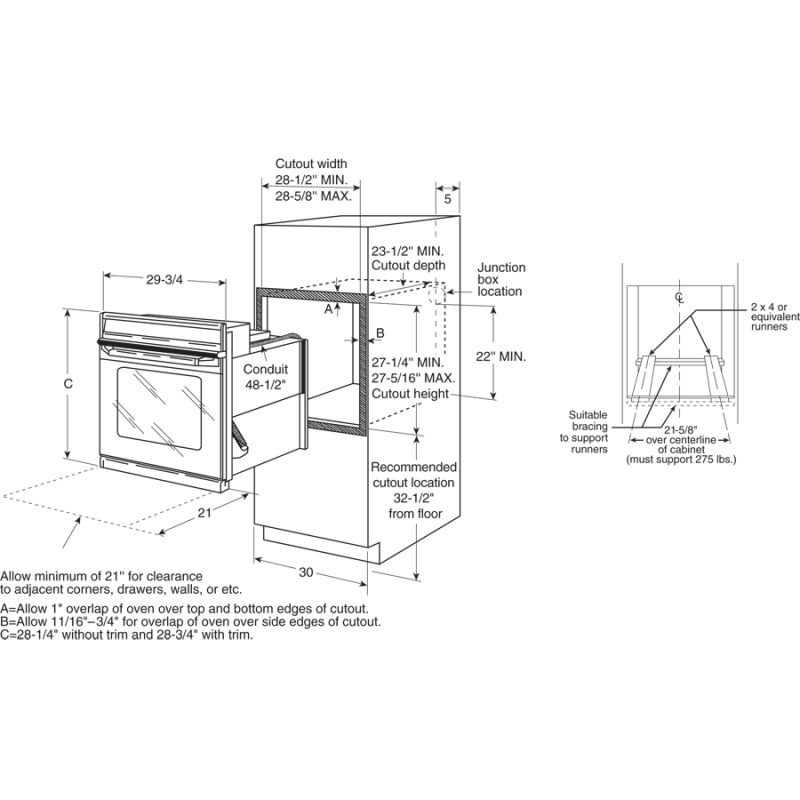

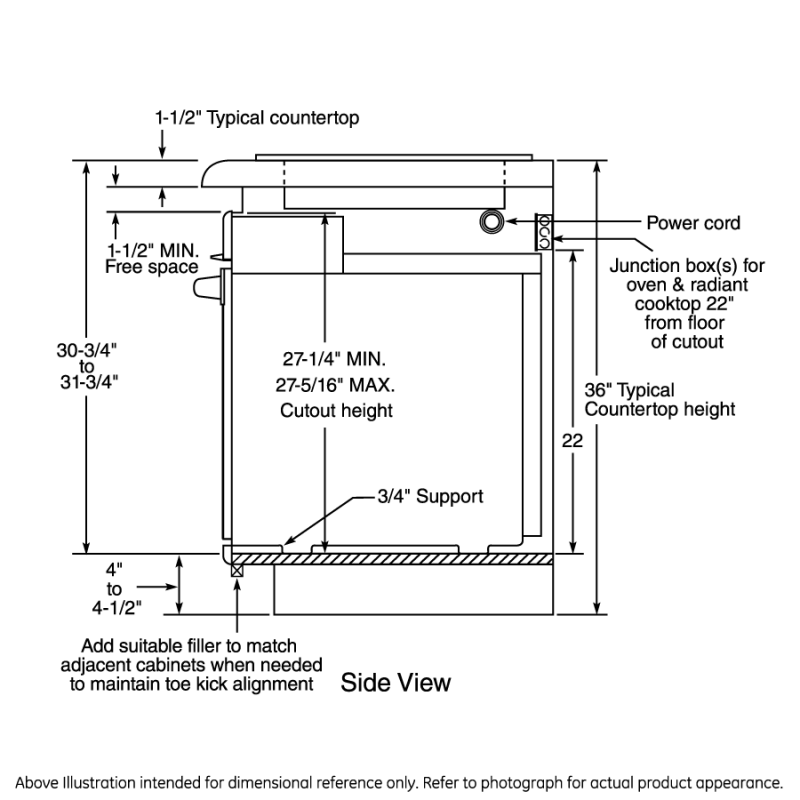

| Cutout Dimensions (w x h x d) (in.) | 28-1/2 x 27-1/4 x 23-1/2 |
| Approximate Shipping Weight | 115 lb |
| Overall Depth | 23 1/2 in |
| Overall Height | 28 1/4 in |
| Overall Width | 29 3/4 in |
CAPACITY
| Total Capacity (cubic feet) | 4.40 cu ft |
