KitchenAid 27" Single Wall Ovens with Air Fry Mode
Model: KOES527PSS






















Key Features
4,000-Watt Broil Element
Air Fry Mode
Dishwasher-Safe Air Fry Basket
EasyConvect™ Conversion System
Even-Heat™ Preheat
Even-Heat™ True Convection
FIT System Limited Guarantee
Integrated Meat Thermometer
Description
*When compared to deep frying.
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
4,000-Watt Broil Element
Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
Air Fry Mode
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.
Dishwasher-Safe Air Fry Basket
Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
EasyConvect™ Conversion System
Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
Even-Heat™ Preheat
Raises the oven temperature an extra 40°F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.
Even-Heat™ True Convection
Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
FIT System Limited Guarantee
Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.**On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions.

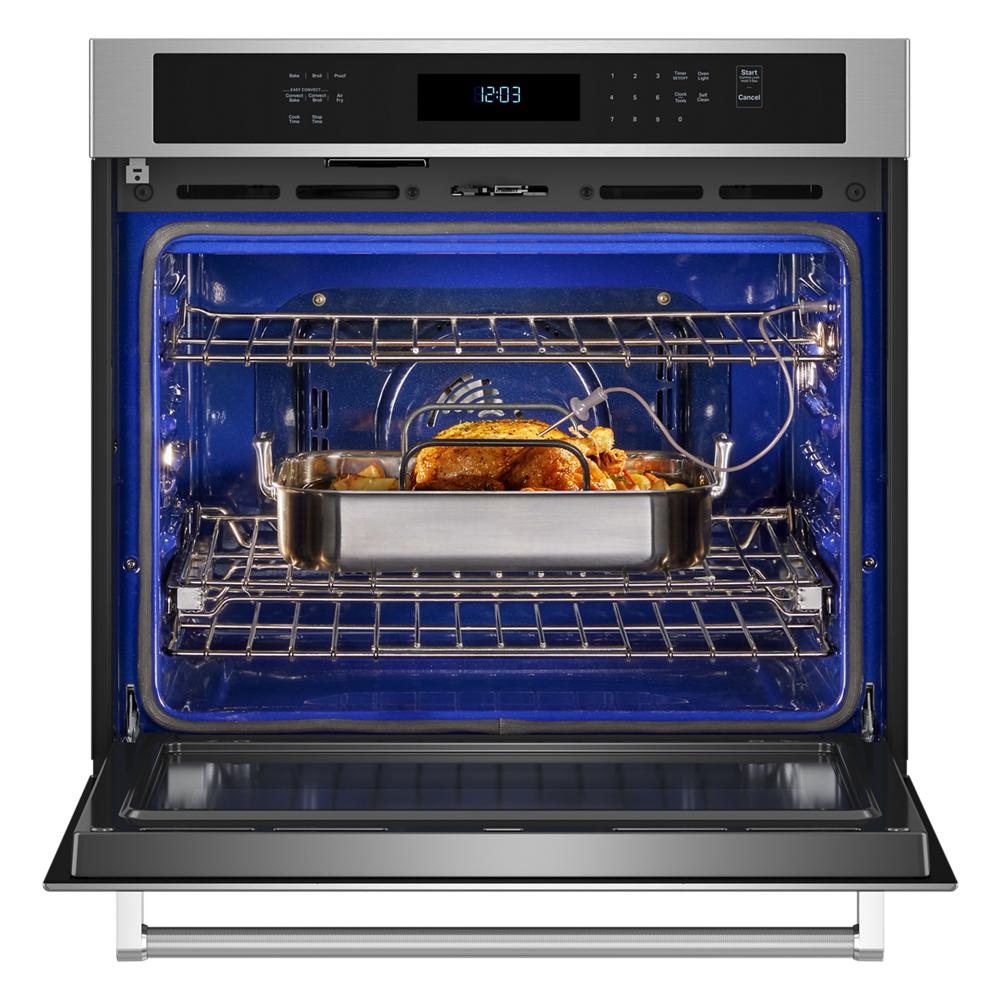

Integrated Meat Thermometer
Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

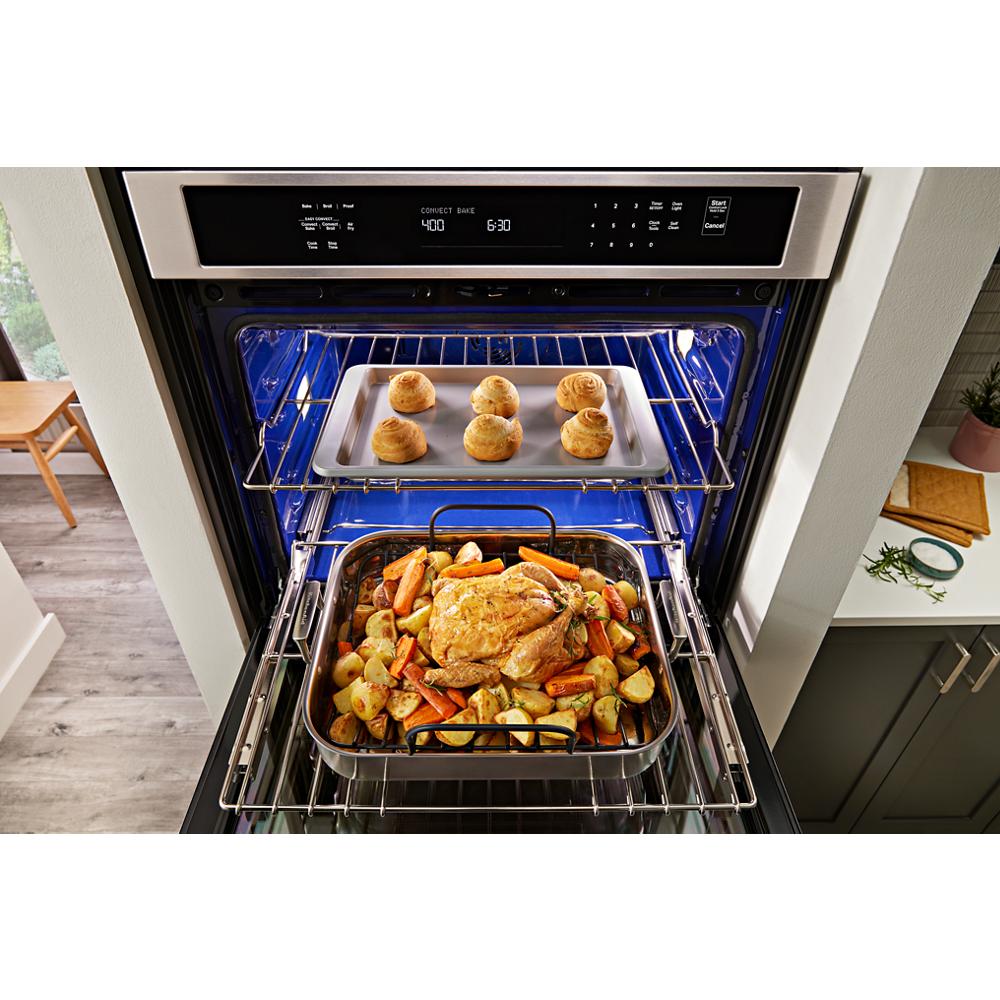

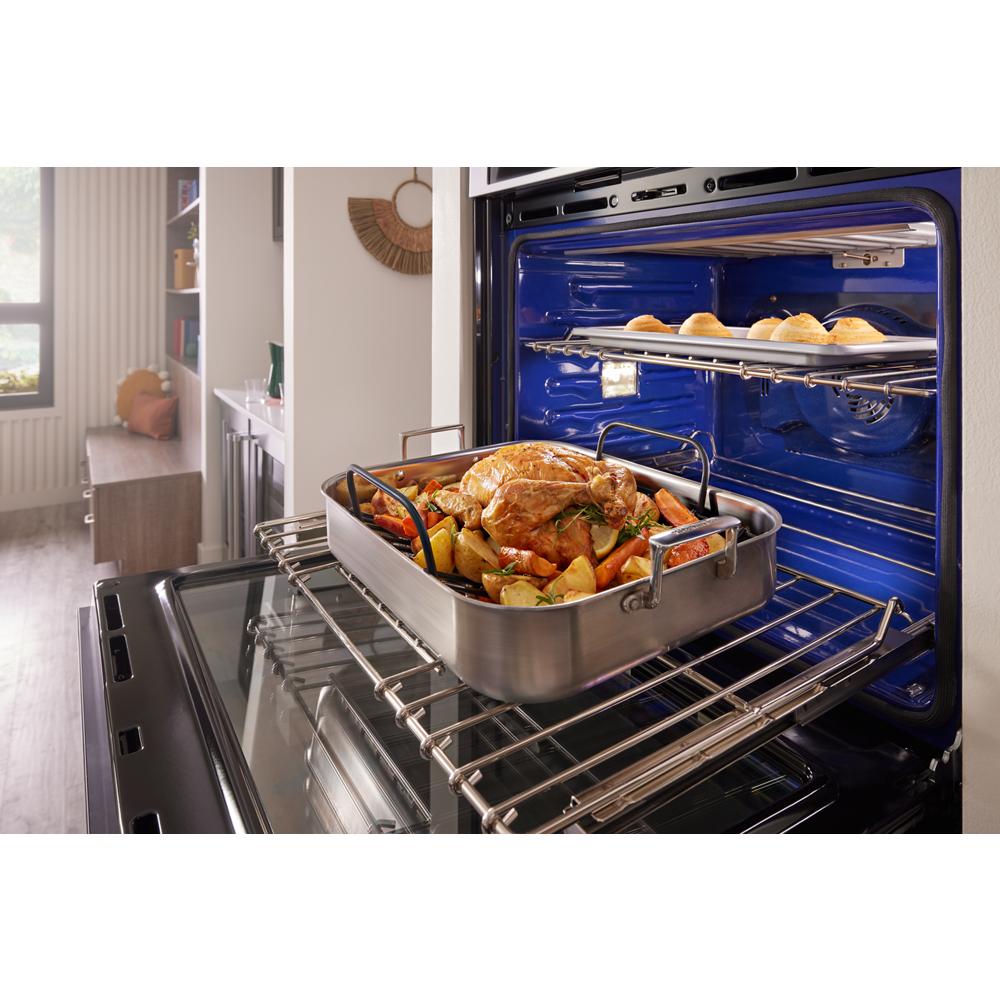

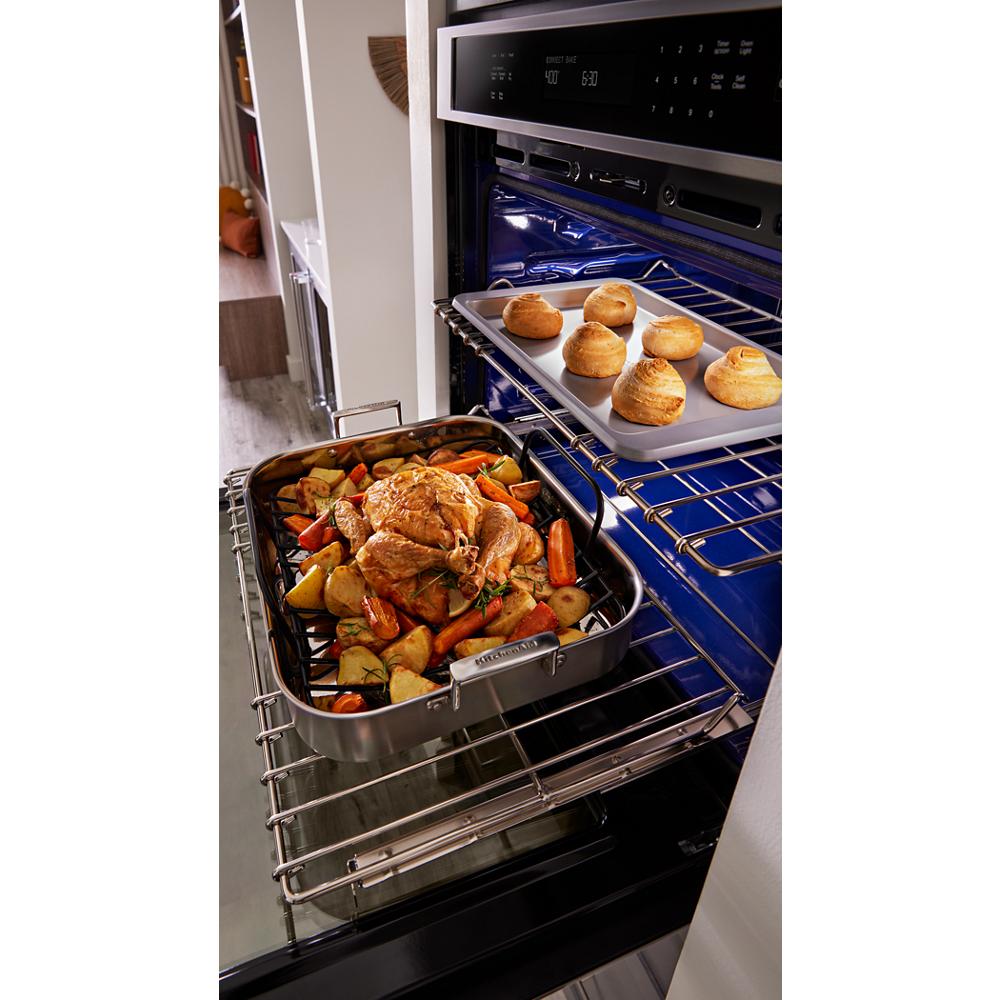

SatinGlide™ Roll-Out Extension Rack
features a roll-out extension rack and ball-bearing rollers with an easy-grip handle for effortless loading and unloading of large or heavy dishes.
Self-Cleaning Cycle
Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
Self-Close Door
Features specialized hinges that make it easy to shut the oven when your hands are full. Just give the door a nudge, and it will gently close itself.
Star-K Certified
To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
What's in the box
Single Wall Oven includes a Dishwasher-Safe Air Fry Basket and an Integrated Meat Thermometer
Specifications

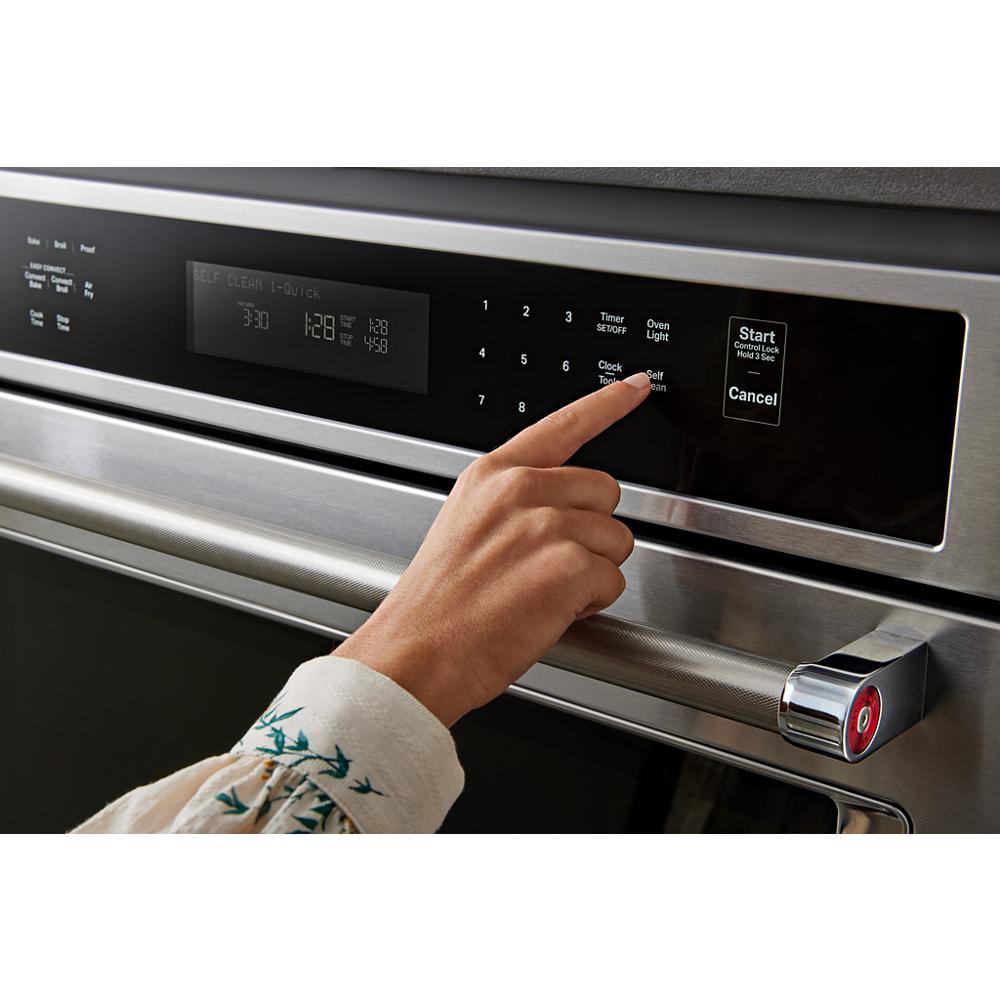

Controls
| Control Type | Electronic Touch |
| Display Color | White |
| Electronic Display Type | Digital |
Features
| Selection | Air Fry, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Delay Start, Keep Warm/Warm Hold, Language Conversion, Proofing, Rapid Preheat, Sabbath Mode, Start |
Details
| Oven Automatic Shut-Off | Yes |
| Light Control | Oven Light Touch Pad |
| Delay Clean | No |
| Air Fry | Yes |
| Cooktop Combinations | KCES550; KCES556; KCES950; KCES956; KCGS350; KCGS356; KCGS550; KCGS556; KCGS950; KCGS956; KCIG550; KCIG556; KECC604; KECC607; KECC664; KECC667; KGCC506; KGCC566; KICU509; KICU569 |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Type | Single |
| Power On Indicator Light | Yes |
Certifications
| CUL | Yes |
| UL | Yes |
| ADA Compliant | Yes |
| Energy Rating (kWh/year) | 333 |
| Star K Certified | Star K Certified |
| prop65 | Standard |
Electrical
| Power Cord Included | No |
Dimensions & Weight
| Width | 26.75 in. |
| Height | 28.75 in. |
| Length | 27.13 in. |
| Weight | 159 lbs. |
| Carton Depth | 30 13/16 |
| Carton Height | 30 3/4 |
| Carton Width | 31 1/2 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 28 |
| Cutout Width (in) | 25 1/2 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth Closed Including Handles | 27 1/8 |
| Depth With Door Open 90 Degree | 46 3/4 |
| Gross Weight | 159 |
| Net Weight | 143.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 28.0000 |
| Cutout Width(IN,inches) | 25.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth Closed Including Handles(IN,inches) | 27.1250 |
| Depth With Door Open 90 Degree(IN,inches) | 46.7500 |
| Maximum Height(IN,inches) | 28.7500 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 31.75 in. |
| Shipping Height | 33.75 in. |
| Shipping Length | 32.13 in. |
| Shipping Weight | 199 lbs. |
| Total of Shipping Weight | 199 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 12.07 ft³ |
| Dimensional Weight | 150.08 lbs. |
| Total of Cubes | 12.07 ft³ |
| Total of Dimensional Weight | 150.08 lbs. |
Dimensions
| Cutout Depth | 24 |
| Cutout Height | 28 |
| Cutout Width | 25.5 |
| Depth Closed Excluding Handles | 24.5 |
| Depth Closed Including Handles | 27.125 |
| Depth With Door Open 90 Degree | 46.75 |
| Oven Interior Depth | 19 |
| Oven Interior Height | 18 |
| Oven Interior Width | 22 |
| carton depth | 30.8 |
| carton height | 30.7 |
| carton width | 31.5 |
| gross weight | 159 |
| net weight | 143 |
Exterior Details
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
Microwave Details
| Language Conversion | English/French/Spanish |
Oven Details
| Bake Element Power | 2, 800 W |
| Broiler Element Power | 4, 000 W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3, 200 |
| Convection Element Type | True Convection |
| Convection Functions | Bake; Broil; Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Installable Under Oven | Yes |
| Interior Coating | Porcelain |
| Light Type | Halogen |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Self-Cleaning Oven Racks | No |
Smart Compatibility
| Connectivity | No |
| Works With | No |
