This product has been discontinued by the manufacture and is no longer available.
KitchenAid Kitchenaid® 30" Single Wall Ovens With Air Fry Mode
Model: KOES530PBS
+6more
Color : Black Stainless Steel with PrintShield™ Finish
$3,332.00
Key Features
Self-Cleaning Cycle
Description
Get the crisp you crave, right from your oven. KitchenAid® Single Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* An integrated thermometer takes the guesswork out of roasting meat just the way you like.
*When compared to deep frying.
Read More*When compared to deep frying.
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Specifications
Features
Self-Cleaning Cycle
Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
Specifications
Controls
| Control Type | Electronic Touch |
| Display Color | White |
| Electronic Display Type | Digital |
| Language Conversion | English/French/Spanish |
| Light Control | Oven Light Touch Pad |
Details
| Oven Automatic Shut-Off | Yes |
| Delay Clean | No |
| Flush Installation Approved | Yes |
| Fuel Type | Electric |
| LP Convertible | No |
| Oven Type | Single |
| Power On Indicator Light | Yes |
| Cooktop Combinations | KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KCIG550, KCIG556, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569 |
Certifications
| CUL | Yes |
| UL | Yes |
| ADA Compliant | Yes |
| Star K Certified | Star K Certified |
Electrical
| Amps | 20 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 240 |

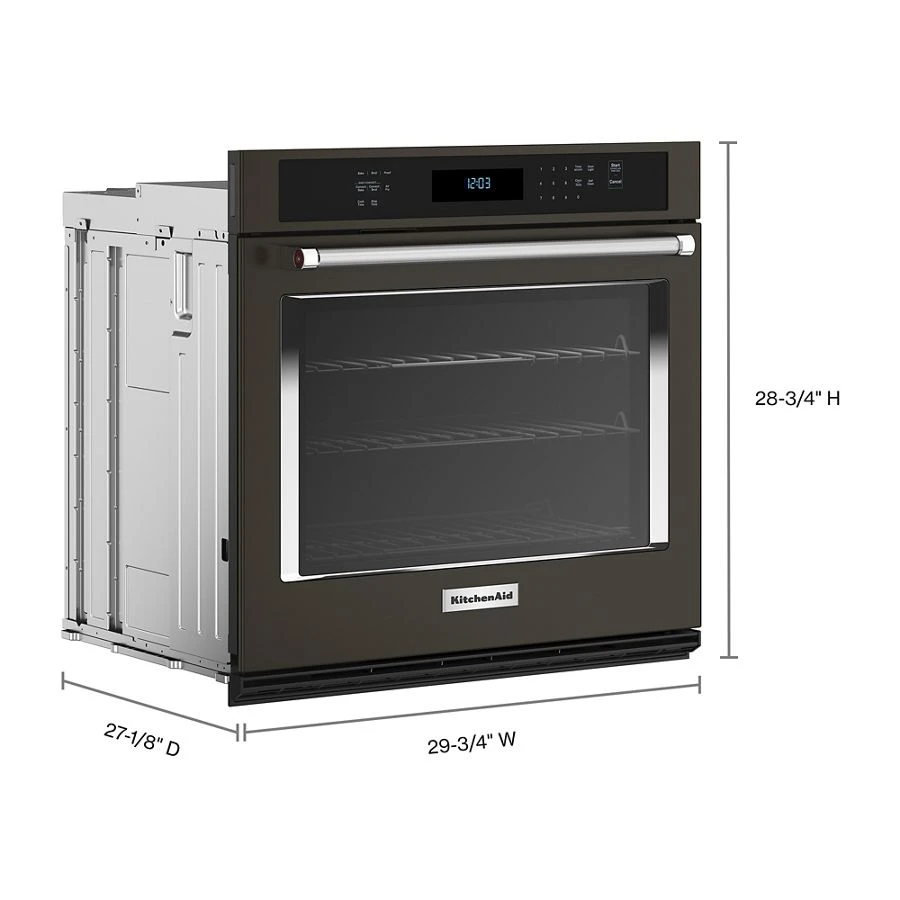

Dimensions & Weight
| Width | 29.75 in. |
| Height | 28.75 in. |
| Length | 27.13 in. |
| Weight | 167 lbs. |
| Carton Depth | 30 13/16 |
| Carton Height | 30 3/4 |
| Carton Width | 34 13/16 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 28 |
| Cutout Width (in) | 28 1/2 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth Closed Including Handles | 27 1/8 |
| Depth With Door Open 90 Degree | 46 3/4 |
| Gross Weight | 167 |
| Net Weight | 149.0 |
| Cutout Depth(IN,inches) | 24.0000 |
| Cutout Height(IN,inches) | 28.0000 |
| Cutout Width(IN,inches) | 28.5000 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth Closed Including Handles(IN,inches) | 27.1250 |
| Depth With Door Open 90 Degree(IN,inches) | 46.7500 |
| Maximum Height(IN,inches) | 28.7500 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 33.75 in. |
| Shipping Length | 32.13 in. |
| Shipping Weight | 207 lbs. |
| Total of Shipping Weight | 207 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.43 ft³ |
| Dimensional Weight | 166.91 lbs. |
| Total of Cubes | 13.43 ft³ |
| Total of Dimensional Weight | 166.91 lbs. |
Exterior Details
| Door Type | Metal & Glass |
| Oven Window Size | Extra Large |
| Door Lock | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
Oven Cavity Details
| Bake Element Power | 2,800 W |
| Broiler Element Power | 4,000 W |
| Broiler Location | Top of Oven |
| Convection Element Type | True Convection |
| Convection Functions | Bake, Broil, Convection Conversion |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Installable Under Cooktop | Yes |
| Installable Under Oven | Yes |
| Interior Coating | Porcelain |
| Interior Color | Blue |
| Light Type | Halogen |
| Number of Bake Elements | 2 |
| Number of Broil Elements | 1 |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 6 |
| Oven Cleaning Type | Self-Cleaning |
| Self-Cleaning Oven Racks | No |
| Convection Element Power | 3,200 w |
Smart Compatibility
| Connectivity | Amazon Alexa, Android, Google Assistant, iOS |
| Works With | App, Remote Access, Voice Controlled, WiFi |
Dimensions
| Capacity | 5 cu. ft. |
| Common Size | 30 in |
| Cutout Depth | 24 in |
| Cutout Height | 28 in |
| Gross Weight | 160 lbs, 160 lbs |
| Net Weight | 144 lbs, 144 lbs |
| Oven Interior Depth | 19 in |
| Oven Interior Height | 18 in |
| Oven Interior Width | 25 in |
| Cutout Width | 28.5 in |
| Depth | 27.125 in |
| Depth Closed Excluding Handles | 24.5 in |
| Depth Closed Including Handles | 27.125 in |
| Depth With Door Open 90 Degree | 46.75 in |
| Height | 28.75 in |
| Maximum Height | 28.75 in |
| Width | 29.75 in |
