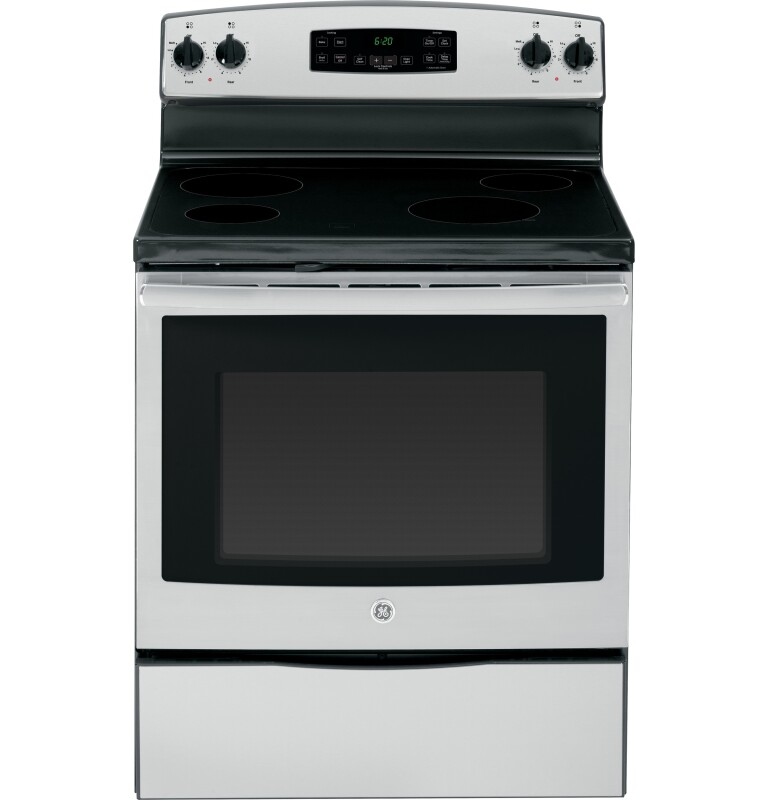

GE 30" Free-Standing Electric Range
Model: JB620RFSS
Color : Stainless Steel/Black
Key Features
8" Power Boil element
5.3 cu. ft. oven capacity
Ceramic glass cooktop
Self-clean oven
Removable full-width storage drawer
Dual-element Bake
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

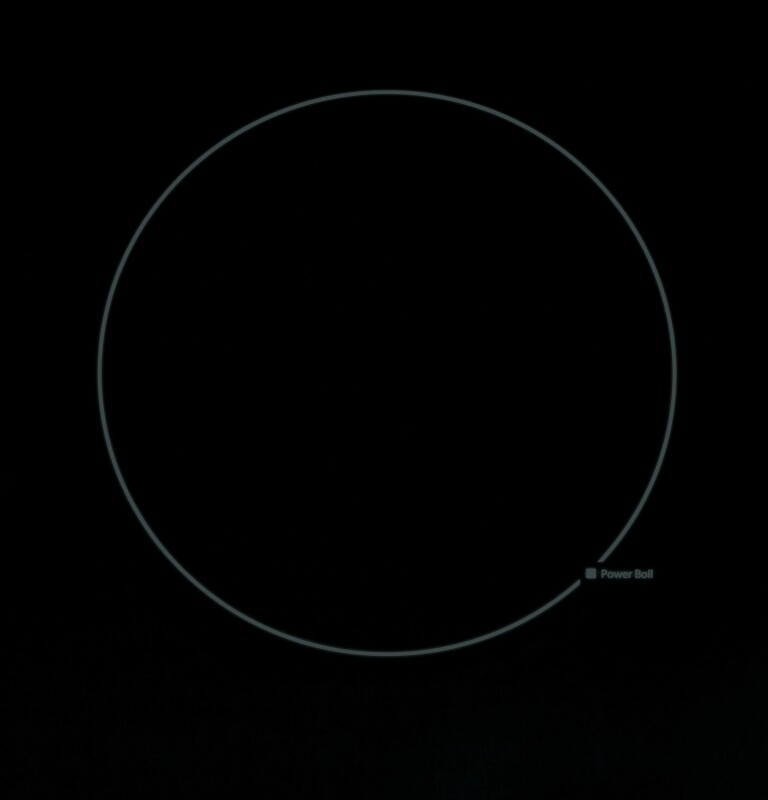

8" Power Boil element
2,500 Watts produce quick, vigorous heat

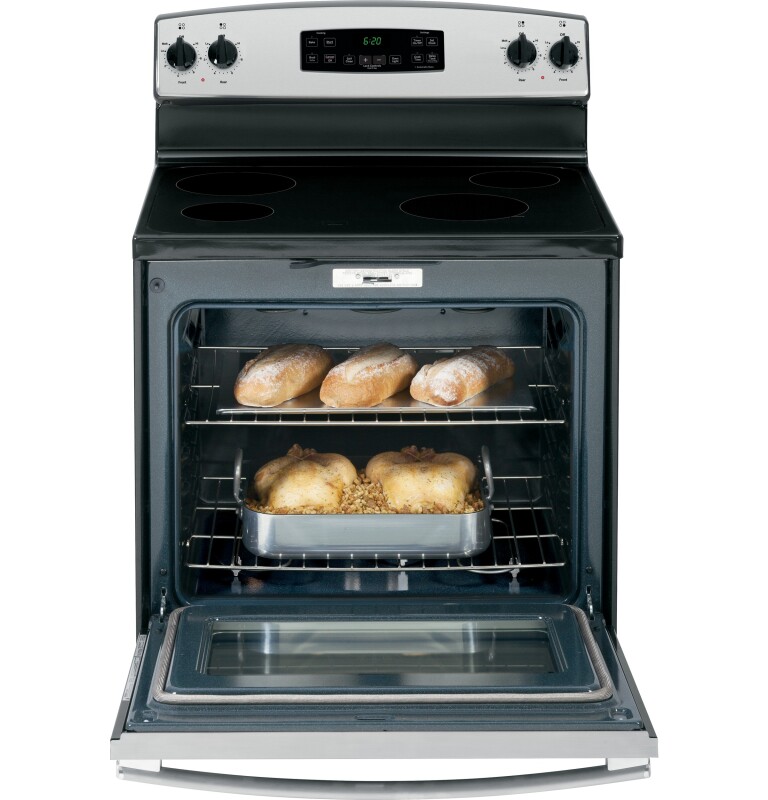

5.3 cu. ft. oven capacity
Enough room to cook an entire meal at once

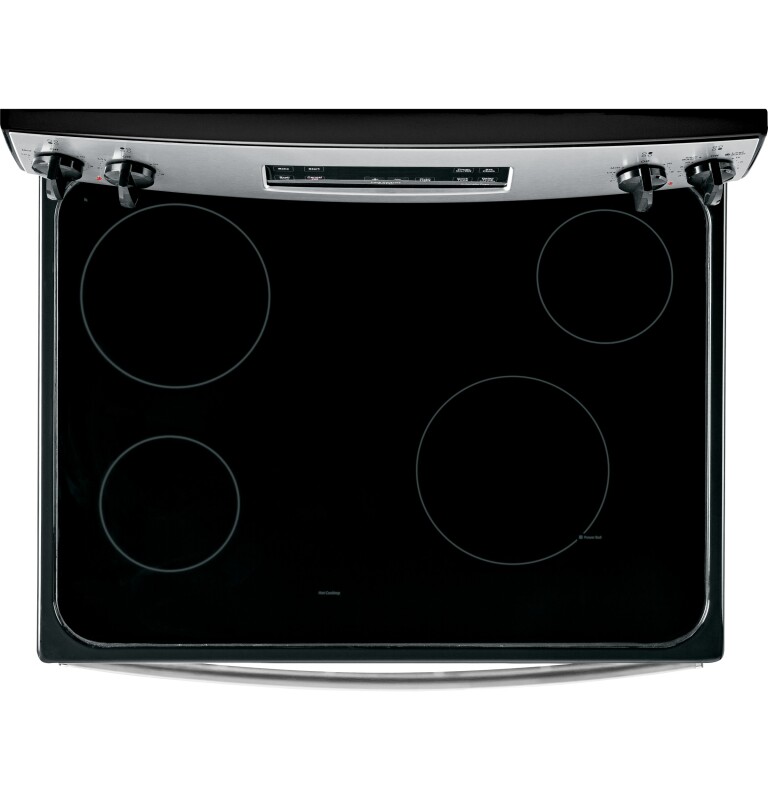

Ceramic glass cooktop
Smooth cooktop easily wipes clean
Self-clean oven
Cleans the oven cavity without the need for scrubbing

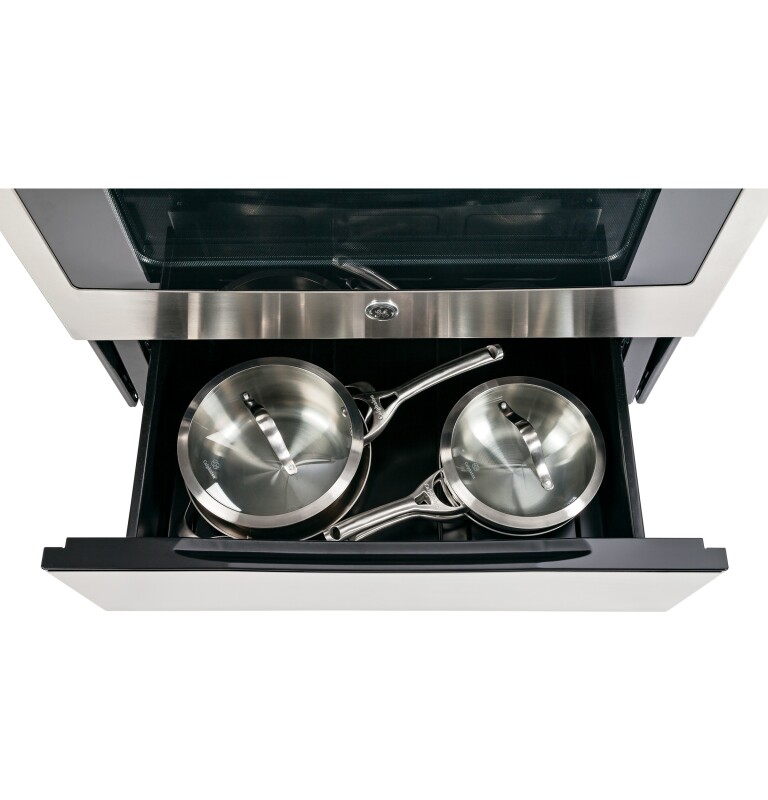

Removable full-width storage drawer
Store cookware or kitchen accessories
Dual-element Bake
Upper and lower elements produce even heat and great results
Certifications
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
APPEARANCE
| Oven Door Features | Big View Oven Window |
| Oven Door Features | Glass Door |
| Oven Door Features | Stainless Overlay |
| Handle | Designer Style |
| Handle | Stainless Steel |
| Control Knobs | Gloss Black |
| Textured Steel Side Panels | Yes |
| Color Appearance | Stainless Steel/Black |
POWER / RATINGS
| KW Rating at 240V | 11.3 |
| KW Rating at 208V | 8.5 |
| Amp Rating at 208V | 40 |
| Bake Wattage | 3410W |
| Amp Rating at 240V | 40 |
| Broiler Wattage | 3800W |
FEATURES

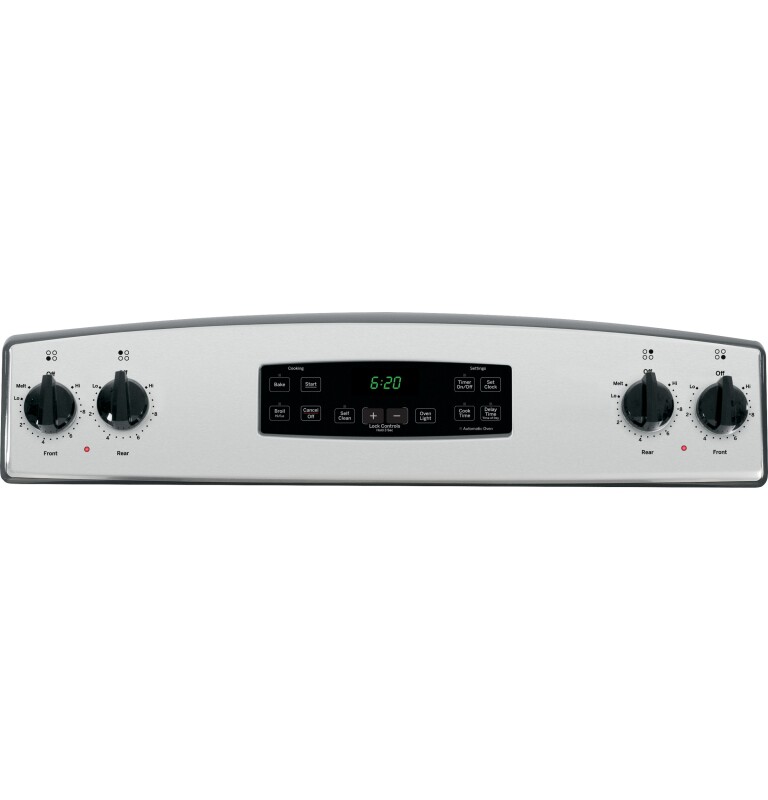

| Control Location | Backsplash |

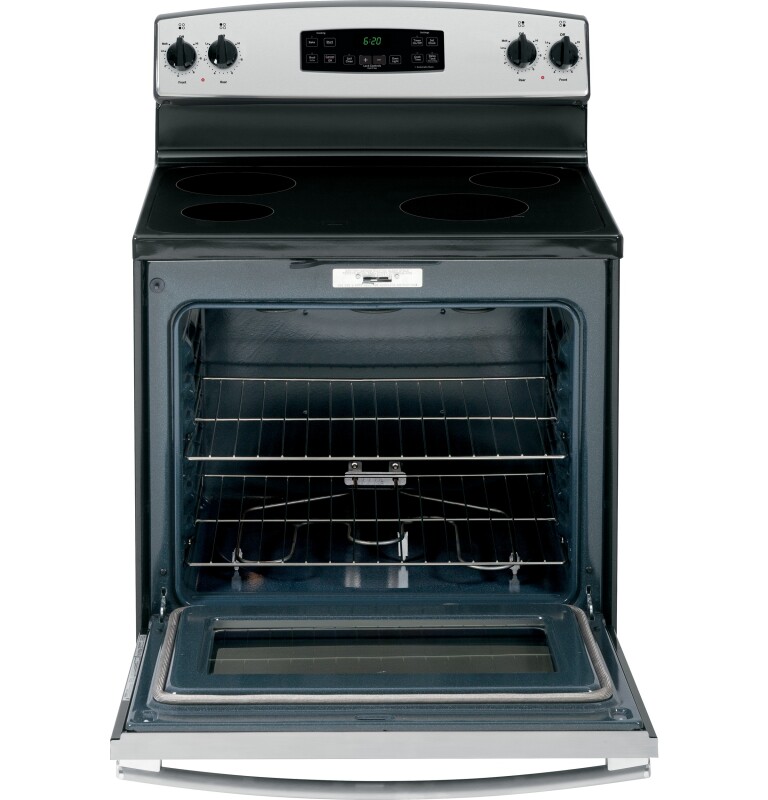

| Oven Rack Features | 2 Oven Racks |
| Element - Right Front | 8" 2500W Power Boil |
| Cooking System | Traditional |
| Cooktop Surface | Black Ceramic Glass |
| Cooktop Surface | One-Piece Upswept |
| Hot Surface Indicator Lights | 1 |
| Control Type | Digital Temperature Display |
| Control Type | Electronic |
| Control Type | Touchpads |
| Oven Cleaning Type | Self-Clean |
| Element - Right Rear | 6" 1200W |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Self-Cleaning Cycling Light |
| Interior Oven Light | 1 Incandescent |
| Configuration | Range with Storage Drawer |
| Heating Element "ON" Indicator Light | 2 |
| Cooking Technology | Traditional |
| Oven Features | 6-Pass Bake Element |
| Oven Features | 6-Pass Broil Element |
| Melt Setting | Yes |
| Element - Left Front | 6" 1200W |
| Storage Drawer Features | Removable Full-Width |
| Element - Left Rear | 8" 2000W |
| Cooktop Burner Type | Radiant |
| Cooktop Burner Type | Smoothtop |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Hi / Low Broil |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Approximate Shipping Weight | 180 lb |
| Cabinet Width | 30 in |
| Net Weight | 159 lb |
| Overall Depth | 28 in |
| Overall Height | 47 in |
| Overall Width | 29 7/8 in |
| Depth Without Handle | 25.5 in |
| Depth with Door Open | 47.875 in |
| Height to Cooking Surface (in.) | 35.75 - 36.5 |
ACCESSORIES
| Cooktop Cleaning | Cream |
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 47 in. |
| Length | 28 in. |
| Weight | 159 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33 in. |
| Shipping Weight | 199 lbs. |
| Total of Shipping Weight | 199 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.75 ft³ |
| Dimensional Weight | 282.85 lbs. |
| Total of Cubes | 22.75 ft³ |
| Total of Dimensional Weight | 282.85 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.30 cu ft |
