GE 30" Free-Standing Electric Range
Model: JB650DNBB
Color : Black on Black
Replaced By
Key Features
Self-clean oven
Super-large oven capacity
TrueTemp oven system
Dual-size ribbon element
Warming zone (fifth element warming zone)
Big hearth window
QuickSet oven controls
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Super-large oven capacity
Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
TrueTemp oven system
This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire
Dual-size ribbon element
Two heating elements in one allows you to choose a heating area for your cookware
Warming zone (fifth element warming zone)
Simplify meals by keeping foods fresh from the oven warm and ready to serve
Big hearth window
Elegant shaped window makes it easy to monitor the progress of food
QuickSet oven controls
Electronic touch pads on the control panel make controlling your oven effortless
Certifications
California Prop 65
Specifications
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 154 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 194 lbs. |
| Total of Shipping Weight | 194 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Oven Features | Dual-Element Bake |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| 5"/8" Dual Heating Element | 1 Ribbon (2,400W Power Boil) |
| Warming Zone | 1 Ribbon (120W) |
| Oven Cooking Modes | Thermal Bake / Thermal Roast |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | 1 |
| Style | Smoothtop |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Patterned Black on Black Glass Ceramic |
| Preheated Oven Light | Display |
| Control Location | Backsplash |
| 8" Heating Element (s) | 2 Ribbon (2,000 watt) |
| Dishwasher Safe Knobs | Yes |
| 12" Heating Element | 1 Ribbon (2,700W) |
| Cooking Technology | Traditional |
| Control Type | QuickSet III |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Variable Broil |
| Control Type | Touchpads |
| Control Type | DigiTemp Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Mis-Wire Detection |

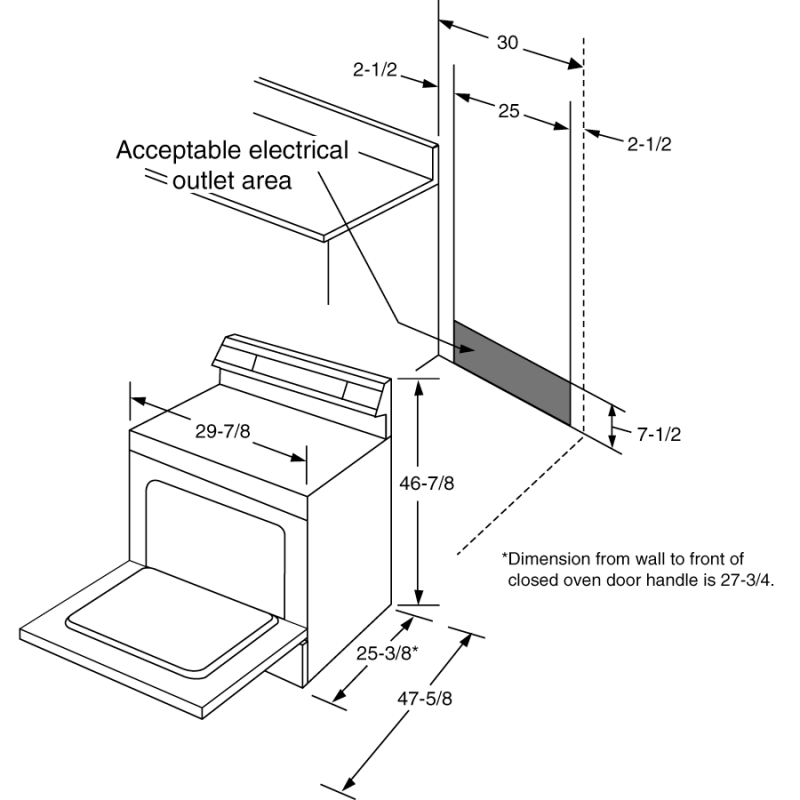

WEIGHTS & DIMENSIONS
| Net Weight | 154 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 175 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 10.5 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 7.9 |
| Amp Rating at 240V | 40 |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.30 cu ft |
APPEARANCE
| Handle | Color-Matched High-Gloss |
| Color Appearance | Black on Black |
| Oven Door Features | Black Frameless Glass Door |
| Oven Door Features | Frameless Lift-off Oven Door |
| Oven Door Features | Big Hearth Oven Window |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
