GE 30" Free-Standing Electric Range with Warming Drawer
Model: JB705TTCC
Product Video
Color : Bisque
Key Features
True European Convection with Precise Air
Self-clean with Steam Clean option
12"/9"/6" tri-ring element
9"/6" Power Boil element
Self-clean, heavy-duty oven racks
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
True European Convection with Precise Air
Accurate heat circulation ensures evenly baked foods
Self-clean with Steam Clean option
Gives the option of self-cleaning or steam cleaning

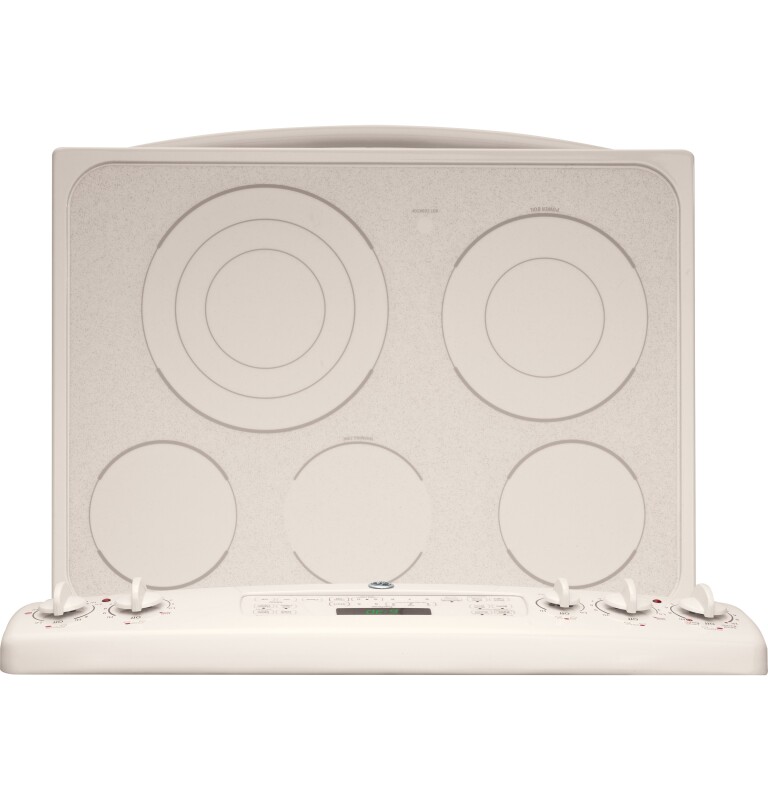

12"/9"/6" tri-ring element
Three heating elements in one offer flexibility
9"/6" Power Boil element
Produces rapid, powerful heat
Self-clean, heavy-duty oven racks
Can stay in the oven during the self-clean cycle
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 160 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 200 lbs. |
| Total of Shipping Weight | 200 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| 6"/9" Dual Heating Element | 1 Ribbon (3,000W Power Boil) |
| Configuration | Range with Warming Drawer |
| Oven Features | Dual-Element Bake |
| Cooking System | True European Convection with Precise Air |
| Cleaning Time | Variable with Delay Clean Option |
| Melt Setting | Yes |
| Oven Interior | Interior Oven Light |
| Warming Zone | 1-6" Ribbon (120W) |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 3 Self-Clean Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Hot Surface Indicator Lights | 1, Cooktop |
| 6"/9"/12" Tri-Ring Element | 1 Ribbon (3,000W) |
| Heating Element "ON" Indicator Light | 2 |
| Cooktop Surface | Patterned True Bisque Glass Ceramic |
| Control Location | Backsplash |
| Warming Drawer Features | Removable Liner |
| Dishwasher Safe Knobs | Yes |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Control Type | Touchpads |
| Self-Clean Oven Door Lock | Automatic |
| Cooking Technology | Convection |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Cooking Modes | Convection Roast |
| Oven Control Features | Variable Broil |
| Oven Cooking Modes | Thermal Bake / Thermal Roast |
| Control Type | DigiTemp Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Recipe Conversion |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Mis-Wire Detection |
| Oven Control Features | Oven Function Icons |
| Oven Control Features | Preheat Oven Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Cooking Modes | Convection Bake Multi/Single Rack |
| Oven Cooking Modes | Slow Cook |
| Oven Features | 6-Pass Broil Element |
| Oven Interior | Hidden Bake |

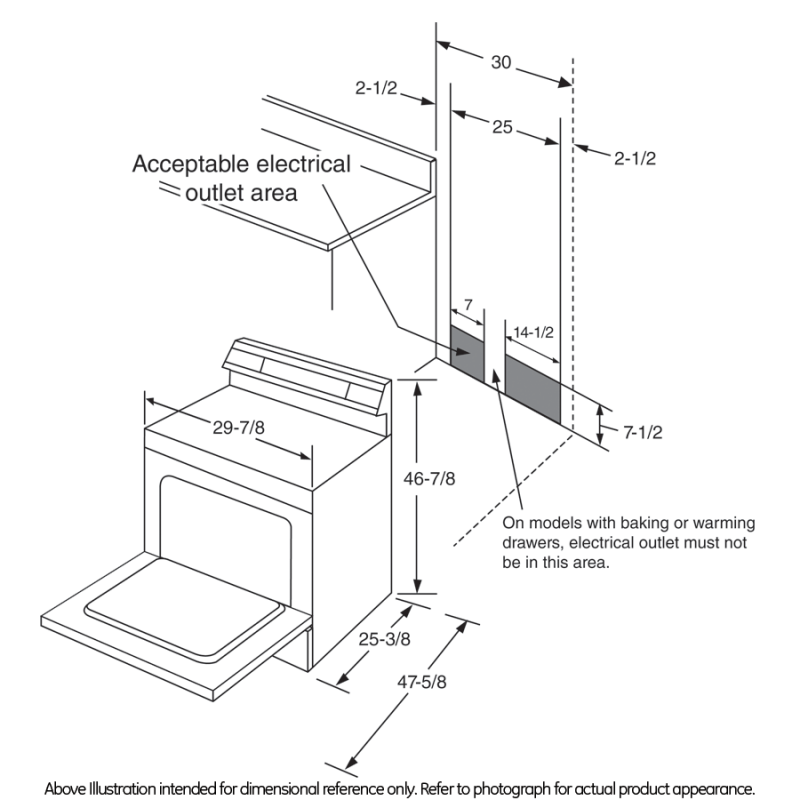

WEIGHTS & DIMENSIONS
| Net Weight | 160 lb |
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 180 lb |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 13.8 |
| Bake Wattage | 2850W |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3800W |
| KW Rating at 208V | 10.4 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Color Appearance | Bisque |
| Oven Door Features | Bisque Frameless Glass Door |
| Oven Door Features | Frameless Lift-off Oven Door |
| Oven Door Features | Big Hearth Oven Window |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
CAPACITY
| Total Capacity (cubic feet) | 5.30 cu ft |
