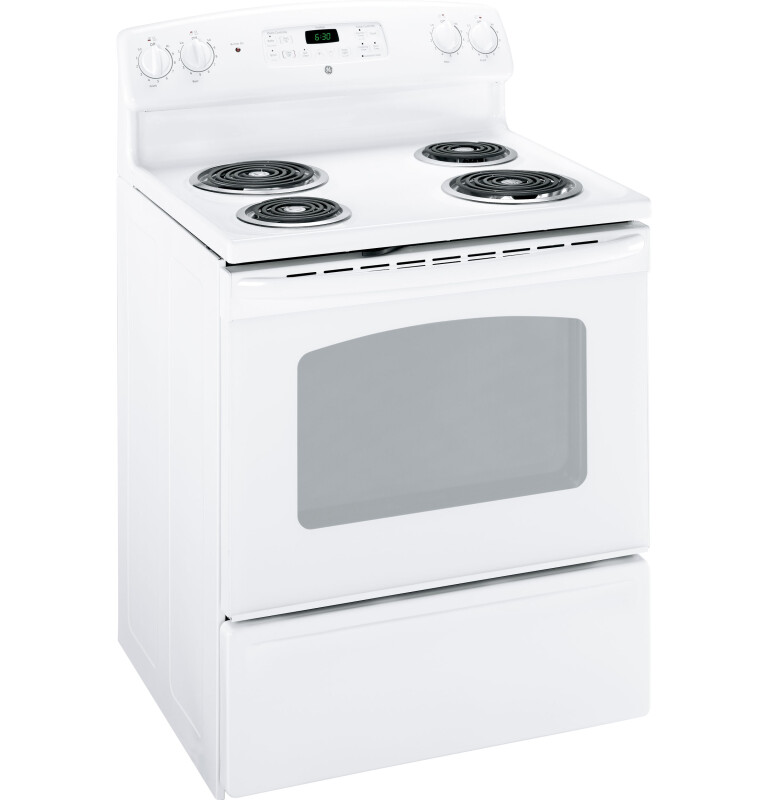

GE 30" Free-Standing Electric Range
Model: JBP27DMWW
Color : White on White
Key Features
Self-clean oven
Super-large oven capacity
TrueTemp oven system
QuickSet oven controls
Coil heating elements
Dual-element bake
Six rack positions
Chrome drip bowls
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Super-large oven capacity
Remarkably large oven interior is ideal for holidays, dinner parties and everyday family cooking
TrueTemp oven system
This feature helps ensure the temperature you set is the temperature you get, with less variance, to give you the baking and broiling performance you desire
QuickSet oven controls
Electronic touch pads on the control panel make controlling your oven effortless
Coil heating elements
Removable elements provide even heat and are easy to clean
Dual-element bake
This top-and-bottom heating produces uniform browning and fast oven preheating
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Chrome drip bowls
Spills are easily contained and quickly cleaned thanks to removable bowls
Big hearth window
Elegant shaped window makes it easy to monitor the progress of food
Certifications
California Prop 65
Specifications
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
APPEARANCE
| Oven Door Features | Big Hearth Oven Window |
| Oven Door Features | Frameless Lift-off Oven Door |
| Oven Door Features | White Frameless Glass Door |
| Handle | Color-Matched Sculptured |
| Textured Steel Side Panels | Yes |
| Color Appearance | White on White |
POWER / RATINGS
| KW Rating at 240V | 11.7 |
| KW Rating at 208V | 8.8 |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
FEATURES
| 8" Heating Element (s) | 2 Plug-In (2,600W) |
| Preheated Oven Light | Yes |
| Control Location | Backsplash |
| Oven Rack Features | 2 Oven Racks |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Lift-Up Cooktop With Support Rods | Yes |
| Control Type | DigiTemp Temperature Display |
| Control Type | QuickSet IV |
| Control Type | Touchpads |
| Cleaning Time | Variable with Delay Clean Option |
| Oven Cleaning Type | Self-Clean |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Delay Bake Option With Cook & Hold |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Mis-Wire Detection |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Variable Broil |
| Style | Coil |
| Interior Oven Light | Yes |
| Configuration | Range with Storage Drawer |
| Heating Element "ON" Indicator Light | Yes |
| Cooking Technology | Traditional |
| Oven Features | Dual-Element Bake |
| Temperature Management System | True Temp System |
| Removable One-Piece Drip Bowls | Chrome |
| Storage Drawer Features | Removable Full-Width |
| 6" Heating Element(s) | 2 Plug-In (1,500W) |
| Dishwasher Safe Knobs | Yes |
| Cooktop Burner Type | Coil |
| Infinite Heat Controls | Yes |
| Oven Control Features | Sabbath Mode |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Approximate Shipping Weight | 170 lb |
| Cabinet Width | 30 in |
| Net Weight | 149 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
| Depth Without Handle | 25.375 in |
| Depth with Door Open | 47.625 in |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 149 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 189 lbs. |
| Total of Shipping Weight | 189 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.27 ft³ |
| Dimensional Weight | 264.46 lbs. |
| Total of Cubes | 21.27 ft³ |
| Total of Dimensional Weight | 264.46 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
