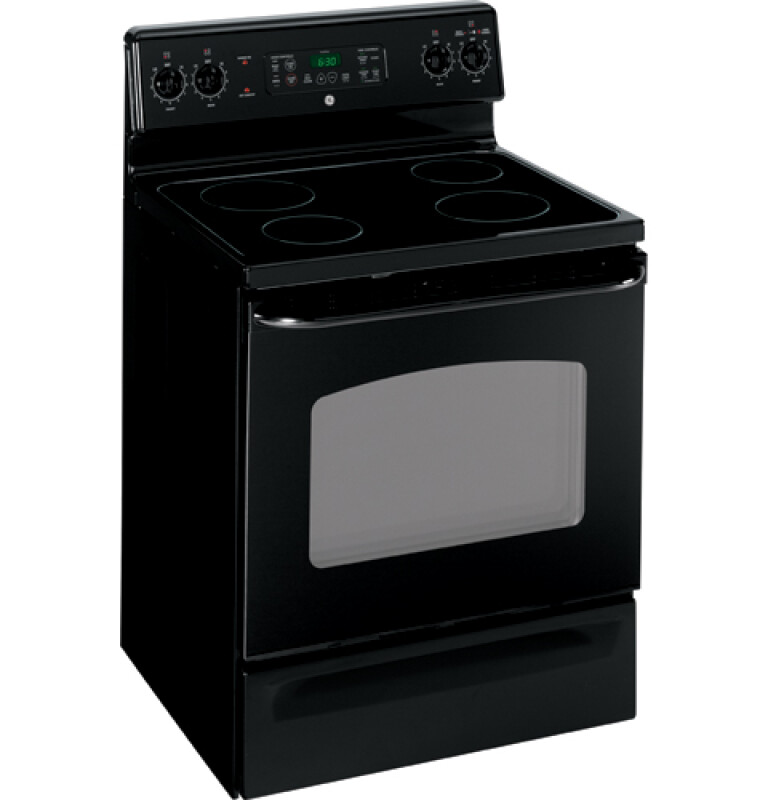

GE 30" Free-Standing Electric Range
Model: JBP66EKBB
Color : Black on Black
Replaced By
30" Free-Standing Self-Clean Electric Range
Model: JB256DMBB
$648.99
Was$829.00Save $180.01 (22%)
Key Features
Self-clean oven
Super-large 5.3 cu. ft. oven capacity
TrueTemp system
Dual size ribbon element
Dual-element bake
Ceramic glass cooktop
Six-pass bake element
Big hearth window
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Super-large 5.3 cu. ft. oven capacity
Provides an impressively large oven interior to cook more dishes and large meals at once
TrueTemp system
Delivers even heat distribution and maximum oven control
Dual size ribbon element
Offers a convenient choice of using a 9" or 6" heating element, depending on the size of the pan
Dual-element bake
Alternates the upper broiling element and the lower baking element for even heating and optimal baking results
Ceramic glass cooktop
A smooth cooktop surface makes cleaning quick and easy
Six-pass bake element
The powerful, continuous heating element loops throughout the oven, delivering evenly cooked foods
Big hearth window
Features an enhanced shape to add an elegant appearance and make viewing trouble-free
QuickSet IV oven controls
Feature an easy to use design which allows you to set precise cooking temperatures
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.88 in. |
| Length | 27.75 in. |
| Weight | 154 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 194 lbs. |
| Total of Shipping Weight | 194 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.49 ft³ |
| Dimensional Weight | 279.57 lbs. |
| Total of Cubes | 22.49 ft³ |
| Total of Dimensional Weight | 279.57 lbs. |
FEATURES
| 6"/9" Dual Heating Element | 1 Ribbon (2,500W) |
| Configuration | Range with Storage Drawer |
| Oven Features | Dual-Element Bake |
| Cleaning Time | Variable with Delay Clean Option |
| Storage Drawer Features | Removable Full-Width |
| Interior Oven Light | Yes |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 2 Ribbon (1,500W) |
| Oven Cleaning Type | Self-Clean |
| Hot Surface Indicator Lights | 1 |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Patterned Black on Black Glass Ceramic |
| Preheated Oven Light | Display |
| Control Location | Backsplash |
| 8" Heating Element (s) | 1 Ribbon (2,000 watt) |
| Dishwasher Safe Knobs | Yes |
| Cooking Technology | Traditional |
| Control Type | QuickSet IV |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Variable Broil |
| Control Type | Touchpads |
| Control Type | DigiTemp Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Mis-Wire Detection |
| Oven Features | 6-Pass Power Bake Element |
POWER / RATINGS
| KW Rating at 240V | 11.0 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 8.3 |
| Amp Rating at 240V | 40 |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.30 cu ft |

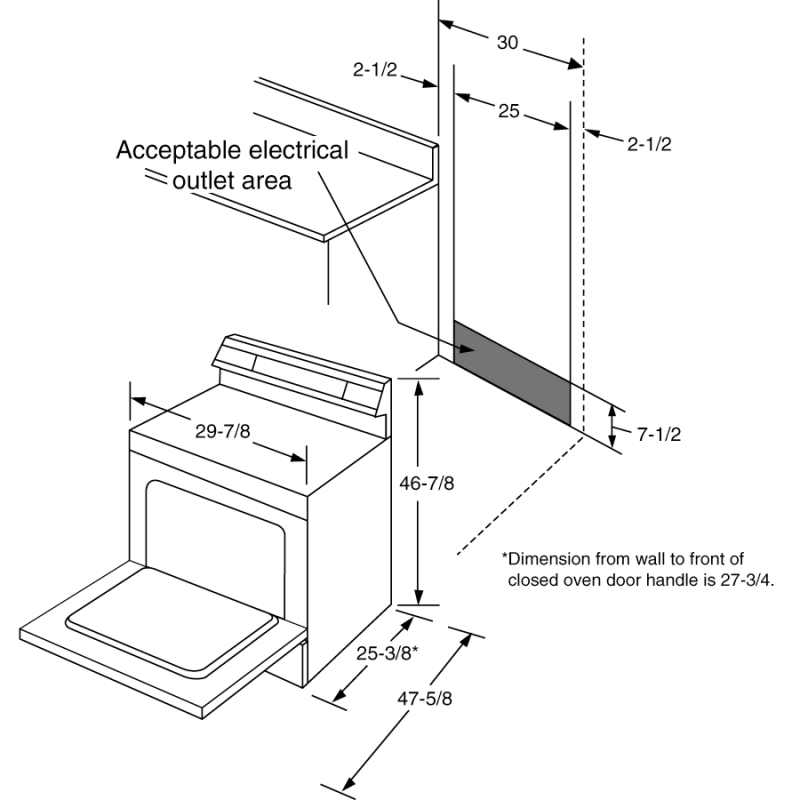

WEIGHTS & DIMENSIONS
| Depth Without Handle | 25.375 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Depth with Door Open | 47.625 in |
| Cabinet Width | 30 in |
| Overall Depth | 27 3/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 29 7/8 in |
APPEARANCE
| Handle | Color-Matched High-Gloss |
| Color Appearance | Black on Black |
| Oven Door Features | Black Frameless Glass Door |
| Oven Door Features | Frameless Lift-off Oven Door |
| Oven Door Features | Big Hearth Oven Window |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
