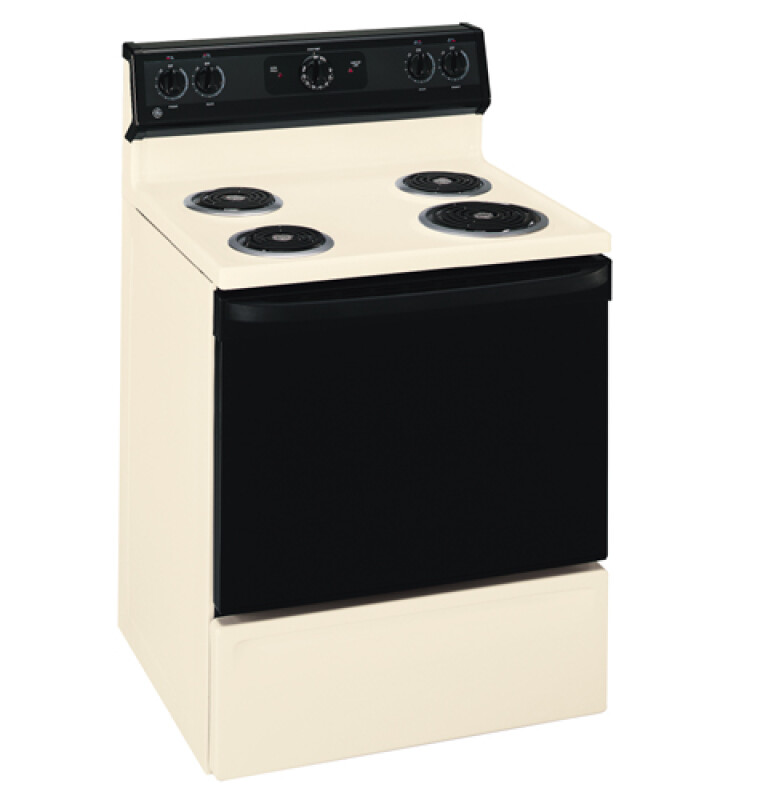

GE 5.0 Cu. Ft. Free-Standing QuickClean Electric Range
Model: JBS03CAD
Color : Almond
Key Features
Super-large oven capacity
Coil heating elements
Dual-element bake
Porcelain oven door
Chrome drip bowls
Six rack positions
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Super-large oven capacity
Provides an impressively large oven interior for cooking more dishes and large meals at one time
Coil heating elements
Provides consistent and even heat on the cooktop with a plug-in element that is removable for easy cleaning
Dual-element bake
Alternates the upper broiling element and the lower baking element for even heating and optimal baking results
Porcelain oven door
Offers a scratch-resistant porcelain coating for easy cleaning
Chrome drip bowls
Contain spills and remove for easy cleaning
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Depth | 28 in |
| Net Weight | 135 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 155 lb |
| Overall Height | 46 1/2 in |
| Overall Width | 29 7/8 in |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.5 in. |
| Length | 28 in. |
| Weight | 135 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 33 in. |
| Shipping Weight | 175 lbs. |
| Total of Shipping Weight | 175 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.51 ft³ |
| Dimensional Weight | 279.84 lbs. |
| Total of Cubes | 22.51 ft³ |
| Total of Dimensional Weight | 279.84 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Oven Features | Dual-Element Bake |
| Removable One-Piece Drip Bowls | Chrome |
| Broiler Pan and Grid | Yes |
| Storage Drawer Features | Removable Full-Width |
| Oven Control Features | Oven "ON" Light |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| 6" Heating Element(s) | 3 Plug-In Calrod™ |
| Oven Cleaning Type | Standard Clean |
| Style | Coil |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Porcelain-Enamel |
| Control Location | Backsplash |
| 8" Heating Element (s) | 1 Plug-In Calrod™ |
| Leveling System | Easy Level System |
| Cooking Technology | Traditional |
| Cooktop Surface | One-Piece Upswept |
| Storage Drawer Features | Almond |
POWER / RATINGS
| KW Rating at 240V | 9.8 |
| KW Rating at 208V | 7.4 |
APPEARANCE
| Oven Door Features | Almond Frameless Lift-off Oven Door |
| Handle | Visor |
| Textured Steel Side Panels | Yes |
| Color Appearance | Almond |
CAPACITY
| Unit Capacity | Super Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
