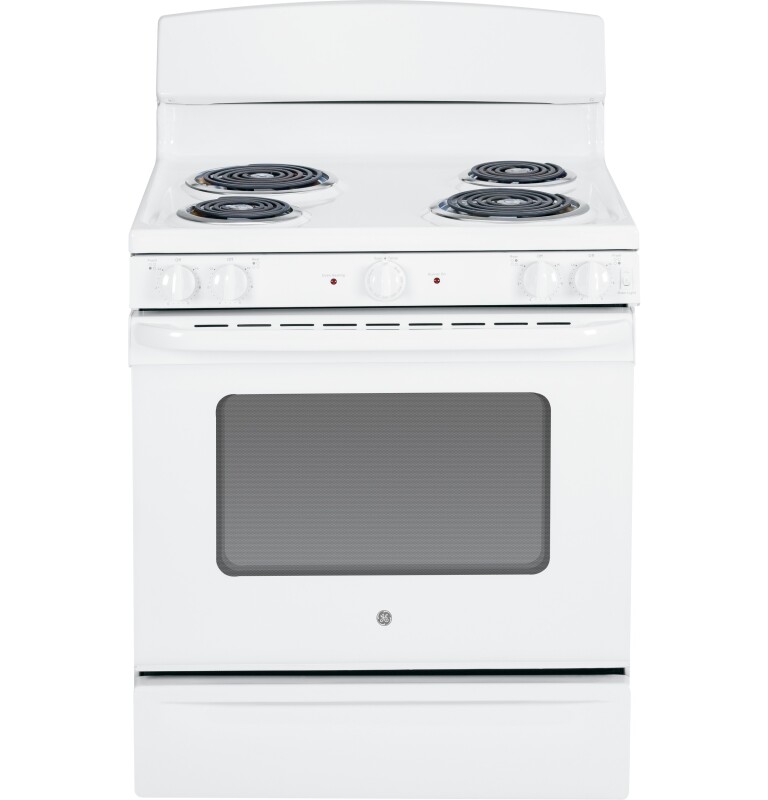

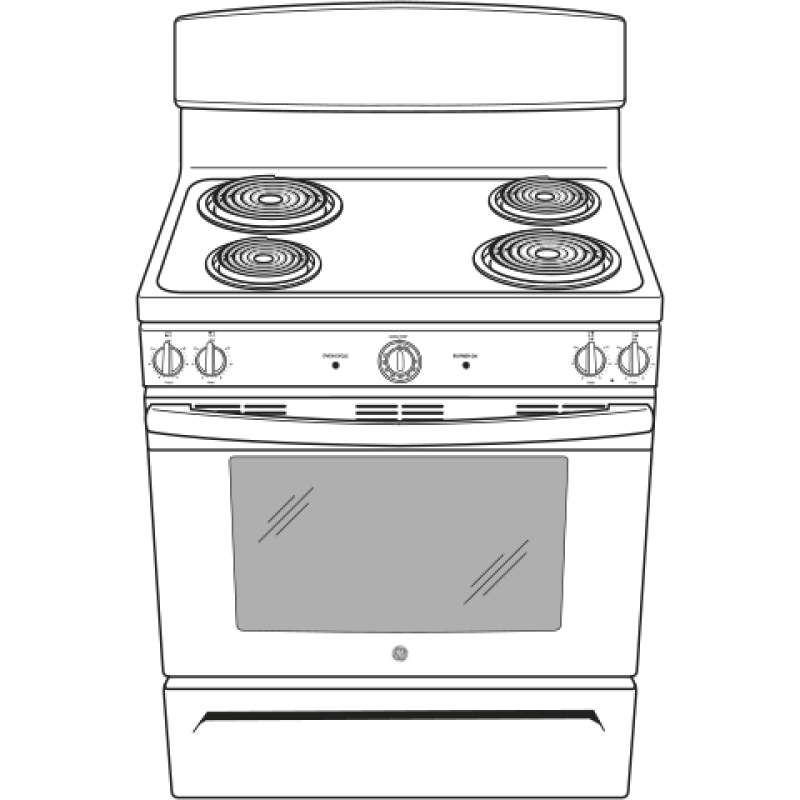

GE 30" Free-Standing Electric Range
Model: JBS45DFWW
Product Video
Color : White
Key Features
Upfront controls

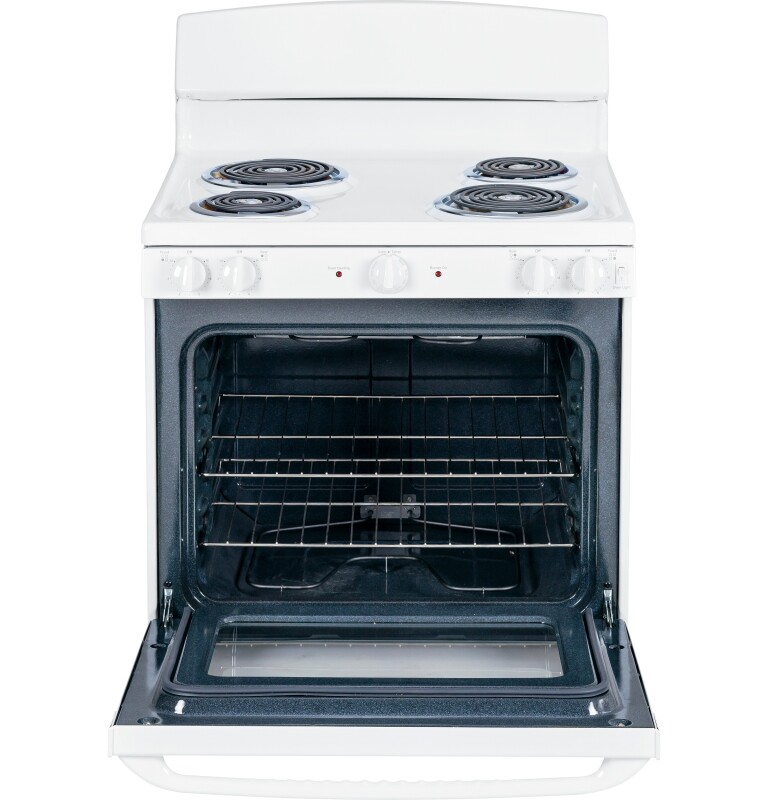

5.0 cu. ft. oven capacity
Standard clean oven
Coil heating elements
Dual-element Bake
Removable full-width storage drawer
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

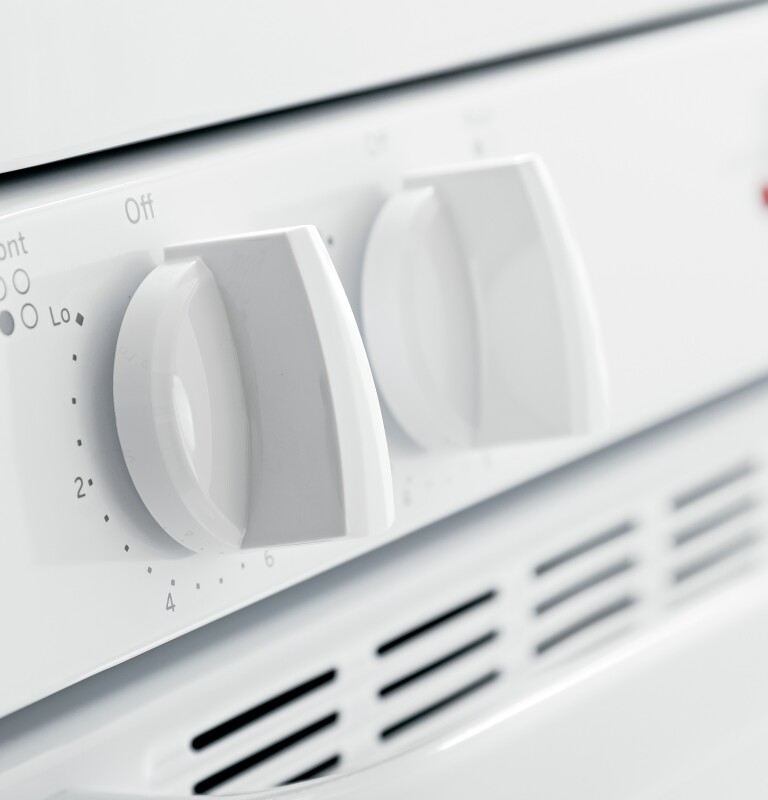

Upfront controls
Minimize need to reach
5.0 cu. ft. oven capacity
Cook more dishes at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy

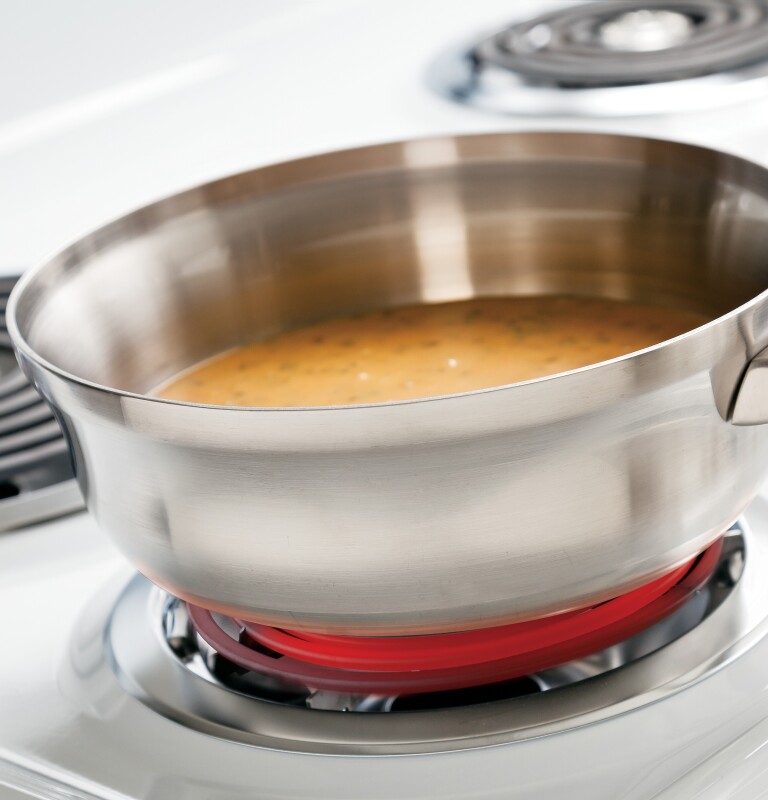

Coil heating elements
Provide even heat and easy cleanup

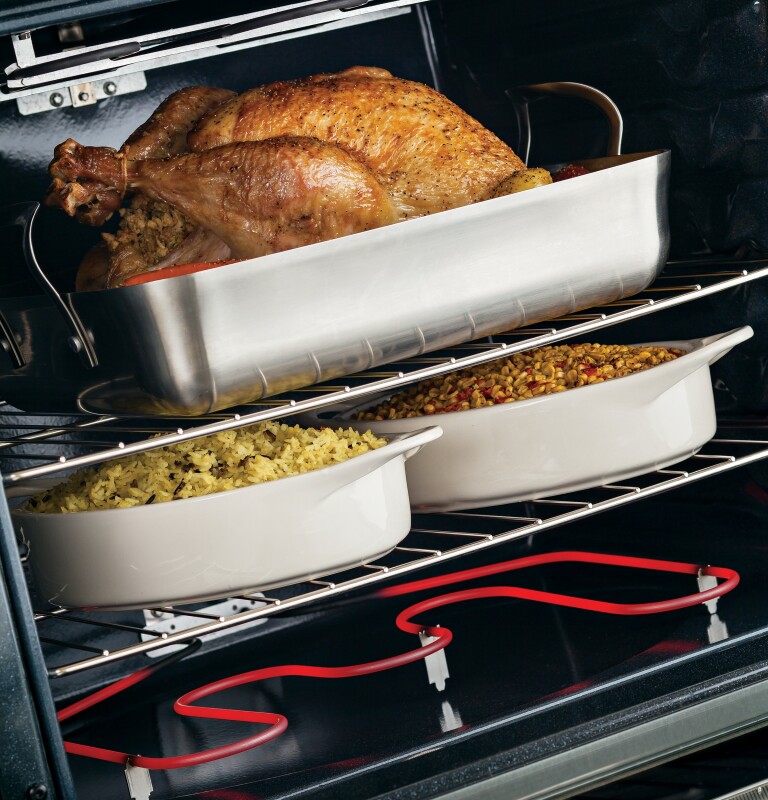

Dual-element Bake
Upper and lower elements produce even heat and great results

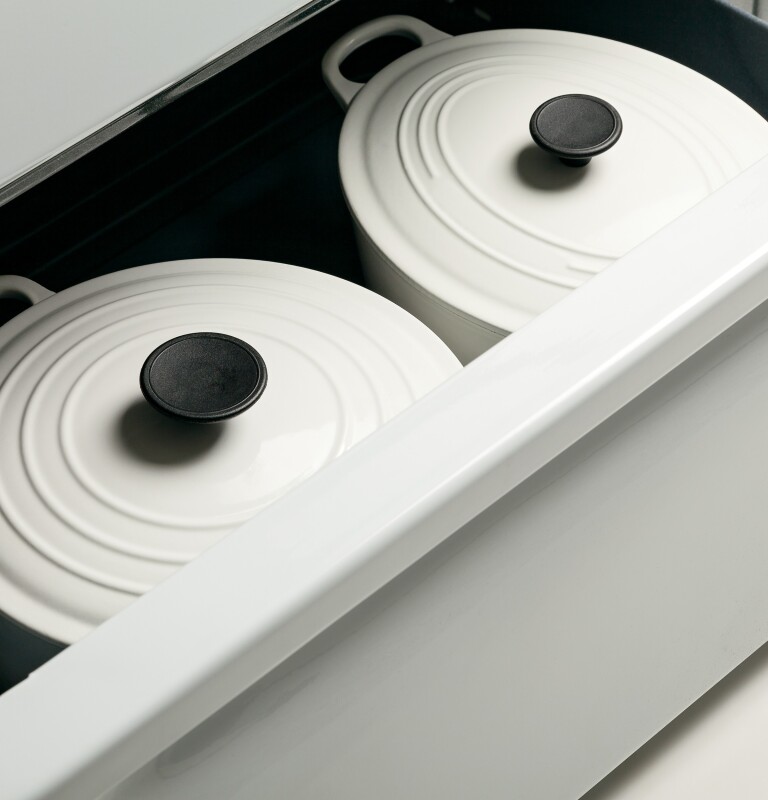

Removable full-width storage drawer
Store cookware or kitchen accessories
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |

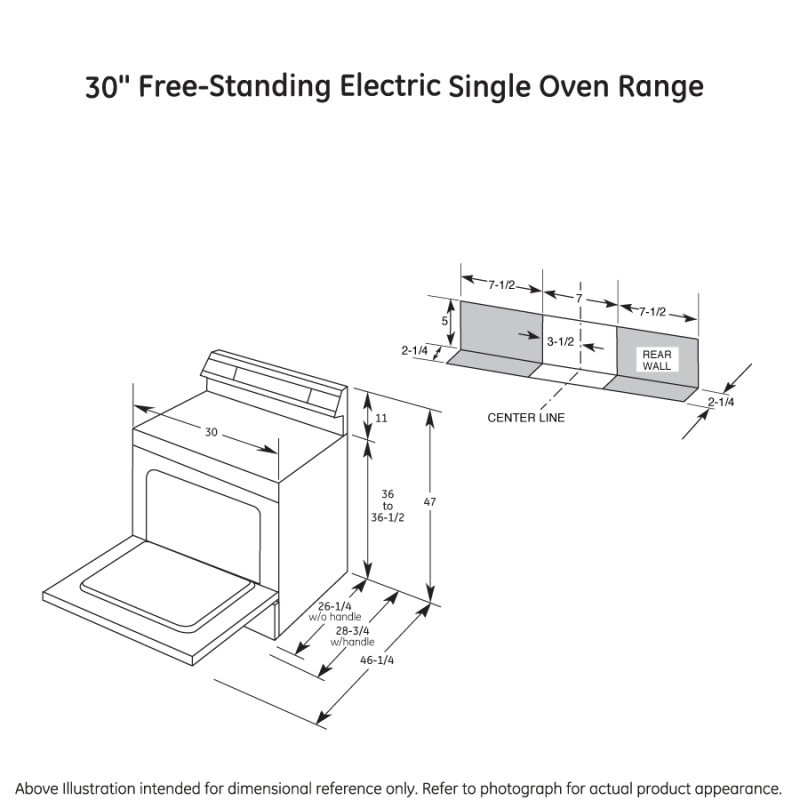

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 47 in |
| Net Weight | 130 lb |
| Depth Without Handle | 26.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 150 lb |
| Depth with Door Open | 46.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Depth | 28 3/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 28.75 in. |
| Weight | 130 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 170 lbs. |
| Total of Shipping Weight | 170 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.46 ft³ |
| Dimensional Weight | 291.64 lbs. |
| Total of Cubes | 23.46 ft³ |
| Total of Dimensional Weight | 291.64 lbs. |
FEATURES
| Cooking System | Traditional |
| Storage Drawer Features | Removable Full-Width |
| Oven Control Features | Oven "ON" Light |
| Lift-Up Cooktop With Support Rods | Yes |
| Oven Rack Features | 2 Oven Racks |

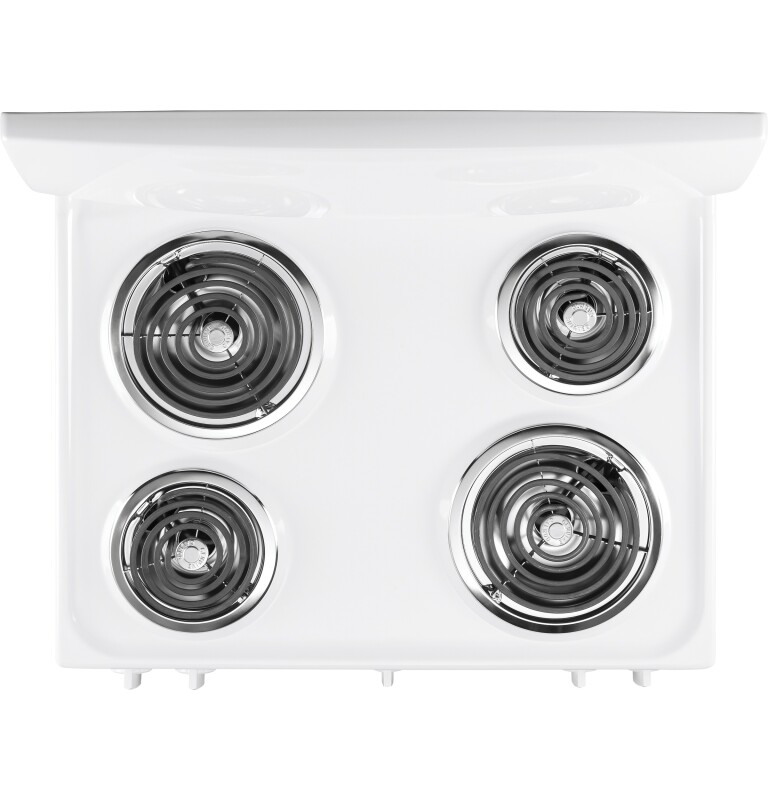

| Element - Left Front | 6" 4-turn 1500W |
| Oven Cleaning Type | Standard Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | Yes |
| Element - Right Front | 8" 5-turn 2600W |
| Interior Oven Light | 1 Incandescent |
| Control Location | Front |
| Drawer Type | Storage |
| Element - Left Rear | 8" 5-turn 2600W |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Oven Features | 4-Pass Broil Element |
| Removable One-Piece Drip Bowls | Chrome |
| Cooktop Burner Type | Coil |
| Element - Right Rear | 6" 4-turn 1500W |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Cooktop Surface | One-Piece Upswept |
| Oven Features | 4-Pass Bake Element |
APPEARANCE
| Handle | Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Glass Door |
| Control Knobs | Color-Matched |
| Color Appearance | White |
| Handle | Color-Matched |
| Oven Door Features | Big View Oven Window |
POWER / RATINGS
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3410W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 10.2 |
| Bake Wattage | 2585W |
| KW Rating at 208V | 7.7 |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
