This product has been discontinued by the manufacture and is no longer available.

GE Adora series by GE 30" Free-Standing Gas Range

Model: JGB605EEDES

Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, product image 1 of 5Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, product image 2 of 5Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, product image 3 of 5Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, product image 4 of 5Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, product image 5 of 5
Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, thumbnail image 1 of 5
Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, thumbnail image 2 of 5
Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, thumbnail image 3 of 5
Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, thumbnail image 4 of 5
Adora series by GE 30" Free-Standing Gas Range JGB605EEDES, thumbnail image 5 of 5

Color : Fingerprint Resistant Slate

Adora series by GE 30" Free-Standing Gas Range JGB605EEDES
Fingerprint Resistant Slate

Type : Gas

GasElectric

Key Features

  • Self-clean oven

  • 5.0 cu. ft. oven capacity

  • Gas convection oven

  • Non-stick griddle

  • 17,000 BTU Power Boil burner

  • Center oval burner

  • Precise Simmer burner

Description

Enough room to cook an entire meal at once.Circulates heat for high-quality results.47 H x 30 W x 26 5/8 D

Available from Appliances Outlet, serving customers throughout Cinnaminson.

Features
Specifications
Certifications

Features

Self-clean oven

Conveniently cleans the oven cavity without the need for scrubbing

5.0 cu. ft. oven capacity

Enough room to cook an entire meal at once

Gas convection oven

Circulates heat for high-quality results

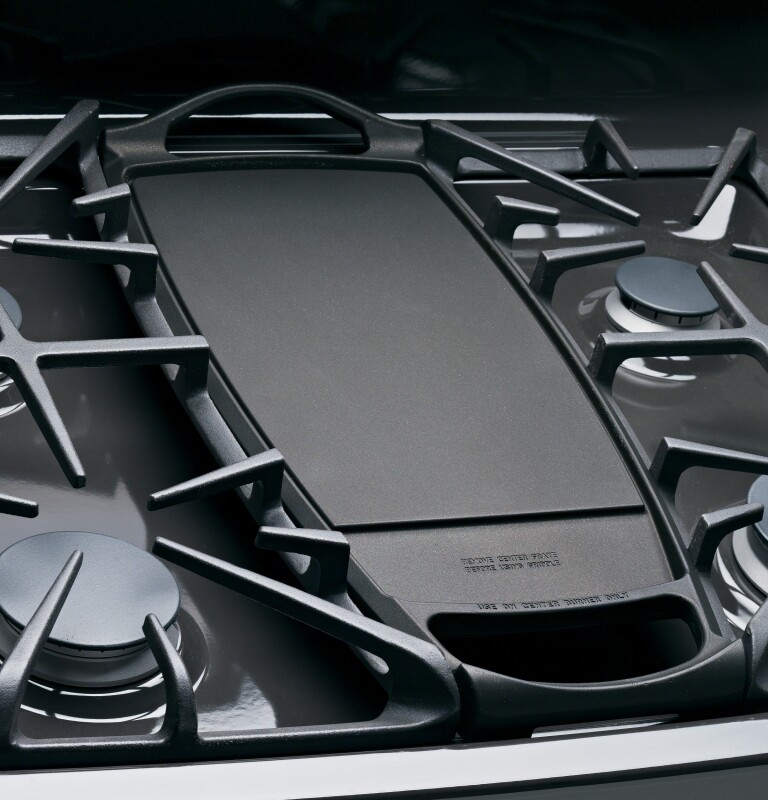

Non-stick griddle

Large non-stick surface perfect for griddle cooking

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

Precise Simmer burner

Delivers a low setting of 140 degrees

Certifications

California Prop 65 certification

California Prop 65

Specifications

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)16.0 Bake / 13.5 Broiler
Bake/Broiler BTU Rating - LP (000's BTU's)16.0 Bake / 12.0 Broiler
Top Burner BTU Rating - LP (000's BTU's)(1) 11.0; (1) 10.0; (1) 9.1; (1) 6.0; (1) 5.0
Volts/Hertz/Amps120V; 60Hz; 5A

FEATURES

Oven InteriorInterior Oven Light
Center Oval Burner(1) 6,000 BTU
Oven Rack Features2 Oven Racks
Leveling System4 Leveling Legs
Cooktop SurfaceColor-Matched
Cooktop SurfaceDeep Recessed
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfacePorcelain-Enamel
Control TypeDigital Temperature Display
Control TypeElectronic Oven Controls
Cleaning TimeVariable
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesAuto Oven Shut-Off
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesAutomatic Oven Timer (Time Bake)
Oven Control FeaturesDelay Bake Option (Time Bake)
Oven Control FeaturesDelay Clean Option
Oven Control FeaturesElectronic Clock and Timer
Oven Control FeaturesIn-Oven Broiling
Oven Control FeaturesOven "ON" Light
Oven Control FeaturesOven Cycle Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Ignition SystemElectronic
GriddleNon-Stick
Power Boil Burner(1) 17,000 BTU
High Output Burner(1) 11,000 BTU
Valves (Degree of Turn)270
BackguardPorcelain-Enameled
Cooktop Burner Grate MaterialHeavy Cast
Precise Simmer Burner(1) 5,000 BTU/140F degree simmer
Oven Cleaning TypeSelf-Clean
ConfigurationRange with Storage Drawer
Cooktop Burner Grate FeaturesContinuous Grates
Cooking TechnologyConvection
Temperature Management SystemTrue Temp System
All-Purpose Burners(1) 9,100 BTU
Cooktop Burner TypeSealed
Fuel TypeNatural Gas
Oven Control FeaturesSabbath Mode
Oven Control FeaturesHi / Low Broil
Oven Rack FeaturesEmbossed Rack Positions
BackguardScratch-Resistant
Oven Rack Positions (Single or Upper/Lower)6

WEIGHTS & DIMENSIONS

Oven Interior Dimensions (W x H x D) (in.)24 x 19 x 19
Approximate Shipping Weight225 lb
Cabinet Width30 in
Net Weight205 lb
Overall Depth26 5/8 in
Overall Height47 in
Overall Width30 in
Depth with Door Open 90°46.375 in
Height to Cooking Surface (in.)36.25 +/- .25

APPEARANCE

Color AppearanceFingerprint Resistant Slate
Oven Door FeaturesBig Hearth Oven Window
Cooktop Burner Grate ColorMatte Black
HandleColor-Matched
Control KnobsDesigner-Style
Control KnobsLarge
Frameless Oven Door(s)White Glass

ACCESSORIES

LP Conversion KitIncluded

Dimensions & Weight

Width30 in.
Height47 in.
Length26.63 in.
Weight205 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52 in.
Shipping Length31.63 in.
Shipping Weight245 lbs.
Total of Shipping Weight245 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement21.73 ft³
Dimensional Weight270.08 lbs.
Total of Cubes21.73 ft³
Total of Dimensional Weight270.08 lbs.

CAPACITY

Total Capacity (cubic feet)5.00 cu ft

Warranty

Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year
