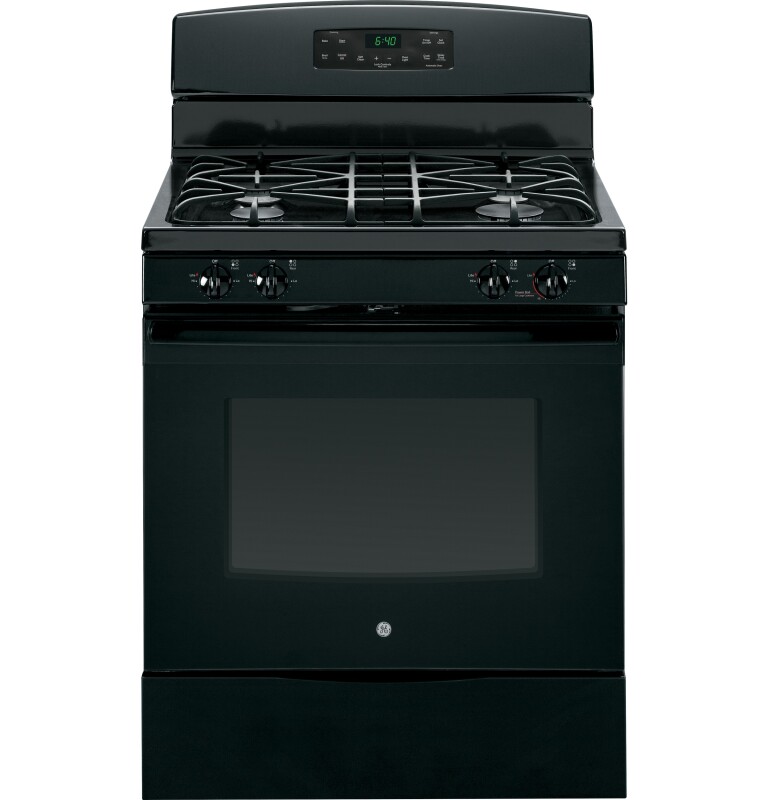

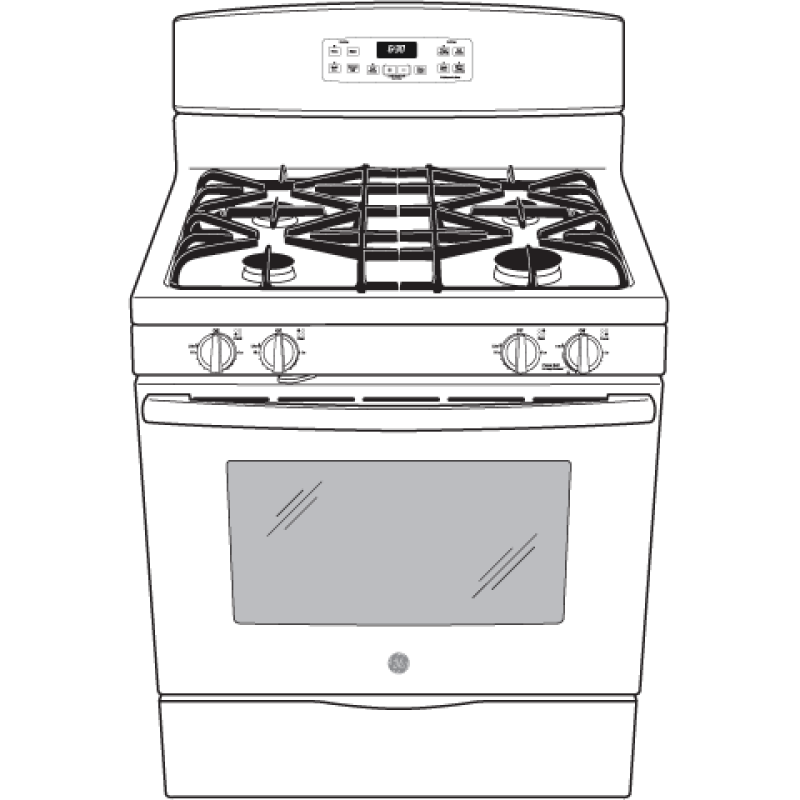

GE 30" Free-Standing Gas Range
Model: JGB640DEFBB
Product Video
Color : Black on Black
$819.00
$819.00
$819.00
Replaced By
Key Features

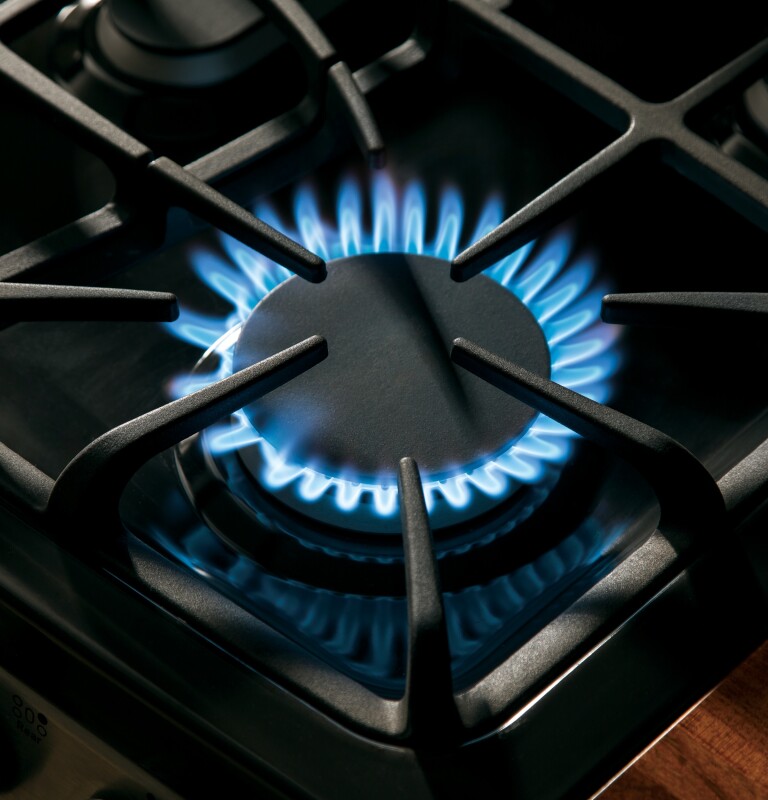

15,000 BTU Power Boil Burner
Precise Simmer burner
Heavy-cast, continuous grates
Deep-recessed cooktop
Self-clean oven
5.0 cu. ft. oven capacity
Sealed cooktop burners
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
15,000 BTU Power Boil Burner
Delivers high heat for fast boiling

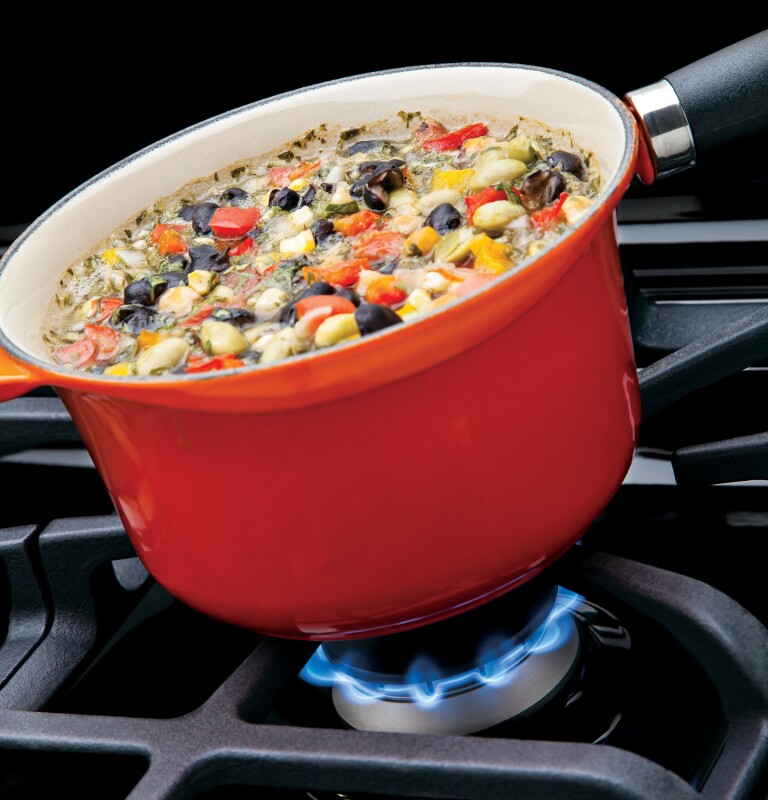

Precise Simmer burner
Delicate foods don’t burn with low, even heat

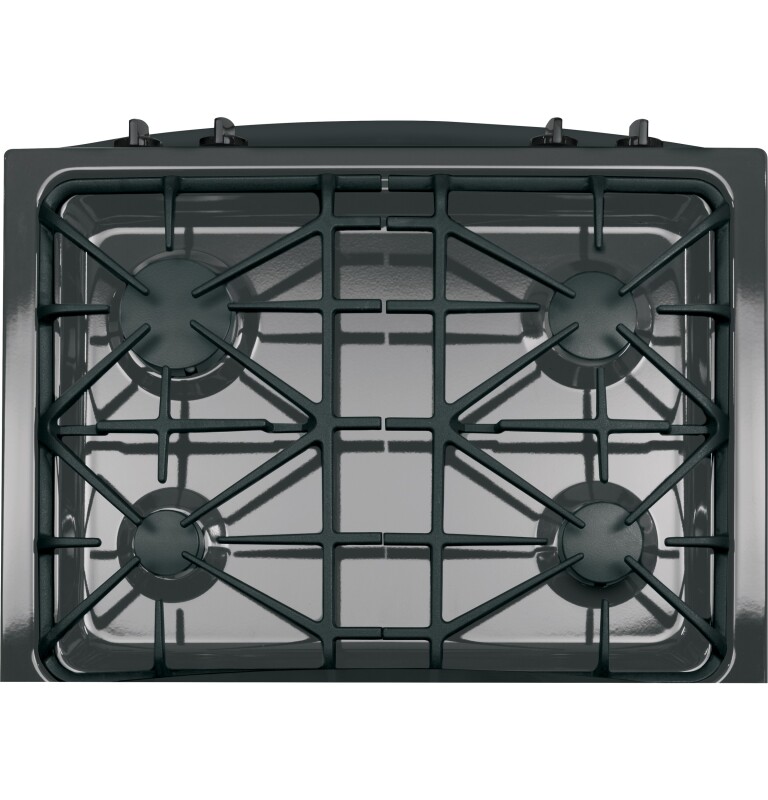

Heavy-cast, continuous grates
Allow for easy movement of pans between burners
Deep-recessed cooktop
Contains spills for quick and easy cleaning
Self-clean oven
Cleans the oven cavity without the need for scrubbing

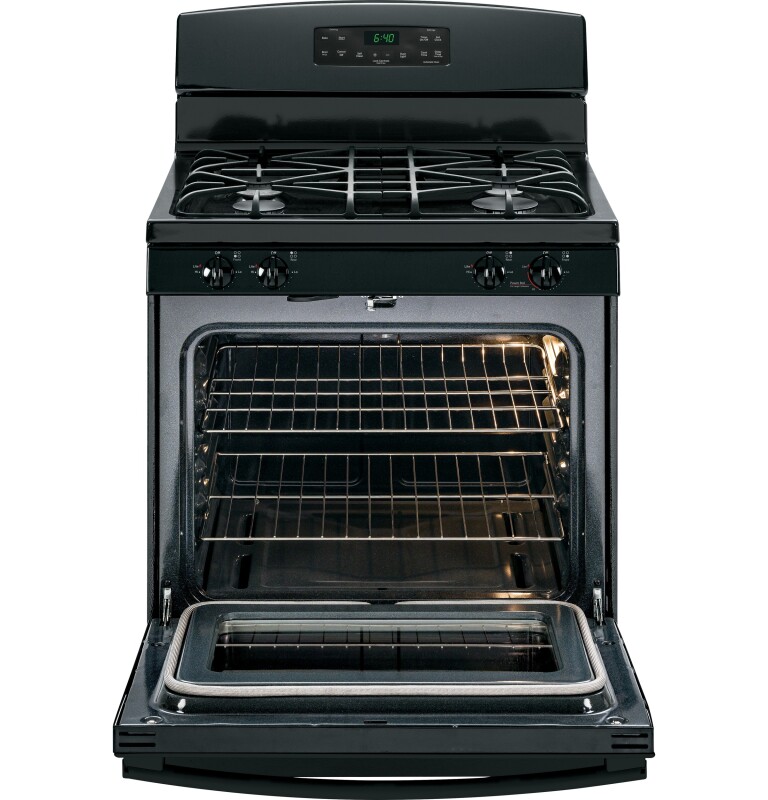

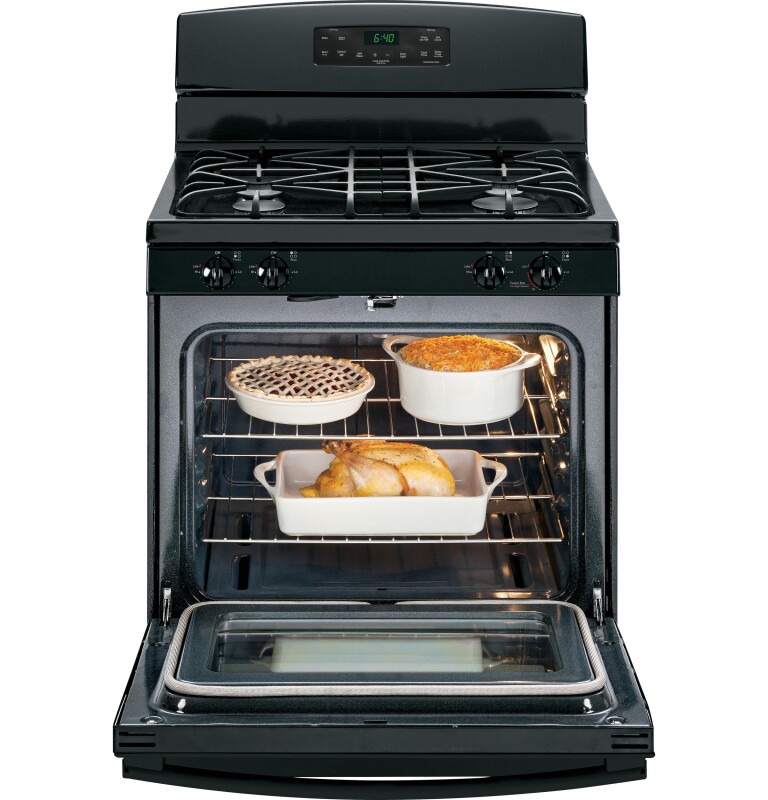

5.0 cu. ft. oven capacity
Cook more dishes at once

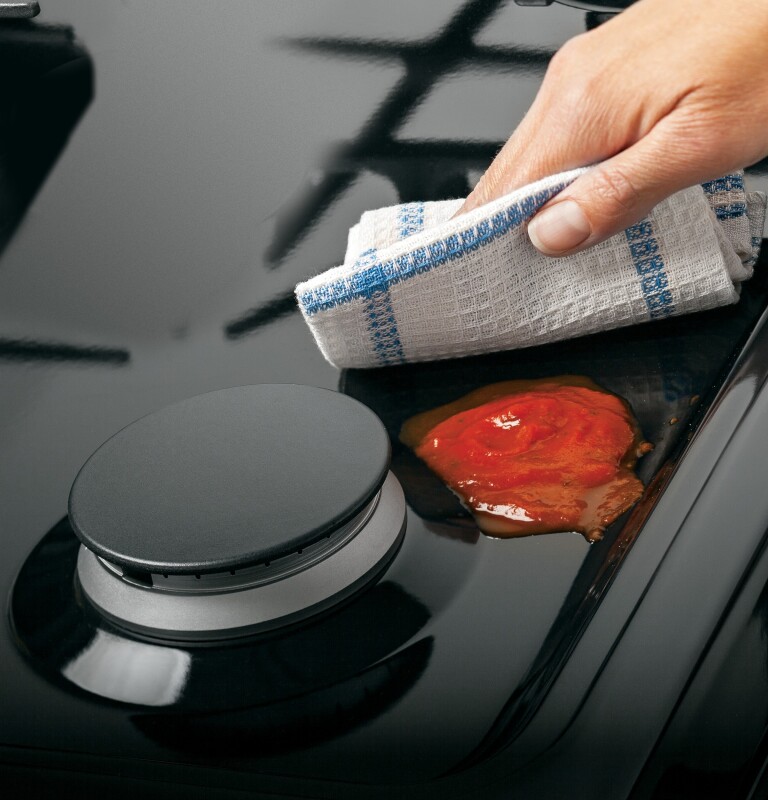

Sealed cooktop burners
Contains spills and make cleaning quick and easy
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |

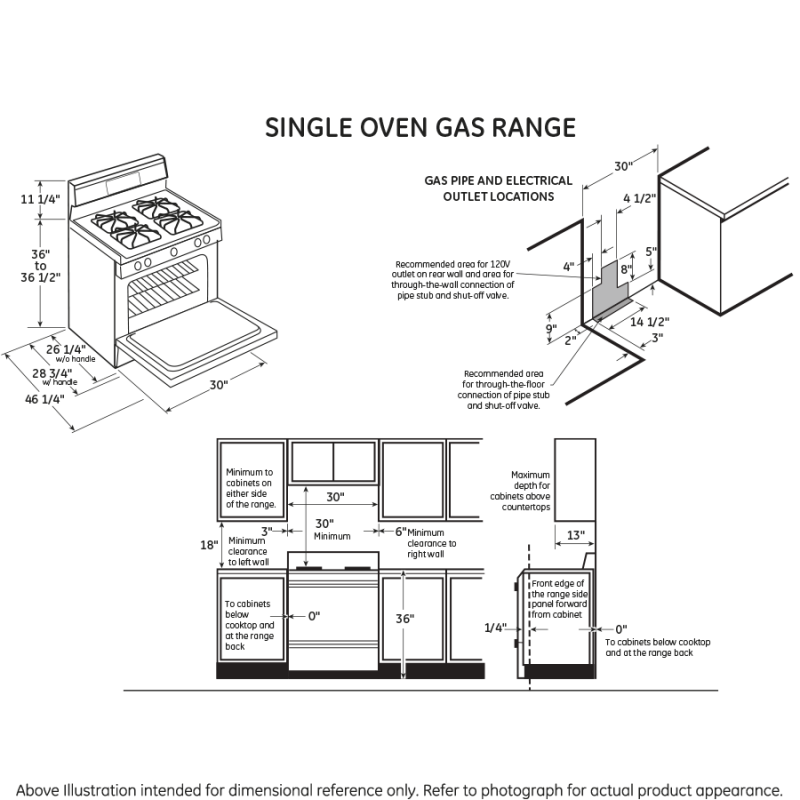

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 190 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open | 46.25 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Depth | 28 3/4 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 28.75 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 33.75 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.58 ft³ |
| Dimensional Weight | 293.19 lbs. |
| Total of Cubes | 23.58 ft³ |
| Total of Dimensional Weight | 293.19 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Interior Oven Light | 1 Incandescent |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | 2 Oven Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Cooktop Burner Grate Features | Continuous Grates |
| Burner - Right Front | 15,000 BTU Power Boil |
| Burner - Left Front | 11,000 BTU |

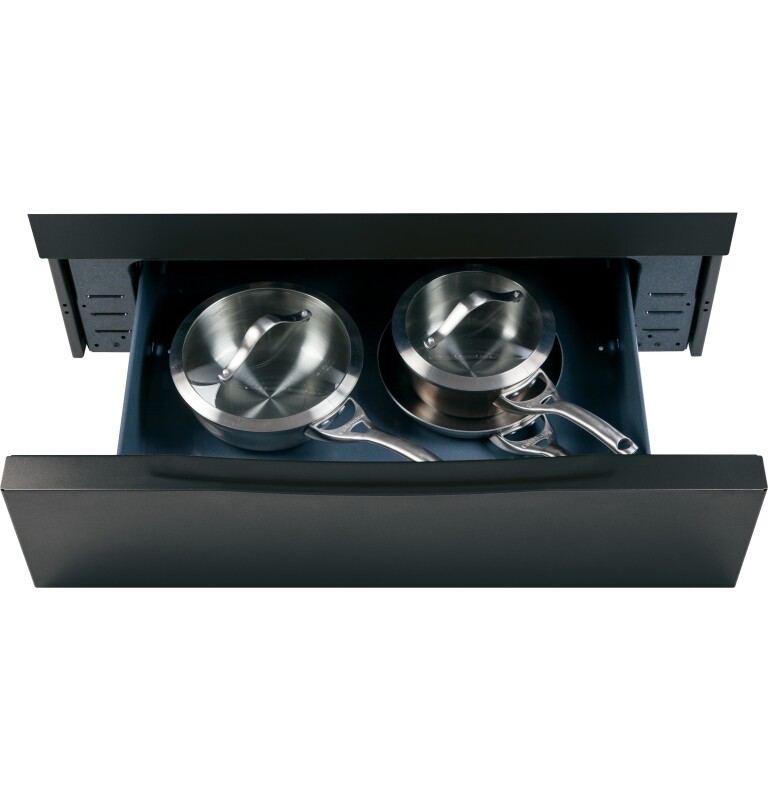

| Drawer Type | Storage |
| Control Type | Electronic Touch |
| Cooking Technology | Traditional |
| Cooktop Surface | Deep Recessed |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Black |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Handle | Designer Style |
| Control Knobs | Color-Matched |
| Color Appearance | Black on Black |
| Handle | Color-Matched |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
