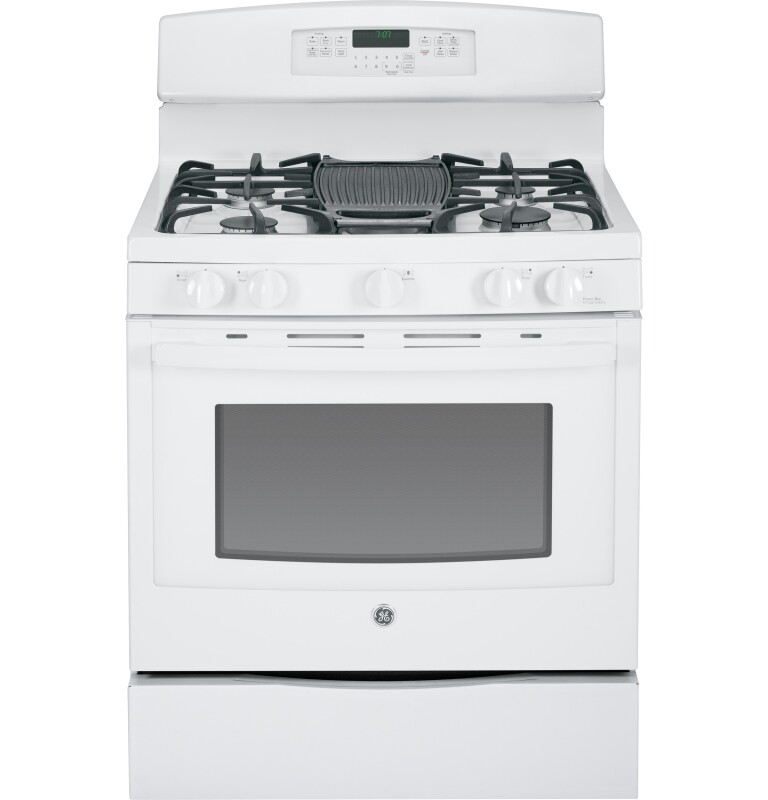

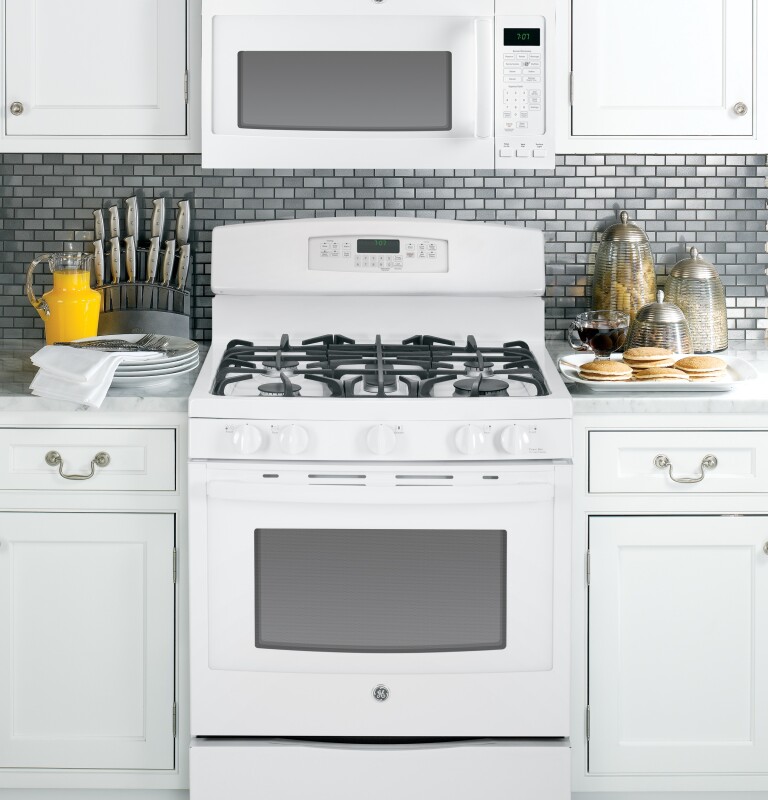

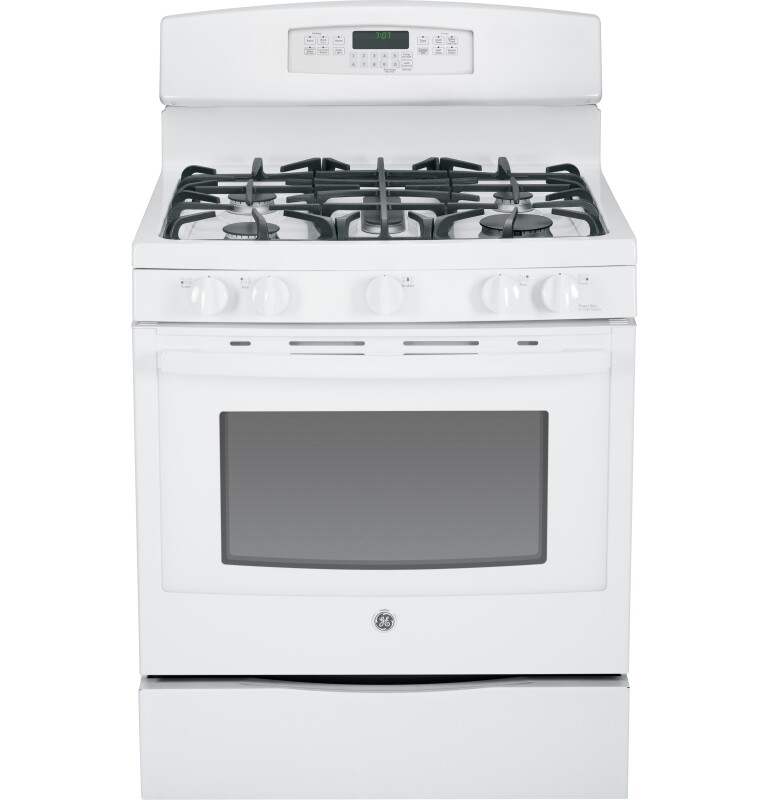

GE 30" Free-Standing Gas Convection Range
Model: JGB770DEFWW
Product Video
Color : White on White
Replaced By
30" Free-Standing Gas Convection Range with No Preheat Air Fry and EasyWash Oven Tray
Model: GGF600AVWW
$899.00
Was$1,199.00Save $300.00 (25%)
Key Features
17,000 BTU Power Boil burner
Center oval burner
Precise Simmer burner
Reversible cast-iron griddle/grill
Gas convection oven
Self-clean, heavy-duty oven racks
Self-clean with Steam Clean option
Heavy-cast, continuous grates
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

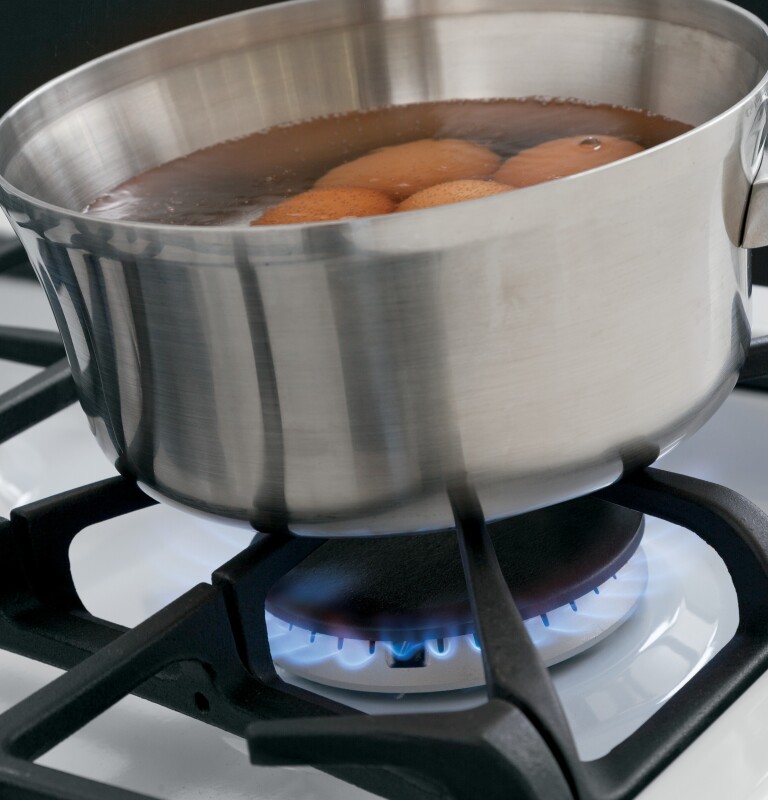

17,000 BTU Power Boil burner
Delivers intense heat for fast boiling
Center oval burner
Large oval fifth burner is ideal for griddle or odd-size cookware
Precise Simmer burner
Delicate foods don’t burn with low, even heat

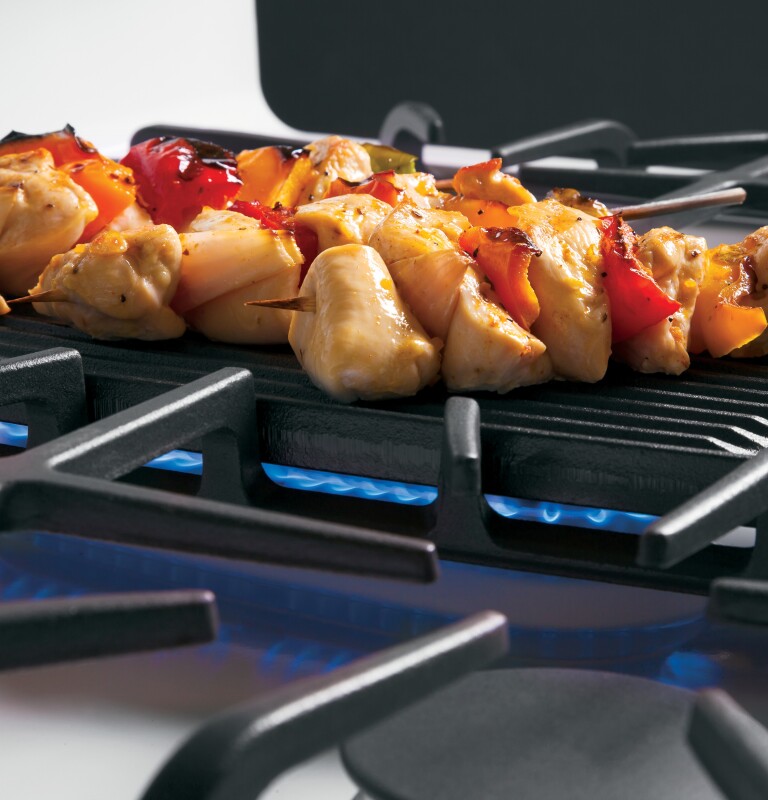

Reversible cast-iron griddle/grill
Two great ways to cook

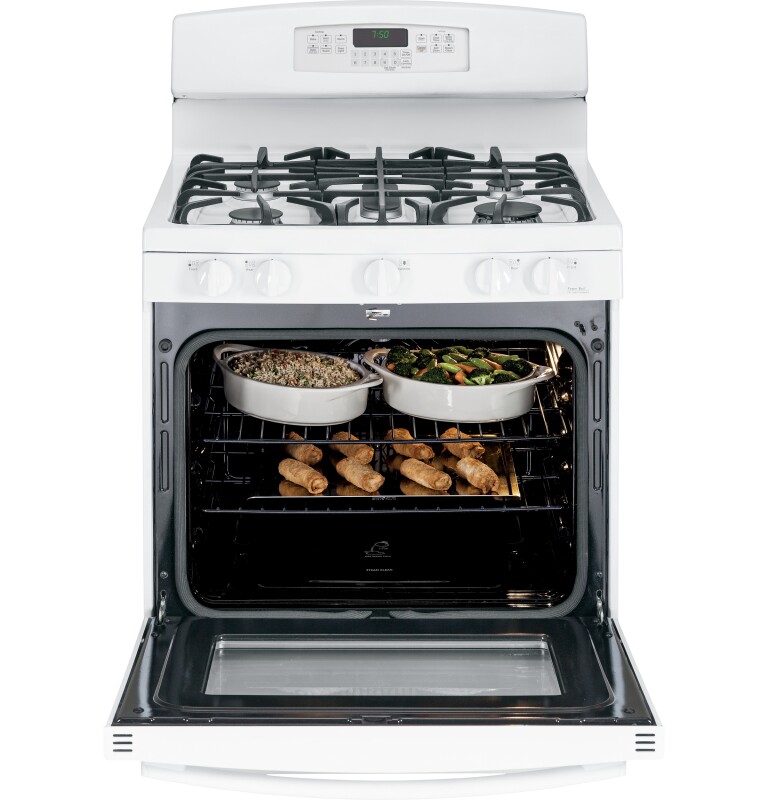

Gas convection oven
Circulates heat for high-quality results
Self-clean, heavy-duty oven racks
Conveniently clean your oven and racks together
Self-clean with Steam Clean option
Clean your oven the way you want
Heavy-cast, continuous grates
Allow for easy movement of pans between burners

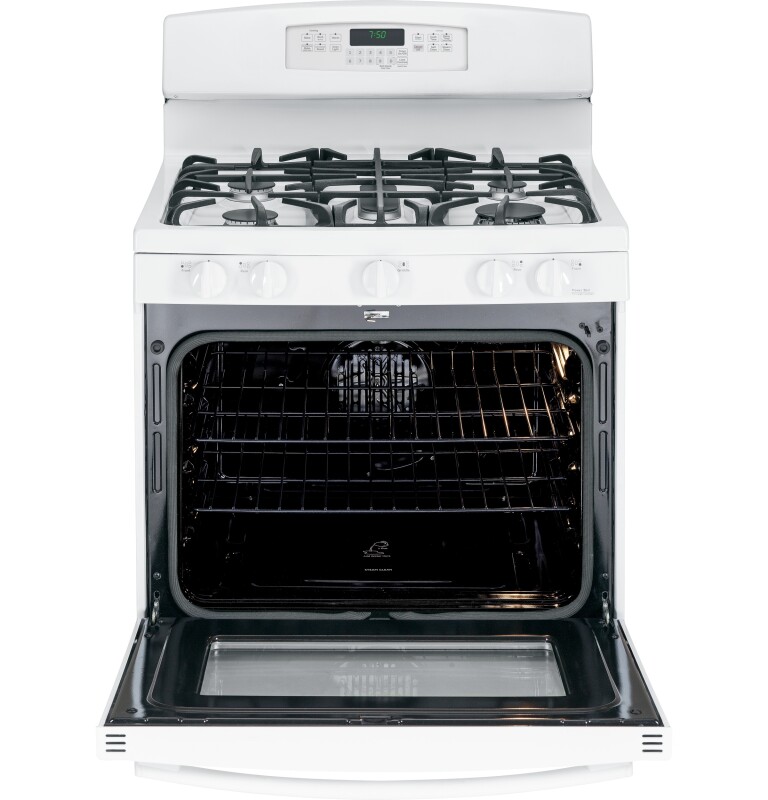

5.6 cu. ft. oven capacity
Enough room to cook an entire meal at once
Black gloss oven interior
Enjoy a clean and sleek appearance
Certifications
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Parts (Entire Appliance) | 1 Year |
| Labor (Entire Appliance) | 1 Year |

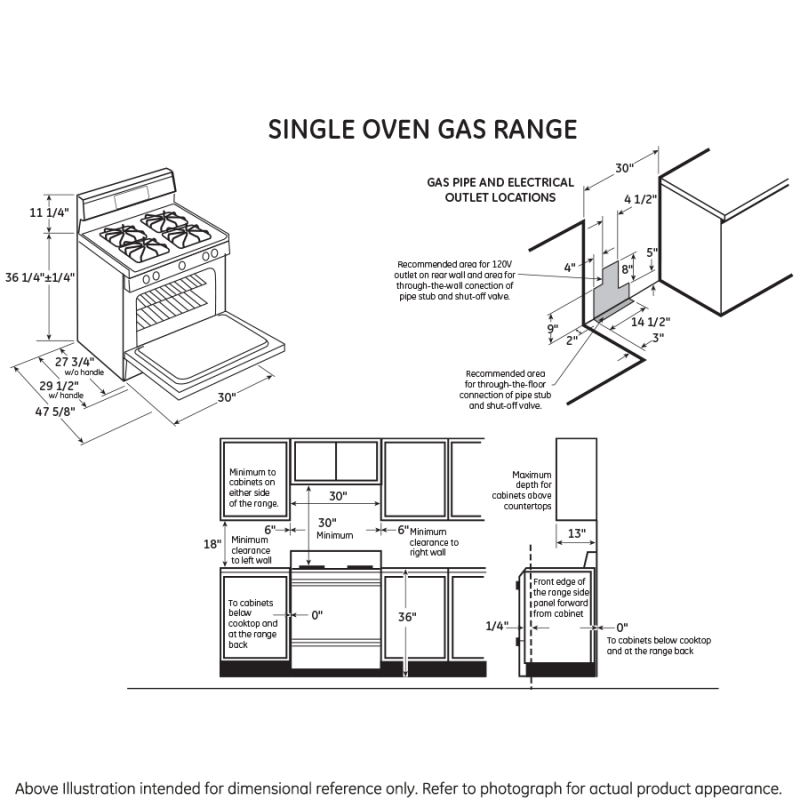

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 200 lb |
| Depth Without Handle | 27.75 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 220 lb |
| Depth with Door Open | 47.625 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| Overall Depth | 29 1/2 in |
| Overall Height | 47 1/4 in |
| Height to Cooking Surface (in.) | 36 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 29.5 in. |
| Weight | 200 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 34.5 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 24.2 ft³ |
| Dimensional Weight | 300.84 lbs. |
| Total of Cubes | 24.2 ft³ |
| Total of Dimensional Weight | 300.84 lbs. |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
| Control Knobs | Weighted |
| Color Appearance | White on White |
| Control Knobs | Color-Matched |
| Handle | Color-Matched |
FEATURES
| Ignition System | Electronic |
| Burner - Right Rear | 5,000 BTU Precise Simmer |
| Oven Rack Features | 2 Self-Clean Oven Racks |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Griddle | Reversible Cast Grill/Griddle |
| Product Type | Free-Standing Single Oven |

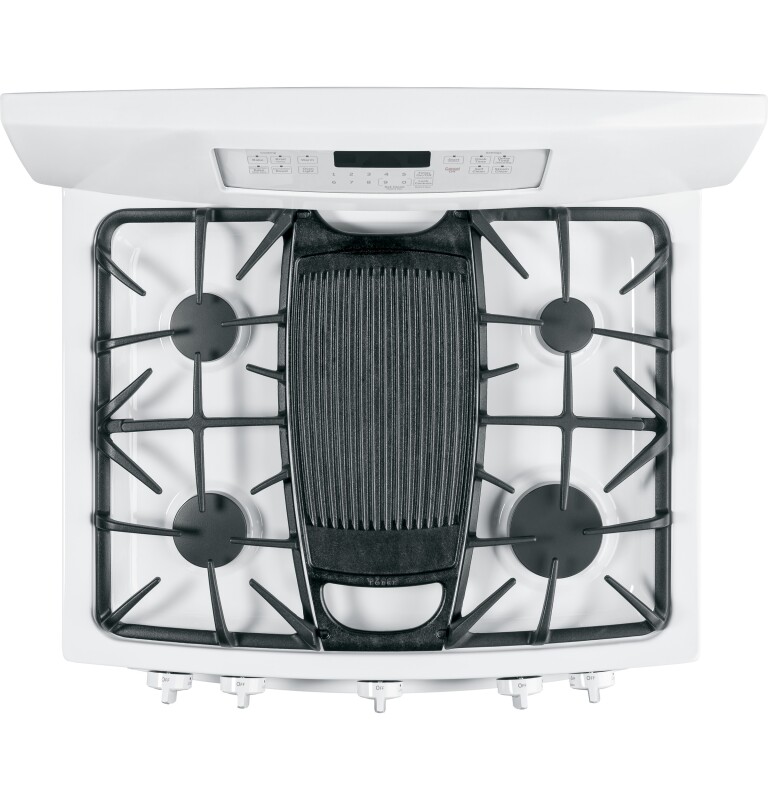

| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Fuel Type | Natural Gas |
| Burner - Center | 10,000 BTU Oval |
| Interior Oven Light | 1 Auto Incandescent |
| Cooktop Burner Grate Features | Continuous Grates |
| Control Type | Electronic Touch |
| Burner - Left Front | 11,000 BTU |

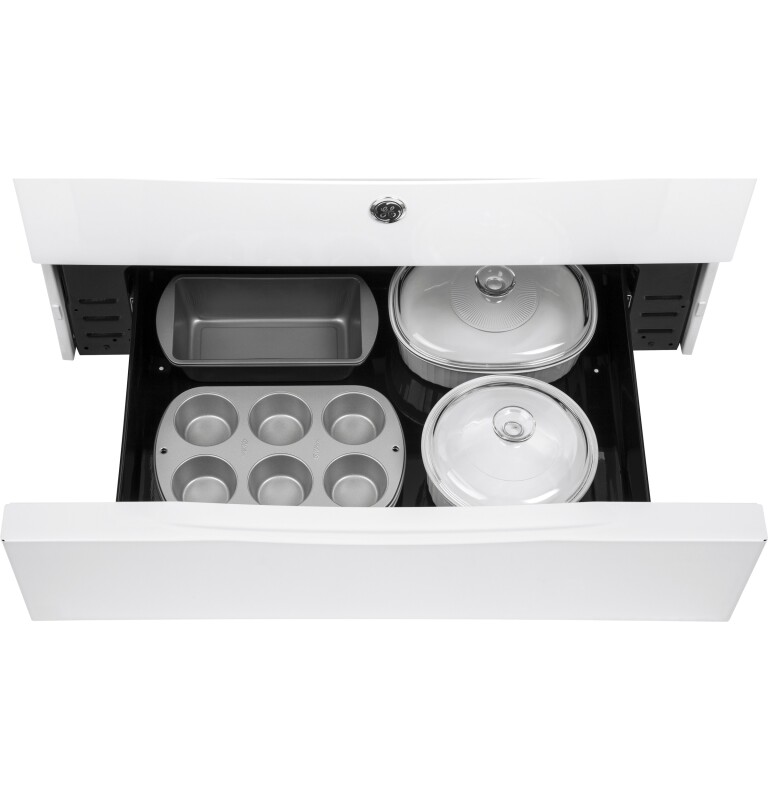

| Drawer Type | Storage |
| Cooking Technology | Convection |
| Configuration | Range with Storage Drawer |
| Oven Cooking Modes | Convection Roast |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 17,000 BTU Power Boil |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Cooktop Surface | Deep Recessed |
| Oven Control Features | Audible Preheat Signal |
| Oven Cooking Modes | Convection Bake |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0; (1) 10.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
ACCESSORIES
| LP Conversion Kit | Included |
CAPACITY
| Total Capacity (cubic feet) | 5.60 cu ft |
