This product is discontinued and has been replaced by the model below.

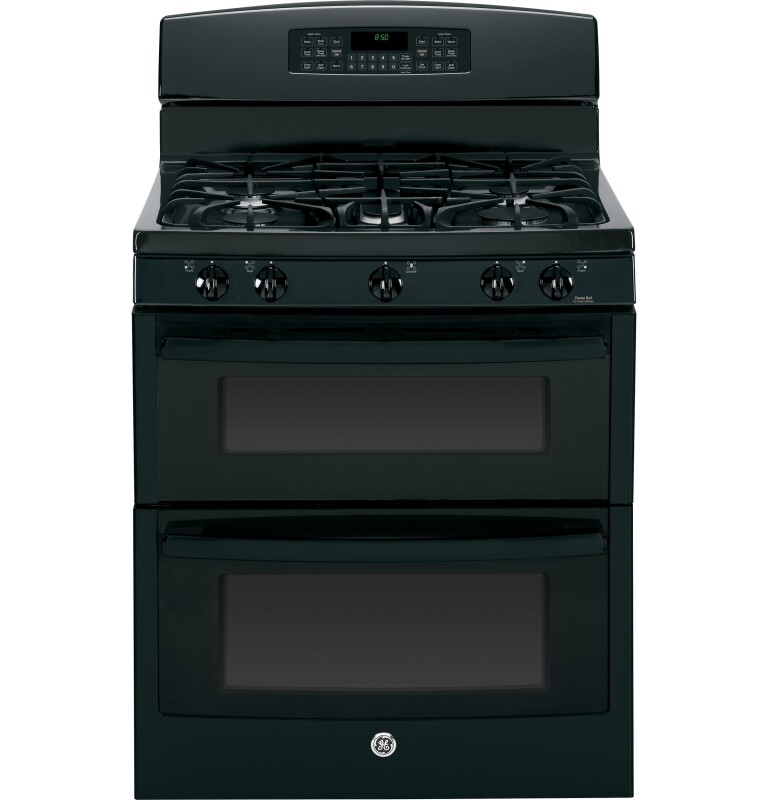

GE 30" Free-Standing Gas Double Oven Range

Model: JGB850DEFBB

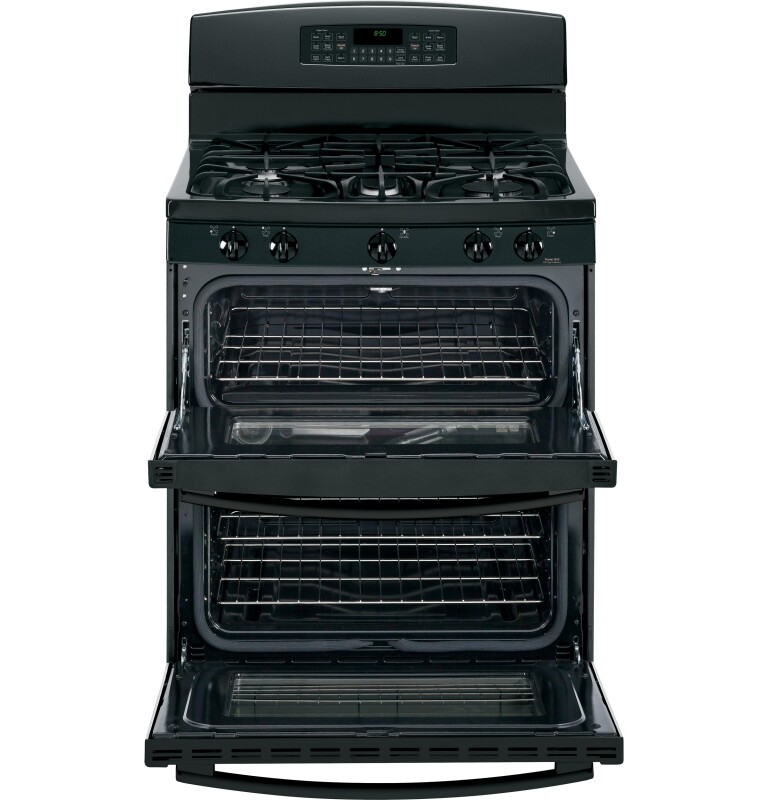

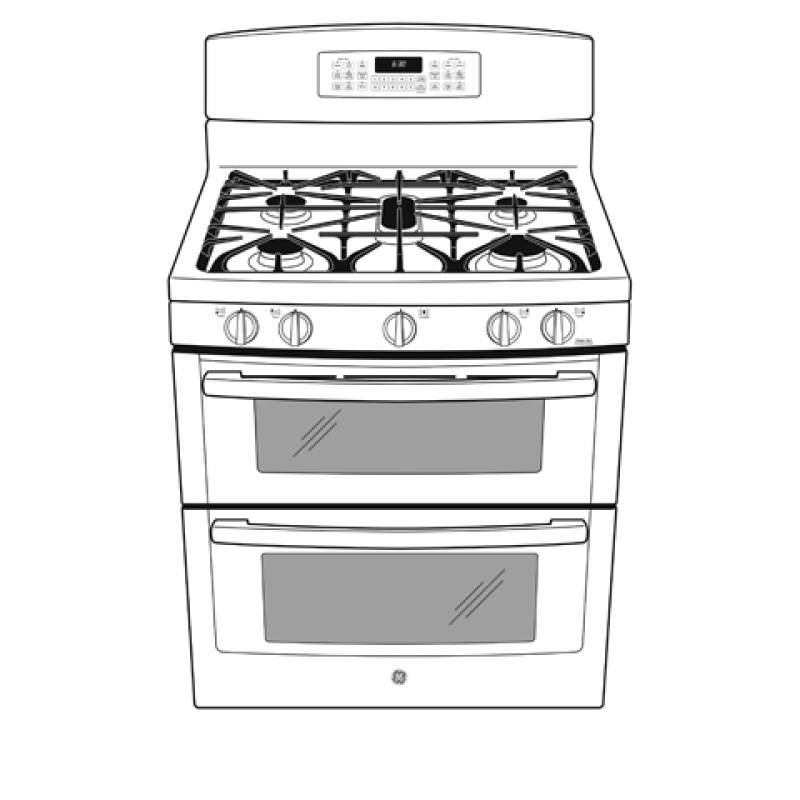

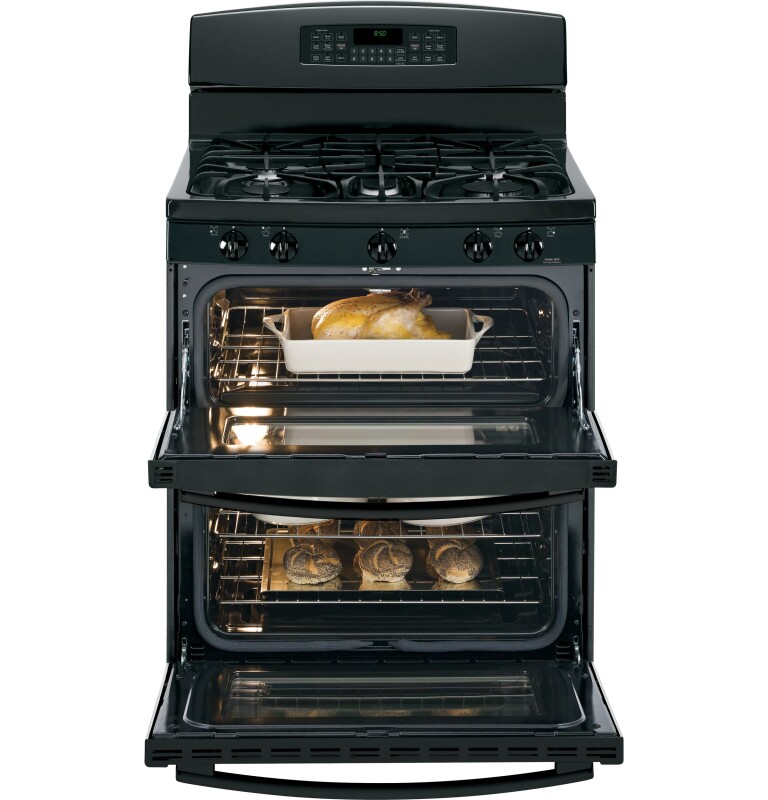

30" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 1 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 2 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 3 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 4 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 5 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 6 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 7 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 8 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 9 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 10 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 11 of 1230" Free-Standing Gas Double Oven Range JGB850DEFBB, product image 12 of 12
30" Free-Standing Gas Double Oven Range JGB850DEFBB, thumbnail image 1 of 12
30" Free-Standing Gas Double Oven Range JGB850DEFBB, thumbnail image 2 of 12
30" Free-Standing Gas Double Oven Range JGB850DEFBB, thumbnail image 3 of 12
30" Free-Standing Gas Double Oven Range JGB850DEFBB, thumbnail image 4 of 12
30" Free-Standing Gas Double Oven Range JGB850DEFBB, thumbnail image 5 of 12
+7more

Product Video

GE 30" Free-Standing Gas Double Oven Range Black on Black JGB850DEFBB Picture
4 Videos

Color : Black on Black

30" Free-Standing Gas Double Oven Range JGB850DEFBB
Black on Black

Type : Gas

GasElectric
Replaced By

30" Free-Standing Gas Range with Crisp Mode

Model: GGF500PVBB

Product - GGF500PVBB

$848.99

Was$1,099.00Save $250.01 (23%)

View Product

Key Features

  • 6.8 cu. ft. total oven capacity

  • 17,000 BTU Power Boil burner

  • Center oval burner

  • Non-stick integrated griddle

  • Precise Simmer burner

  • Heavy-cast, continuous grates

  • Self-clean oven

  • Black gloss oven interior

Description

Delivers intense heat for fast boiling.Large oval fifth burner is ideal for griddle or odd-size cookware.47 1/4 H x 30 W x 29 1/2 D

Available from Appliances Outlet, serving customers throughout Cinnaminson.

Features
Specifications
Certifications

Features

6.8 cu. ft. total oven capacity

Large capacity is ideal for big meals

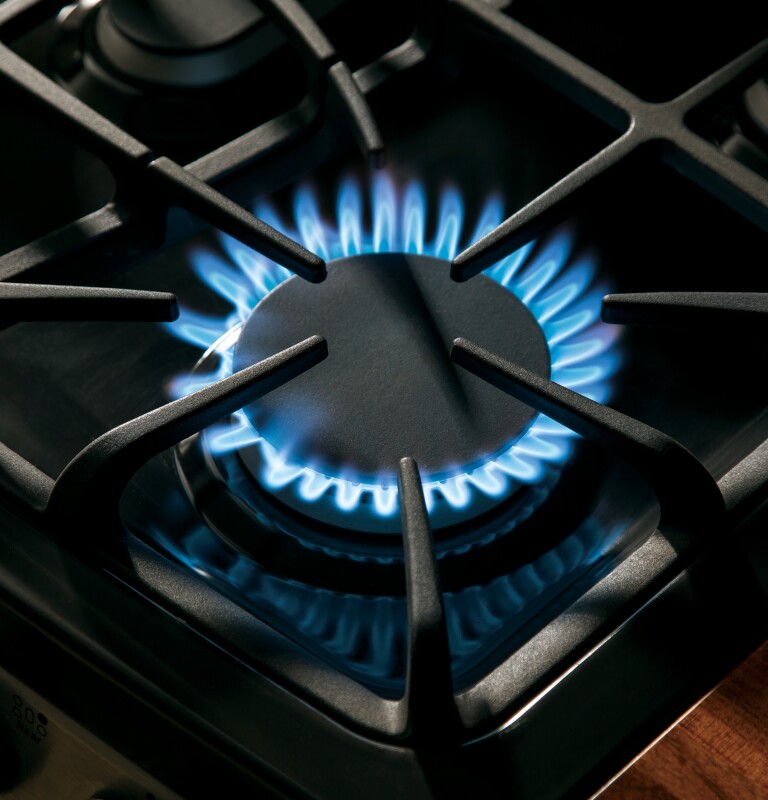

17,000 BTU Power Boil burner

Delivers intense heat for fast boiling

Center oval burner

Large oval fifth burner is ideal for griddle or odd-size cookware

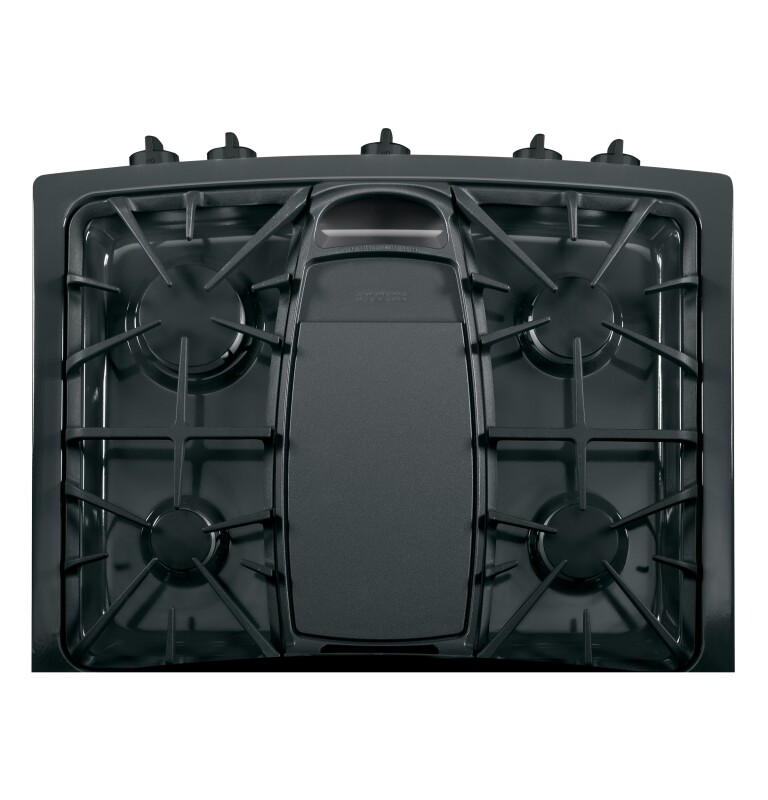

Non-stick integrated griddle

Large non-stick surface perfect for griddle cooking

Precise Simmer burner

Delicate foods don’t burn with low, even heat

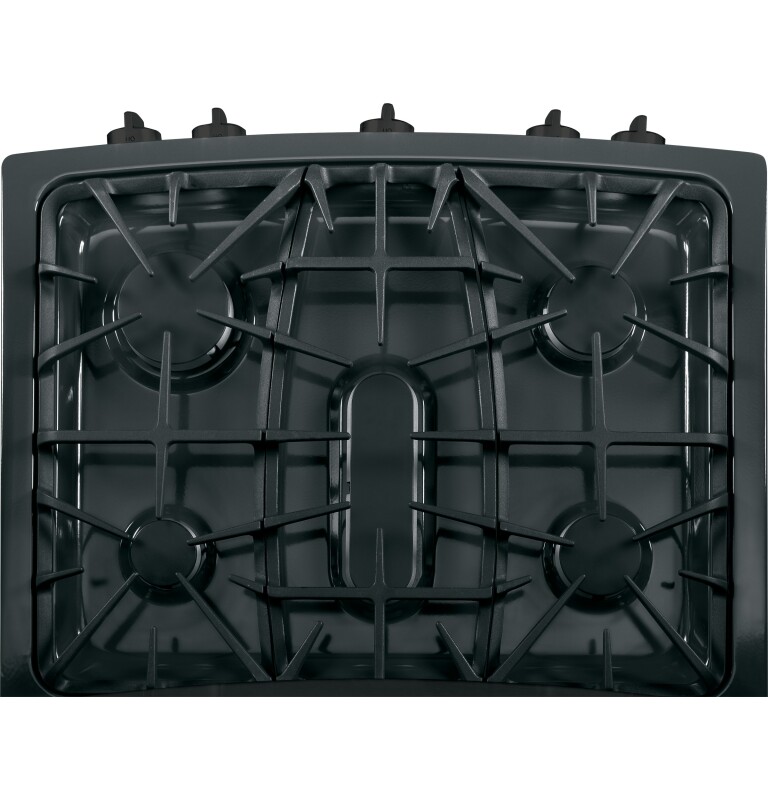

Heavy-cast, continuous grates

Allow for easy movement of pans between burners

Self-clean oven

Cleans the oven cavity without the need for scrubbing

Black gloss oven interior

Enjoy a clean and sleek appearance

Certifications

California Prop 65 certification

California Prop 65

Specifications

Warranty

Parts1 Year
Labor1 Year
Labor (Entire Appliance)1 Year
Parts (Entire Appliance)1 Year

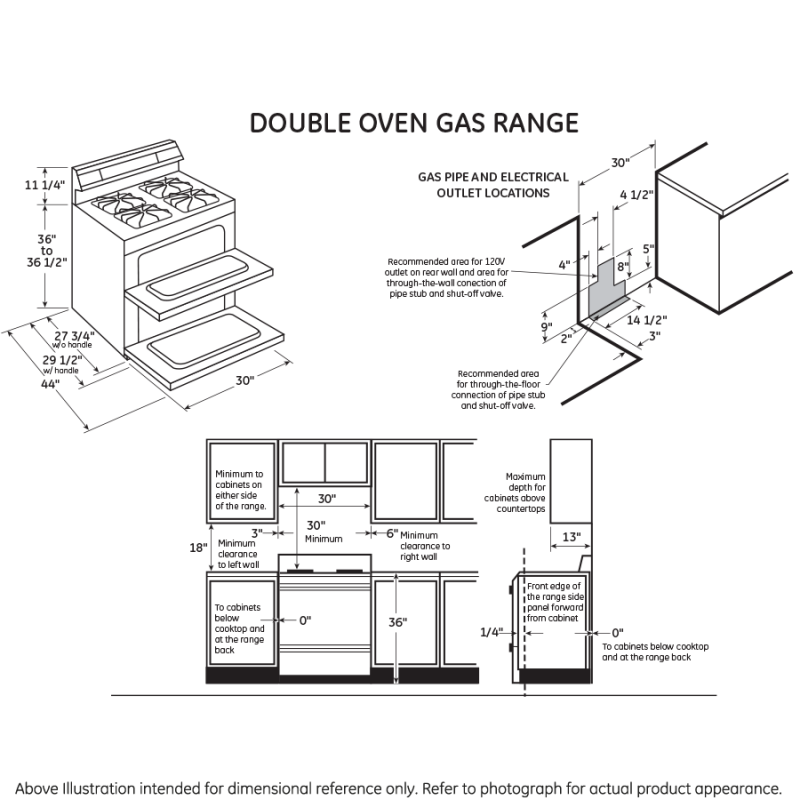

WEIGHTS & DIMENSIONS

Overall Width30 in
Net Weight200 lb
Depth Without Handle27.75 in
Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
Depth with Door Open44 in
Cabinet Width30 in
Approximate Shipping Weight220 lb
Overall Depth29 1/2 in
Overall Height47 1/4 in
Height to Cooking Surface (in.)36 - 36.5

Other

Oven Interior Dimensions (W x H x D) (in.)24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower

Dimensions & Weight

Width30 in.
Height47.25 in.
Length29.5 in.
Weight200 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width35 in.
Shipping Height52.25 in.
Shipping Length34.5 in.
Shipping Weight240 lbs.
Total of Shipping Weight240 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement24.2 ft³
Dimensional Weight300.84 lbs.
Total of Cubes24.2 ft³
Total of Dimensional Weight300.84 lbs.

FEATURES

ConfigurationDouble Oven Range
Ignition SystemElectronic
Burner - Right Rear5,000 BTU Precise Simmer
Interior Oven Light1 Auto Incandescent (Both Ovens)
Fuel TypeNatural Gas
Cooktop Burner TypeSealed
Oven Rack Features3 Reinforced Oven Racks
Burner - Left Rear9,500 BTU
Oven Cleaning TypeSelf-Clean (Both Ovens)
GriddleNon-Stick
Product TypeFree-Standing Double Oven
Cooktop TypeContinuous Grates with Griddle
Cooktop Burner Grate MaterialHeavy Cast Iron
Cooktop Burner Grate FeaturesContinuous Grates
Burner - Center8,000 BTU Oval
Burner - Right Front17,000 BTU Power Boil
Burner - Left Front11,000 BTU

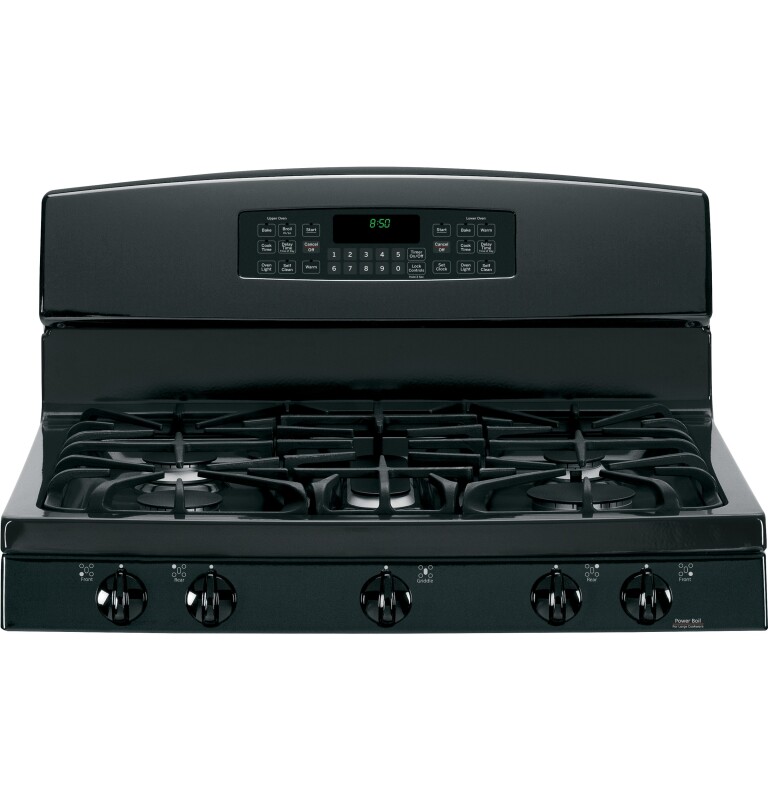

Control TypeElectronic Touch
Cooking TechnologyTraditional
Cooktop SurfaceDeep Recessed
Oven Control FeaturesAuto Self Clean
Oven Control FeaturesSabbath Mode
Cooktop SurfacePorcelain-Enamel
Cooktop SurfaceOne-Piece Upswept
Cooktop SurfaceBlack
Oven Control FeaturesAudible Preheat Signal
Oven Control FeaturesControl Lock Capability

APPEARANCE

Cooktop Burner Grate ColorMatte Black
Oven Door FeaturesBig View Oven Window
HandleDesigner Style
Control KnobsWeighted
Color AppearanceBlack on Black
Control KnobsColor-Matched
HandleColor-Matched

ACCESSORIES

LP Conversion KitIncluded

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 17.0; (1) 11.0, (1) 9.5; (1) 6.0; (1) 5.0
Volts/Hertz/Amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(1) 10.0; (1) 9.5; (1) 15.0; (1) 5.0; (1) 8.0
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's)12.0 / 13.5 - Upper; 14.0 / 0.0 - Lower
Bake/Broiler BTU Rating - LP (000's BTU's)10.0 / 12.5 Upper; 13.5 / 0.0 Lower

CAPACITY

Capacity (Cu. Ft.)2.5 Upper / 4.3 Lower
Total Capacity (cubic feet)6.80 cu ft
