GE 30" Free-Standing Gas Range
Model: JGBP28WEKWW
Product Video
Color : White on White
$928.99
Replaced By
Key Features
Self-clean oven
4.8 cu. ft. oven capacity
TrueTemp oven system
All purpose burners
Sealed cooktop burners
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Cleans the oven cavity without the need for scrubbing
4.8 cu. ft. oven capacity
Enough room to cook an entire meal at once
TrueTemp oven system
Even heat distribution and maximum oven control
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Sealed cooktop burners
Contains spills and make cleaning quick and easy
Certifications
California Prop 65
Specifications

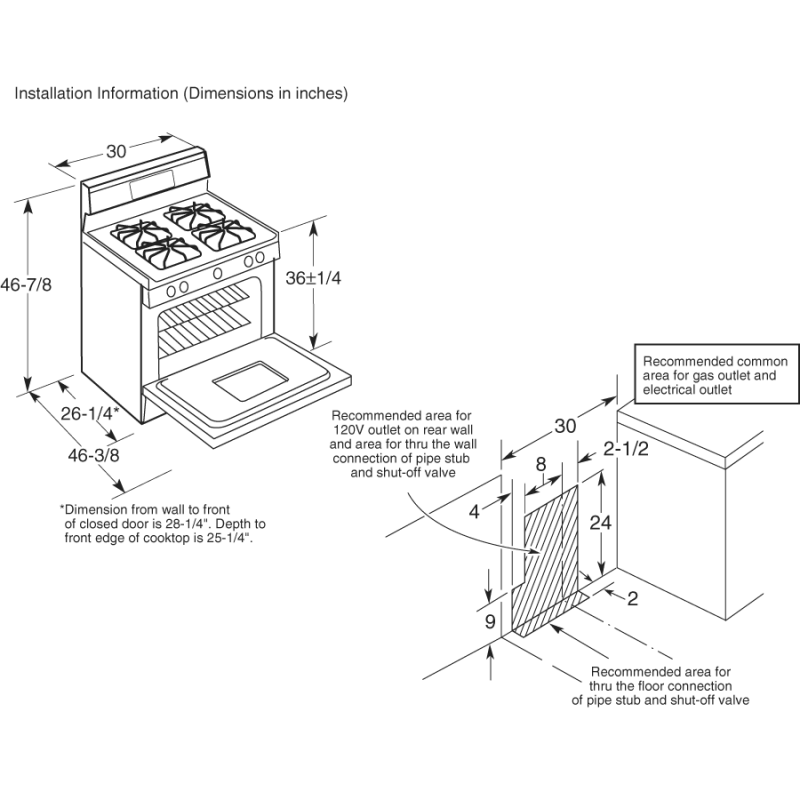

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 190 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 210 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 190 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 230 lbs. |
| Total of Shipping Weight | 230 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.36 ft³ |
| Dimensional Weight | 265.57 lbs. |
| Total of Cubes | 21.36 ft³ |
| Total of Dimensional Weight | 265.57 lbs. |
FEATURES
| Configuration | Range with Storage Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Fuel Type | Natural Gas |
| Oven Interior | Interior Oven Light |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| All-Purpose Burners | (4) 9,500/850 BTU |
| Cooktop Burner Grate Material | Standard Cast |
| Valves (Degree of Turn) | 140 |
| Backguard | Scratch-Resistant |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | Digital Temperature Display |
| One-Piece Drip Pans | Optional Accessory |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Cooktop Burner Grate Material | Square |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | In-Oven Broiling |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Porcelain-Enameled |
APPEARANCE
| Cooktop Burner Grate Color | Gray |
| Oven Door Features | Big Clear View Oven Window |
| Frameless Oven Door(s) | White Glass |
| Control Knobs | Designer-Style |
| Handle Design | D-shaped |
| Handle Color | Color-Matched |
| Color Appearance | White on White |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.5 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 9.5 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
