GE 30" Free-Standing Gas Range
Model: JGBP31WECWW
Color : Other
Key Features
Self-clean oven
Extra-large oven capacity
QuickSet III oven controls
Precise Simmer burner
All purpose burners
Sealed cooktop burners
Porcelain-enameled drip pans
Frameless glass oven door
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once

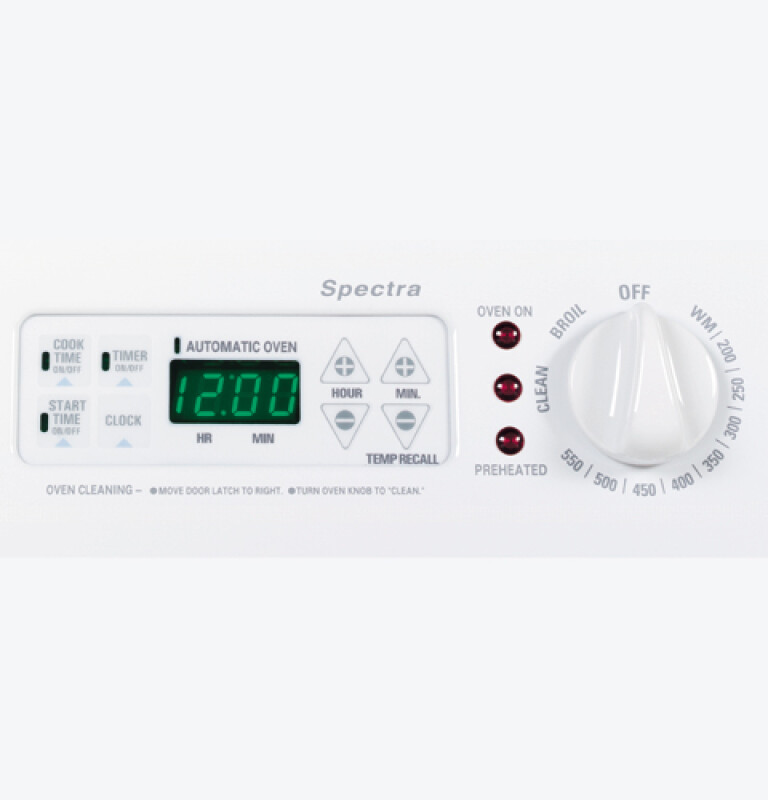

QuickSet III oven controls
Feature an easy to use design that lets you set precise cooking temperatures
Precise Simmer burner
Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Porcelain-enameled drip pans
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Deluxe grates
Provide a sturdy and durable cookware surface for everyday cooking
Certifications
California Prop 65
Specifications
APPEARANCE
| Oven Door Features | Big View Oven Window |
| Cooktop Burner Grate Color | Gray |
| Handle | Designer Style |
| Color Appearance | White on White |
| Frameless Oven Door(s) | White Glass |
CAPACITY
| Unit Capacity | Extra Large Oven |
ACCESSORIES
| LP Conversion Kit | Included |
FEATURES
| Clock and Minute Timer | Electronic |
| Oven Rack Features | 3 Oven Racks |
| Leveling System | 4 Leveling Legs |
| High Output Burner | (1) 12,000/1,000 BTU |
| Valves (Degree of Turn) | 270 |
| Broiler Pan and Grid | Extra Large |
| Backguard | Porcelain-Enameled |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel |
| Cooktop Burner Grate Material | Square |
| Control Type | QuickSet III |
| Control Type | SmartLogic™ Controls |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Oven Cleaning Type | Self-Clean |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | In-Oven Broiling |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Oven Cycle Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Ignition System | Electronic |
| Configuration | Range with Storage Drawer |
| Interior Oven Light | Yes |
| One-Piece Drip Pans | Gray Porcelain-Enameled |
| All-Purpose Burners | (2) 9,500/850 BTU |
| Cooktop Burner Type | Sealed |
| Fuel Type | Natural Gas |
| Oven Rack Features | Embossed Rack Positions |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Electrical Requirements | 120V; 60Hz; 5A |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 17 x 19 |
| Cabinet Width | 30 in |
| Overall Depth | 28 1/4 in |
| Overall Height | 46 1/2 in |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46.375 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.5 in. |
| Length | 28.25 in. |
| Weight | 192 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 33.25 in. |
| Shipping Weight | 232 lbs. |
| Total of Shipping Weight | 232 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.81 ft³ |
| Dimensional Weight | 283.52 lbs. |
| Total of Cubes | 22.81 ft³ |
| Total of Dimensional Weight | 283.52 lbs. |
