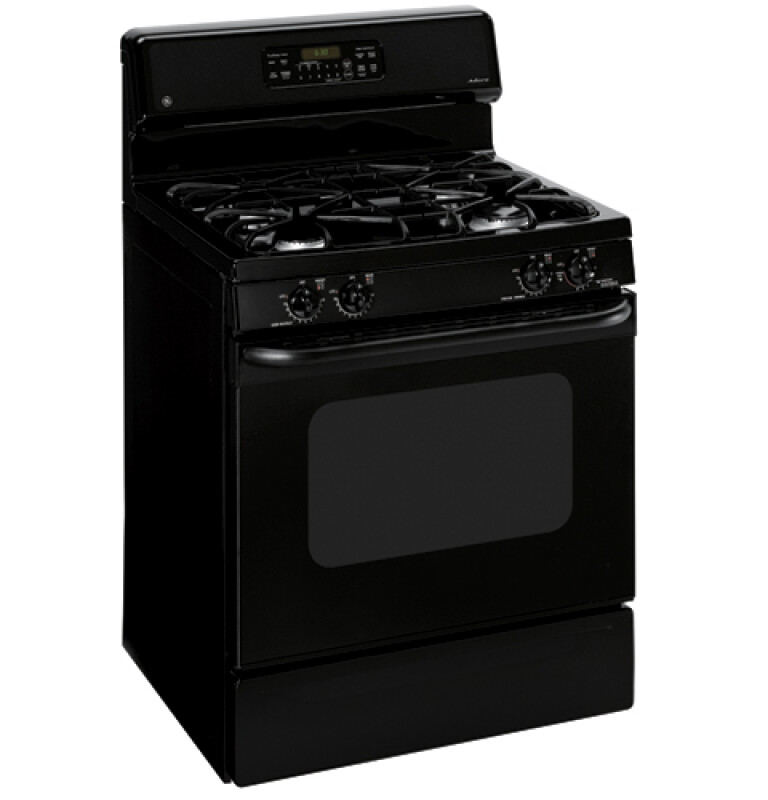

GE Adora 30" Free-Standing Gas Range
Model: JGBP83BEJBB
Color : Other
Key Features
Self-clean oven
Self-clean, heavy-duty oven racks
Extra-large oven capacity
QuickSet V oven controls
Power Boil burner
Warming drawer
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Conveniently cleans the oven cavity without need of scrubbing
Self-clean, heavy-duty oven racks
Double coated porcelain-enameled racks no longer require hand cleaning
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
QuickSet V oven controls
Features an easy to use design that allows you to set precise cooking temperatures
Power Boil burner
Delivers 15,000 BTUs of forceful heat for rapid boiling
Warming drawer
Convenient drawer keeps breads, desserts or just-cooked foods warm and ready-to-serve
Certifications
California Prop 65
Specifications
CAPACITY
| Unit Capacity | Extra Large Oven |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 11.0 (1) 9.1; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Volts/Hertz/Amps | 120V; 60Hz; 9A |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006 |
| Warranty Notes | See written warranty for full details |
FEATURES
| Oven Rack Features | 2 Self-Clean Heavy-Duty Oven Racks |
| Leveling System | 4 Leveling Legs |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Control Type | Digital Temperature Display |
| Control Type | QuickSet V |
| Cleaning Time | Variable |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Digipad Numeric Entry |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | In-Oven Broiling |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Ignition System | Electronic |
| Power Boil Burner | (1) 15,000 BTU/180F degree simmer |
| Clock and Minute Timer | Electronic |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Valves (Degree of Turn) | 270 |
| Broiler Pan and Grid | Extra Large |
| Backguard | Porcelain-Enameled |
| Cooktop Burner Grate Material | Heavy Cast |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Oven Cleaning Type | Self-Clean |
| Warming Drawer Features | Electronic Control |
| Warming Drawer Features | Low, Medium, High Temperature Settings |
| Interior Oven Light | Yes |
| Configuration | Range with Warming Drawer |
| Cooktop Burner Grate Features | Continuous Grates |
| Temperature Management System | True Temp System |
| All-Purpose Burners | (1) 9,100 BTU/850 BTU |
| Cooktop Burner Type | Sealed |
| Fuel Type | Natural Gas |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Hi / Low Broil |
| Oven Rack Features | Embossed Rack Positions |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46.375 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
APPEARANCE
| Color Appearance | Black on Black |
| Oven Door Features | Big Clear View Oven Window |
| Cooktop Burner Grate Color | Black |
| Handle | Designer Style |
| Control Knobs | Designer-Style |
| Frameless Oven Door(s) | Black Glass |
ACCESSORIES
| LP Conversion Kit | Included |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 210 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 250 lbs. |
| Total of Shipping Weight | 250 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.36 ft³ |
| Dimensional Weight | 265.57 lbs. |
| Total of Cubes | 21.36 ft³ |
| Total of Dimensional Weight | 265.57 lbs. |
