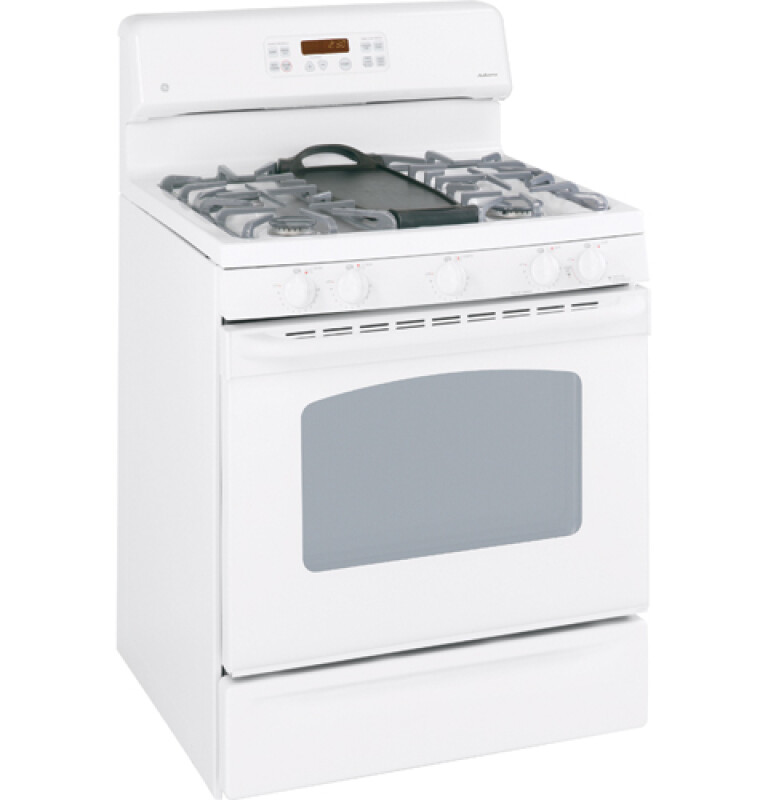

GE Adora 30" Free-Standing Gas Range
Model: JGBP87WELWW




Key Features
Self-clean oven
Extra-large oven capacity
Center oval burner
Non-stick griddle
Power Boil 16,000 BTU Burner
Big hearth window
Frameless glass oven door
TrueTemp system
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
Center oval burner
Adds a fifth element to the center of the cooktop, ideal for griddle or odd-size cookware
Non-stick griddle
Offers a flat cooking surface, placed over the center oval burner, for cooking multiple foods at once
Power Boil 16,000 BTU Burner
Delivers 16,000 BTUs of forceful heat for rapid boiling
Big hearth window
Features an enhanced shape to add an elegant appearance and make viewing trouble-free
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
TrueTemp system
Delivers even heat distribution and maximum oven control
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
Continuous grates
Provide a flat, sturdy surface allowing easy movement of pans between burners
Precise Simmer burner
Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
QuickSet V oven controls
Features an easy to use design that allows you to set precise cooking temperatures
Self-clean, heavy-duty oven racks
Double coated porcelain-enameled racks no longer require hand cleaning
Certifications
California Prop 65
Specifications
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
APPEARANCE
| Oven Door Features | Big Hearth Oven Window |
| Cooktop Burner Grate Color | Gray |
| Handle | High-Gloss Color-Matched Sculptured |
| Control Knobs | Designer-Style |
| Color Appearance | White on White |
| Frameless Oven Door(s) | White Glass |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 16.0; (1) 11.0; (1) 9.1; (1) 6.0; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 12.5 Broiler |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
FEATURES
| Center Oval Burner | (1) 6,000 BTU |
| Oven Rack Features | 2 Self-Clean Heavy-Duty Oven Racks |
| Leveling System | 4 Leveling Legs |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Valves (Degree of Turn) | 270 |
| Backguard | Porcelain-Enameled |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Cooktop Burner Grate Material | Heavy Cast |
| Control Type | Digital Temperature Display |
| Control Type | QuickSet IV |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Cleaning Time | Variable |
| Oven Cleaning Type | Self-Clean |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | In-Oven Broiling |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Configuration | Range with Storage Drawer |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Temperature Management System | True Temp System |
| Self-Clean Oven Door Lock | Manual |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Power Boil Burner | (1) 16,000 BTU |
| Cooktop Burner Type | Sealed |
| Fuel Type | Natural Gas |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Hi / Low Broil |
| Oven Rack Features | Embossed Rack Positions |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Approximate Shipping Weight | 220 lb |
| Cabinet Width | 30 in |
| Net Weight | 200 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 7/8 in |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46.375 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.88 in. |
| Length | 26.25 in. |
| Weight | 200 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.88 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 240 lbs. |
| Total of Shipping Weight | 240 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.36 ft³ |
| Dimensional Weight | 265.57 lbs. |
| Total of Cubes | 21.36 ft³ |
| Total of Dimensional Weight | 265.57 lbs. |
