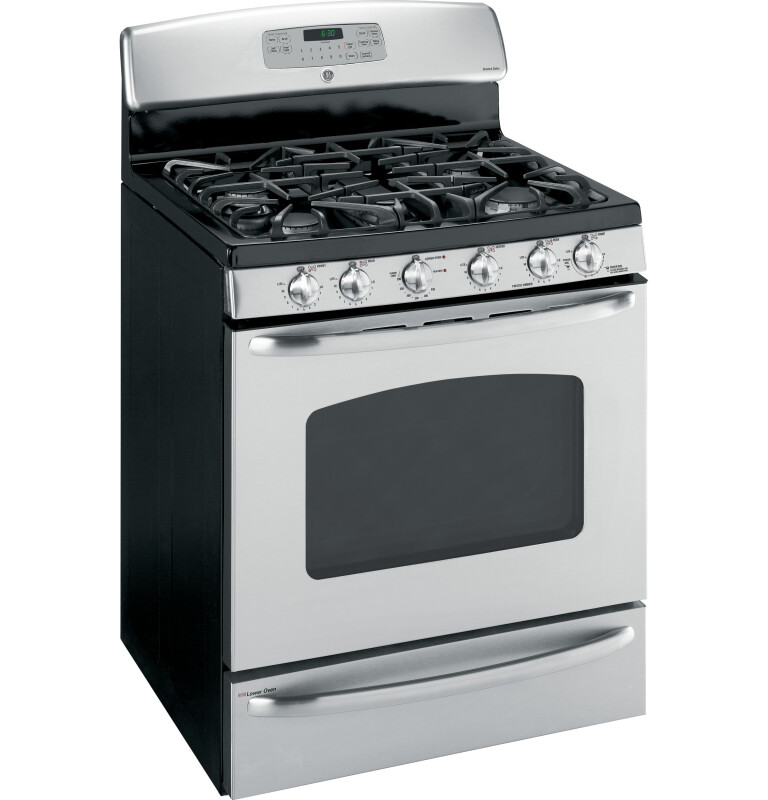

GE 30" Free-Standing Gas Range
Model: JGBP89SEMSS
Color : Stainless Steel
Replaced By
Key Features
Self-clean oven
Extra-large oven capacity
Deep-recessed cooktop
Center oval burner
Power Boil 17K burner
Continuous grates
Precise Simmer burner
QuickSet oven controls
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Self-clean allows you to spare yourself from the trouble and effort it takes to scrub the oven interior
Extra-large oven capacity
Enough room to cook an entire meal at once
Deep-recessed cooktop
Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean
Center oval burner
Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles
Power Boil 17K burner
This powerful element instantly supplies the intense heat needed for boiling, sautéing and stir frying
Continuous grates
Connected cooktop grates provide a sturdy, uninterrupted surface that allows pots and pans to move easily
Precise Simmer burner
Allows for low, even heat distribution that is ideal for delicate foods and sauces
QuickSet oven controls
Electronic touch pads on the control panel make controlling your oven effortless
Baking drawer
Lower oven with heating up 450° offers additional cooking space when you need it most
Certifications
California Prop 65
Specifications

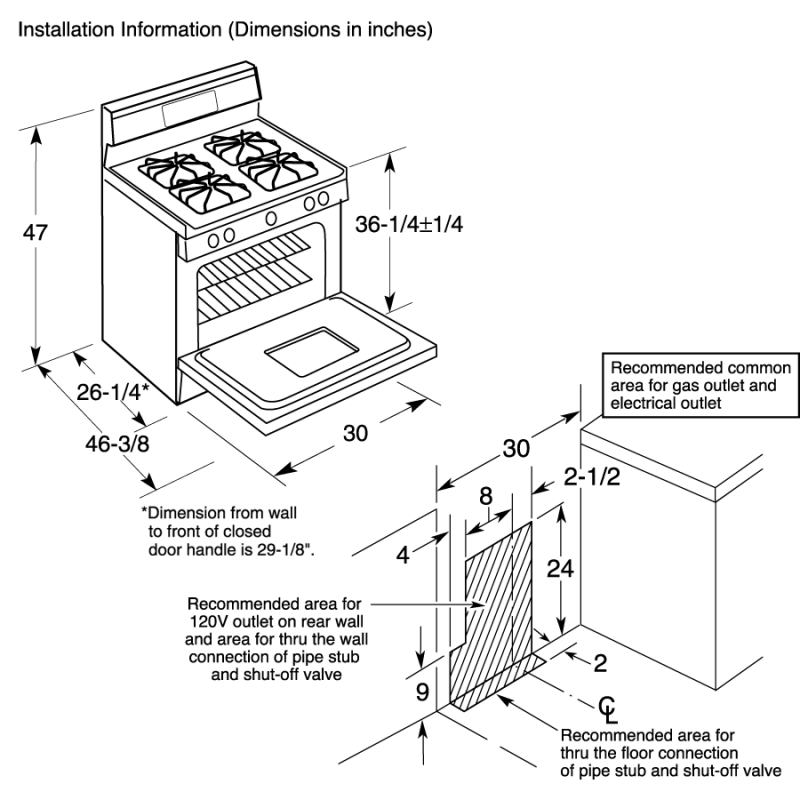

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Overall Height | 47 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Overall Depth | 26 1/4 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47 in. |
| Length | 26.25 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.42 ft³ |
| Dimensional Weight | 266.28 lbs. |
| Total of Cubes | 21.42 ft³ |
| Total of Dimensional Weight | 266.28 lbs. |
FEATURES
| Configuration | Range with Baking Drawer |
| Cleaning Time | Variable |
| Ignition System | Electronic |
| Interior Oven Light | Yes |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 17,000 BTU |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Stainless Steel |
| Center Oval Burner | (1) 6,000 BTU |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Baking Drawer Features | Electronic Control |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet V |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Baking Drawer Features | 140-450 Degrees F Temperature Settings |
| Control Type | Digital Temperature Display |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | In-Oven Broiling |
| Oven Control Features | Digipad Numeric Entry |
| Oven Rack Features | 2 Oven Racks |
| Backguard | Scratch-Resistant |
APPEARANCE
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big Hearth Oven Window |
| Handle | Stainless Steel Sculptured |
| Frameless Oven Door(s) | Stainless Steel |
| Control Knobs | Designer-Style |
| Color Appearance | Stainless Steel |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Capacity (Cu. Ft.) | 5.0 Upper / 1.0 Lower |
| Total Capacity (cubic feet) | 6.00 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Warming Drawer Wattage | 450 |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0: (1) 9.1; (1) 8.0; (1) 6.0; (1) 4.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Warranty Notes | For models produced on or after January 1, 2006 |
