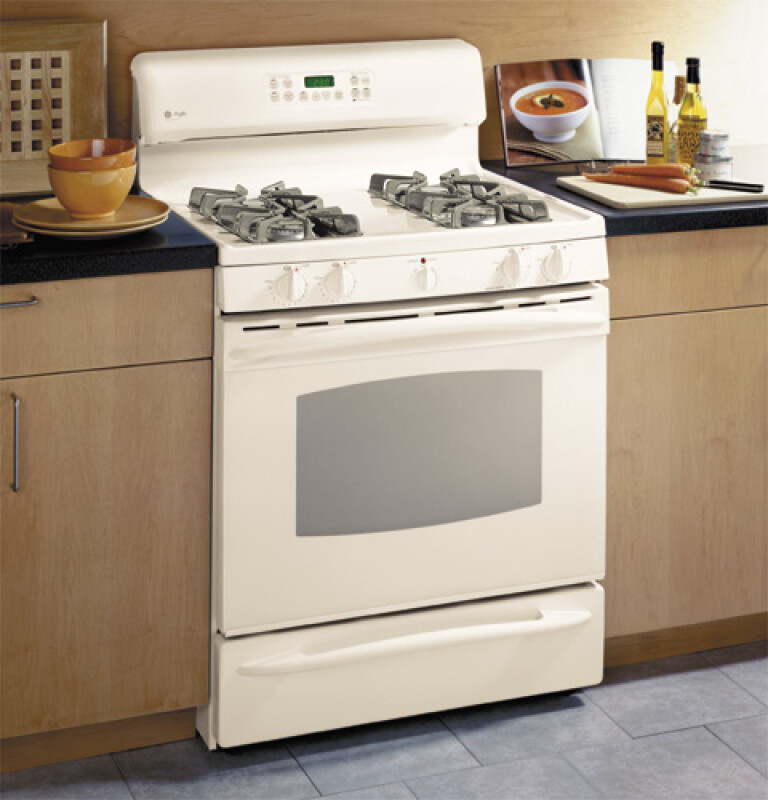

30" Self-Clean Free-Standing Gas Range with Warming Drawer - JGBP99CEHCC
30" Self-Clean Free-Standing Gas Range with Warming Drawer
Model: JGBP99CEHCC
30" Self-Clean Free-Standing Gas Range with Warming Drawer
Model: JGBP99CEHCC
Color : Bisque on Bisque
Key Features
Self-clean oven
Extra-large oven capacity
TrueTemp system
QuickSet IV oven controls
High output burner
Precise Simmer burner
Frameless glass oven door
Sealed cooktop burners
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Self-clean oven
Conveniently cleans the oven cavity without need of scrubbing
Extra-large oven capacity
Provides a large oven interior ideal for cooking more items at once
TrueTemp system
Delivers even heat distribution and your maximum oven control
QuickSet IV oven controls
Feature an easy to use design which allows you to set precise cooking temperatures
High output burner
Provides a powerful burner output for efficient heat-up and boiling
Precise Simmer burner
Offers a low setting of 600 BTUs, ensuring more temperature control for simmering
Frameless glass oven door
Offers an easy-to-clean and stylish design that blends seamlessly into existing cabinetry
Sealed cooktop burners
Eliminate the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Certifications
California Prop 65
Specifications
APPEARANCE
| Oven Door Features | Big Clear View Oven Window |
| Cooktop Burner Grate Color | Taupe |
| Handle | Sculptured |
| Color Appearance | Bisque on Bisque |
| Frameless Oven Door(s) | Bisque Glass |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.80 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 12.0; (1) 9.5; (1) 5.0 |
| Warming Drawer Wattage | 450 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 11.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
FEATURES
| Oven Rack Features | 2 Oven Racks |
| High Output Burner | (2) 12,000/1,000 BTU |
| Valves (Degree of Turn) | 270 |
| Broiler Pan and Grid | Extra Large |
| Backguard | Porcelain-Enameled |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Burner Grate Material | Heavy Cast |
| Cooktop Burner Grate Material | Square |
| Control Type | QuickSet IV |
| Precise Simmer Burner | (1) 5,000/600 BTU |
| Oven Cleaning Type | Self-Clean |
| Warming Drawer Features | 150-220 Degrees F Temperature Settings |
| Warming Drawer Features | Electronic Control |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | In-Oven Broiling |
| Ignition System | Electronic |
| Configuration | Range with Warming Drawer |
| Interior Oven Light | Yes |
| Temperature Management System | True Temp System |
| One-Piece Drip Pans | Taupe Porcelain-Enameled |
| All-Purpose Burners | (1) 9,500/850 BTU |
| Cooktop Burner Type | Sealed |
| Fuel Type | Natural Gas |
| Oven Control Features | Hi / Low Broil |
| Oven Rack Features | Embossed Rack Positions |
| Backguard | Scratch-Resistant |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Cabinet Width | 30 in |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/2 in |
| Overall Width | 30 in |
| Depth with Door Open 90° | 46.375 in |
| Height to Cooking Surface (in.) | 36 +/- .25 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.5 in. |
| Length | 26.25 in. |
| Weight | 204 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.5 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 244 lbs. |
| Total of Shipping Weight | 244 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.19 ft³ |
| Dimensional Weight | 263.44 lbs. |
| Total of Cubes | 21.19 ft³ |
| Total of Dimensional Weight | 263.44 lbs. |
