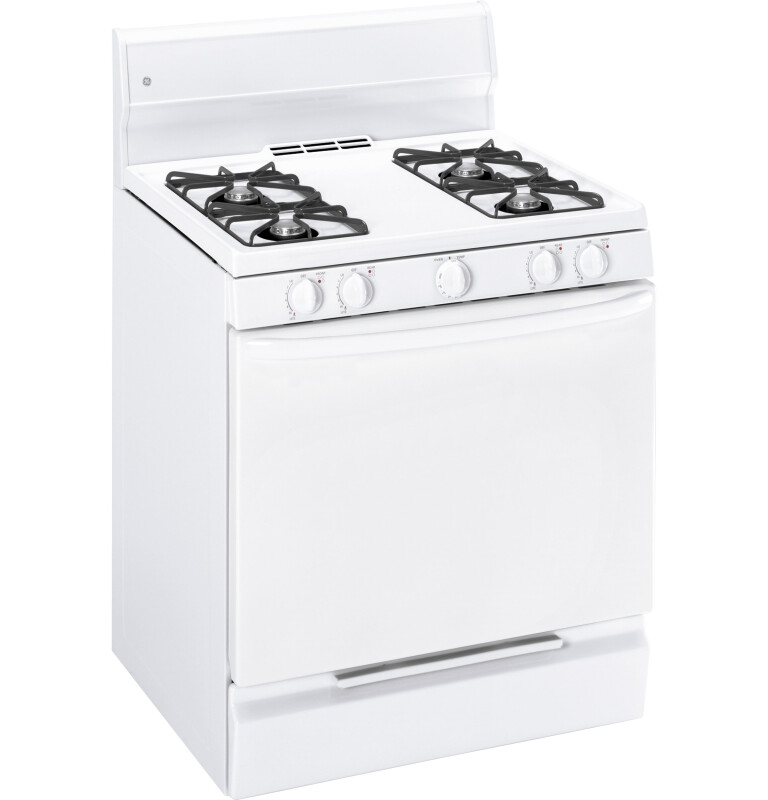

GE 30" Free-Standing Gas Range
Model: JGBS04PPMWW
Color : White
$928.99
$779.00
$779.00
Replaced By
30" Free-Standing Front Control Gas Range
Model: JGBS10DEMWW
$619.00
Was$699.00Save $80.00 (11%)
Key Features
Extra-large oven capacity
Standard clean oven
All purpose burners
Standard grates
Porcelain oven door
Two oven racks
Designer-style handle
Broiler drawer
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Extra-large oven capacity
Enough room to cook an entire meal at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
All purpose burners
All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs
Standard grates
Quality grates keep pots and pans securely in place over the burners
Porcelain oven door
Scratch-resistant porcelain coating makes the door more durable and easy to maintain
Two oven racks
Includes two oven racks that are sturdy and reliable
Designer-style handle
Sleek lines and a rounded shape that add to the modern appearance
Broiler drawer
Convenient broil drawer delivers excellent crisping and browning results, and acts as a storage drawer when not in use
Easy clean subtop
The subtop is porcelain enameled to make cleaning spills and messes quick and simple
Certifications
ADA Compliant
California Prop 65
Specifications

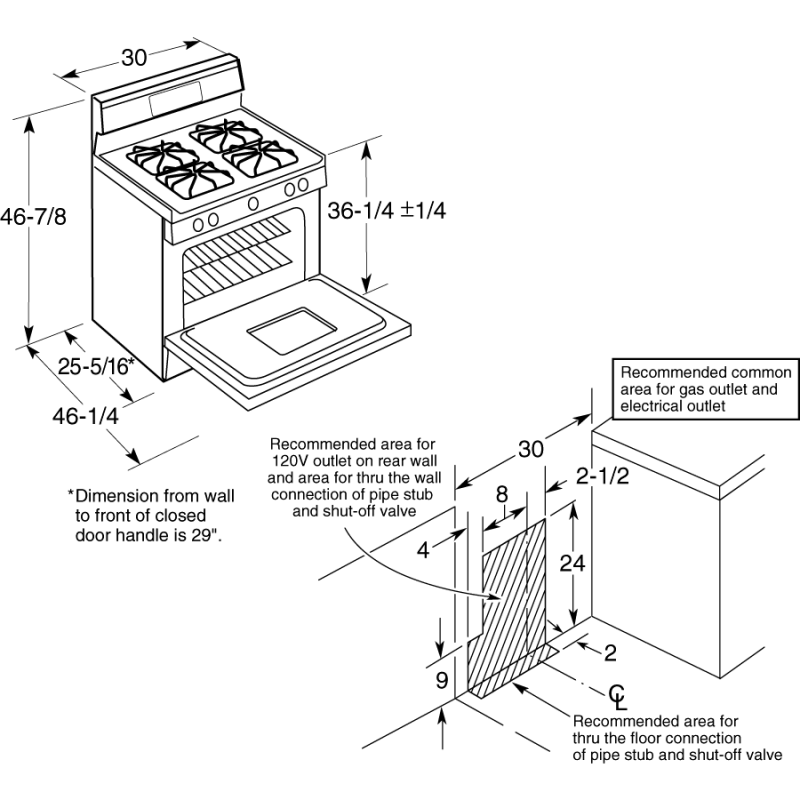

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 145 lb |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
| Overall Depth | 27 7/16 in |
| Overall Height | 45 1/2 in |
| Height to Cooking Surface (in.) | 36.25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 45.5 in. |
| Length | 27.44 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 50.5 in. |
| Shipping Length | 32.44 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.67 ft³ |
| Dimensional Weight | 269.44 lbs. |
| Total of Cubes | 21.67 ft³ |
| Total of Dimensional Weight | 269.44 lbs. |
FEATURES
| Slide - Out Broiler Drawer | Yes |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Standing Pilot (electrical ratings not applicable for standing pilot models) |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Oven Cleaning Type | Standard Clean |
| All-Purpose Burners | (4) 9,100/850 BTU |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 140 |
| Backguard | Porcelain-Enameled |
| Cooktop Surface | Porcelain-Enamel |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Cooktop Burner Grate Material | Porcelain on Steel |
| Cooktop Surface | Lift-Up |
| Oven Rack Features | 2 Oven Racks |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | Color-Matched Porcelain-Enameled |
| Control Knobs | Designer-Style |
| Color Appearance | White |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 4.80 cu ft |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K10001 black; WB35K10002 chrome |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
