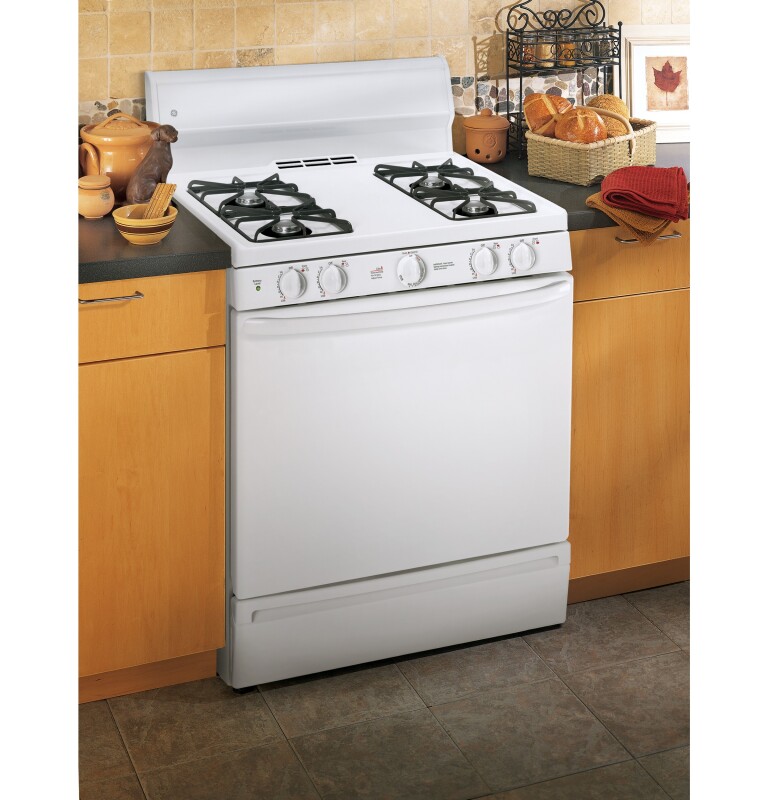

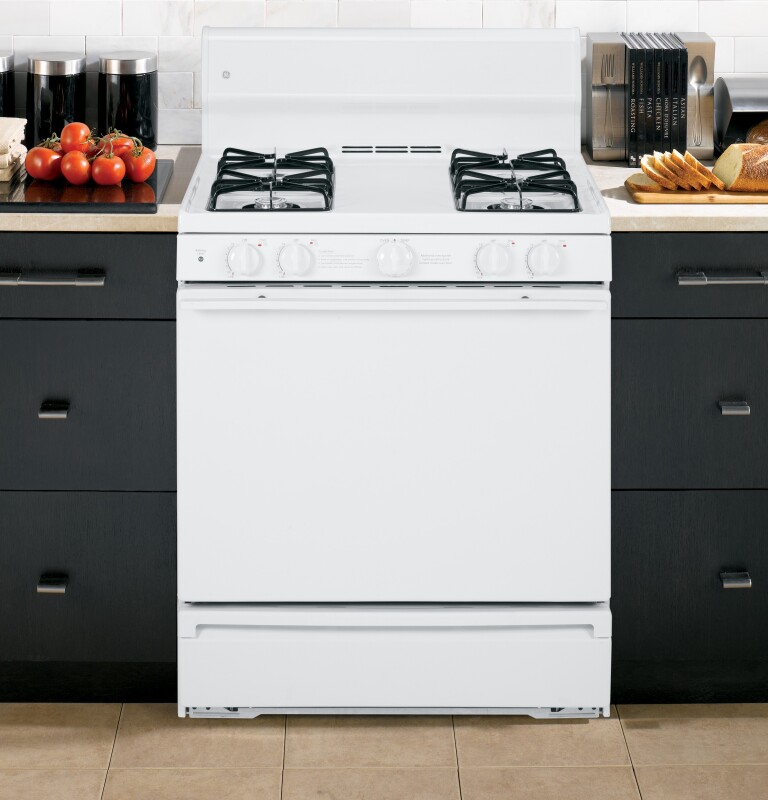

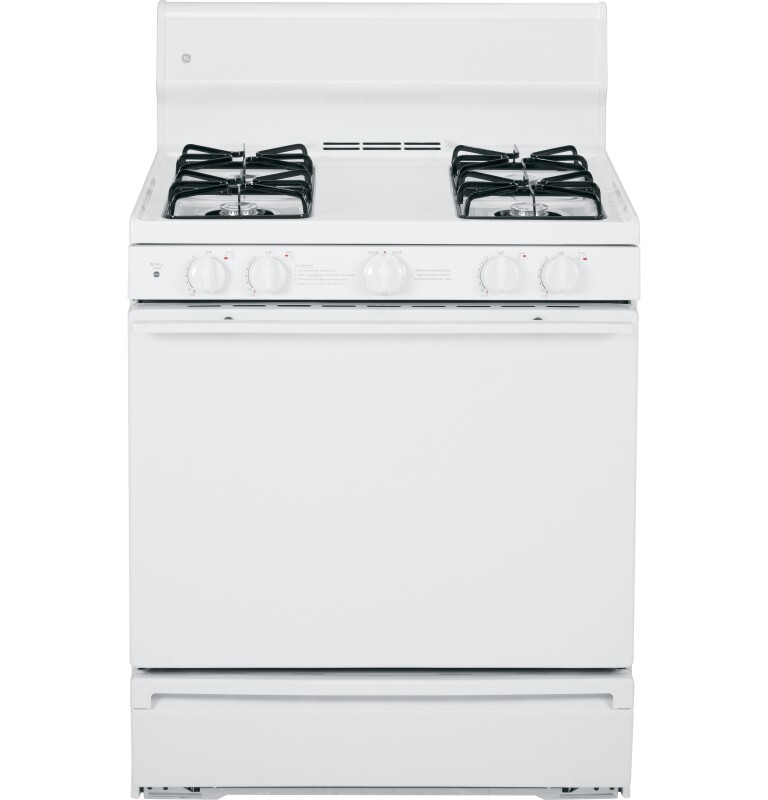

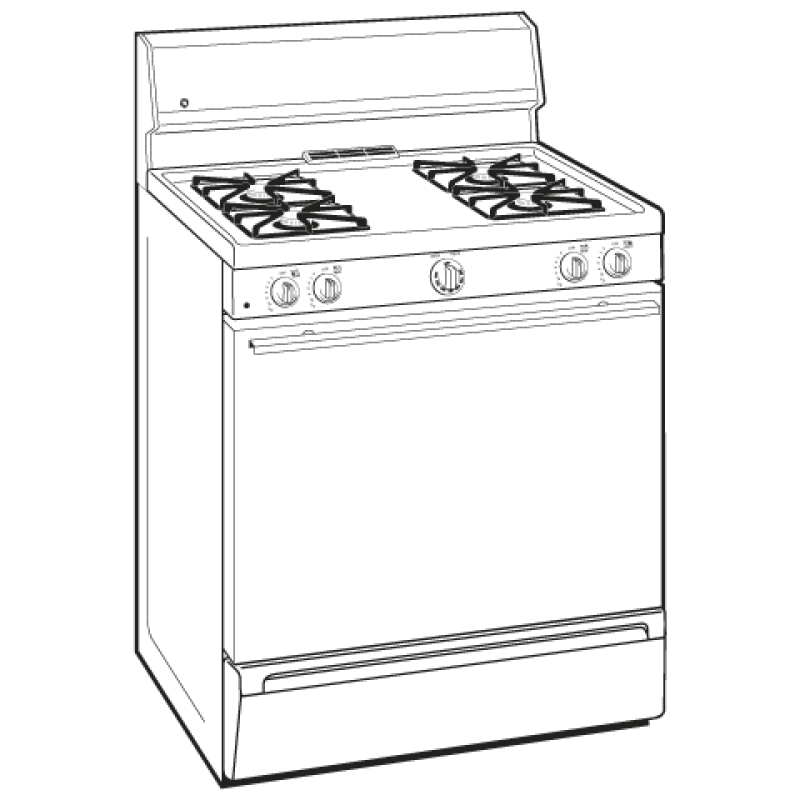

GE 30" Free-Standing Gas Range
Model: JGBS14PCDWW
Color : White on White
$699.00
$764.00
$819.00
$779.00
$828.99
$928.99
$819.00
$779.00
$729.00
$779.00
$828.99
$819.00
$779.00
$699.00
$764.99
$828.99
Replaced By
30" Free-Standing Front Control Gas Range
Model: JGBS10DEMWW
$619.00
Was$699.00Save $80.00 (11%)
Key Features
4.8 cu. ft. oven capacity
All purpose burners
Cordless battery ignition
Low battery indicator light
Porcelain upswept cooktop
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

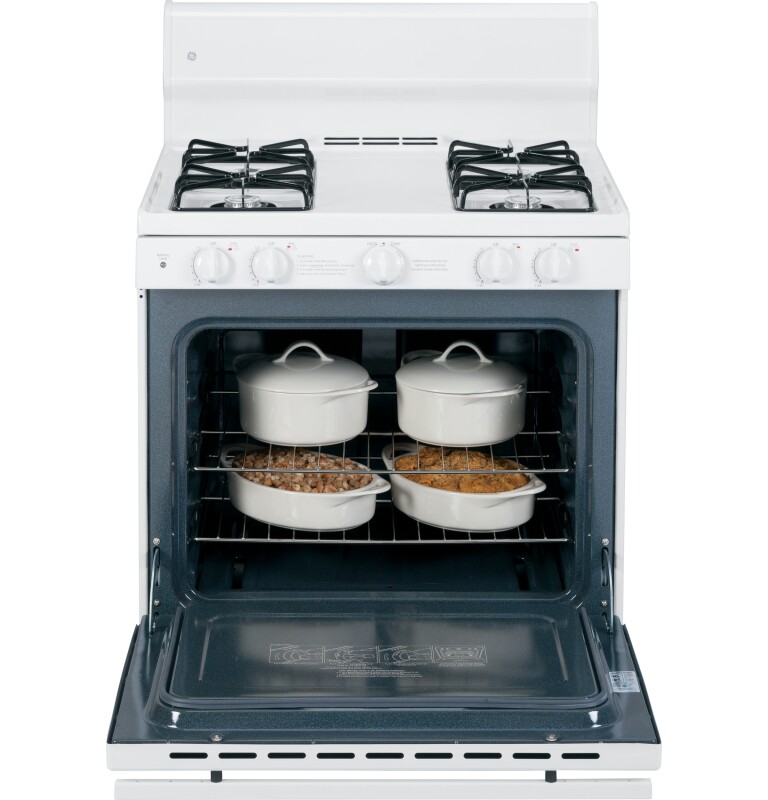

4.8 cu. ft. oven capacity
More room for cooking more dishes at once
All purpose burners
Deliver a wide range of heat output ideal for most cooking needs
Cordless battery ignition
Battery powered ignition safely and conveniently lights the burners without the need for electrical outlet
Low battery indicator light
Indicates when the igniter has a low battery so the pilot functions properly

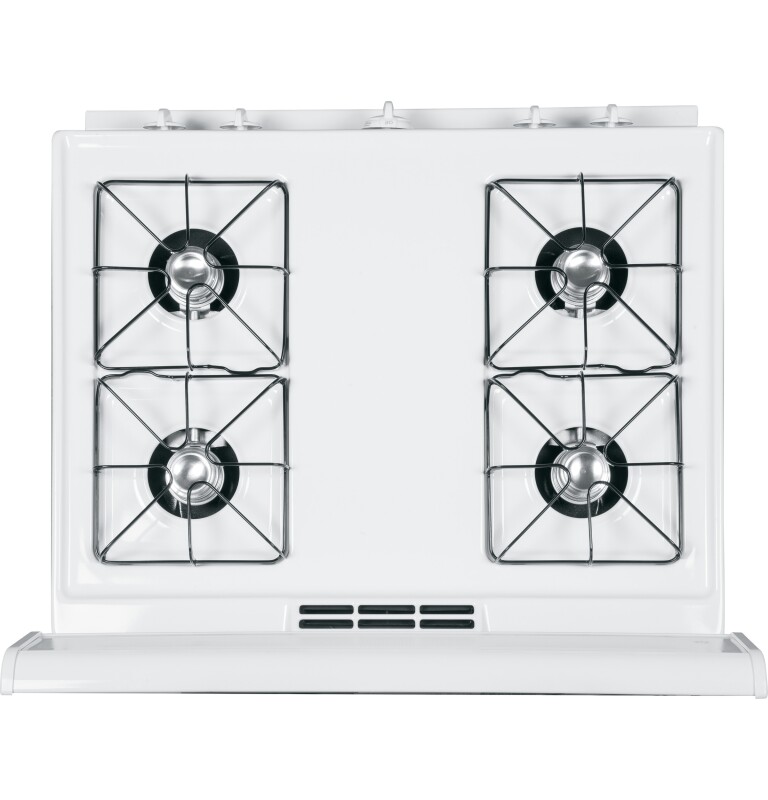

Porcelain upswept cooktop
Raised edges and porcelain-enameled surface makes cleaning incredibly easy
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |

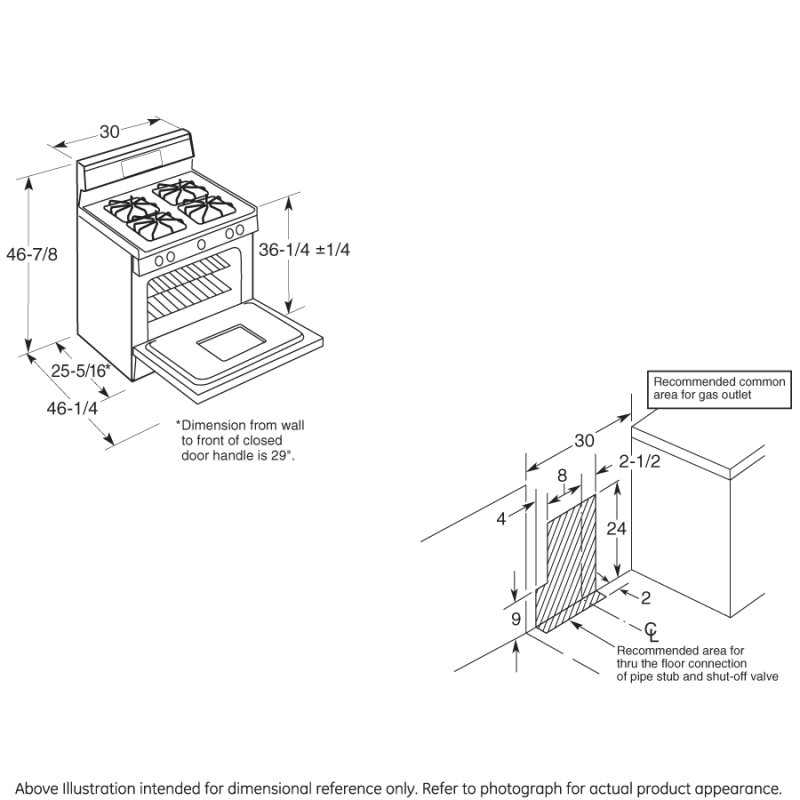

WEIGHTS & DIMENSIONS
| Overall Width | 30 in |
| Net Weight | 145 lb |
| Depth Without Handle | 26.25 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 165 lb |
| Overall Depth | 29 1/4 in |
| Overall Height | 46 1/4 in |
| Height to Cooking Surface (in.) | 36.25 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.25 in. |
| Length | 29.25 in. |
| Weight | 145 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.25 in. |
| Shipping Length | 34.25 in. |
| Shipping Weight | 185 lbs. |
| Total of Shipping Weight | 185 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.49 ft³ |
| Dimensional Weight | 291.97 lbs. |
| Total of Cubes | 23.49 ft³ |
| Total of Dimensional Weight | 291.97 lbs. |
FEATURES

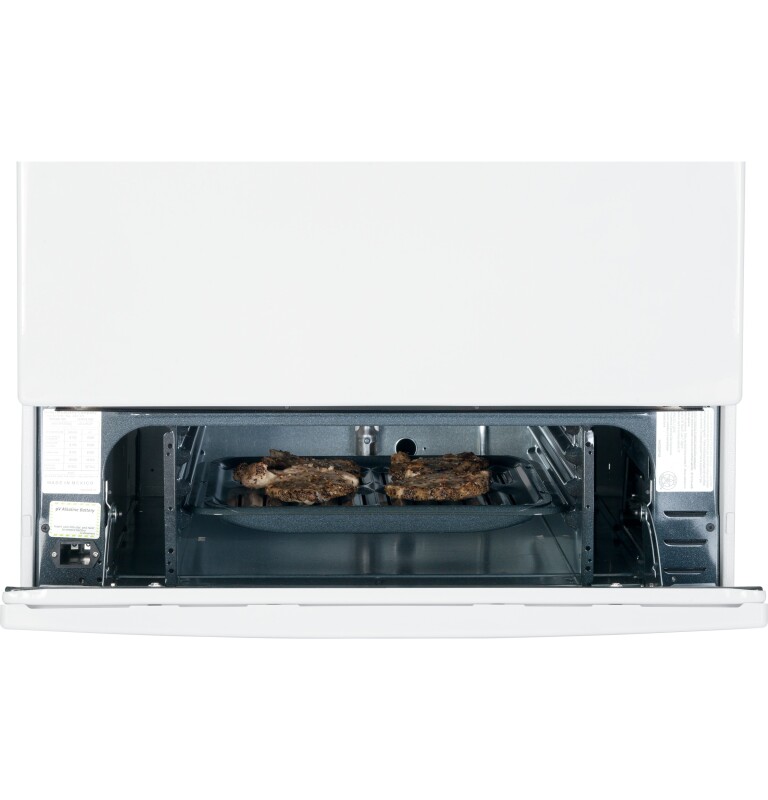

| Slide - Out Broiler Drawer | Drop Down Door |
| Configuration | Cordless |
| Porcelain-Enameled Subtop | Yes |
| Ignition System | Battery spark, pilot |
| Burner - Right Rear | 9,100 BTU |
| Fuel Type | Natural Gas |
| Cooktop Burner Type | Standard |
| Oven Rack Features | Embossed Rack Positions |
| Burner - Left Rear | 9,100 BTU |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Grate Material | Square |
| Valves (Degree of Turn) | 140 |
| Backguard | Porcelain-Enameled |
| Burner - Right Front | 9,100 BTU |
| Cooktop Surface | Porcelain-Enamel |
| Burner - Left Front | 9,100 BTU |

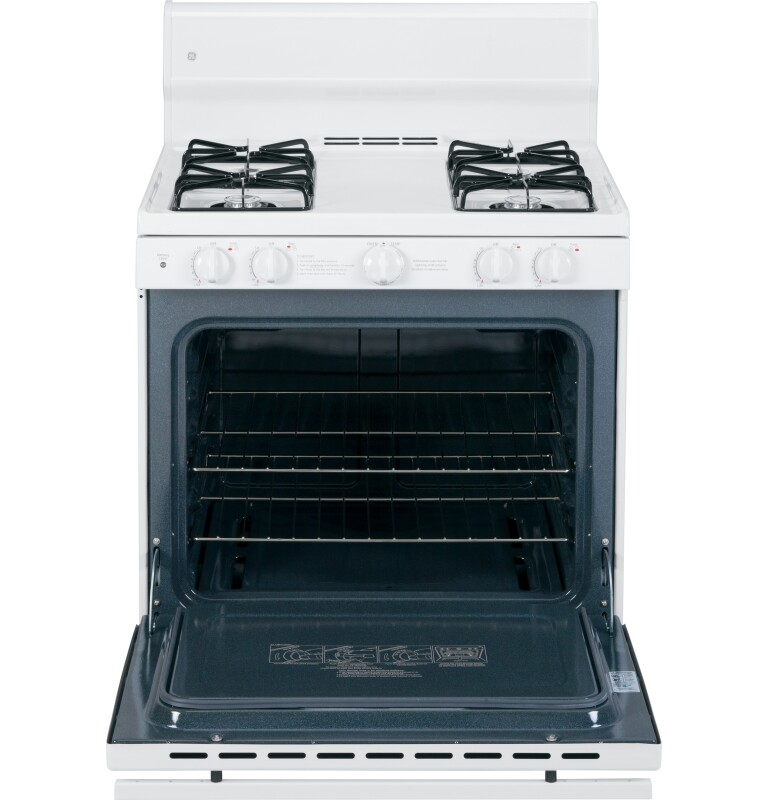

| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| One-Piece Drip Pans | Optional Accessory |
| Cooktop Burner Grate Material | Porcelain on Steel |
| Cooktop Surface | Lift-Up |
| Oven Rack Features | 2 Oven Racks |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Frameless Oven Door(s) | Color-Matched Porcelain-Enameled |

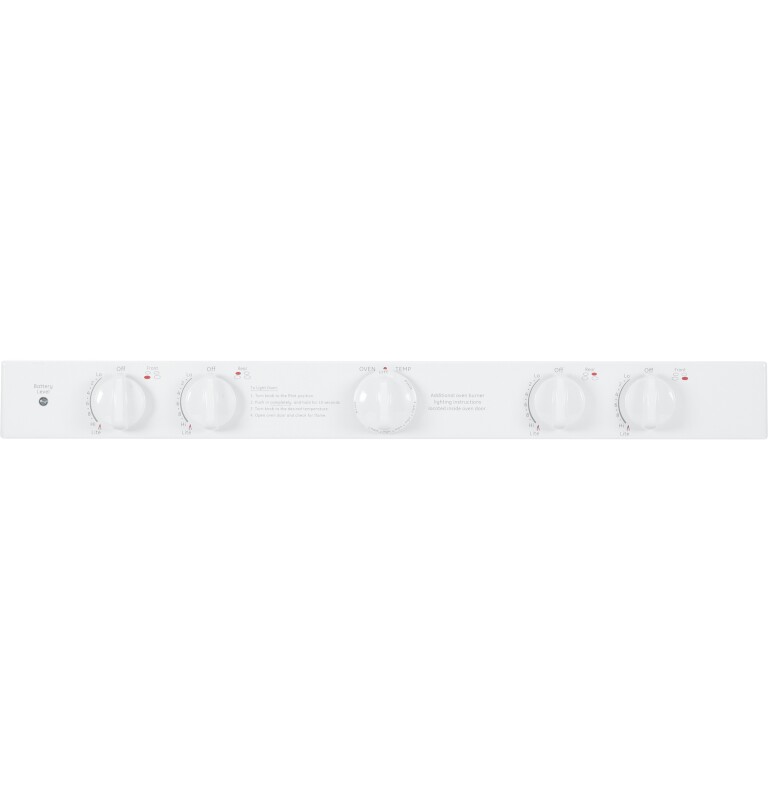

| Control Knobs | Designer-Style |
| Handle Design | D-shaped |
| Handle Color | White with white door |
| Color Appearance | White on White |
ACCESSORIES
| LP Conversion Kit | Included |
| Optional One-Piece Drip Pans | WB35K10001 black; WB35K10002 chrome |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.1 |
| Volts/Hertz/Amps | Standard 9V battery |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake / 18.0 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 16.5 Broiler |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
