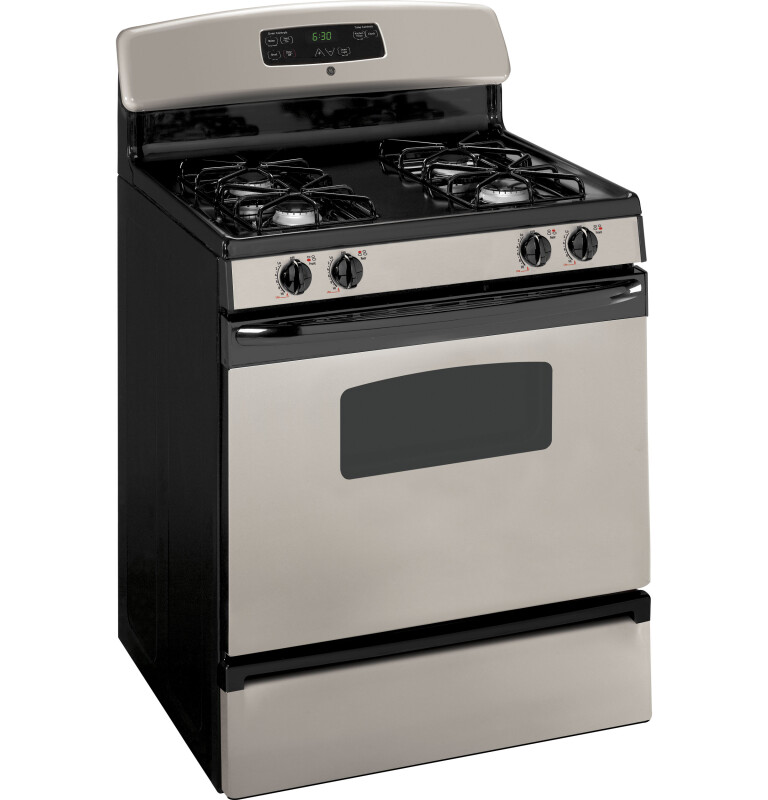

GE 30" Free-Standing Gas Range
Model: JGBS19GERSA


Key Features
Extra-large oven capacity
Standard clean oven
Sealed cooktop burners
All purpose burners
Electronic clock and timer
Designer-style handle
Easy clean subtop
Electronic pilotless ignition
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Extra-large oven capacity
Enough room to cook an entire meal at once
Standard clean oven
Smooth surface and rounded corners make clean-up quick and easy
Sealed cooktop burners
Burner elements are sealed to the cooktop to keep foods and liquid contained on the cooktop, making cleaning painless
All purpose burners
All-purpose burner delivers two levels of BTU output to accommodate virtually all your cooking needs
Electronic clock and timer
Convenient clock and timer helps you coordinate meal preparation and cooking
Designer-style handle
Sleek lines and a rounded shape that add to the modern appearance
Easy clean subtop
The subtop is porcelain enameled to make cleaning spills and messes quick and simple
Electronic pilotless ignition
Say farewell to the energy-wasting standing pilot! The electric pilotless ignition provides reliable operation
Deluxe grates
Deluxe grates hold pots and pans over burners for everyday cooktop cooking
Six rack positions
Provides flexibility and allows consumers to make the most of available oven capacity
Certifications
California Prop 65
Specifications
APPEARANCE
| Oven Door Features | Clear View Oven Window |
| Cooktop Burner Grate Color | Black |
| Handle | Color-Matched Sculptured |
| Control Knobs | Designer-Style |
| Color Appearance | Silver |
| Frameless Oven Door(s) | Color-Matched |
ACCESSORIES
| LP Conversion Kit | Included |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (4) 9.5 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.5 |
| Top Burner BTU Rating - LP (000's BTU's) | (4) 8.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
FEATURES
| Oven Interior | Interior Oven Light |
| Oven Rack Features | 2 Oven Racks |
| Leveling System | 4 Leveling Legs |
| Slide - Out Broiler Drawer | Yes |
| Valves (Degree of Turn) | 140 |
| Broiler Pan and Grid | Yes |
| Cooktop Surface | Lift-Up |
| Cooktop Surface | Porcelain-Enameled Upswept |
| Cooktop Burner Grate Material | Deluxe Porcelain Steel |
| Cooktop Burner Grate Material | Square |
| Control Type | Digital Temperature Display |
| Control Type | QuickSet III |
| Oven Cleaning Type | Standard Clean |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Electronic Clock and Timer |
| Ignition System | Electronic |
| Porcelain-Enameled Subtop | Yes |
| One-Piece Drip Pans | Optional Accessory |
| All-Purpose Burners | (4) 9,100/850 BTU |
| Cooktop Burner Type | Sealed |
| Fuel Type | Natural Gas |
| Oven Control Features | Sabbath Mode |
| Oven Rack Features | Embossed Rack Positions |
| Backguard | Porcelain-Enameled |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Approximate Shipping Weight | 172 lb |
| Cabinet Width | 30 in |
| Net Weight | 150 lb |
| Overall Depth | 26 1/4 in |
| Overall Height | 46 1/8 in |
| Overall Width | 30 in |
Dimensions & Weight
| Width | 30 in. |
| Height | 46.13 in. |
| Length | 26.25 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.02 ft³ |
| Dimensional Weight | 261.32 lbs. |
| Total of Cubes | 21.02 ft³ |
| Total of Dimensional Weight | 261.32 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 4.80 cu ft |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
