GE Profile 30" Free-Standing Dual-Fuel Range
Model: P2B912DEMBB
Color : Black on Black
Replaced By
Key Features
Electric oven with gas assist
120-volt installation
Deep-recessed cooktop
Center oval burner
Power Boil 17,000 burner
Non-stick griddle
QuickSet VI glass touch controls
Stainless appearance knobs
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Electric oven with gas assist
Increases total heat output to quickly reach temperature setting
120-volt installation
Requires gas line and 120-volt / 15 amp "standard" receptacle
Deep-recessed cooktop
Deep recessed cooktop keeps spills, and everything else, contained in one area that’s easy to wipe clean
Center oval burner
Oval fifth burner in the center of the cooktop is large to accommodate odd-sized cookware or griddles
Power Boil 17,000 burner
This powerful element instantly supplies the intense heat need for boiling, sautéing and stir frying
Non-stick griddle
Ideal for pancakes, bacon, sandwiches and more
QuickSet VI glass touch controls
Controlling the oven is incredibly easy with the glass one-touch control panel - and it’s easy to keep clean
Stainless appearance knobs
Stainless appearance knobs add a touch of style that complements the overall stainless steel exterior
Precise Simmer burner
Allows for low, even heat distribution that is ideal for delicate foods and sauces
Warming drawer
The convenient drawer keeps foods warm and ready to serve and helps makes meal coordination easier
Certifications
California Prop 65
Specifications

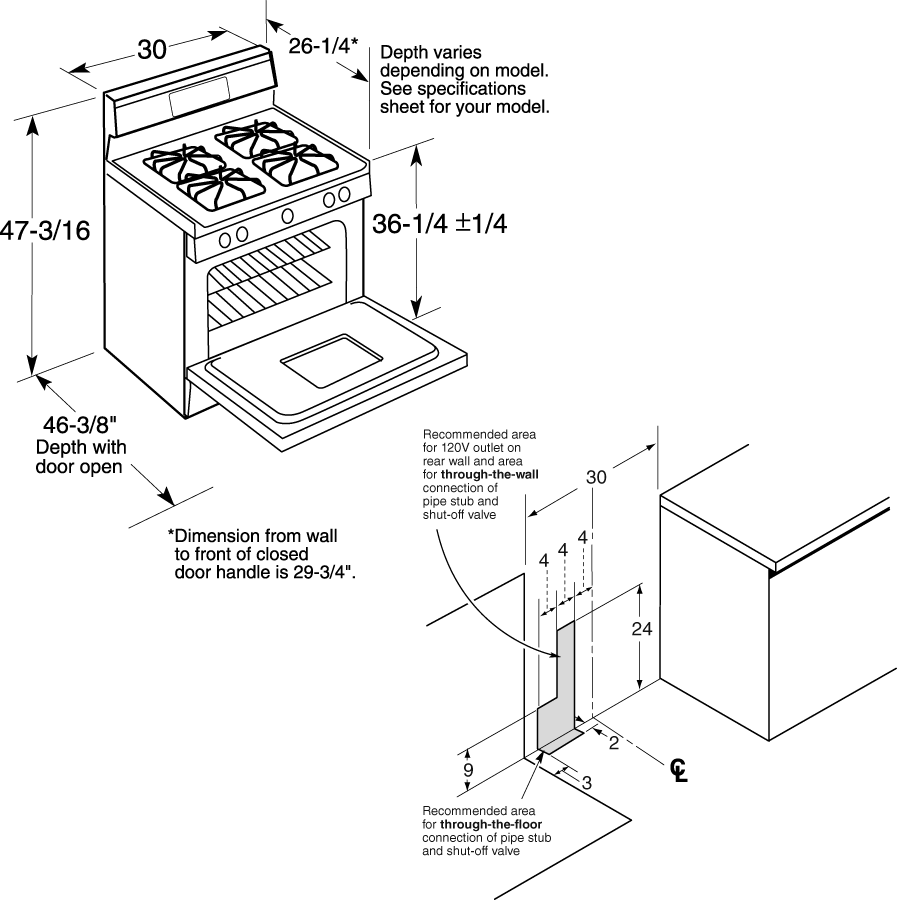

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Overall Width | 30 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Depth with Door Open 90° | 46.375 in |
| Overall Depth | 26 1/4 in |
| Overall Height | 47 3/16 in |
| Height to Cooking Surface (in.) | 36.25 +/- .25 |
APPEARANCE
| Cooktop Burner Grate Color | Black |
| Oven Door Features | Profile™ XL |
| Handle | Color-Matched Sculptured |
| Frameless Oven Door(s) | Black Glass |
| Color Appearance | Black on Black |
FEATURES
| Ignition System | Electronic |
| Interior Oven Light | Main Oven |
| Fuel Type | 120V Electric and Natural Gas |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Cooktop Burner Type | 5 Sealed |
| Oven Rack Features | Embossed Rack Positions |
| Power Boil Burner | (1) 17,000 BTU |
| Oven Cleaning Type | Self-Clean |
| High Output Burner | (1) 11,000 BTU/150F degree simmer |
| Temperature Management System | True Temp System |
| Griddle | Non-Stick |
| All-Purpose Burners | (1) 9,100 BTU/150F degree simmer |
| Cooktop Burner Grate Material | Heavy Cast |
| Valves (Degree of Turn) | 270 |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Backguard | Scratch-Resistant |
| Center Oval Burner | (1) 6,000/2,600 BTU |
| Cooktop Surface | Porcelain-Enamel Recessed |
| Drawer Type | Warming Drawer |
| Warming Drawer Features | Low, Medium, High Temperature Settings |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Leveling System | 4 Leveling Legs |
| Control Type | QuickSet V |
| Precise Simmer Burner | (1) 5,000 BTU/140F degree simmer |
| Self-Clean Oven Door Lock | Automatic |
| Control Type | Digital Temperature Display |
| Cooktop Burner Grate Features | Continuous Grates |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Electronic Clock and Timer |
| Oven Control Features | Automatic Oven Timer (Time Bake) |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | In-Oven Broiling |
| Oven Control Features | Digipad Numeric Entry |
| Oven Rack Features | 2 Oven Racks |
ACCESSORIES
| LP Conversion Kit | Included |
CAPACITY
| Unit Capacity | Extra Large Oven |
| Total Capacity (cubic feet) | 5.00 cu ft |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 17.0; (1) 11.0, (1) 9.1; (1) 6.0; (1) 5.0 |
| Electrical Requirements | 120V; 60Hz; 15A |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Warming Drawer Wattage | 1200 Watts |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 11.0: (1) 9.1; (1) 8.0; (1) 6.0; (1) 4.0 |
| Bake/Broil Wattage - Main Oven | 1575/1575W |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.19 in. |
| Length | 26.25 in. |
| Weight | 210 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.19 in. |
| Shipping Length | 31.25 in. |
| Shipping Weight | 250 lbs. |
| Total of Shipping Weight | 250 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.5 ft³ |
| Dimensional Weight | 267.34 lbs. |
| Total of Cubes | 21.5 ft³ |
| Total of Dimensional Weight | 267.34 lbs. |
