GE Profile 30" Free-Standing Double Oven Range
Model: PB975DTBB
Product Video
Color : Black on Black
Replaced By
30" Smart Free-Standing Electric Double Oven Convection Range with No Preheat Air Fry
Model: PB965YPFS
$1,899.99
Was$2,199.00Save $299.01 (14%)
Key Features
6.6 cu. ft. total oven capacity
True European Convection with Precise Air
12"/9"/6" tri-ring element
Bridge element
Slow cook mode
Hidden bake oven interior
Black gloss oven interior
QuickSet VI glass touch oven controls
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
6.6 cu. ft. total oven capacity
Large capacity is ideal for big meals
True European Convection with Precise Air
Accurate heat circulation ensures evenly baked foods
12"/9"/6" tri-ring element
Three heating elements in one offer flexibility
Bridge element
Combines cooking elements into one cooking area
Slow cook mode
Provides ideal conditions for slow cook meals
Hidden bake oven interior
Conceals the lower oven element to simplify cleaning
Black gloss oven interior
Adds a stylish touch to the kitchen
QuickSet VI glass touch oven controls
Smooth glass design is easy to clean and operate
Self-clean oven
Cleans the oven cavity without the need for scrubbing
Certifications
California Prop 65
Specifications

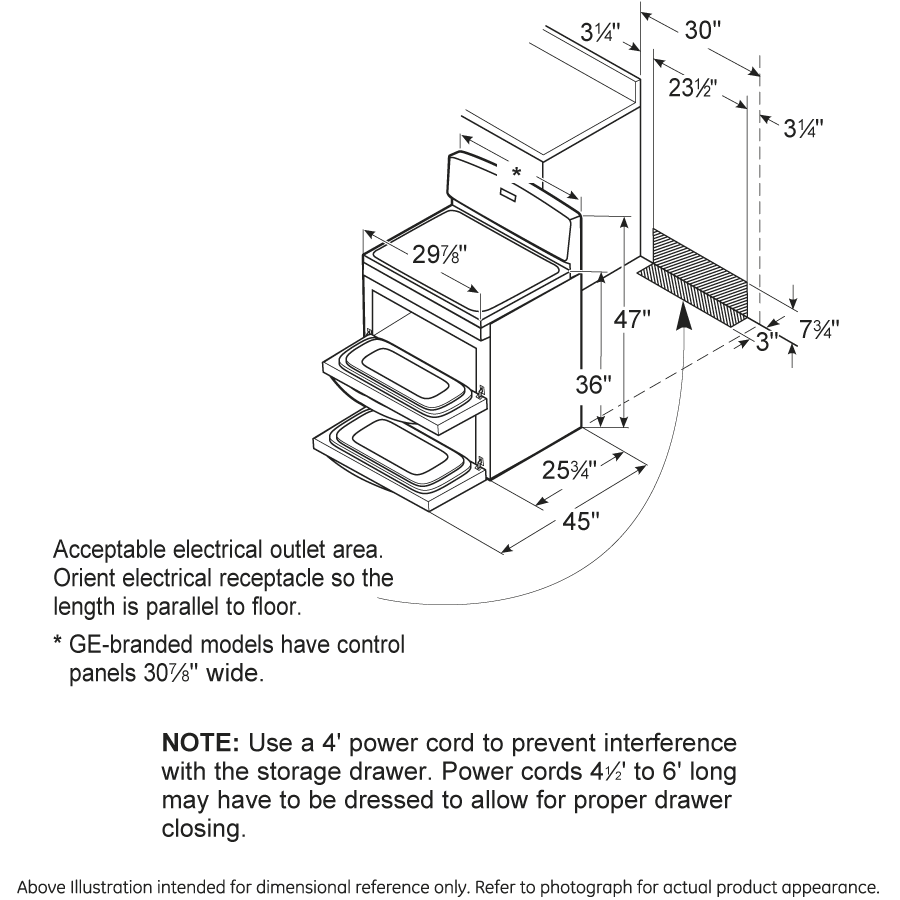

WEIGHTS & DIMENSIONS
| Cabinet Width | 30 in |
| Overall Height | 47 in |
| Net Weight | 226 lb |
| Oven Interior Dimensions (upper) | 25 x 8-7/8 x 18 |
| Depth Without Handle | 25.75 in |
| Oven Interior Dimensions (lower) | 25 x 17 1/2 x 18 1/4 |
| Depth with Door Open | 45 in |
| Approximate Shipping Weight | 247 lb |
| Overall Depth | 28 7/8 in |
| Overall Width | 29 7/8 in |
FEATURES
| Configuration | Double Oven Range |
| Oven Features | 6-Pass Broil Element |
| Cleaning Time | Variable with Delay Clean Option |
| Cooking System | Precise Air Convection System (Lower) |
| Oven Interior | Interior Oven Light |
| Warming Zone | 1-6" Ribbon (120W) |
| Oven Control Features | Variable Broil |
| Cooktop Burner Type | Smoothtop |
| Oven Cleaning Type | Self-Clean |
| Oven Rack Features | 3 Heavy-Duty Oven Racks |
| Infinite Heat Controls | Yes |
| Temperature Management System | True Temp System |
| 6" Heating Element(s) | 1 Ribbon (1,500 watts) |
| Hot Surface Indicator Lights | 5, Cooktop |
| 6"/9"/12" Tri-Ring Element | 1 Ribbon (3,000W) |
| Heating Element "ON" Indicator Light | 5 |
| Control Location | Backsplash |
| Cooktop Surface | Patterned Graphite on Black Glass Ceramic |
| Bridge Element | 1 (800W) |
| Melt/Simmer Setting | Yes |
| Oven Rack Positions (Single or Upper/Lower) | 2 / 6 |
| Control Type | Glass Touch |
| 7" Heating Element(s) | 2 Ribbon (1,800W) |
| Self-Clean Oven Door Lock | Automatic |
| Cooking Technology | Convection (lower oven only) |
| Control Type | DigiTemp Temperature Display |
| Control Type | Electronic Oven Controls |
| Cooktop Burner Type | 5 Ribbon |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Convection Conversion (Lower) |
| Oven Control Features | Convection Cook Pads (Lower) |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Digipad Numeric Entry |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Mis-Wire Detection |
| Oven Control Features | Oven "ON" Light Display |
| Oven Control Features | Preheat Oven Light |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Slow Cook |
| Oven Control Features | Start Pad |
| Oven Interior | Hidden Bake (Both Ovens) |
POWER / RATINGS
| KW Rating at 240V | 14.4 |
| Bake Wattage | 2650W Upper / 2650W Lower |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3000W Upper / 3600W Lower |
| KW Rating at 208V | 10.8 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Black Frameless Glass Door |
| Textured Steel Side Panels | Yes |
| Handle Design | Sculptured |
| Handle Color | Color-Matched |
| Color Appearance | Black on Black |
| Oven Door Features | Big Clear View Oven Window |
CAPACITY
| Capacity (Cu. Ft.) | 2.2 Upper / 4.4 Lower |
| Total Capacity (cubic feet) | 6.60 cu ft |
ACCESSORIES
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Cream |
Other
| Oven Interior Dimensions (upper) | 25 x 8-7/8 x 18 |
| Oven Interior Dimensions (lower) | 25 x 17 1/2 x 18 1/4 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 47 in. |
| Length | 28.88 in. |
| Weight | 226 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33.88 in. |
| Shipping Weight | 266 lbs. |
| Total of Shipping Weight | 266 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.46 ft³ |
| Dimensional Weight | 291.68 lbs. |
| Total of Cubes | 23.46 ft³ |
| Total of Dimensional Weight | 291.68 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
