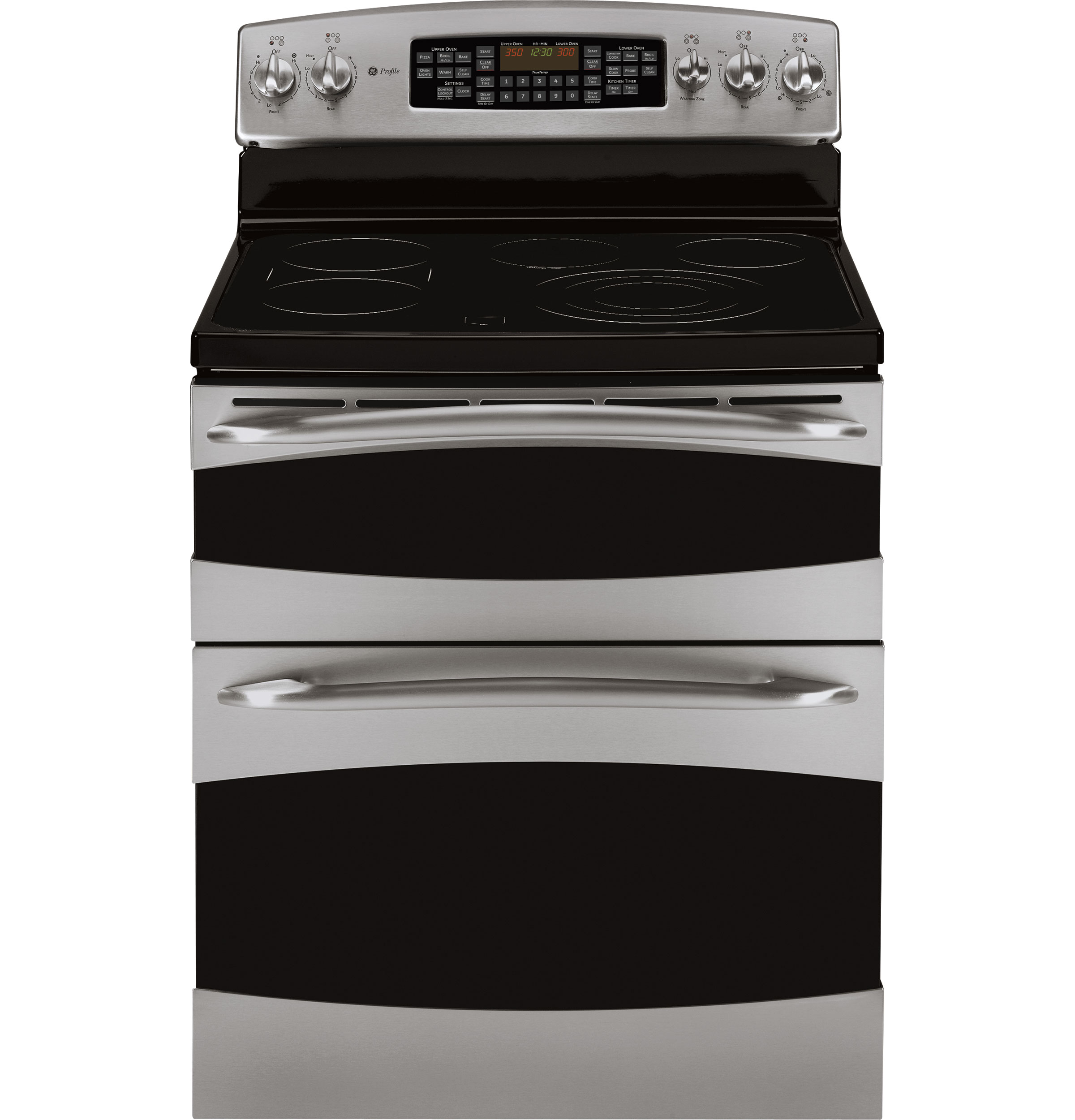

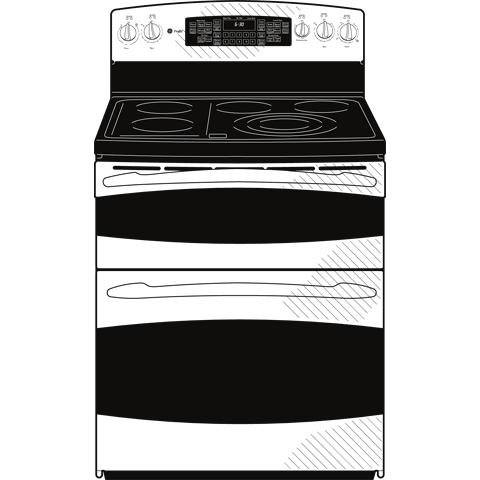

GE Profile 30" Free-Standing Double Oven Range
Model: PB975SPSS








Key Features
6.6 cu. ft. total oven capacity
Upper oven
True European Convection with Precise Air
Convection cook
Bridge element
12"/9"/6" tri-ring element
Warming zone
Pizza mode
Description
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
6.6 cu. ft. total oven capacity
Large capacity is ideal for big meals
Upper oven
Provides the ideal space for cooking pizzas and smaller items
True European Convection with Precise Air
A reversing fan circulates heat and air for evenly browned and baked foods
Convection cook
A reversing fan surrounded by a third element circulates hot air for great results on every rack
Bridge element
Combines three cooktop elements into one large cooking area, ideal for oversized cooking pans
12"/9"/6" tri-ring element
Provides three cooking areas in one for the ultimate in cooking versatility
Warming zone
Provides low heat capability for foods, making meal coordination simple
Pizza mode
Provides ideal cooking conditions for preparing fresh or frozen pizzas at the touch of a button
Slow cook mode
Two slow cook options – beef and poultry – deliver ideal conditions for specific meals
Self-clean oven
Conveniently cleans the oven cavity without the need for scrubbing
Certifications
California Prop 65
Specifications
FEATURES
| Configuration | Double Oven Range |
| Oven Features | Dual-Element Bake |
| Cooking System | Precise Air Convection System (Lower) |
| Cleaning Time | Variable |
| Oven Interior | Hidden Bake (Lower) |
| Warming Zone | 1-6" Ribbon (120W) |
| Oven Control Features | Warm Mode |
| Cooktop Burner Type | Smoothtop |
| Oven Rack Features | 4 Self-Clean Heavy-Duty Oven Racks |
| Temperature Management System | True Temp System |
| Oven Cleaning Type | Self-Clean |
| 6" Heating Element(s) | 1 Ribbon (1,500 watts) |
| 6"/9"/12" Tri-Ring Element | 1 Ribbon (3,000W) |
| Heating Element "ON" Indicator Light | Yes |
| Hot Surface Indicator Lights | 5, Cooktop |
| Control Location | Backsplash |
| Infinite Heat Controls | Yes |
| Cooktop Surface | Patterned Graphite on Black Glass Ceramic |
| Bridge Element | 1 (800W) |
| Control Type | Glass Touch |
| 7" Heating Element(s) | 2 Ribbon (1,800W) |
| Self-Clean Oven Door Lock | Automatic |
| Cooking Technology | Convection |
| Control Type | DigiTemp Temperature Display |
| Control Type | Electronic |
| Cooktop Burner Type | 5 Ribbon |
| Cooktop Surface | One-Piece Upswept |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Automatic Meat Thermometer |
| Oven Control Features | Auto Oven Shut-Off |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | C° or F° Programmable |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Convection Conversion (Lower) |
| Oven Control Features | Convection Cook Pads (Lower) |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Digipad Numeric Entry |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Mis-Wire Detection |
| Oven Control Features | Temperature Probe |
| Oven Control Features | Oven "ON" Light Display |
| Oven Control Features | Preheat Oven Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Control Features | Self-Cleaning Cycling Light |
| Oven Control Features | Start Pad |
| Oven Control Features | Variable Broil |
| Oven Features | 6-Pass Power Bake Element |

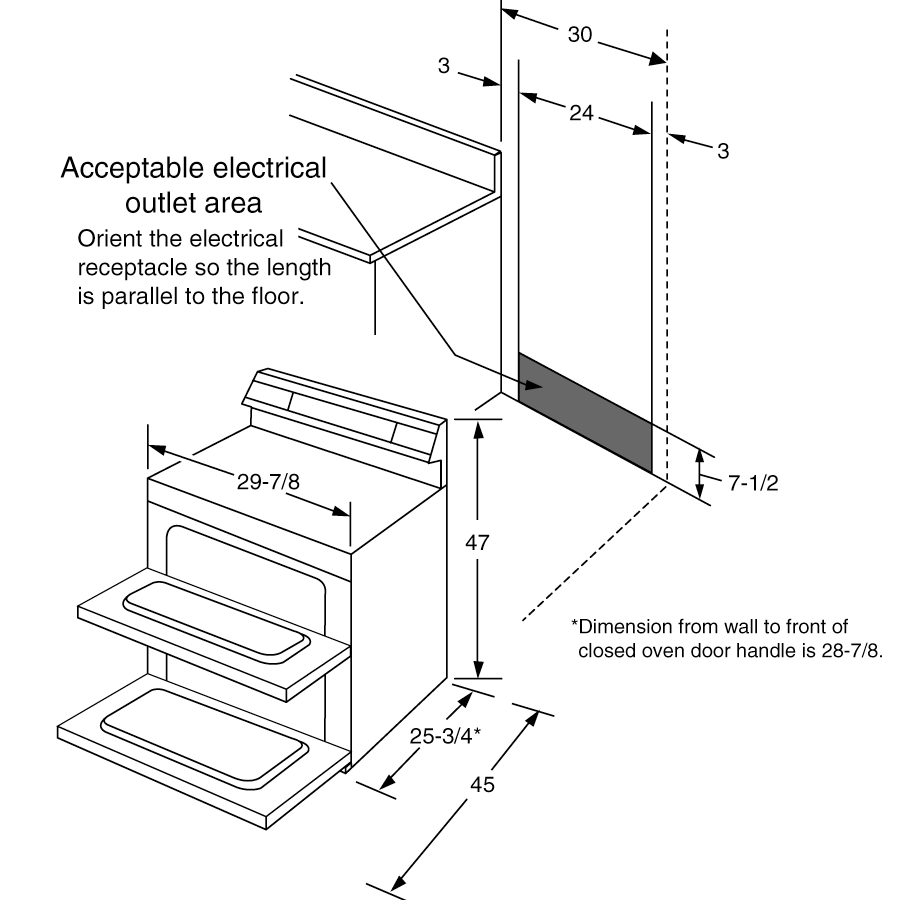

WEIGHTS & DIMENSIONS
| Net Weight | 241 lb |
| Depth Without Handle | 25.75 in |
| Oven Interior Dimensions (upper) | 24 x 8-7/8 x 18 |
| Oven Interior Dimensions (lower) | 24 x 17 1/2 x 18 1/4 |
| Depth with Door Open | 45 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 262 lb |
| Overall Height | 47 in |
| Overall Depth | 28 7/8 in |
| Overall Width | 29 7/8 in |
POWER / RATINGS
| KW Rating at 240V | 14.3 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 10.7 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | Frameless Oven Door |
| Handle | Sculptured |
| Color Appearance | Stainless Steel |
| Oven Door Features | Big Clear View Oven Window |
CAPACITY
| Capacity (Cu. Ft.) | 2.2 Upper / 4.4 Lower |
| Total Capacity (cubic feet) | 6.60 cu ft |
ACCESSORIES
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Cream |
Other
| Oven Interior Dimensions (upper) | 24 x 8-7/8 x 18 |
| Oven Interior Dimensions (lower) | 24 x 17 1/2 x 18 1/4 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 47 in. |
| Length | 28.88 in. |
| Weight | 241 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33.88 in. |
| Shipping Weight | 281 lbs. |
| Total of Shipping Weight | 281 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 23.46 ft³ |
| Dimensional Weight | 291.68 lbs. |
| Total of Cubes | 23.46 ft³ |
| Total of Dimensional Weight | 291.68 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
