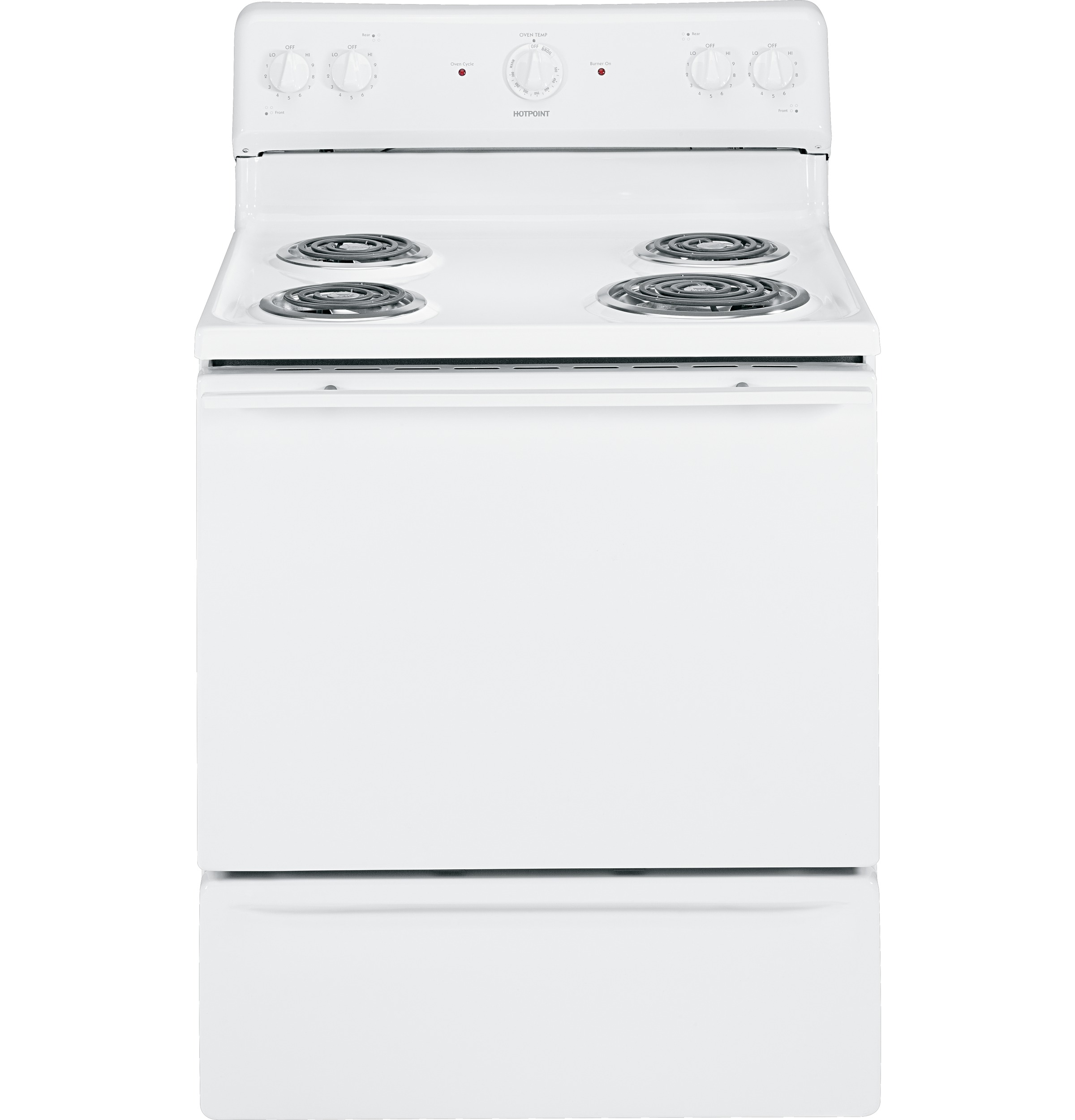

Hotpoint 30" Free-Standing Electric Range
Model: RB525DDWW
Color : White
Key Features
5.0 cu. ft. oven capacity
Coil heating elements
Porcelain upswept cooktop
Chrome drip bowls
Two oven racks
Removable full-width storage drawer
Element "On" Indicator Light
Porcelain oven door
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

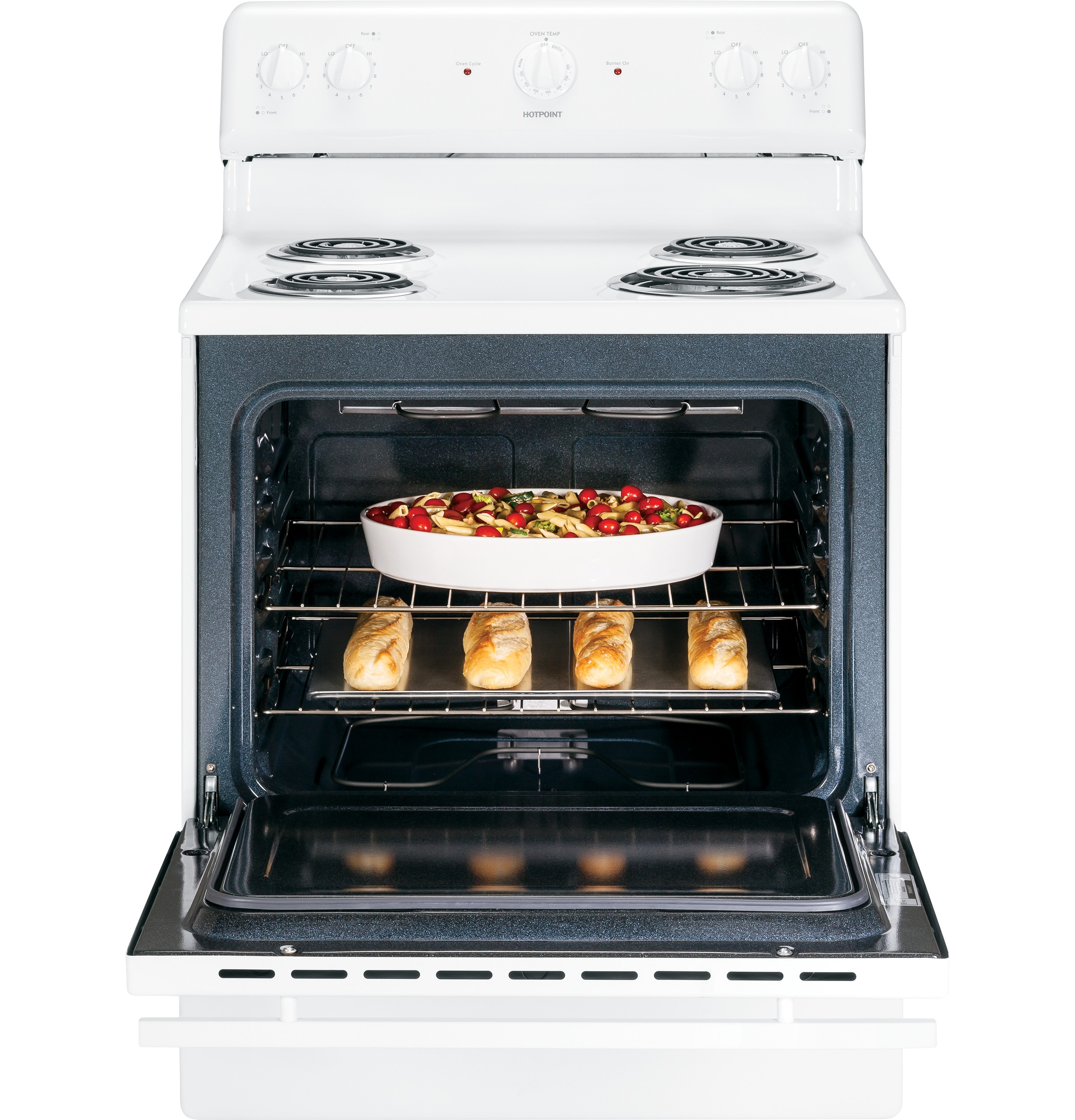

5.0 cu. ft. oven capacity
Enough room to cook an entire meal at once

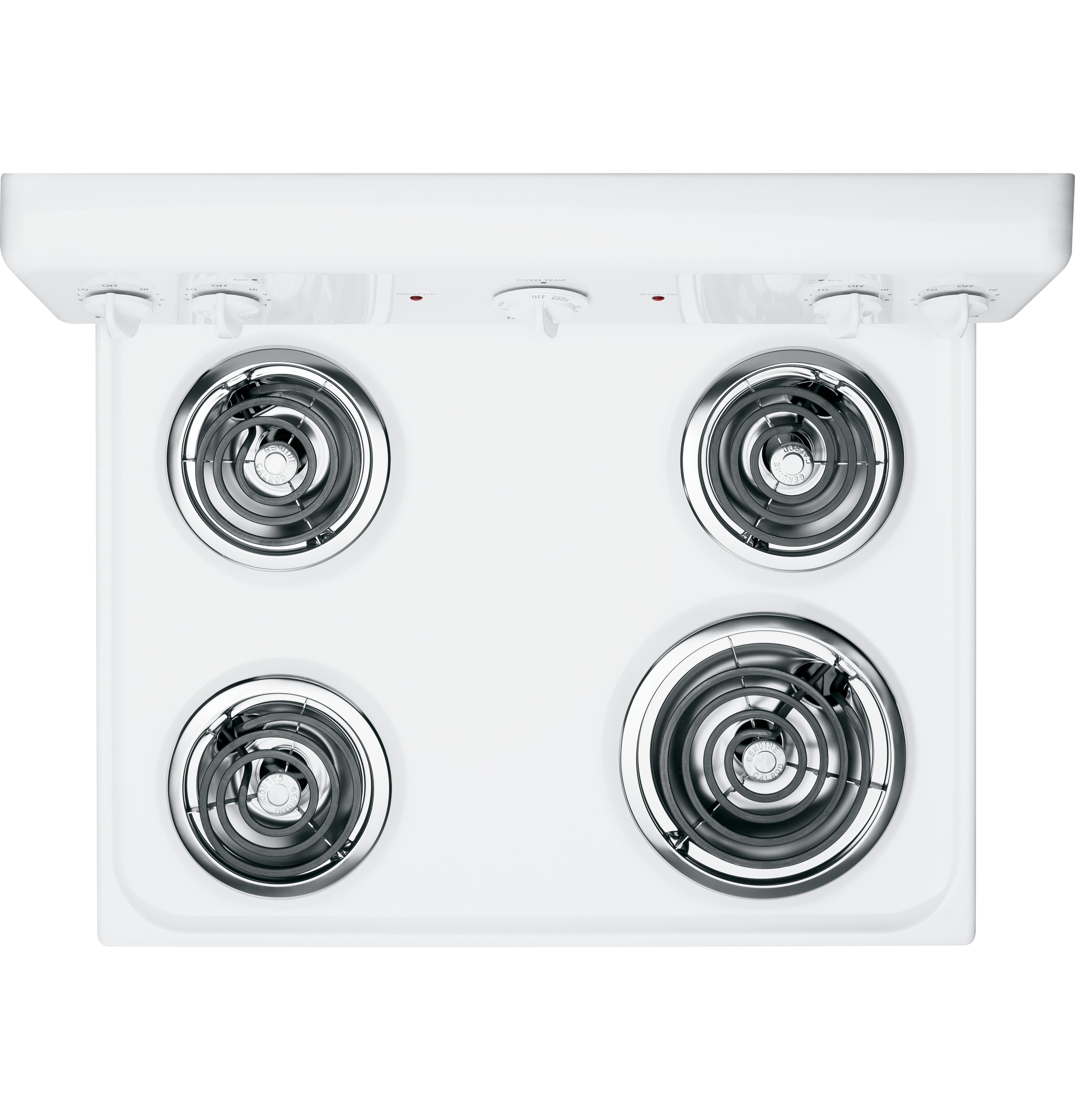

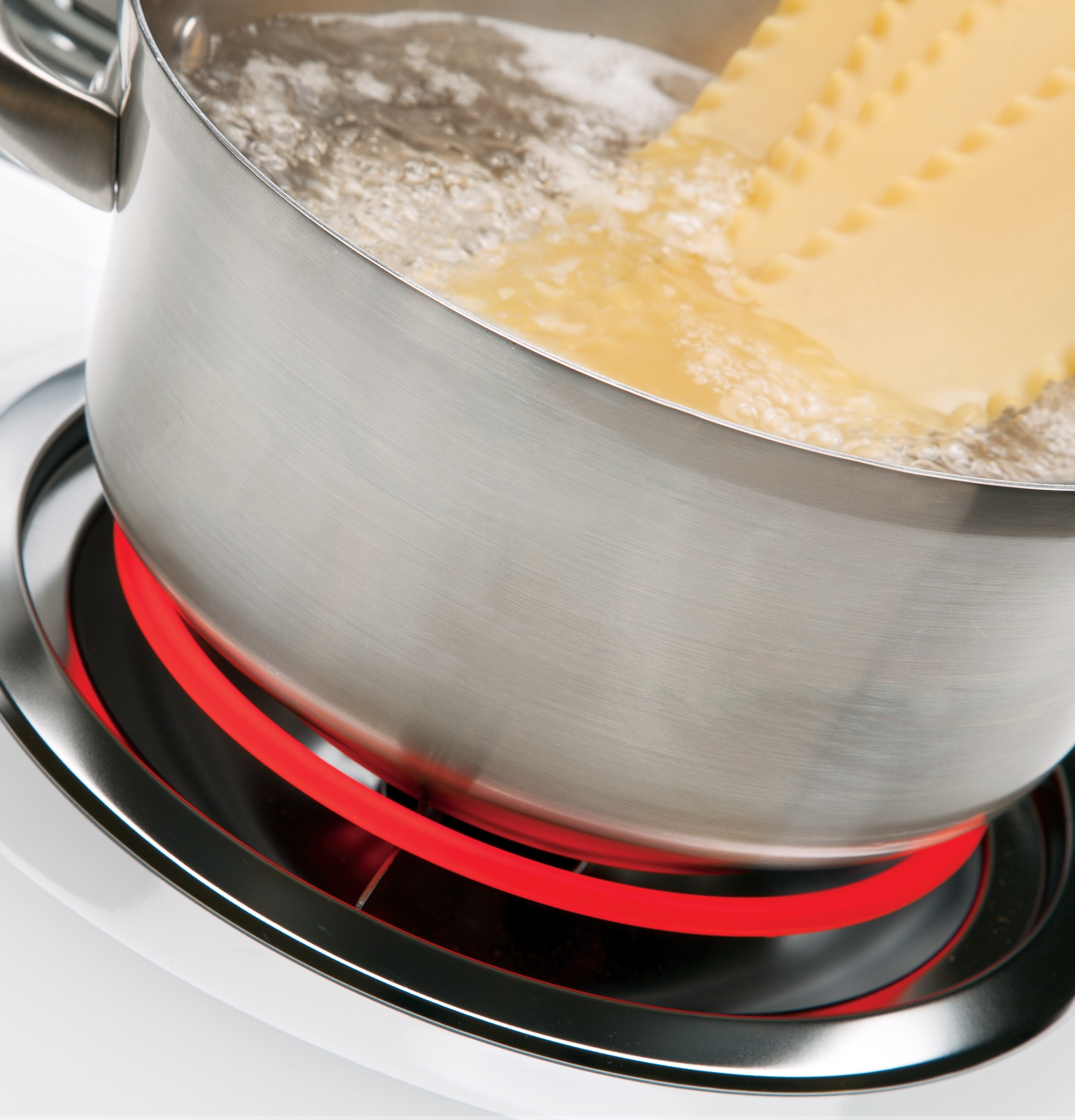

Coil heating elements
Provide even heat and easy cleanup
Porcelain upswept cooktop
Raised edges contain spills, while the surface is easy to wipe clean
Chrome drip bowls
Contain spills and remove for easy cleaning

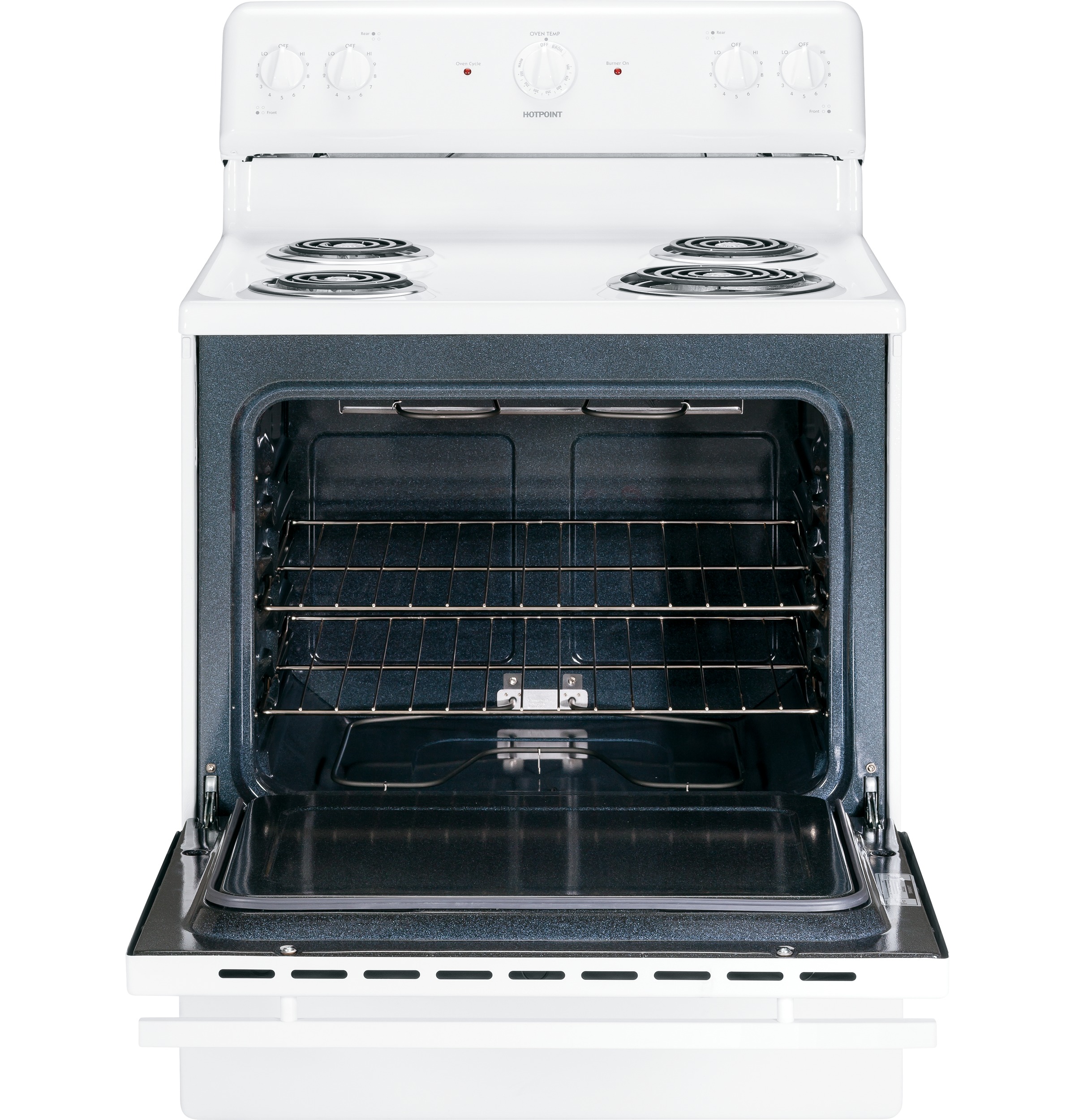

Two oven racks
Durable to securely hold any cookware

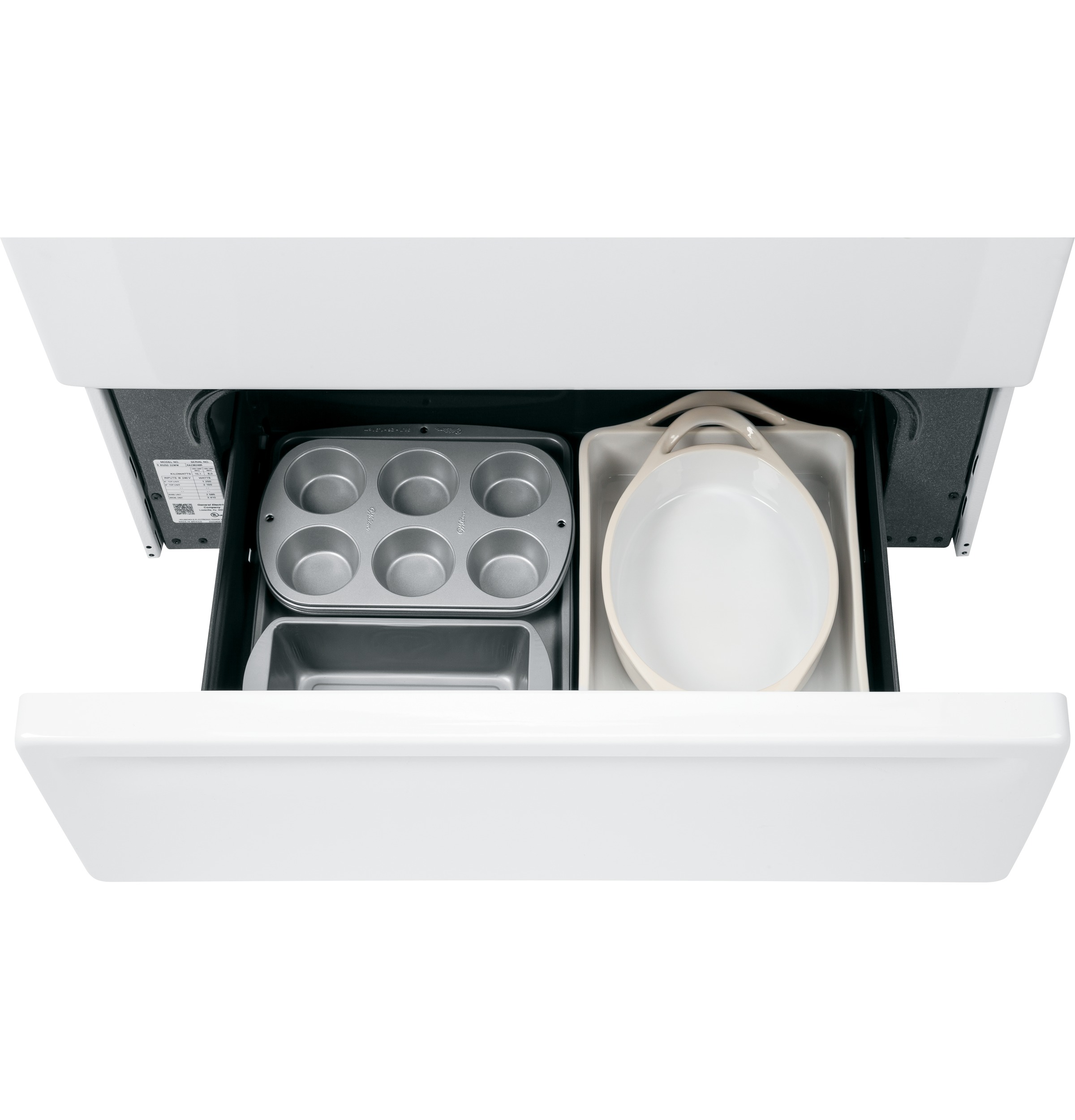

Removable full-width storage drawer
Store cookware or kitchen accessories
Element "On" Indicator Light
Know when an element is on
Porcelain oven door
Scratch-resistant coating is easy to maintain
Visor handle
Features a classic design and easy cleanability
Standard clean oven
Smooth surface makes cleaning by hand easier
Certifications
California Prop 65
Specifications

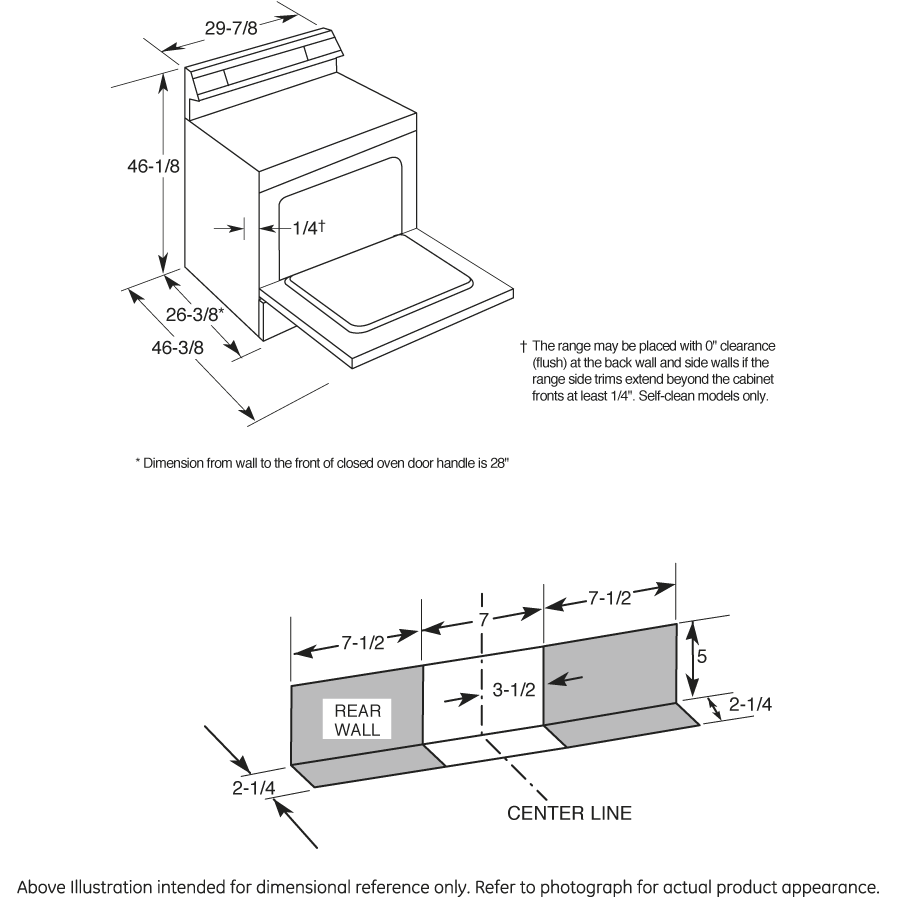

WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Width | 29.875 in |
| Overall Depth | 26.375 in |
| Overall Height | 46.125 in |
| Net Weight | 135 lb |
| Cabinet Width | 30 in |
| Depth with Door Open | 46.375 in |
| Approximate Shipping Weight | 155 lb |
FEATURES
| Configuration | Range with Storage Drawer |
| Lift-Up Cooktop With Support Rods | Yes |
| Removable One-Piece Drip Bowls | Chrome |
| Storage Drawer Features | Removable Full-Width |

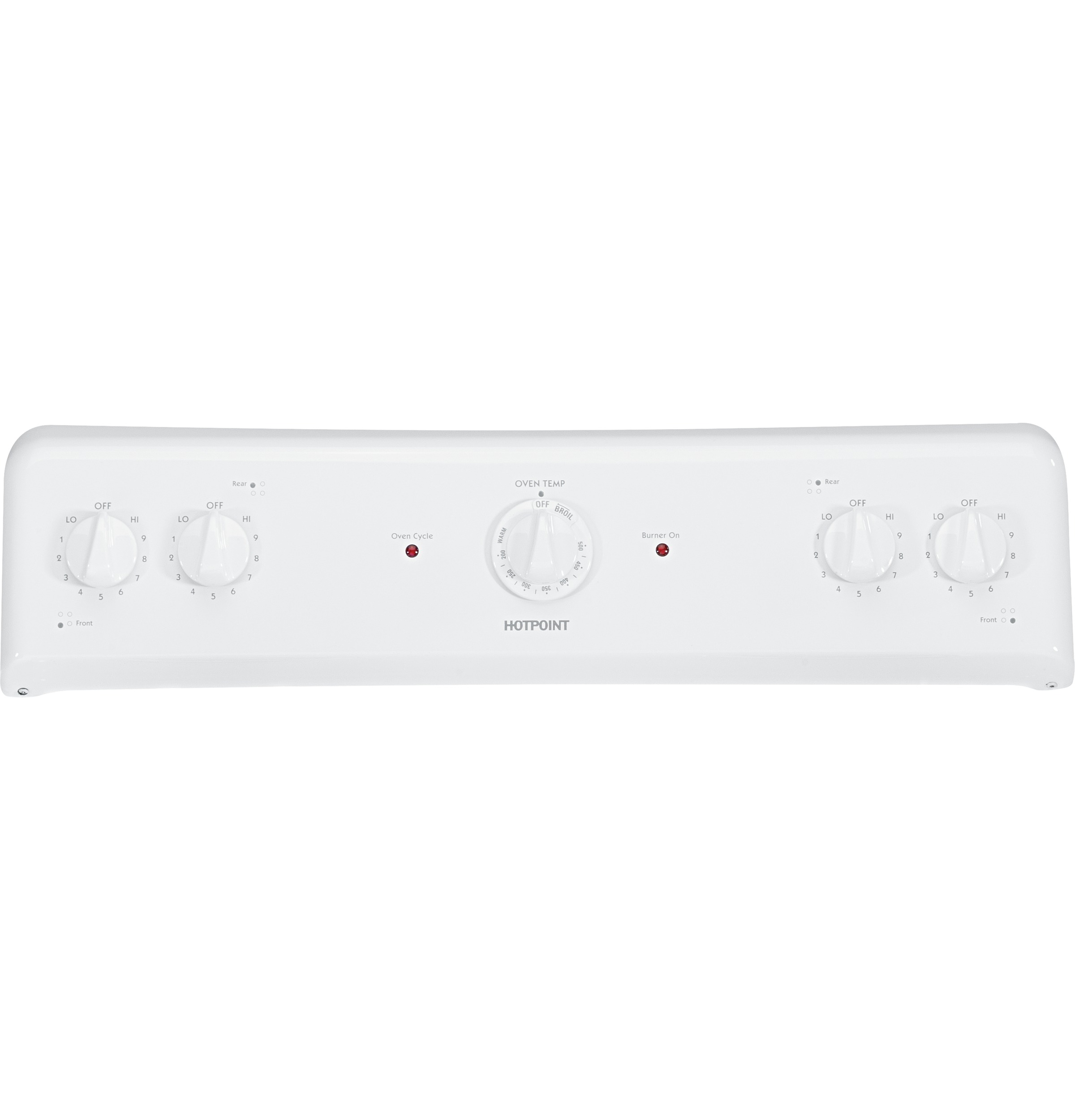

| Oven Control Features | Oven "ON" Light |
| Cooktop Burner Type | Coil |
| Oven Rack Features | 2 Oven Racks |
| Infinite Heat Controls | Yes |
| 6" Heating Element(s) | 3 Plug-In (1,250W) |
| Oven Cleaning Type | Standard Clean |
| Heating Element "ON" Indicator Light | Yes |
| Cooktop Surface | Porcelain-Enamel |
| 8" Heating Element (s) | 1 Plug-In (2,100W) |
| Cooking Technology | Traditional |
POWER / RATINGS
| KW Rating at 240V | 10.1 |
| Amp Rating at 208V | 40 |
| KW Rating at 208V | 8.0 |
| Amp Rating at 240V | 40 |
APPEARANCE
| Oven Door Features | White Porcelain-Enamel Frameless Lift-off Oven Door |
| Handle | Visor |
| Color Appearance | White |
CAPACITY
| Total Capacity (cubic feet) | 5 cu ft |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 46.13 in. |
| Length | 26.38 in. |
| Weight | 135 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 51.13 in. |
| Shipping Length | 31.38 in. |
| Shipping Weight | 175 lbs. |
| Total of Shipping Weight | 175 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 21.03 ft³ |
| Dimensional Weight | 261.47 lbs. |
| Total of Cubes | 21.03 ft³ |
| Total of Dimensional Weight | 261.47 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
