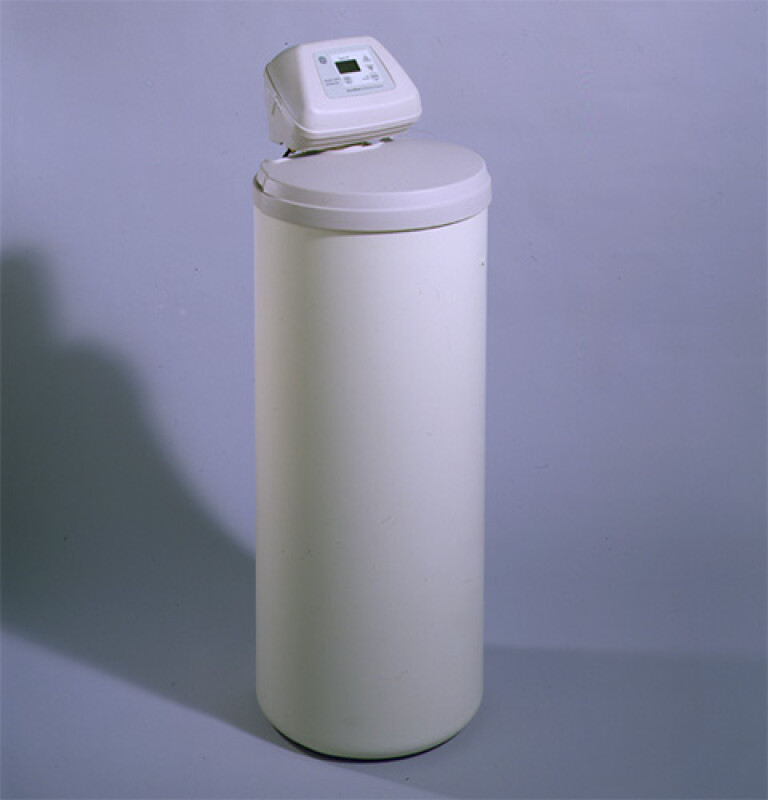

GE Softening System with 35,000 Grain Capacity
Model: GNSF35Z
Color : Other
Key Features
Grey / round
Electronic-demand drive

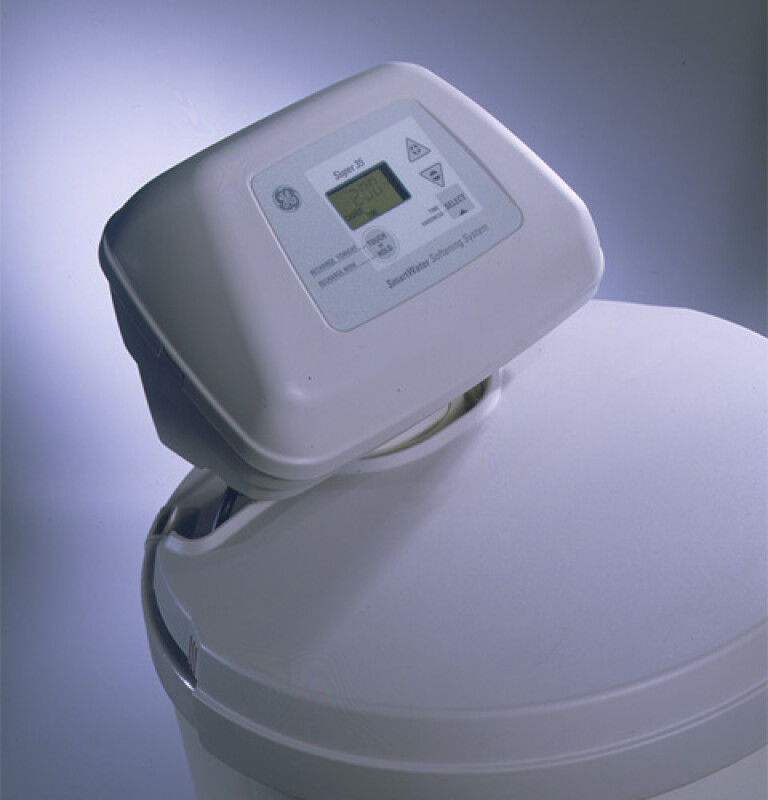

GE simple-to-set electronic controls
Permanent settings memory
Super capacity (35,000 grain capacity)
Demand-initiated regeneration
Installation kit, bypass valve and drain tubing included
Regeneration time (118 min.)
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Grey / round
Electronic-demand drive
GE simple-to-set electronic controls
Permanent settings memory
Super capacity (35,000 grain capacity)
Demand-initiated regeneration
Installation kit, bypass valve and drain tubing included
Regeneration time (118 min.)
Water used for regeneration (40-50 gallons)
Salt storage capacity (200 lbs.)
24 Volt electronic system
Maximum iron reduction (6 ppm)
Standard mesh resin filter
Maximum hardness removal (100 gpg)
Efficiency (5168 gpg)
Certifications
California Prop 65
Specifications
FEATURES
| Resin Tank Size (in.) | 9 x 40 |
| Control Type | Electronic |
| Resin Filter Type | Standard Mesh |
| Regeneration Time (min.) | Approx. 118 |
| Style | Round |
| Salt Storage Capacity | 200 lb |
| Max. Hardness Removal (gpg) | 100 |
| Ambient Temperature | 35-150°F |
| Efficiency (grains per lb.-salt) | 5200 |
| Resin Weight | 48.4 lb |
| Resin Quantity (cu.ft.) | 0.93 |
| Type | Electronic-Demand Driven |
| Water Pressure Range | 20-125 psi |
| Water Temperature Range | 35-120 °F |
| Max. Clear Water Iron Reduction (ppm) | 6 |
| Plumbing Connection / Pipe Size In & Out (in.) | 1 NPT |
| Permanent Settings Memory | Yes |
| Service Flow Rate (at 15 psi drop) | 10 |
| Water Used for Regeneration (gals.) | 40-50 |
WEIGHTS & DIMENSIONS
| Net Weight | 78 lb |
| Approximate Shipping Weight | 88 lb |
| Overall Depth | 18 1/4 in |
| Overall Height | 48 3/4 in |
| Overall Width | 18 1/4 in |
CAPACITY
| Unit Capacity | Super |
| Capacity (grains) | 35,000 gr |
APPEARANCE
| Unit Color | Gray |
POWER / RATINGS
| Electronic Rating | 24V; 60Hz |
Dimensions & Weight
| Width | 18.25 in. |
| Height | 48.75 in. |
| Length | 18.25 in. |
| Weight | 78 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 23.25 in. |
| Shipping Height | 53.75 in. |
| Shipping Length | 23.25 in. |
| Shipping Weight | 118 lbs. |
| Total of Shipping Weight | 118 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 9.4 ft³ |
| Dimensional Weight | 116.81 lbs. |
| Total of Cubes | 9.4 ft³ |
| Total of Dimensional Weight | 116.81 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 1 Year |
| Parts (Electronic Monitor) | 3 Year |
| Parts (Resin Tank) | 10 Year |
