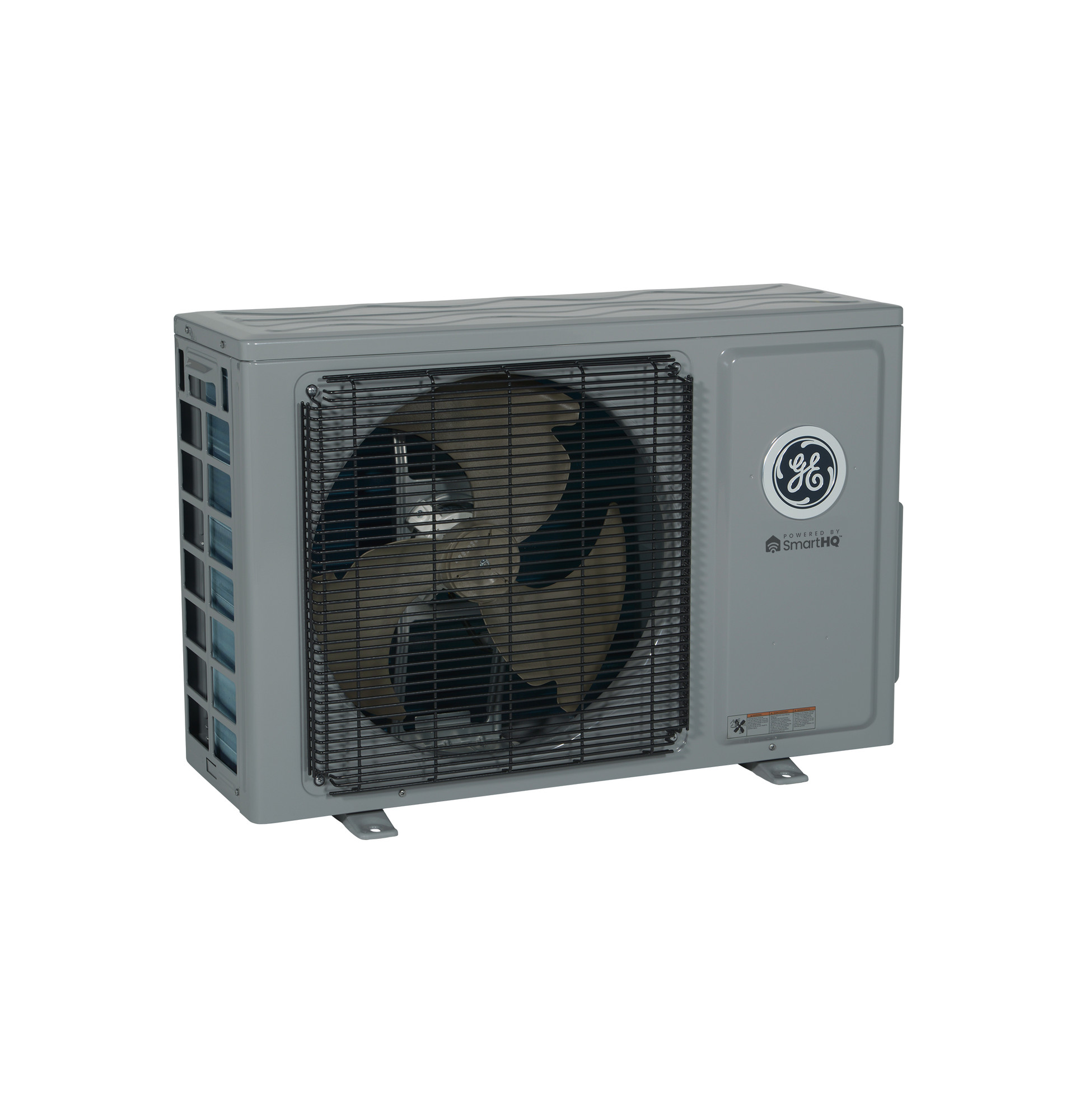

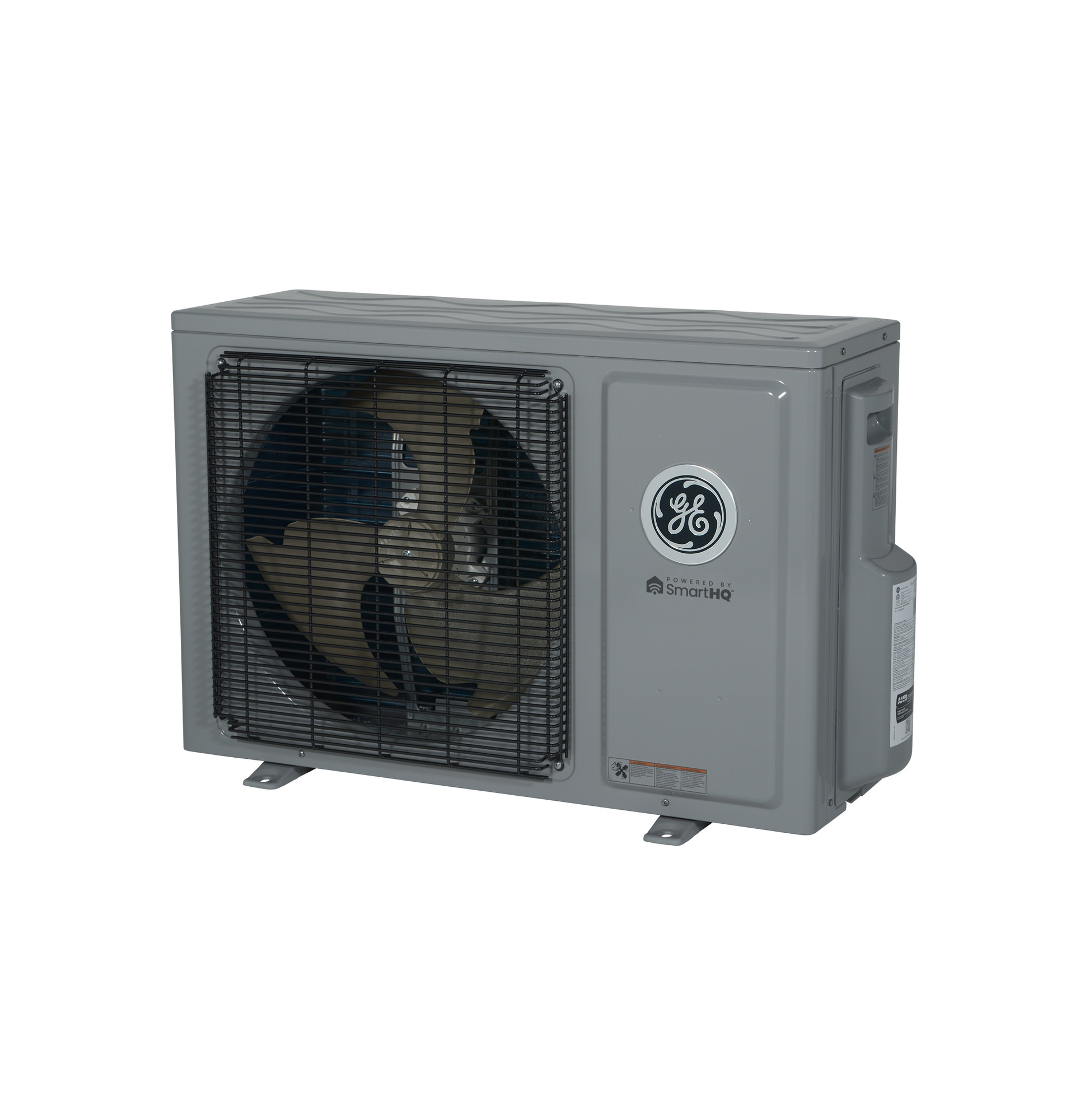

GE Caliber Series 208-230V 9,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH109CRDDA
Color : Gray
Key Features
High Efficiency Ductless Heat Pump
A-PAM DC Inverter
Blue Fin
Quiet Operation
Wind Baffle Compatibility for Better Performance
10-Year Limited Warranty with Registration
See specification guide for full heating, cooling, and system details.
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
High Efficiency Ductless Heat Pump
19 SEER2 and 9 HSPF2 when paired with ASYW09CRDDA.
A-PAM DC Inverter
Inverter compressor technology designed for high performance and maximum comfort.
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows smoothly.
Quiet Operation
Ductless heat pumps operate quietly for maximum homeowner comfort.
Wind Baffle Compatibility for Better Performance
Compatible with QAWB41A Wind Baffle.
10-Year Limited Warranty with Registration
10-Year Limited Parts and Compressor Warranty with registration; see warranty documentation for complete information.
See specification guide for full heating, cooling, and system details.
Certifications
ADA Compliant
Specifications
POWER / RATINGS
| Cooling Rated Capacity BTU/Hr | 9,000 |
| Minimum Circuit Amp | 12 |
| Voltage/Hertz/Phase | 208-230/60/1 |
FEATURES
| Connections | Flare |
| Factory Charge (ounces) | 32.8 |
| Compatible Indoor Models | ASYW09CRDDA |
| System | 9K Caliber |
| Maximum Fuse Size A | 15 |
| Style | Outdoor |
| Maximum Line Length (Ft/M) | 66/20 |
| Temperature Range - Cooling Mode | -4-115 F (-20-46 C) (With Wind Baffle) |
| Product Type | Single Zone |
| Series | Caliber |
| Temperature Range - Heating Mode | -4-75 F (-20-24 C) |
| Rotary Compressor | DC Inverter Driven Rotary |
| Maximum Height (Ft/m) | 33/10 |
| Outdoor Noise Level | 48 dBA |
| Unit Type | Outdoor |
WEIGHTS & DIMENSIONS
| Suction O.D. Refrigerant Line | 3/8" |
| Liquid O.D. Refrigerant Line | 1/4" |
| Approximate Shipping Weight | 76.1 lb |
| Net Weight | 63.5 lb |
| Overall Depth | 10.875 in |
| Overall Height | 21.75 in |
| Overall Width | 31.5 in |
APPEARANCE
| Color Appearance | Gray |
Dimensions & Weight
| Width | 31.5 in. |
| Height | 21.75 in. |
| Length | 10.88 in. |
| Weight | 63.5 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 36.5 in. |
| Shipping Height | 26.75 in. |
| Shipping Length | 15.88 in. |
| Shipping Weight | 103.5 lbs. |
| Total of Shipping Weight | 103.5 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 4.31 ft³ |
| Dimensional Weight | 53.6 lbs. |
| Total of Cubes | 4.31 ft³ |
| Total of Dimensional Weight | 53.6 lbs. |
Warranty
| Parts | 5 Year |
