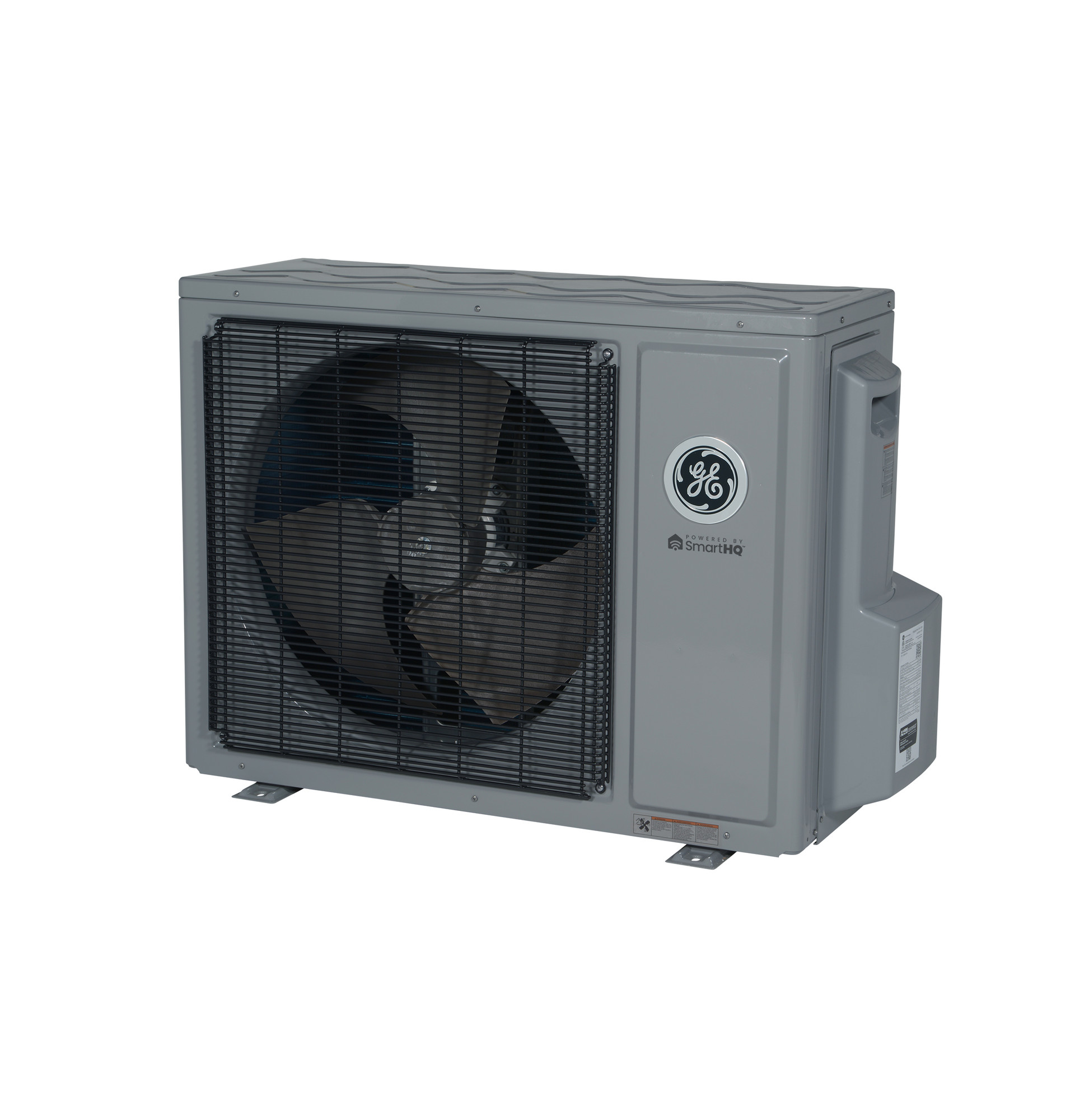

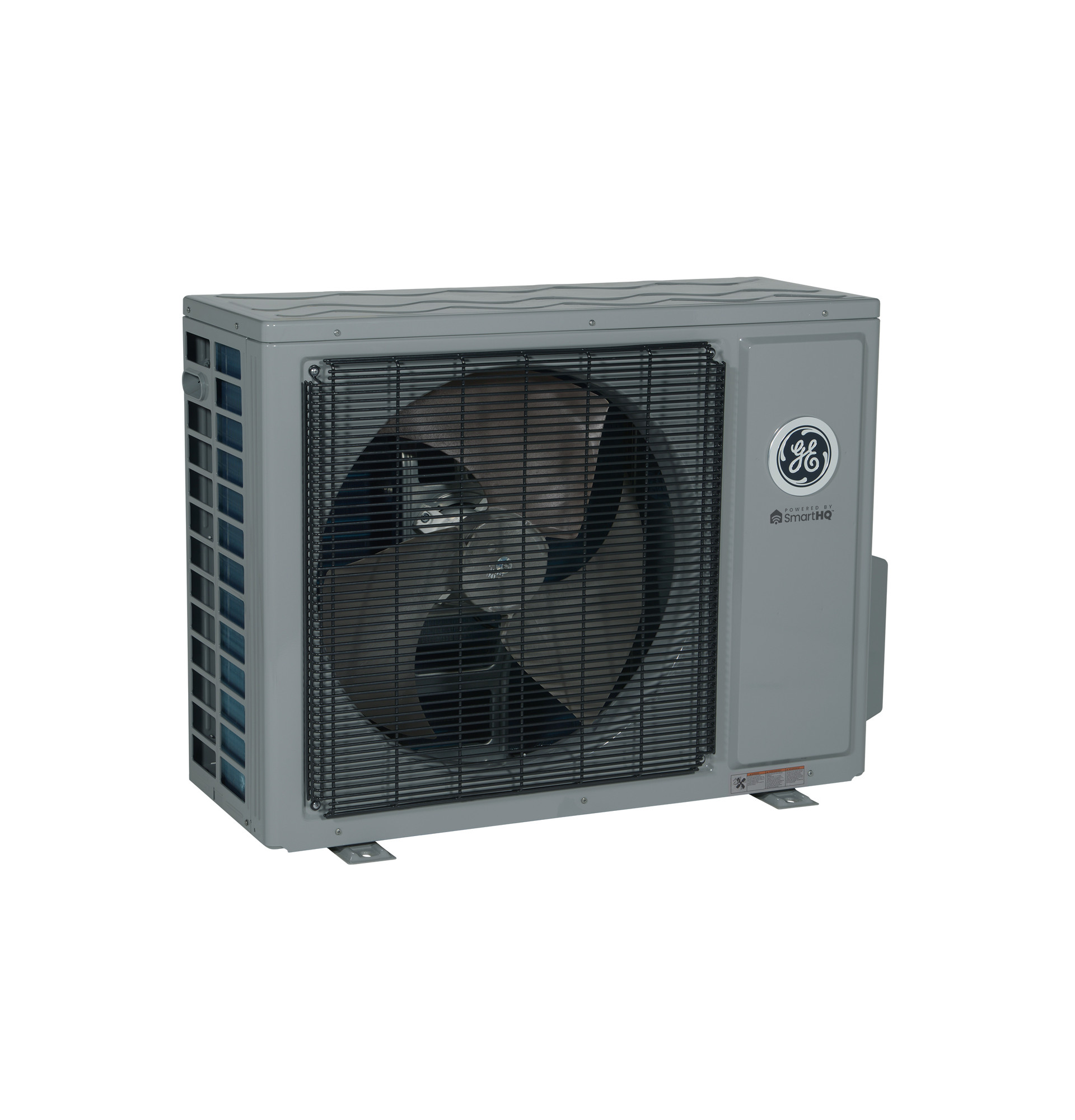

GE Caliber Series 208-230V 24,000 BTU Ductless Mini-Split Outdoor Heat Pump System
Model: ASH124CRDDA
Color : Gray
Replaced By
Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt
Model: AZES07DCXXA
$1,320.00
Key Features
High Efficiency Ductless Heat Pump
A-PAM DC Inverter
Blue Fin
Quiet Operation
Wind Baffle and Snow Hood Compatibility for Better Performance
See specification book for full heating, cooling, and system details
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
High Efficiency Ductless Heat Pump
19 SEER and 10 HSPF when paired with ASYW24CRDDA
A-PAM DC Inverter
Inverter compressor technology designed for high performance and maximum comfort
Blue Fin
A hydrophilic aluminum fin ensures condensing water flows smoothly
Quiet Operation
Ductless heat pumps operate quietly for maximum homeowner comfort
Wind Baffle and Snow Hood Compatibility for Better Performance
Compatible with QAWB46A Wind Baffle and UAWB82A Snow Hood
See specification book for full heating, cooling, and system details
Certifications
ADA Compliant
Specifications
FEATURES
| Connections | Flare |
| Factory Charge (ounces) | 51.2 |
| Compatible Indoor Models | ASYW24CRDDA |
| System | 24K Caliber |
| Maximum Fuse Size A | 30 |
| Style | Outdoor |
| Maximum Line Length (Ft/M) | 83/25 |
| Temperature Range - Cooling Mode | -4-115 F (-20-46 C) (With Wind Baffle) |
| Product Type | Single Zone |
| Series | Caliber |
| Temperature Range - Heating Mode | -4-75 F (-20-24 C) |
| Rotary Compressor | DC Inverter Driven Rotary |
| Maximum Height (Ft/m) | 50/15 |
| Outdoor Noise Level | 60 dBA |
| Unit Type | Outdoor |
WEIGHTS & DIMENSIONS
| Suction O.D. Refrigerant Line | 1/2" |
| Liquid O.D. Refrigerant Line | 1/4" |
| Approximate Shipping Weight | 130.1 lb |
| Net Weight | 119.8 lb |
| Overall Depth | 13.875 in |
| Overall Height | 27.4375 in |
| Overall Width | 35 in |
APPEARANCE
| Color Appearance | Gray |
POWER / RATINGS
| Minimum Circuit Amp | 23 |
| Voltage/Hertz/Phase | 208-230/60/1 |
| Cooling Rated Capacity BTU/Hr | 24,000 |
Dimensions & Weight
| Width | 35 in. |
| Height | 27.44 in. |
| Length | 13.88 in. |
| Weight | 119.8 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40 in. |
| Shipping Height | 32.44 in. |
| Shipping Length | 18.88 in. |
| Shipping Weight | 159.8 lbs. |
| Total of Shipping Weight | 159.8 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.71 ft³ |
| Dimensional Weight | 95.86 lbs. |
| Total of Cubes | 7.71 ft³ |
| Total of Dimensional Weight | 95.86 lbs. |
Warranty
| Parts | 5 Year |
