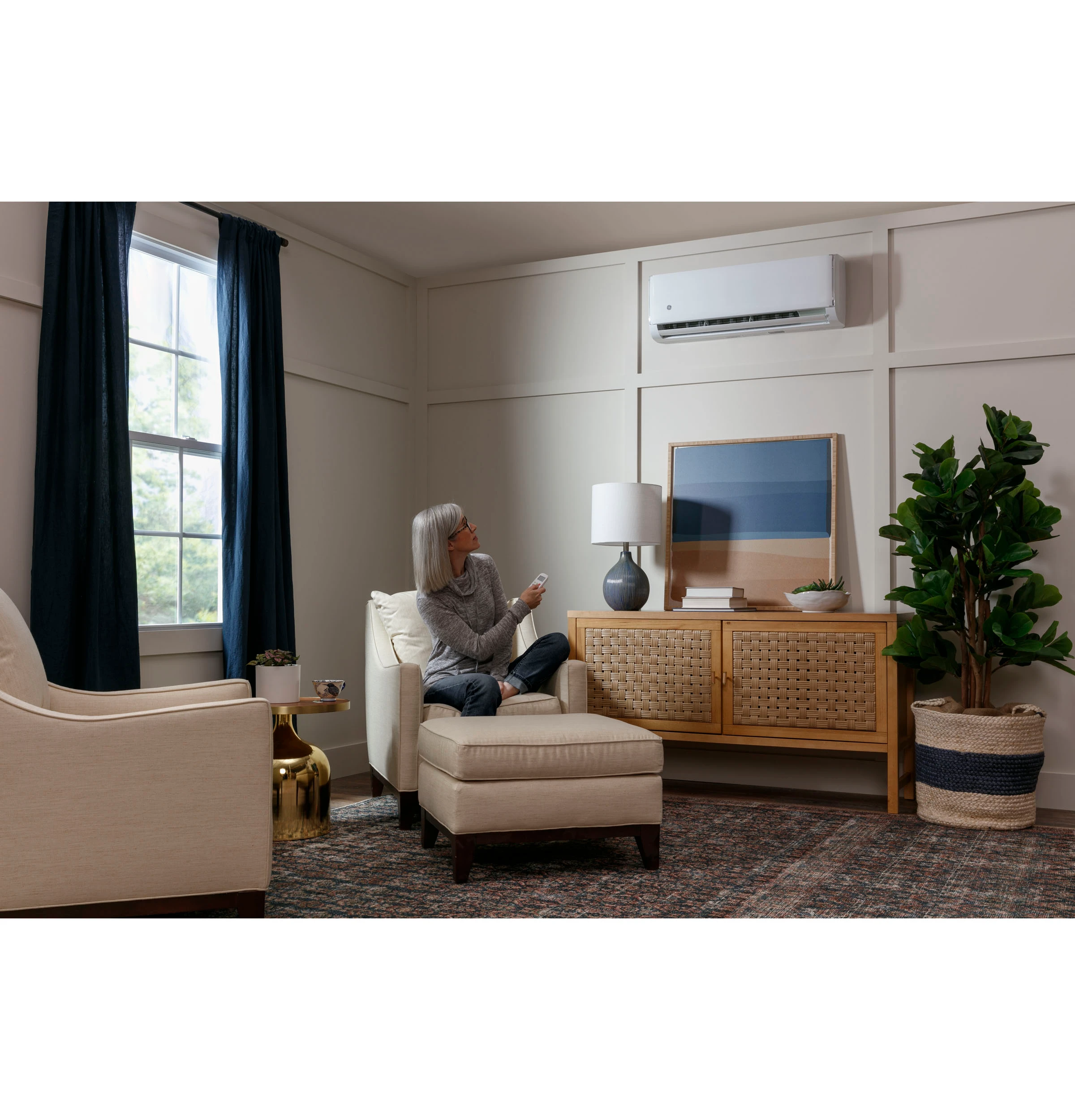

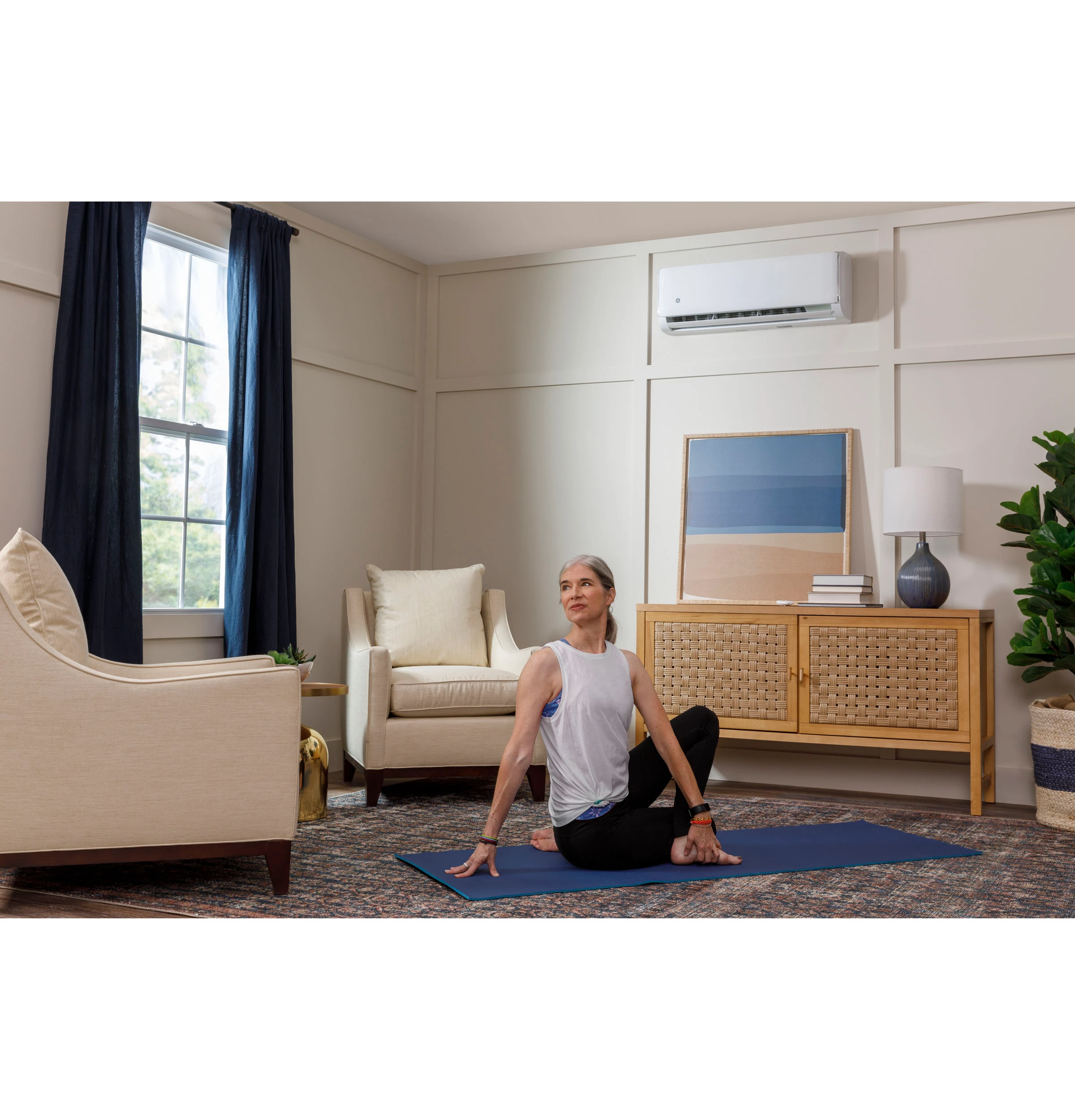

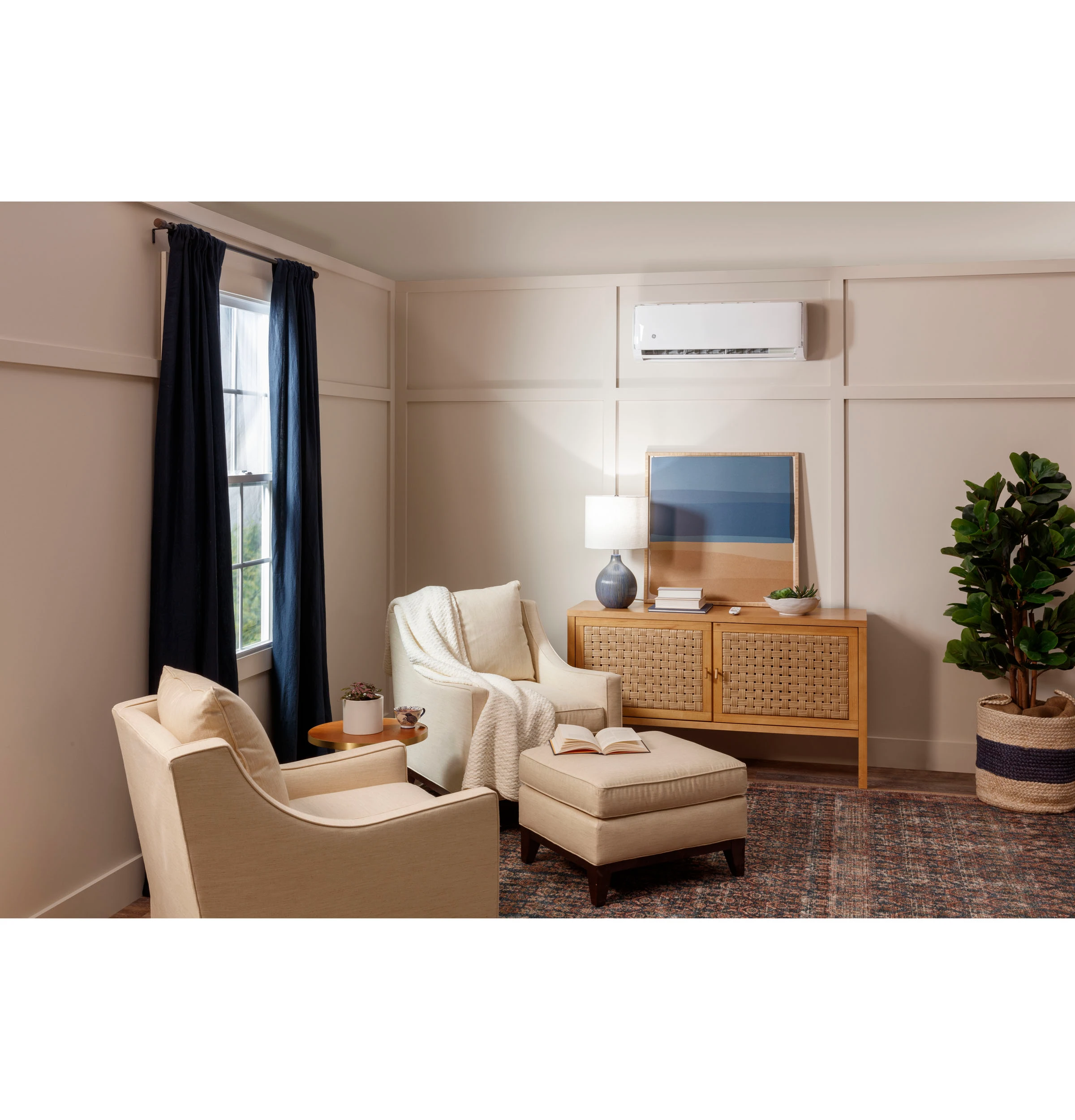

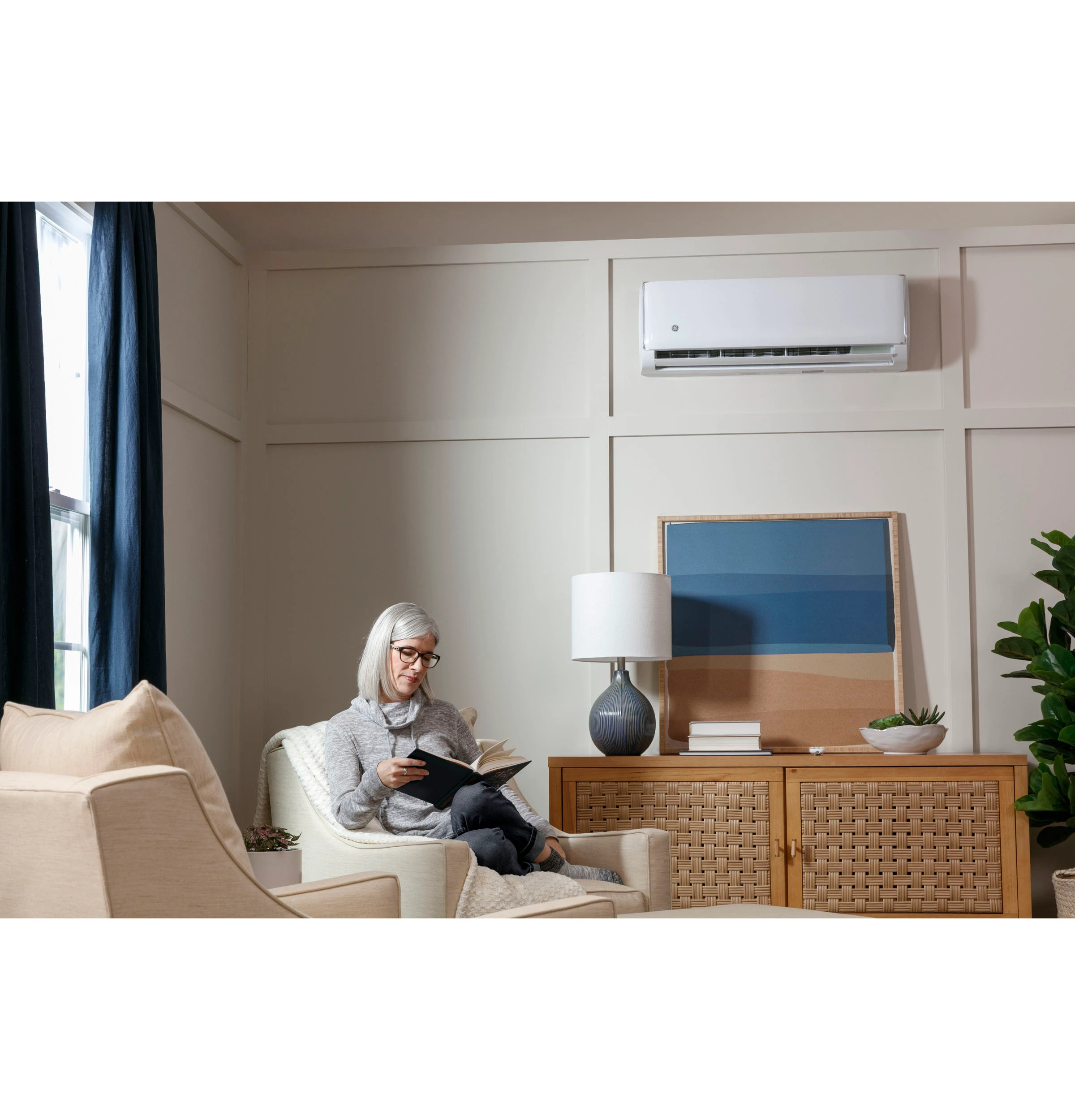

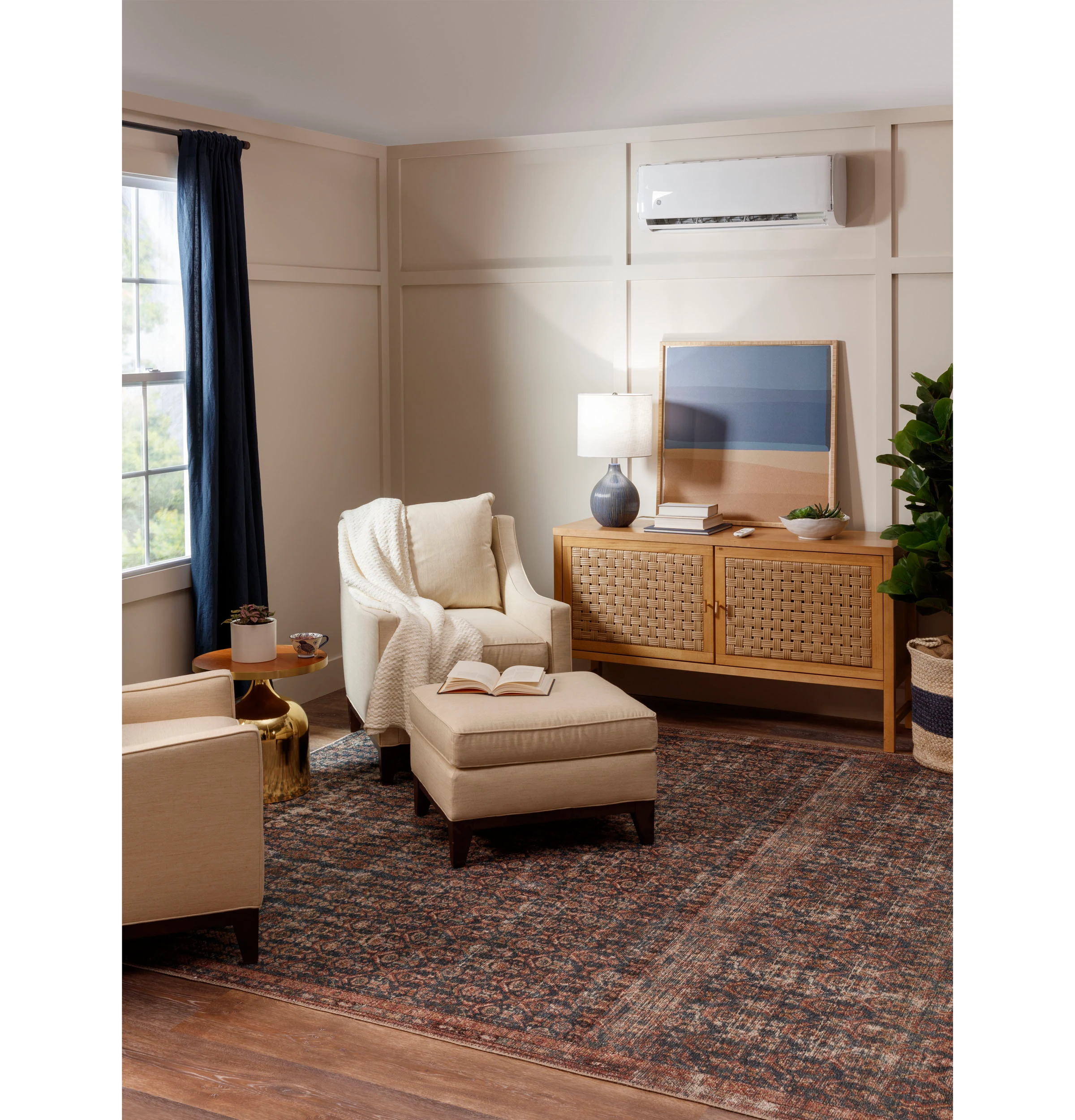

GE Caliber Series 208-230V 9,000 BTU Single-Zone Ductless Highwall Indoor Unit
Model: ASYW09CRDWA
Color : Other
Key Features
SmartHQ Home
Easy Install Features
Auto Louver
Turbo Mode
Blue Fin
Warm Start
Child Lock
2-Way Piping Drain
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
SmartHQ Home
Built-In WiFi allows you to monitor status, adjust temperature, and set cooling and heating schedules from anywhere using your smartphone
Easy Install Features
Loaded with features installers love such as an easy installation clip and a quick mount wall bracket
Auto Louver
Automatically adjusts airflow upward when cooling, or downward when heating
Turbo Mode
Cools or heats the room quickly
Blue Fin
A special coating that whisks away condensate water
Warm Start
Ensures the fan will not cold air during heating mode startup
Child Lock
Ensures the fan will not cold air during heating mode startup
2-Way Piping Drain
Right or left side drain configuration simplifies installation
See specification book for full heating, cooling, and system details
Certifications
ADA Compliant
Specifications
FEATURES
| Outdoor Model to Complete Single Zone System | ASH109CRAWA |
| Model Type | Indoor |
| Indoor Sound Level | 26 |
| Indoor Sound Level | 29 |
| Indoor Sound Level | 33 |
| Indoor Sound Level | 36 |
| Indoor Sound Level | 42 |
| Outdoor Model to Complete Multi Zone System | Single Zone System Only |
| System | 9K Caliber |
| Product Type | Single Zone |
| Fan Speed Stages | 5+ Auto |
| Style | Highwall |
| Fan Speeds CFM | 200 |
| Fan Speeds CFM | 242 |
| Fan Speeds CFM | 292 |
| Fan Speeds CFM | 332 |
| Fan Speeds CFM | 421 |
| Short Description | Caliber 9000 BTU Wall-Mounted Indoor |
| Vapor Refrigerant Line | 3/8" |
| Fan Speed Selections | 5 + Auto |
| Series | Caliber |
POWER / RATINGS
| Voltage/Hertz/Phase | 208-230/60/1 |
| Cooling Rated Capacity BTU/Hr | 9,000 |
APPEARANCE
| Color Appearance | White |
Dimensions & Weight
| Width | 34 in. |
| Height | 11.44 in. |
| Length | 7.88 in. |
| Weight | 21.2 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 39 in. |
| Shipping Height | 16.44 in. |
| Shipping Length | 12.88 in. |
| Shipping Weight | 61.2 lbs. |
| Total of Shipping Weight | 61.2 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.77 ft³ |
| Dimensional Weight | 22.03 lbs. |
| Total of Cubes | 1.77 ft³ |
| Total of Dimensional Weight | 22.03 lbs. |
Warranty
| Parts | 5 Year |
