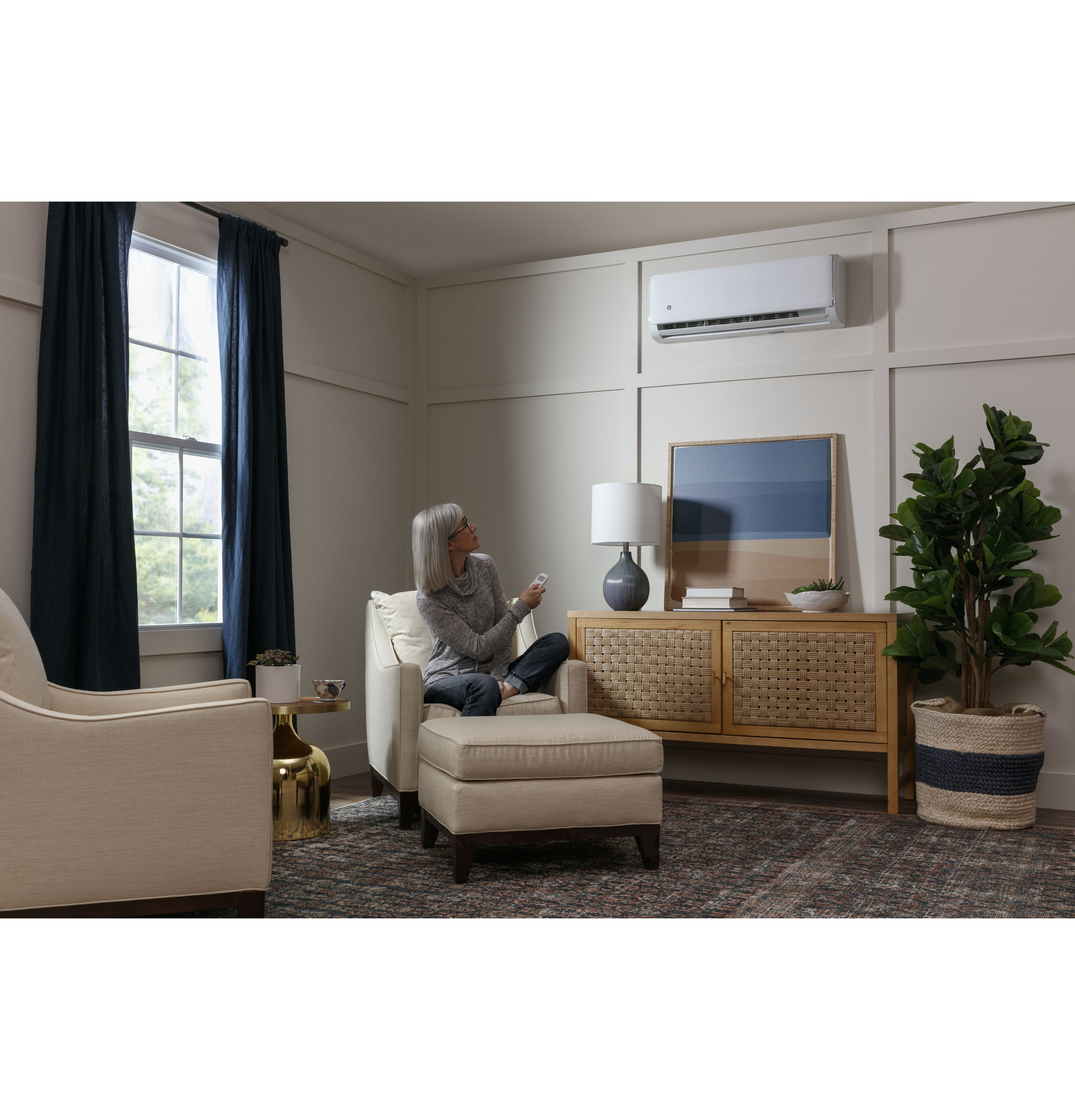

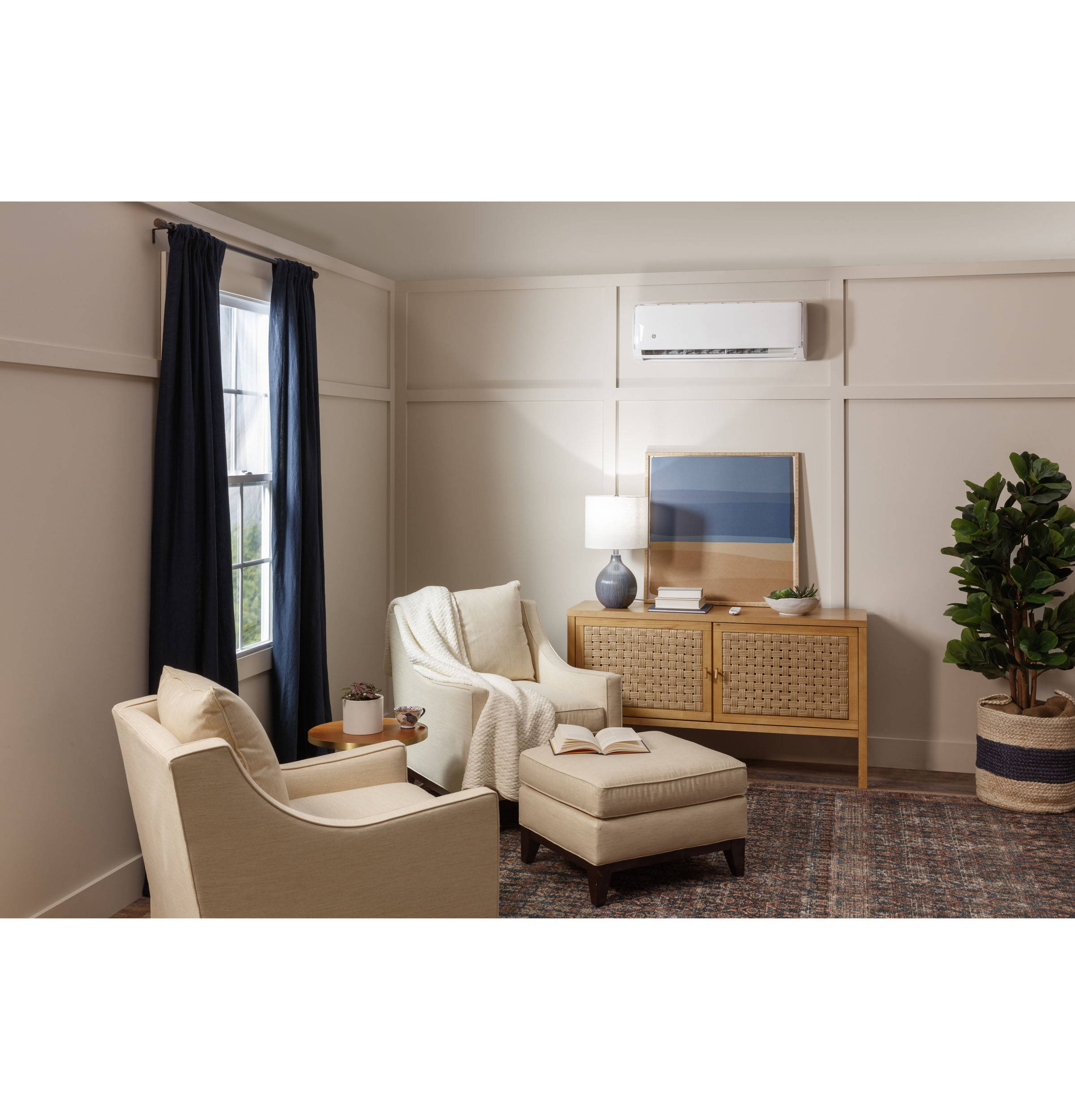

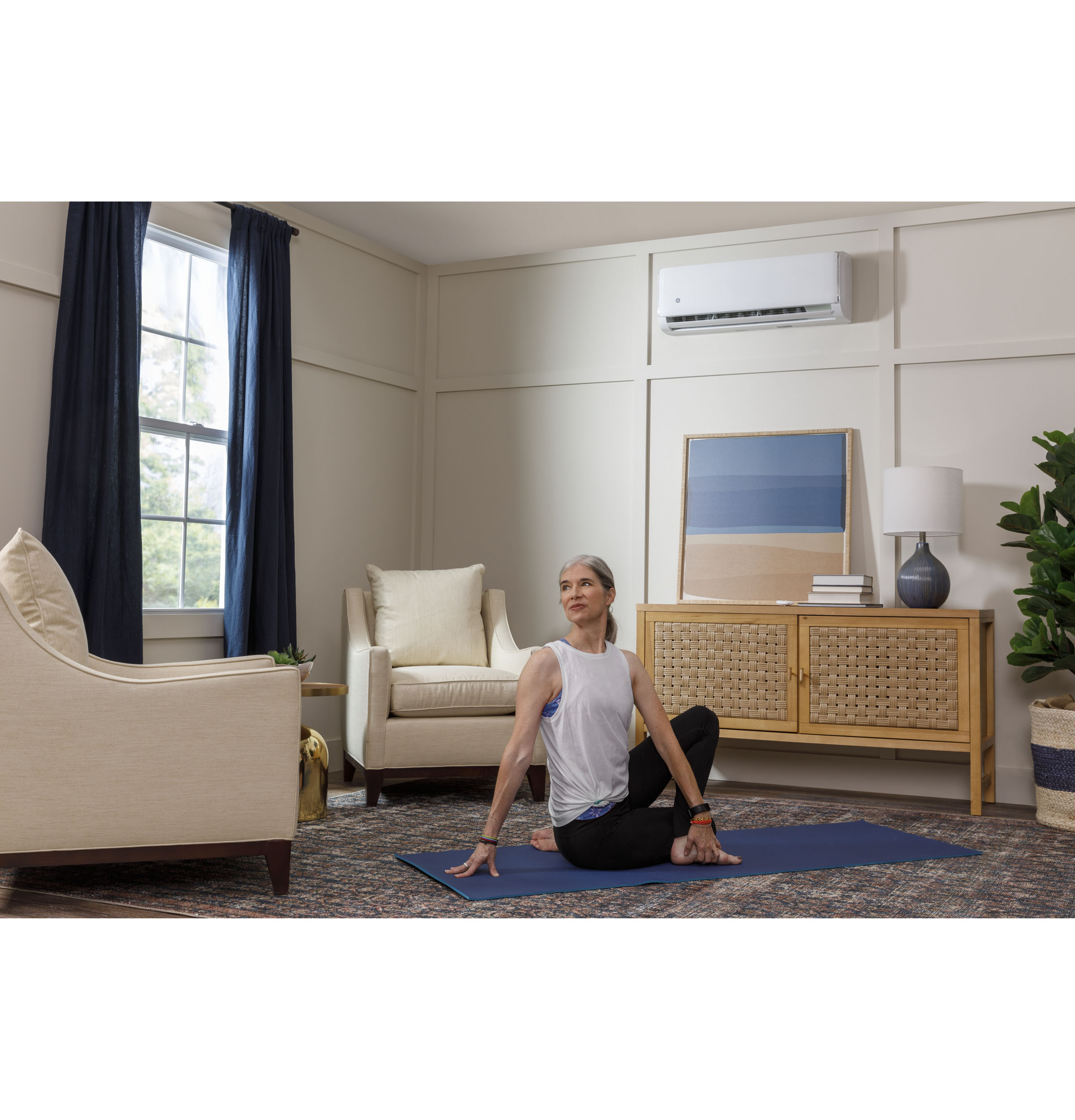

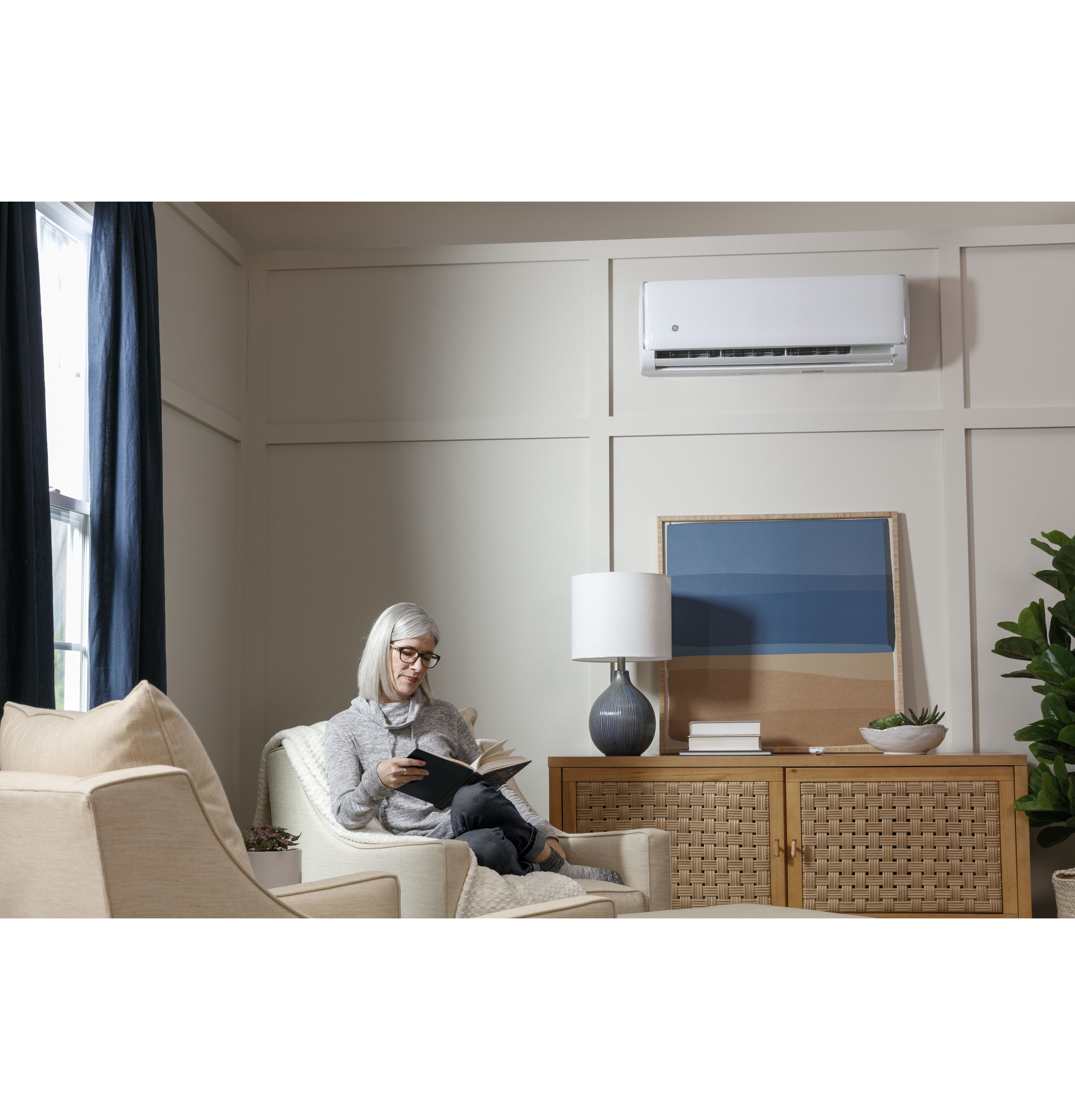

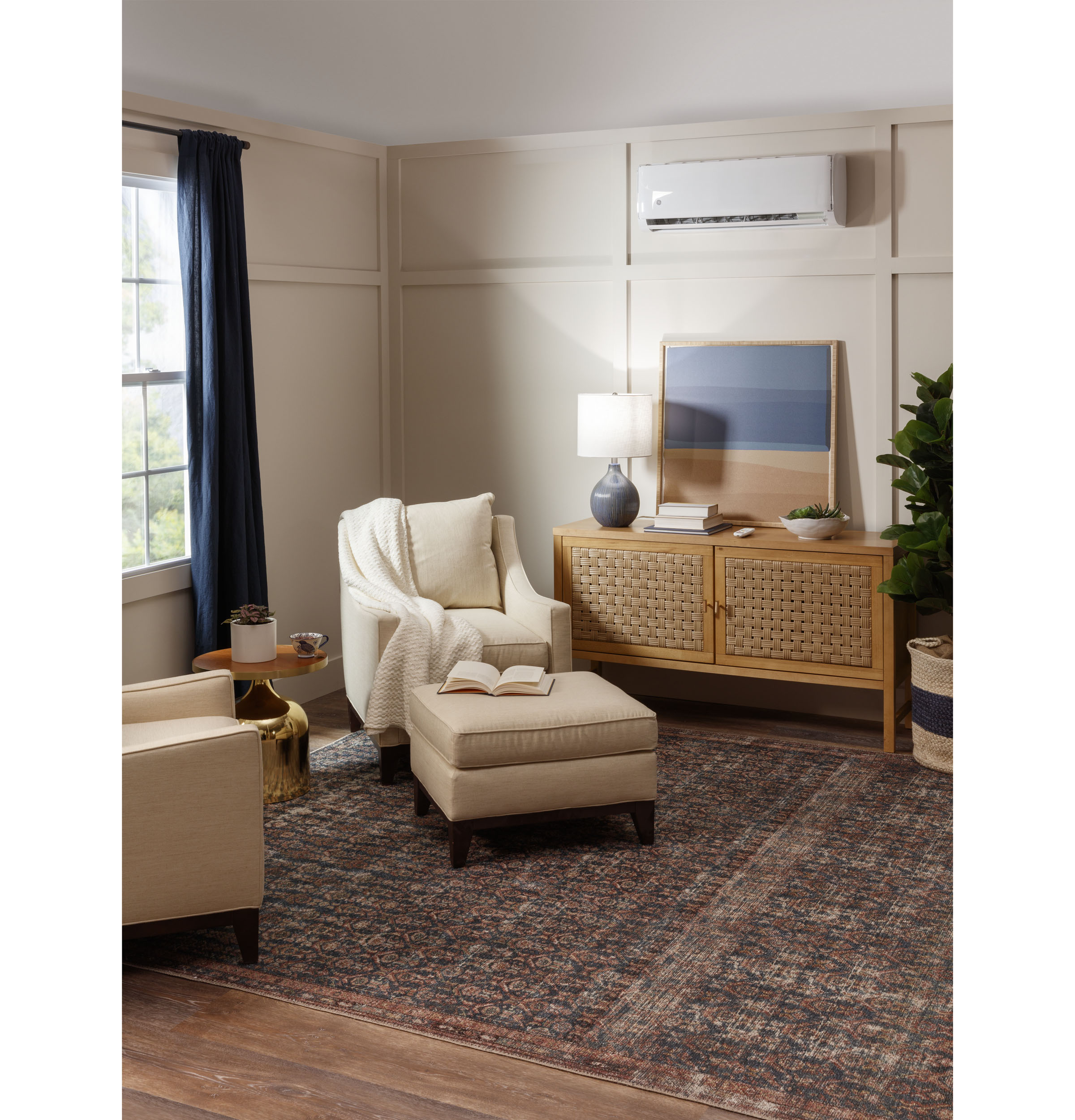

GE Caliber Series 115V 12,000 BTU Single-Zone Ductless Highwall Indoor Unit
Model: ASYW12CRAWA
Color : White
Key Features
Easy Install Features
Quiet Mode
115V Easy Electric Wiring
Auto Louver
Blue Fin
Turbo Mode
Warm Start
Child Lock
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Easy Install Features
Loaded with features installers love such as an easy installation clip and a quick mount wall bracket
Quiet Mode
Minimizes indoor noise while maintaining comfort levels
115V Easy Electric Wiring
Compatible with 115V electrical
Auto Louver
Automatically adjusts airflow upward when cooling, or downward when heating
Blue Fin
A special coating that whisks away condensate water
Turbo Mode
Cools or heats the room quickly
Warm Start
Ensures the fan will not cold air during heating mode startup
Child Lock
Ensures the fan will not cold air during heating mode startup
ODU Compatibility
Compatible with ASH112CRAWA Outdoor Unit
See specification book for full heating, cooling, and system details
Certifications
ADA Compliant
Specifications
FEATURES
| Outdoor Model to Complete Single Zone System | ASH112CRAWA |
| Outdoor Model to Complete Multi Zone System | Single Zone System Only |
| System | 12K Caliber |
| Product Type | Single Zone |
| Fan Speed Stages | 5+ Auto |
| Style | Highwall |
| Fan Speeds CFM | 245 |
| Fan Speeds CFM | 275 |
| Fan Speeds CFM | 287 |
| Fan Speeds CFM | 310 |
| Short Description | Caliber 12000 BTU Wall-Mounted Indoor |
| Vapor Refrigerant Line | 3/8" |
| Fan Speed Selections | 5 + Auto |
| Series | Caliber |
| Fan Speeds CFM | 300 |
| Indoor Sound Level | 39 dBA |
| Indoor Sound Level | 37 dBA |
| Indoor Sound Level | 33 dBA |
| Indoor Sound Level | 28 dBA |
| Indoor Sound Level | 23 dBA |
| Unit Type | Indoor |
| WiFi Connect | Optional |
| WiFi Module | WiFi adaptable with WiFi Adapter (AWF01RWA, sold separately) |
POWER / RATINGS
| Voltage/Hertz/Phase | 115/60/1 |
| Cooling Rated Capacity BTU/Hr | 12,000 |
WEIGHTS & DIMENSIONS
| Liquid O.D. Refrigerant Line | 1/4" |
| Suction O.D. Refrigerant Line | 3/8" |
| Approximate Shipping Weight | 24.69 lb |
| Net Weight | 19.8 lb |
| Overall Depth | 7.875 in |
| Overall Height | 11.4375 in |
| Overall Width | 34 in |
APPEARANCE
| Color Appearance | White |
Dimensions & Weight
| Width | 34 in. |
| Height | 11.44 in. |
| Length | 7.88 in. |
| Weight | 19.8 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 39 in. |
| Shipping Height | 16.44 in. |
| Shipping Length | 12.88 in. |
| Shipping Weight | 59.8 lbs. |
| Total of Shipping Weight | 59.8 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.77 ft³ |
| Dimensional Weight | 22.03 lbs. |
| Total of Cubes | 1.77 ft³ |
| Total of Dimensional Weight | 22.03 lbs. |
Warranty
| Parts | 5 Year |
