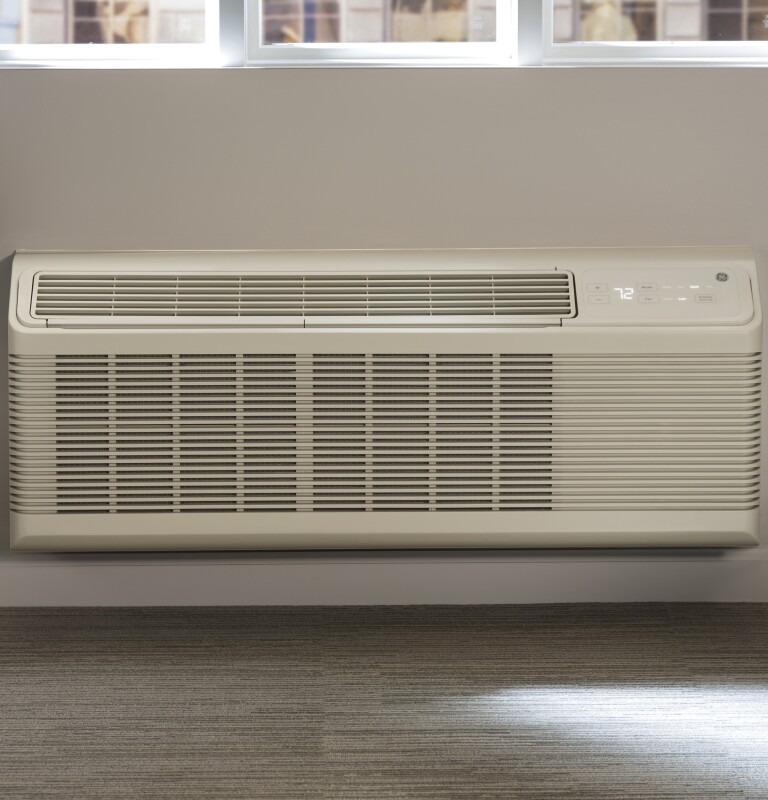

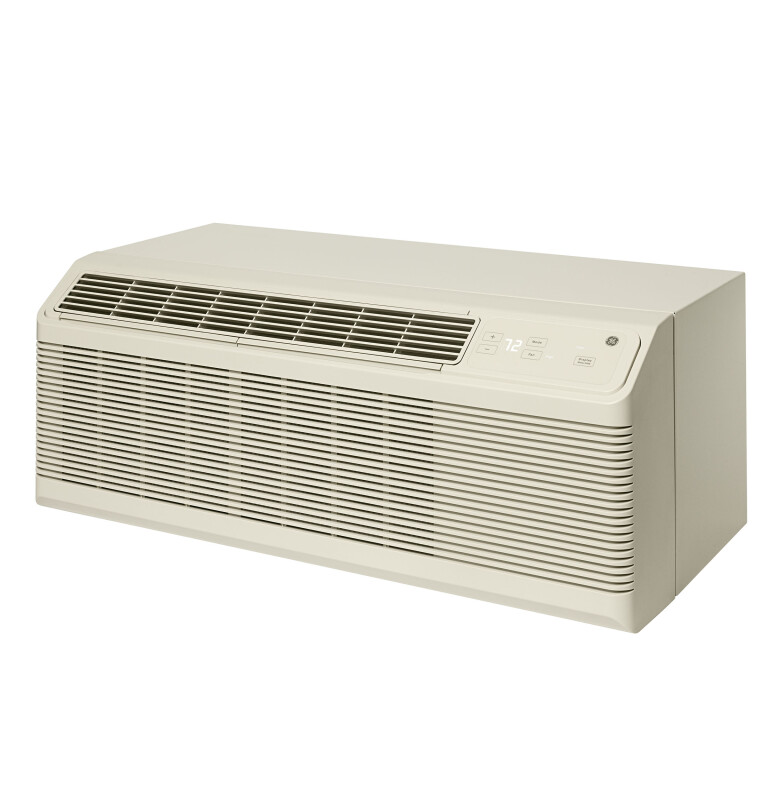

GE Zoneline Heat Pump Unit with Corrosion Protection 9,000 BTU, 265 Volt
Model: AZ65H09EAC
Color : Gray
Key Features
Cooling capacity
Energy efficiency
Dehumidification
Reverse cycle heat
Heat pump efficiency
Indoor fan CFM (high/low)
Fresh air vent CFM (fully open high fan)
Quiet operation
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Cooling capacity
9,500 BTU
Energy efficiency
11.7 EER
Dehumidification
2.5 pints/hour
Reverse cycle heat
8,100 BTU
Heat pump efficiency
3.6 COP
Indoor fan CFM (high/low)
409/300
Fresh air vent CFM (fully open high fan)
40
Quiet operation

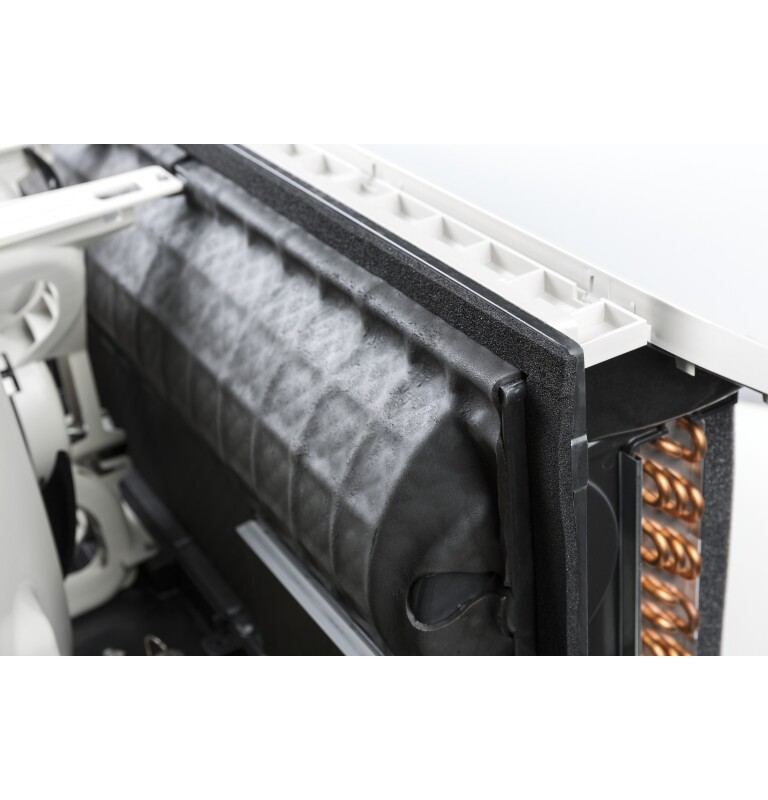

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

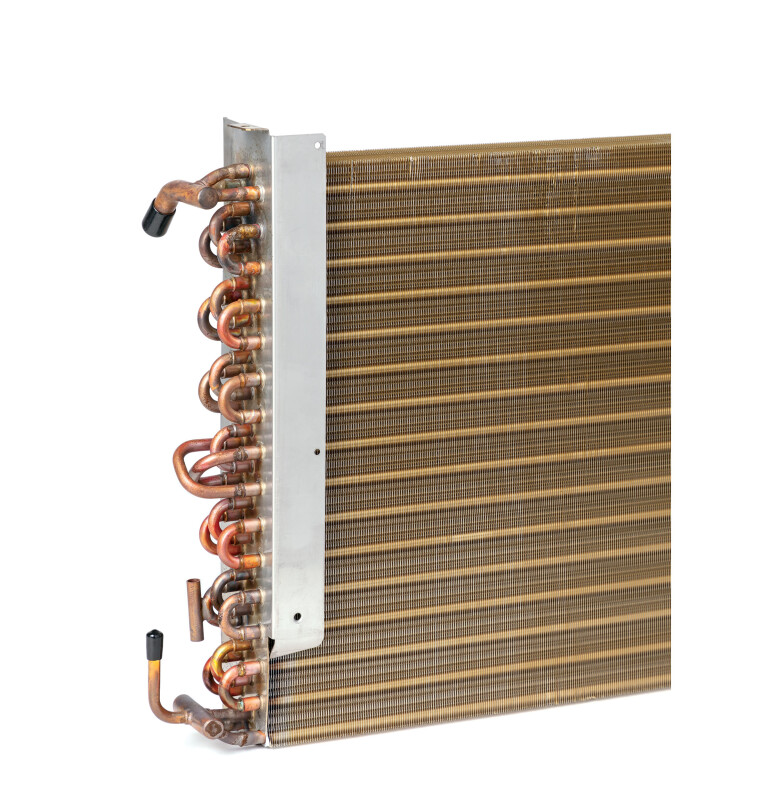

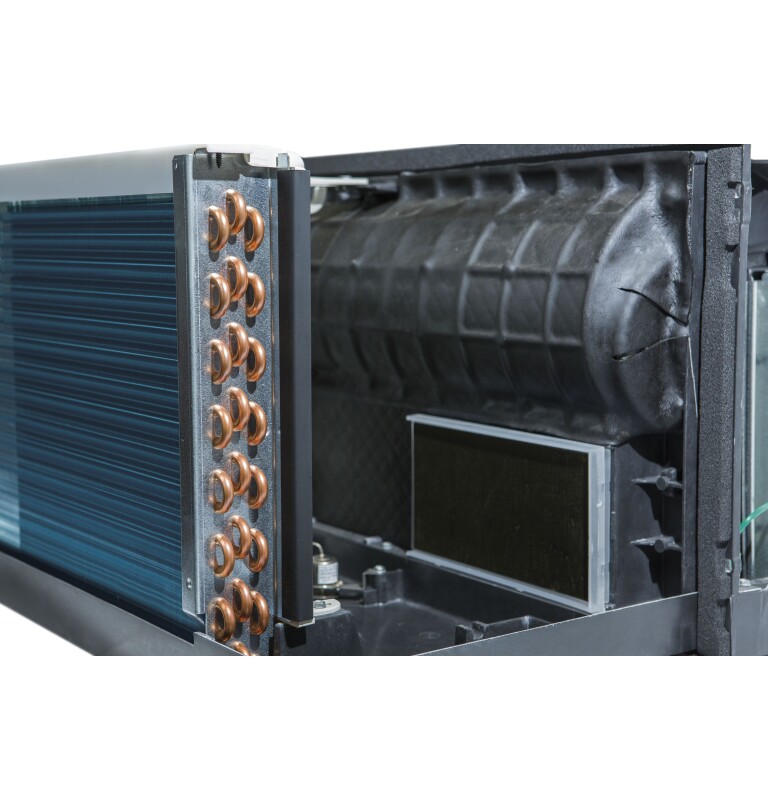

Corrosion resistant
Extends life of the unit in sea coast areas/corrosive environments
Heat & Freeze Sentinels
Keeps the room from overheating or freezing
Boost heat option
Provides supplemental resistance heat in heat pump mode
Electronic temperature limiting
Prevents expensive over-cooling or over-heating of the room

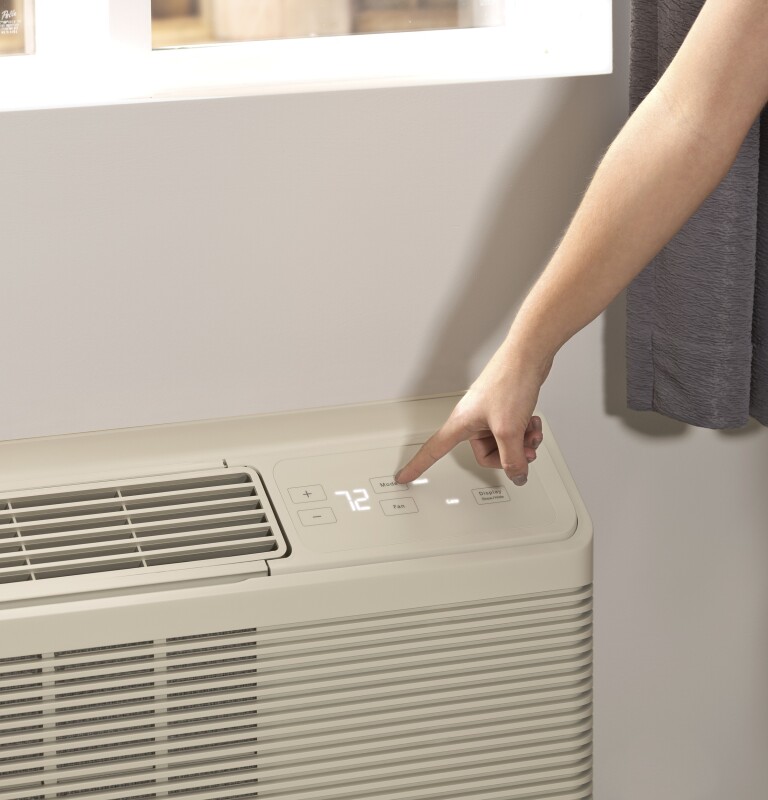

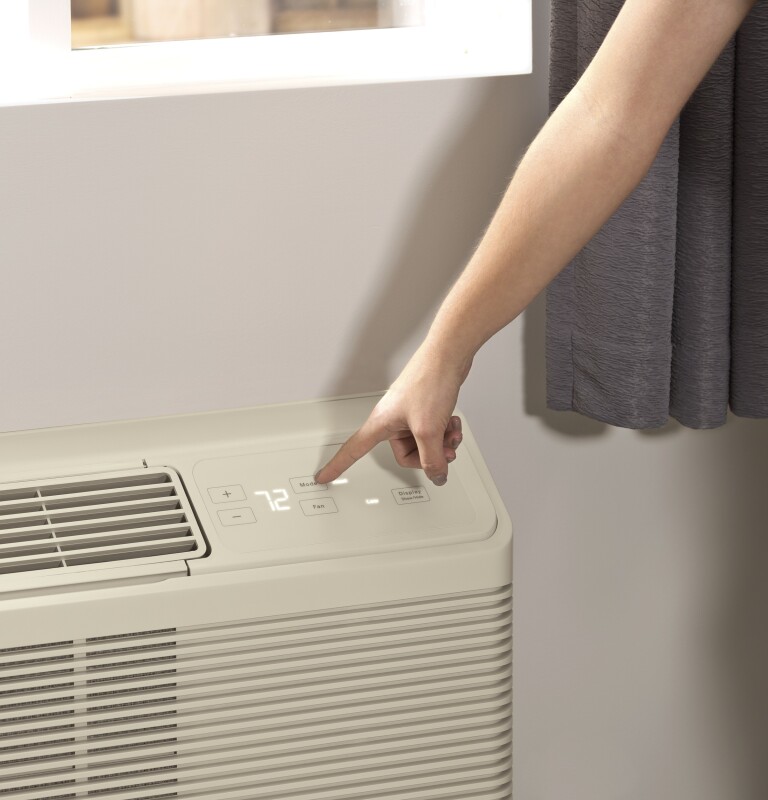

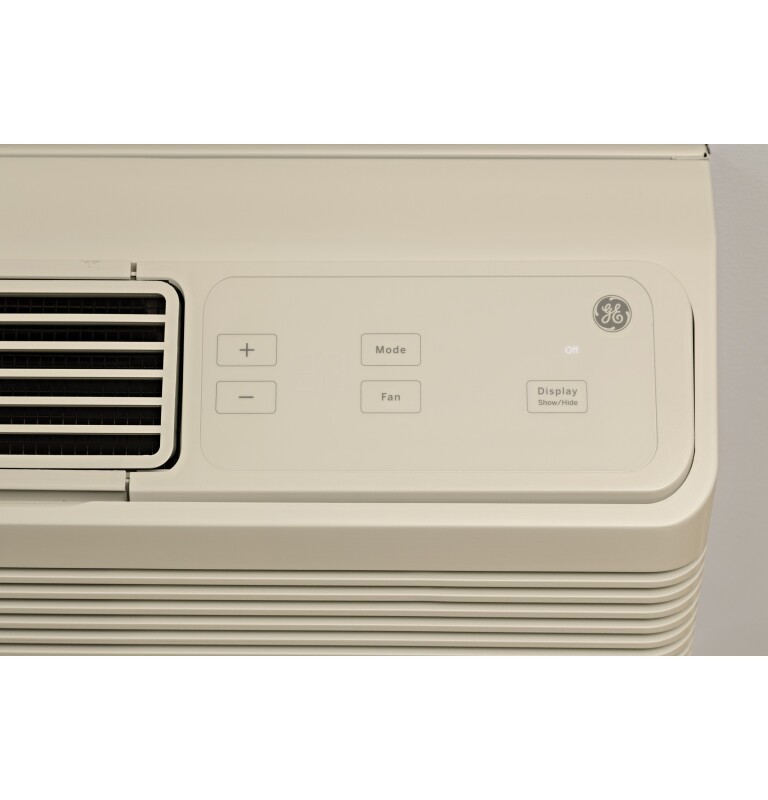

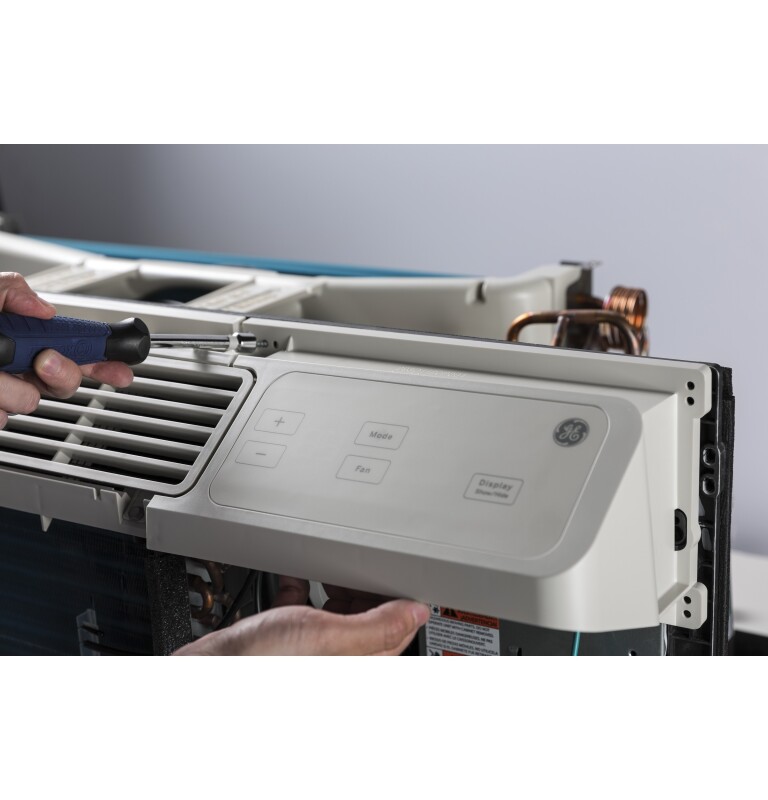

Electronic touch controls with LED display
R-410A refrigerant
Designed & Assembled in America
Certifications
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
CAPACITY
| Vent CFM (high fan at zero ESP) | 40 |
| Dehumidification (pts./hr.) | 2.5 |
| CFM Indoor Fan High | 420 |
| CFM Indoor Fan Low | 300 |
| Cooling EER (BTUH / Watt) | 11.7 |
| Heating - Reverse Cycle - BTUH | 8100 |
| Cooling BTUH (MAX) | 9,500 Btu |
FEATURES
| Fan Cycle Switch | Yes |
| Discharge Grille | 2-position |
| Heat - Cool | Yes |
| Rotary Compressor | Yes |
| Fan Motor | 2 |
| Temperature Limiting | Electronic 7-Step |
| Heating - Reverse Cycle - COP | 3.6 |
| Power Factor | 94 |
| Vent Control | 3-position |
| Manual Vent Control | Hidden |
| Heating System | Heat Pump |
| Louver Style | Reversible |
| Fan Speed Control | Yes |

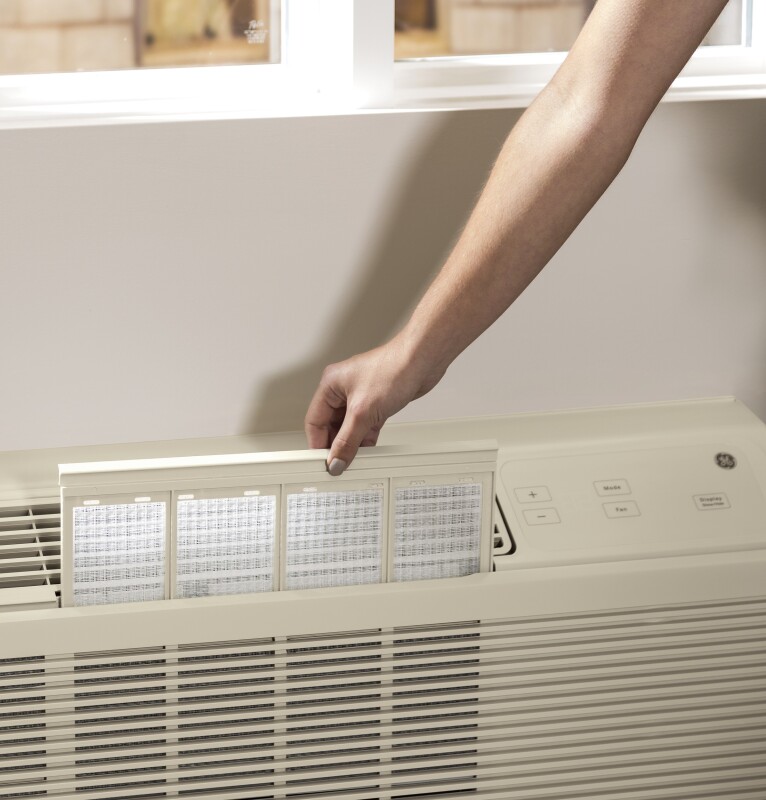

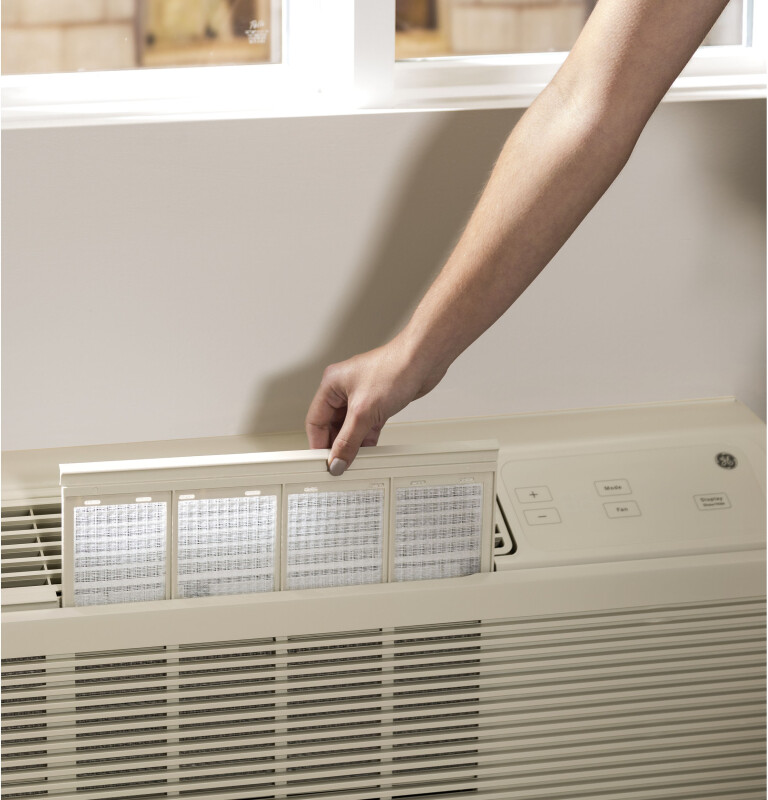

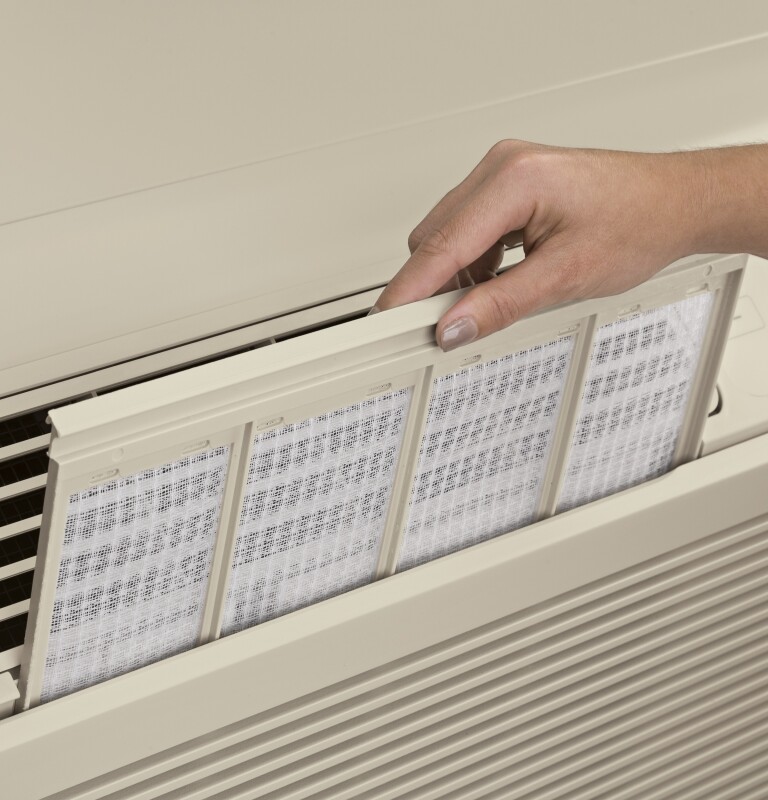

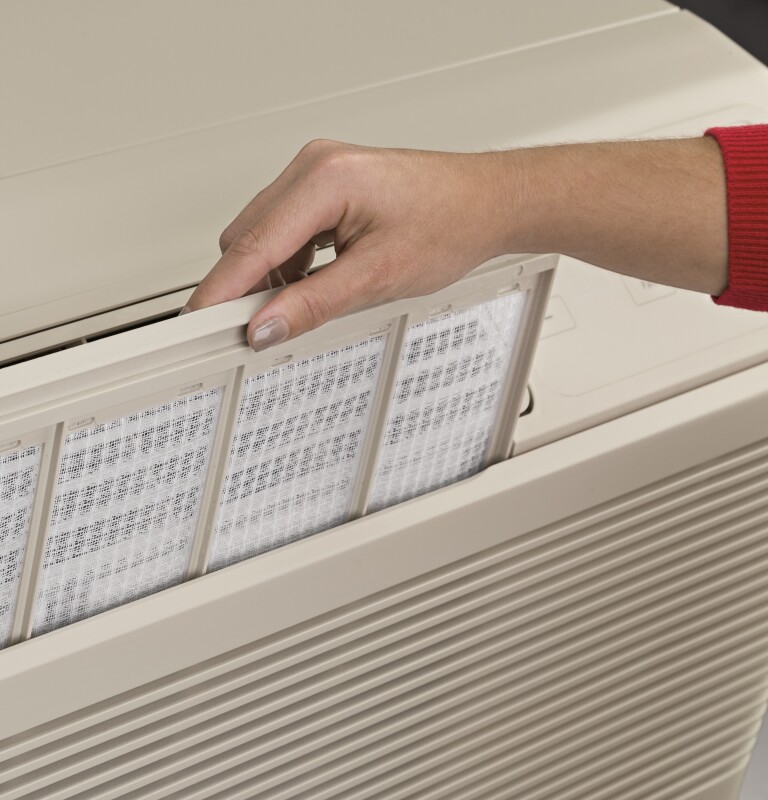

| Filter Type | Rigid Frame |
| Filter Type | Slide-Out |
| Temperature Range | 60 - 85 F |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Refrigerant Type | R410A |
| Electronic Micro Computer Control | Yes |
| Zoneline Features | "Sleep" Mode |
| Zoneline Features | "Smart Fan" Fan Cycle Control |
| Zoneline Features | 3-Stage Heating Design |
| Zoneline Features | Auto Power Recovery |
| Zoneline Features | Automatic Emergency Heat |
| Zoneline Features | Automatic Indoor Frost Control |
| Zoneline Features | Central Desk Control Compatibility |
| Zoneline Features | Freeze Sentinel |
| Zoneline Features | Heat Pump with Resistance Heat Backup |
| Zoneline Features | Heat Pump with Supplemental Resistance Heat |
| Zoneline Features | Heat Sentinel |
| Zoneline Features | Proportional - Integral ID Airflow |
| Zoneline Features | Quick Heat Recovery |

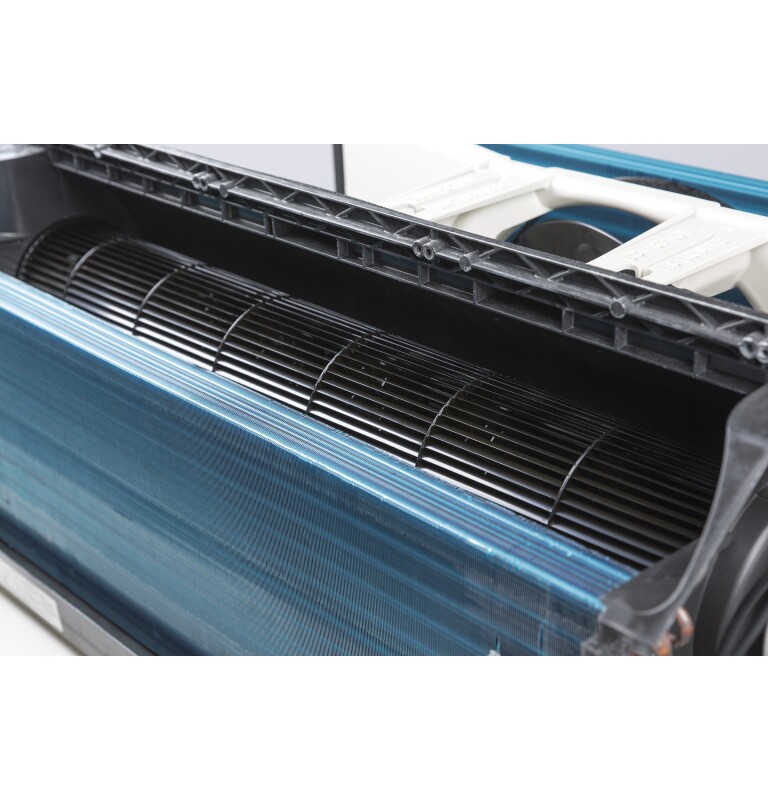

| Zoneline Features | Random Twist/Length Segment Tangential Blower |
| Zoneline Features | Remote Thermostat Compatibility |
| Zoneline Features | Reverse Cycle Defrost |
| Zoneline Features | Universal Heaters |
| Zoneline Features | Weather Protected Electrical Components |
| Sensible Heat Ratio | 68% |

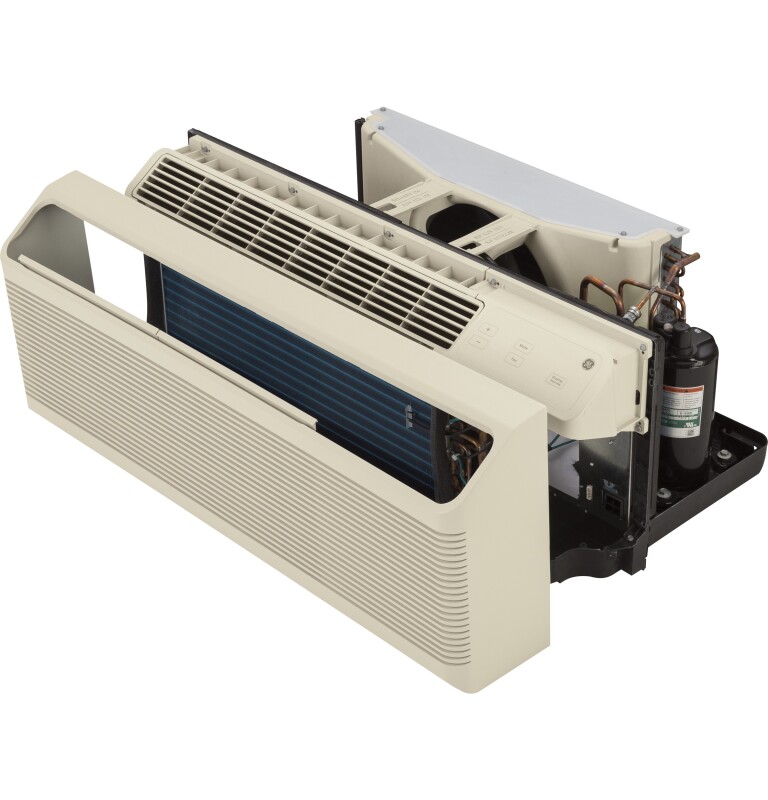

| Chassis Type | Slide-In |
| Corrosion Treated | Yes |
| Control Type | Standard Microcomputer |
| Control Type | Tactile touch pad with LED Display |
| Fan Speed Selections | Hi/Low Cooling |
| Fan Speed Selections | Hi/Low Fan Only |
| Fan Speed Selections | Hi/Low Heating |
| Venting Features | Concealed Manual Vent Control¶Vent Air Filter¶Outdoor Vent Control - 3 Positions |
| Heat Pump | Yes |
POWER / RATINGS
| Cooling - Amperes; F.L. - Cooling | 3.3 |
| Cooling - Amperes | 3.3 |
| Cooling - Watts | 810 |
| Heating - Reverse Cycle - Watts | 655 |
| Heating - Reverse Cycle - Amps | 2.8 |
| Cooling - Amperes; L.R. | 16.5 |
| Voltage (MAX) | 265 V |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
| Labor (Entire Appliance) | 1 Year |
| Labor (Sealed System) | 5 Year |
| Parts (Entire Appliance) | 2 Year |
Dimensions & Weight
| Width | 42 in. |
| Height | 16 in. |
| Length | 20.81 in. |
| Weight | 110 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 47 in. |
| Shipping Height | 21 in. |
| Shipping Length | 25.81 in. |
| Shipping Weight | 150 lbs. |
| Total of Shipping Weight | 150 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 8.09 ft³ |
| Dimensional Weight | 100.62 lbs. |
| Total of Cubes | 8.09 ft³ |
| Total of Dimensional Weight | 100.62 lbs. |
WEIGHTS & DIMENSIONS
| Approximate Shipping Weight | 110 lb |
| Net Weight | 110 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16 in |
| Overall Width | 42 in |
