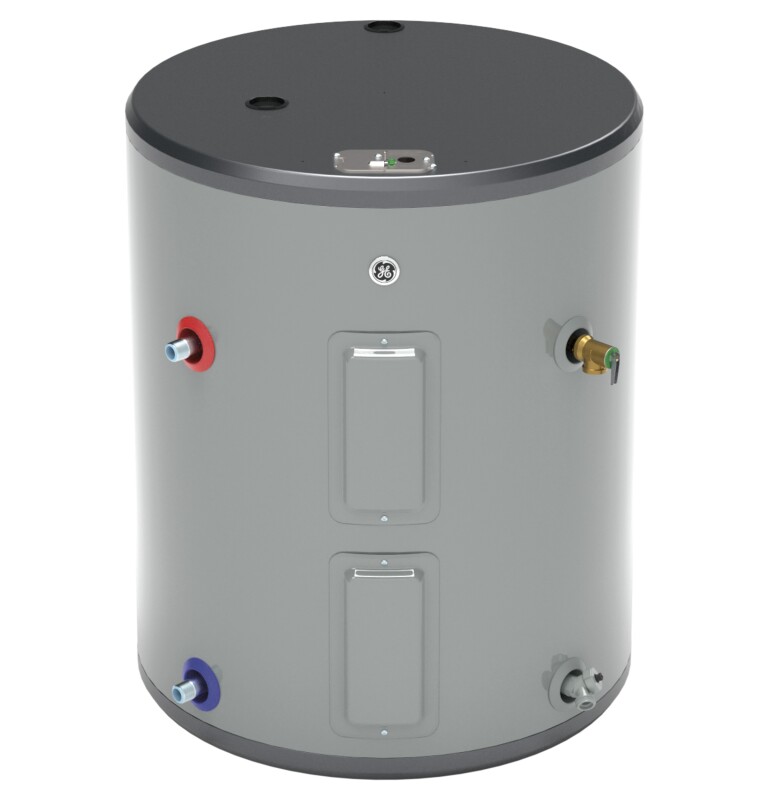

GE 36 Gallon Side Port Lowboy Electric Water Heater
Model: GE40L08BSM
Product Video
Color : Gray
Key Features
Lowboy
Household Size
Quick Recovery
Inlet Tube
Easy Set Up
Anode Rod
Adjustable Thermostat
Brass Drain Valve
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

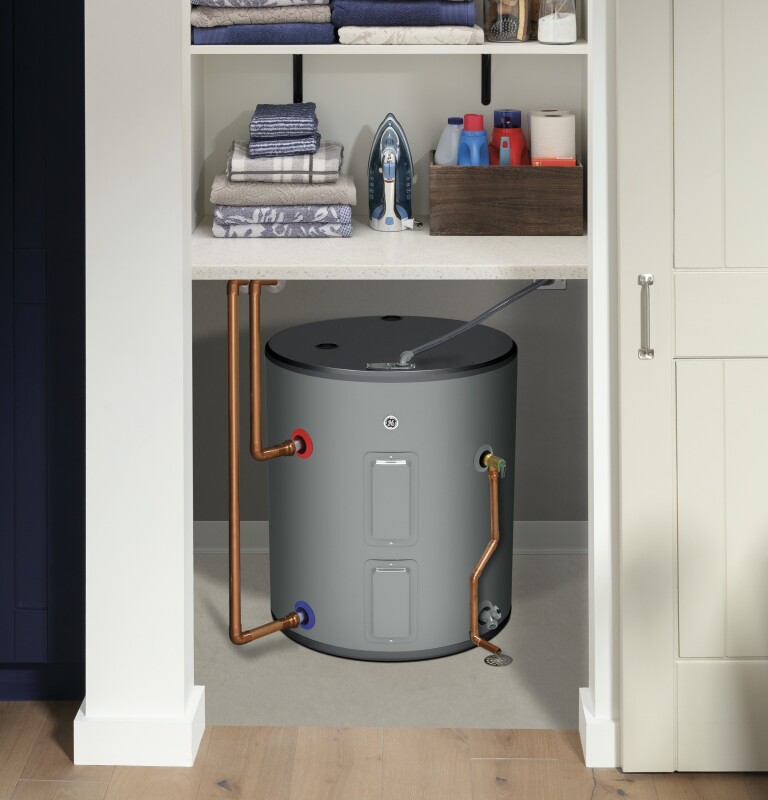

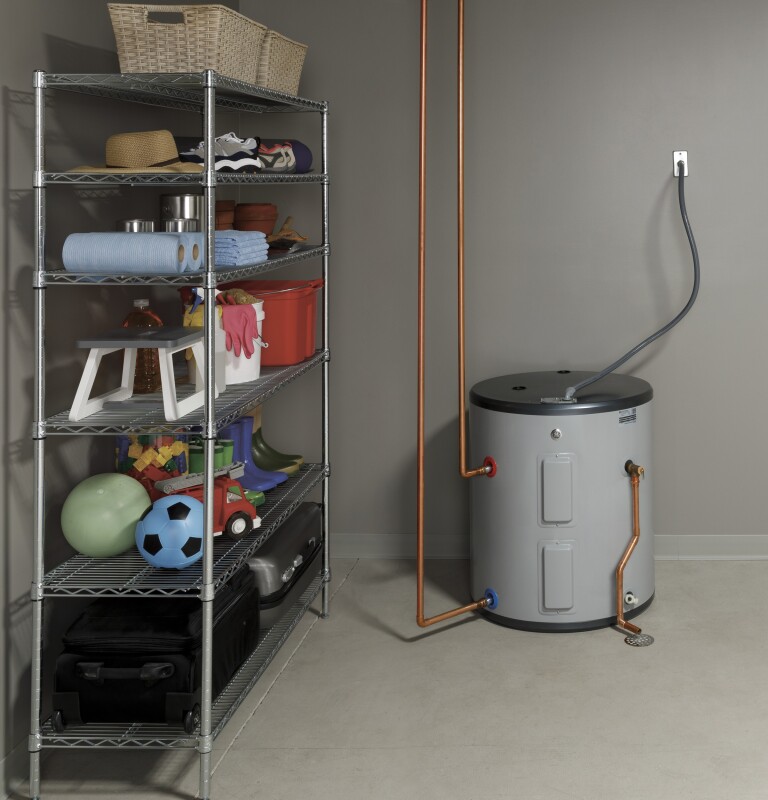

Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Household Size
Provide hot water for the whole family of 2 to 4 persons

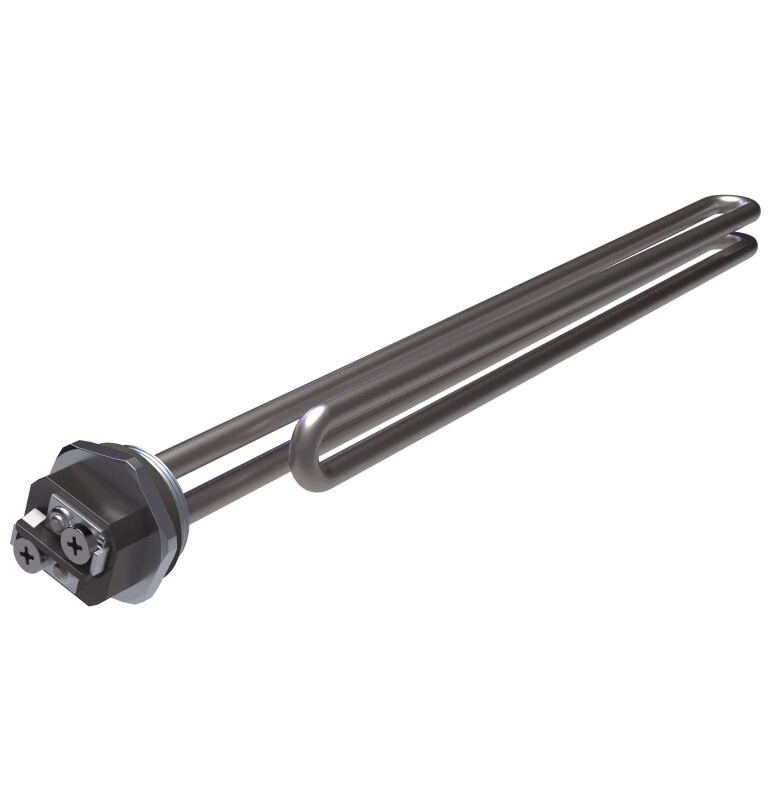

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

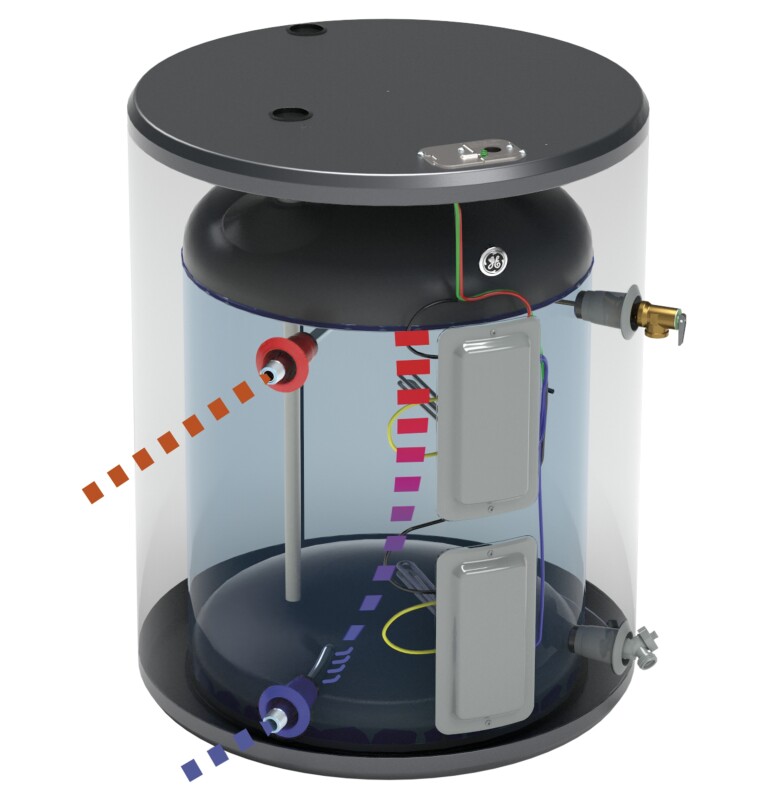

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

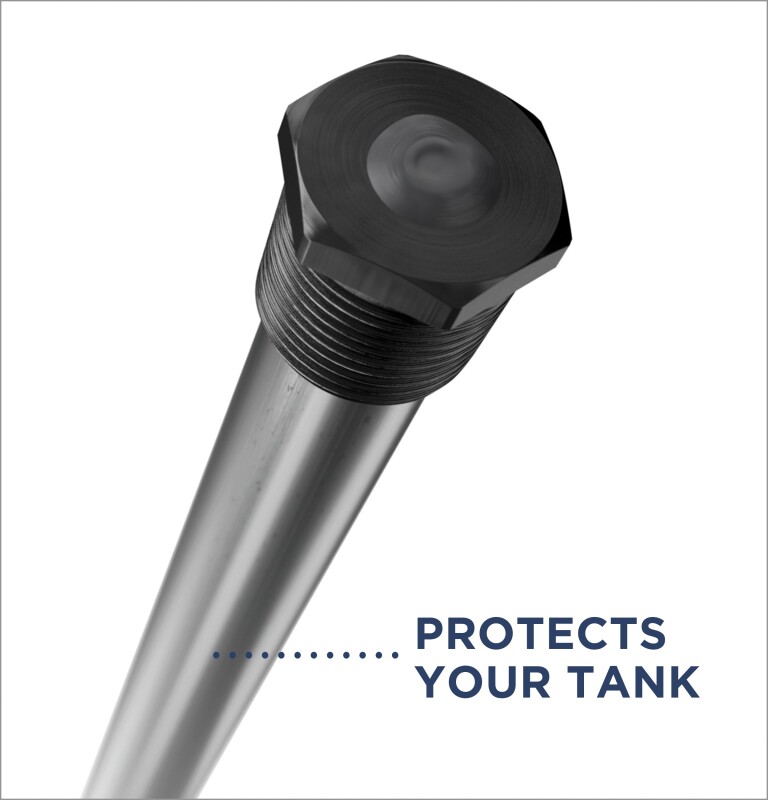

Anode Rod
Durable design offers long-lasting protection against corrosion

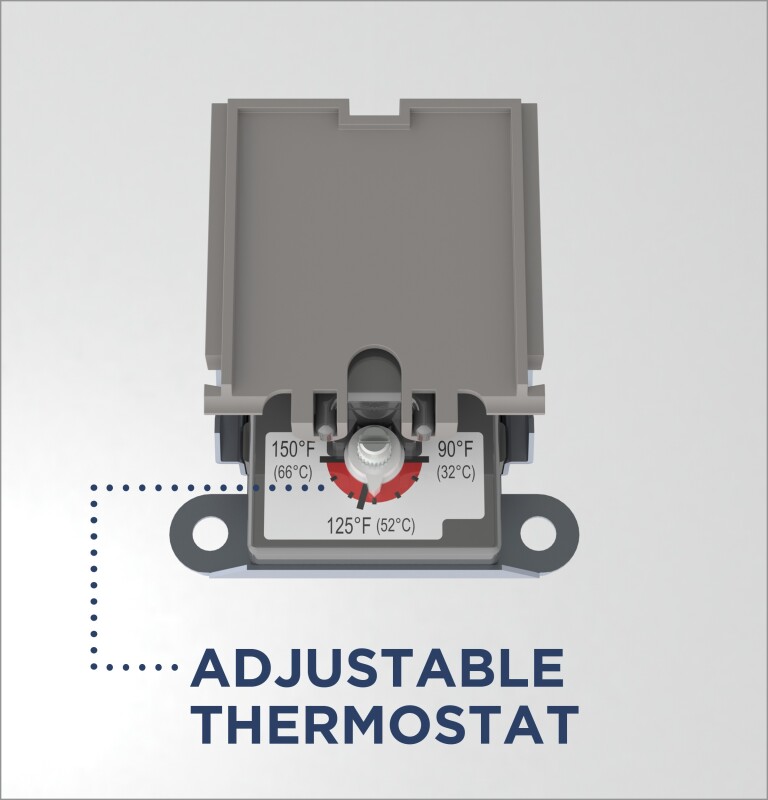

Adjustable Thermostat
Change temperature to your desired setting
Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 27 in |
| Overall Height | 32.75 in |
| Product Height (to top of unit) | 32.75 in |
| Overall Depth | 27 in |
| Approximate Shipping Weight | 145 lb |
| Net Weight | 135 lb |
| Product Diameter | 27 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| Product Height (to top of water inlet/outlet connections) | 3.5/22.5 in |
Other
| Product Diameter | 27 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 27 in. |
| Height | 32.75 in. |
| Length | 27 in. |
| Weight | 135 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 32 in. |
| Shipping Height | 37.75 in. |
| Shipping Length | 32 in. |
| Shipping Weight | 175 lbs. |
| Total of Shipping Weight | 175 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 13.82 ft³ |
| Dimensional Weight | 171.76 lbs. |
| Total of Cubes | 13.82 ft³ |
| Total of Dimensional Weight | 171.76 lbs. |
FEATURES
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Low Boy with Side Port |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 36 |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Product Type | Electric Thermostat |
| Family Size | 2-4 People |
| Water Connection Location | Side |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 in |
| Rated Capacity | 36.0 gal |
| Drain Valve Type | Brass |
| Temperature Setting | Factory Default 120° F |
POWER / RATINGS
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 63 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 3531 |
CAPACITY
| Unit Capacity | 40 Gallons |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts (Tank) | 8 Year |
| Labor (Entire Appliance) | 1 Year |
