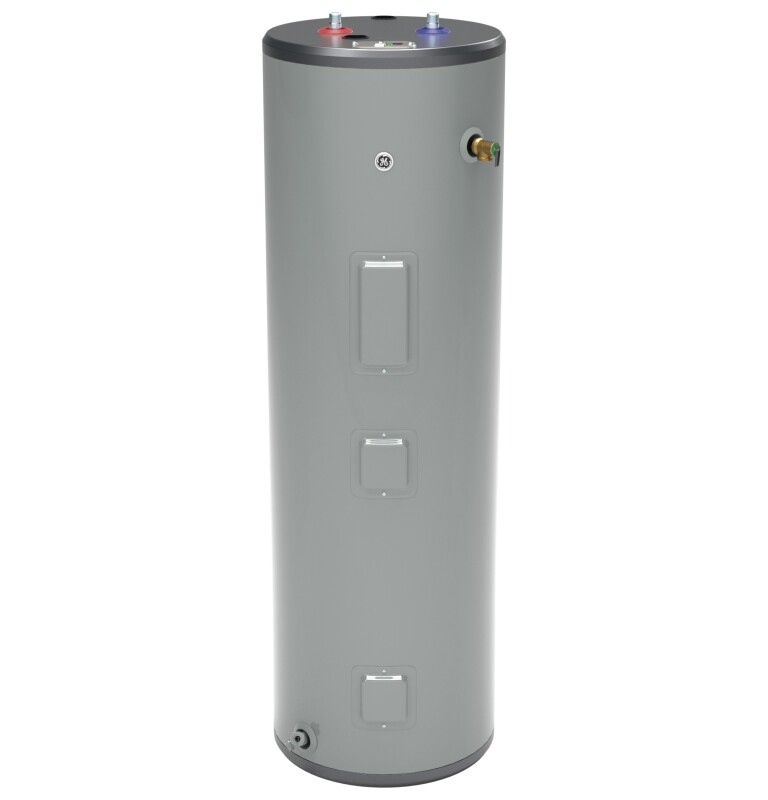

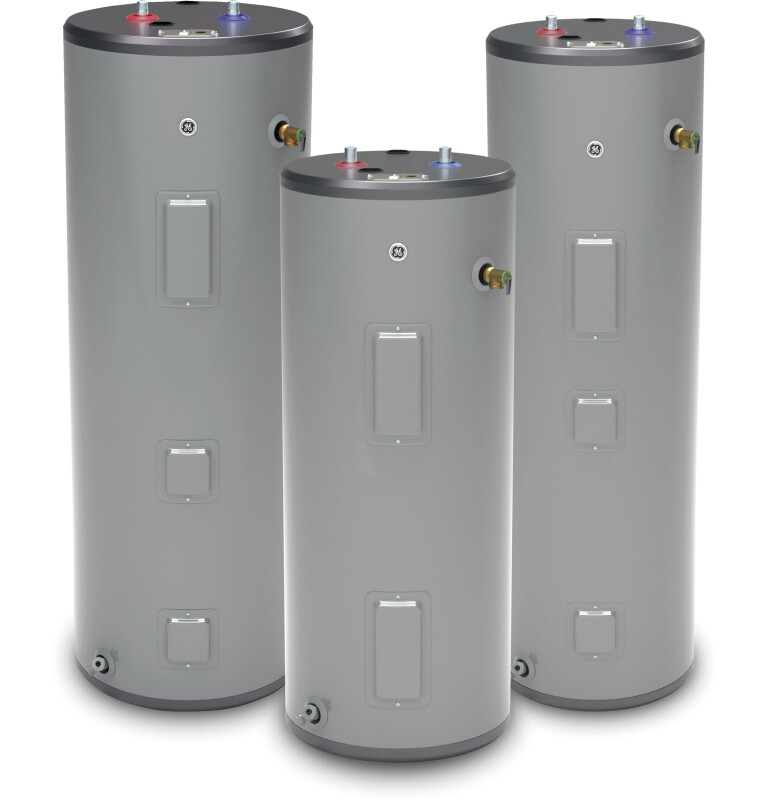

GE 40 Gallon Tall Electric Water Heater
Model: GE40T08BAM
Product Video
Color : Gray
Key Features
Real Capacity
Leading Performance
Household Size
Quick Recovery
Inlet Tube
Easy Set Up
Anode Rod
Adjustable Thermostat
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

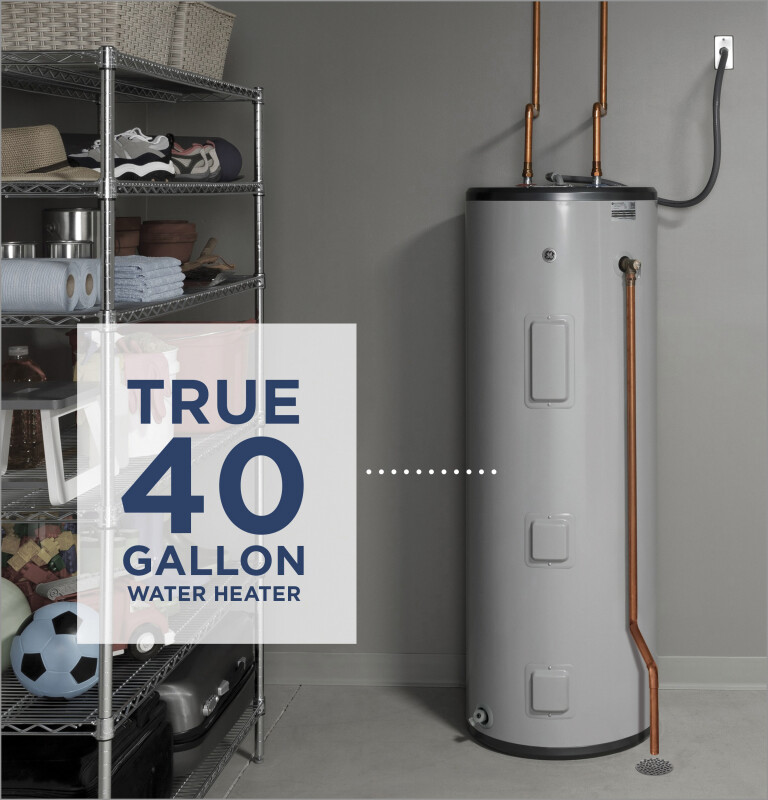

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)
Leading Performance
Live comfortably with this best in class unit that delivers 65 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

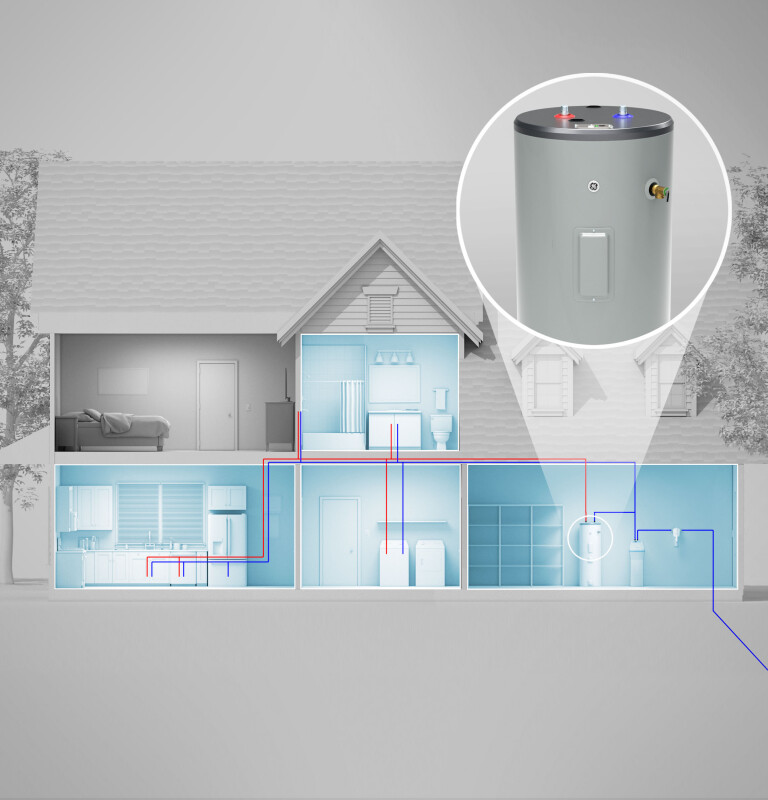

Household Size
Provide hot water for the whole family of 2 to 4 persons

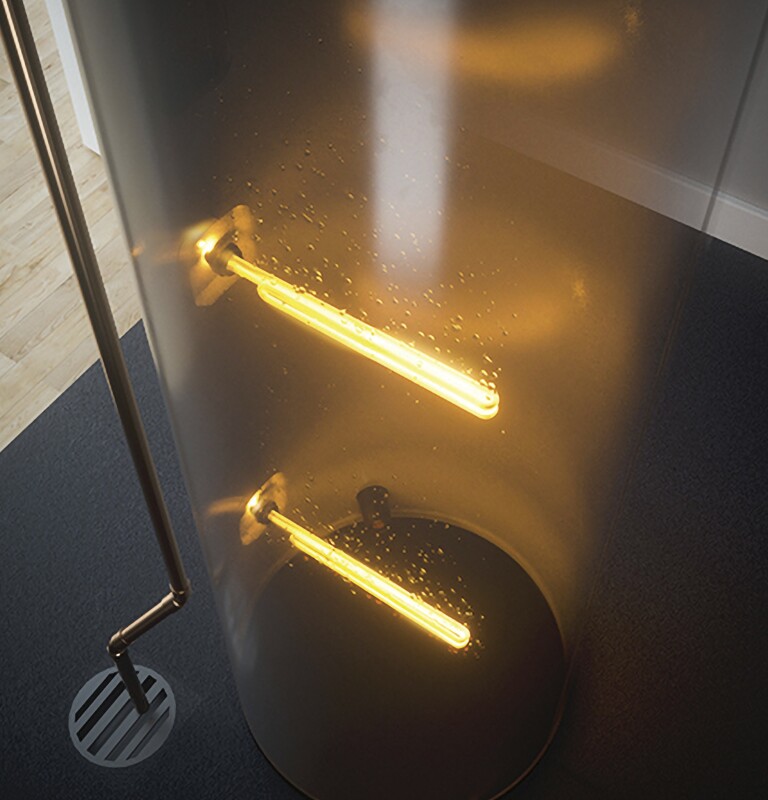

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

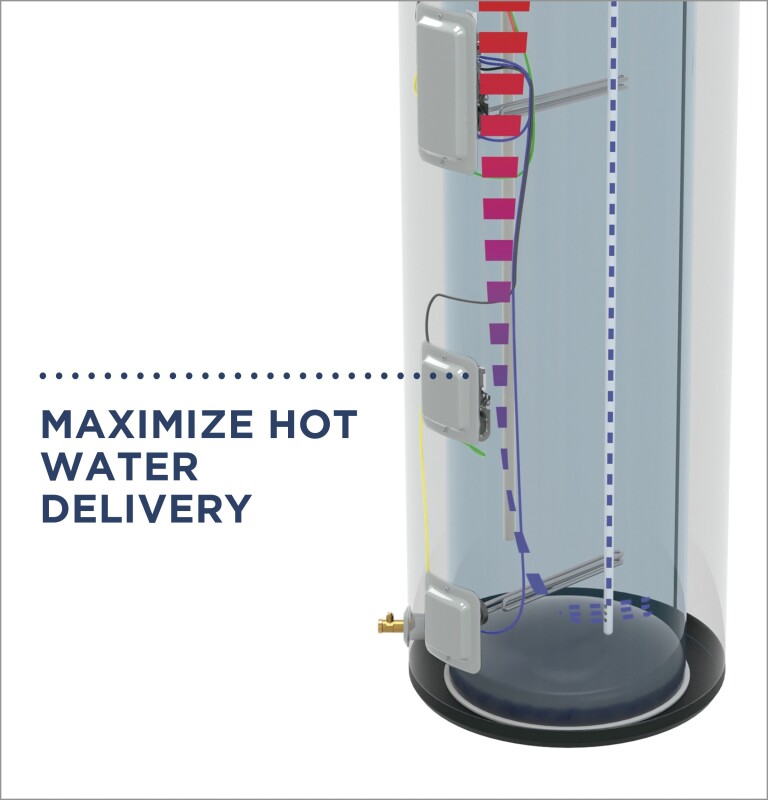

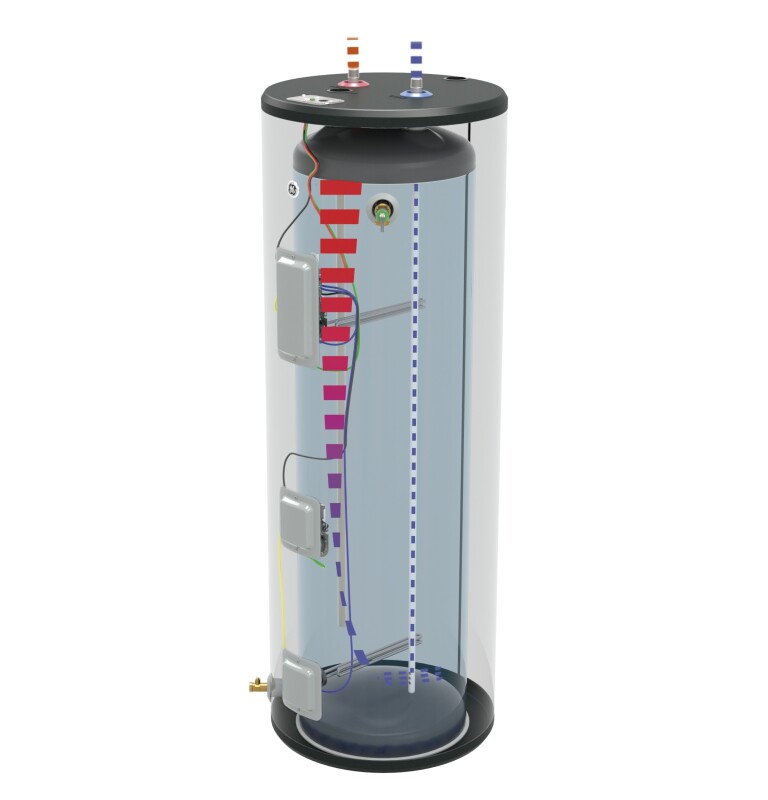

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

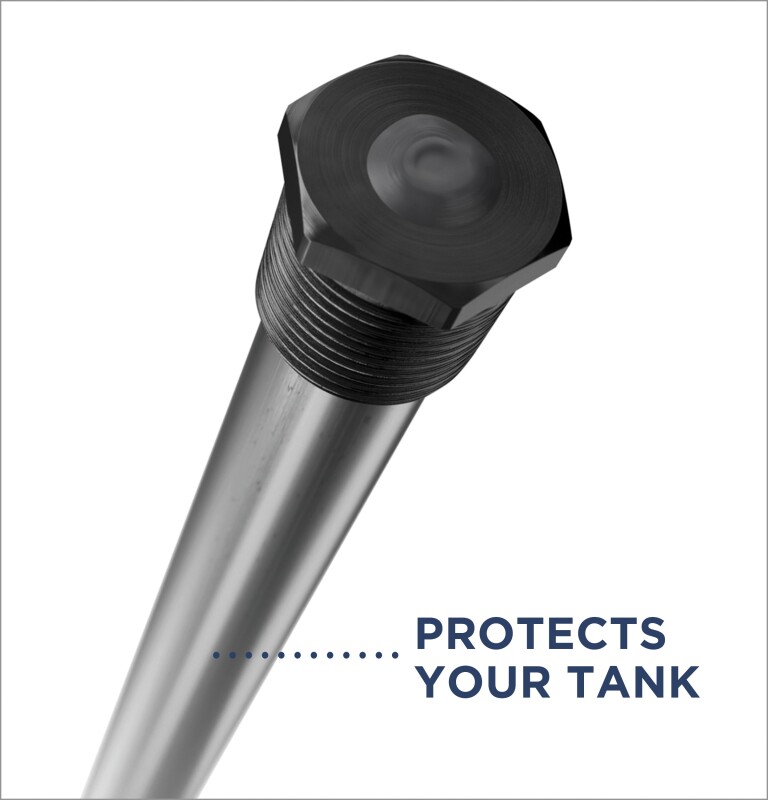

Anode Rod
Durable design offers long-lasting protection against corrosion

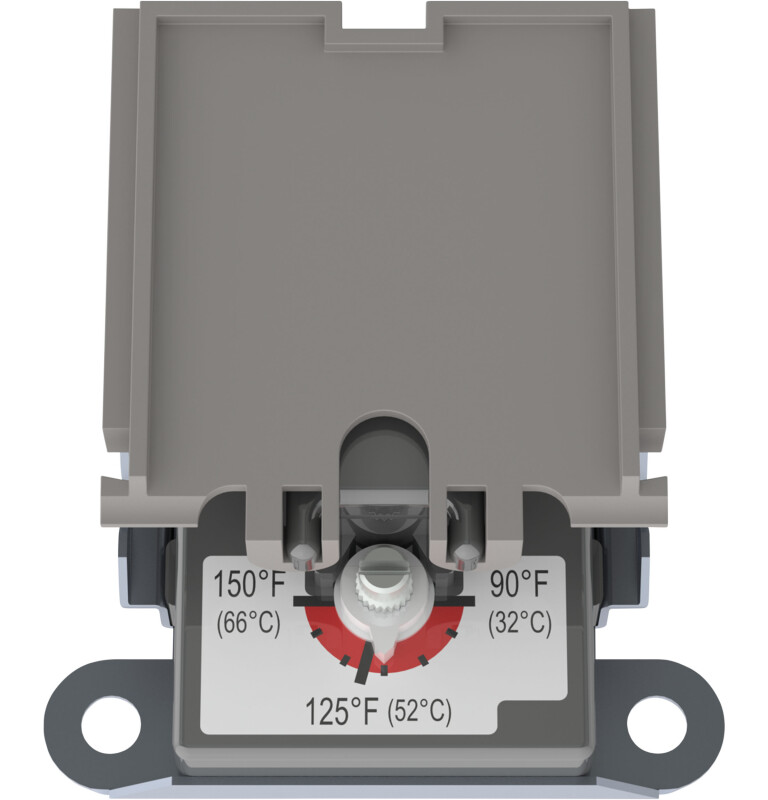

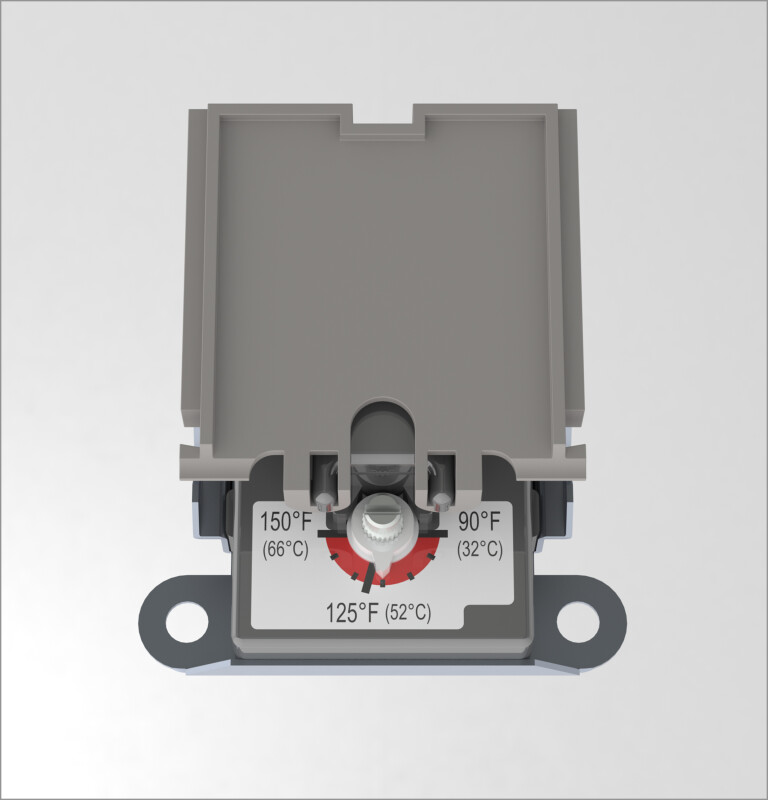

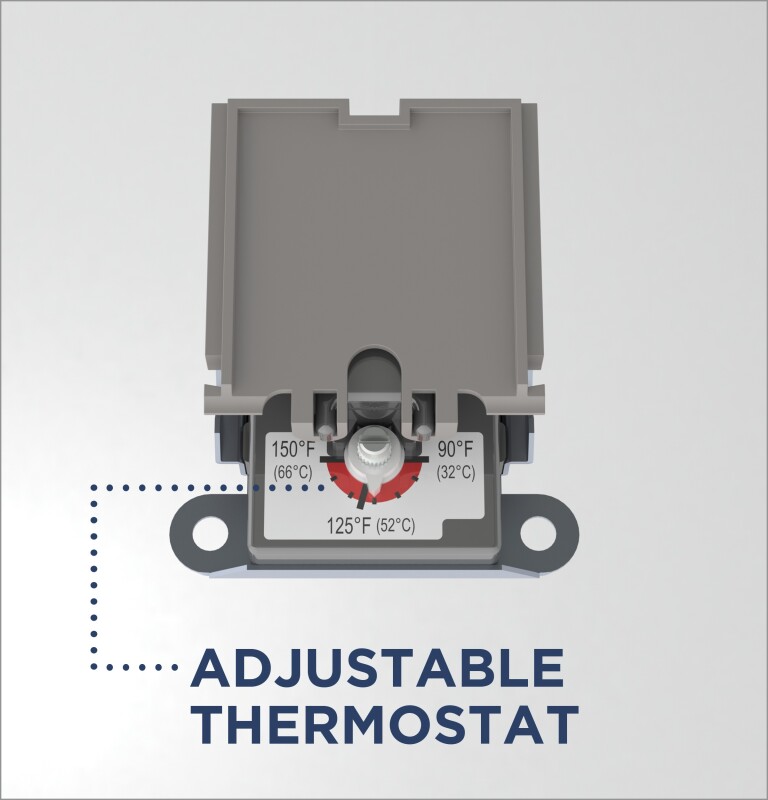

Adjustable Thermostat
Change temperature to your desired setting

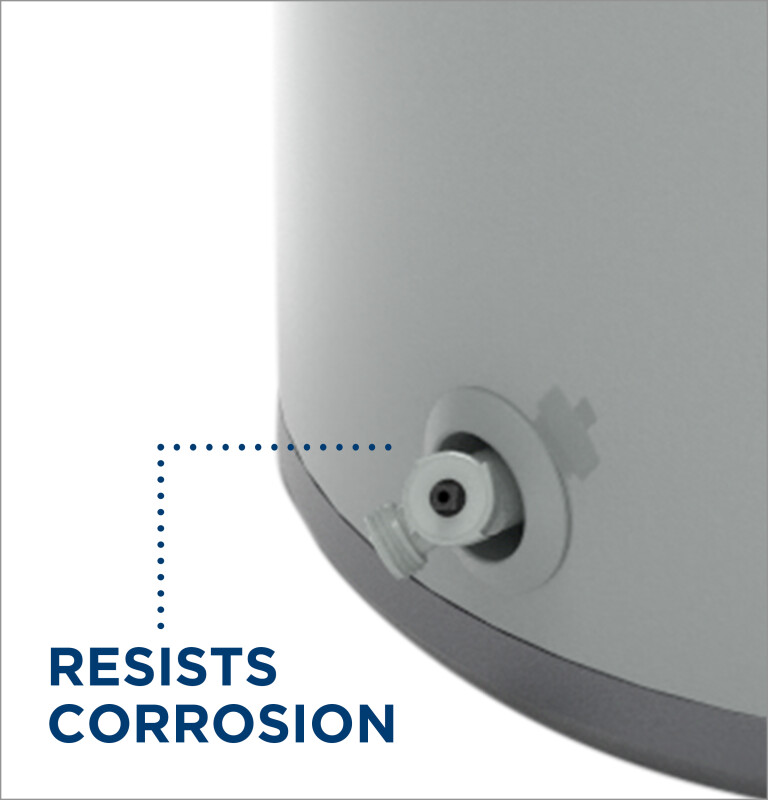

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Certifications
California Prop 65
Specifications

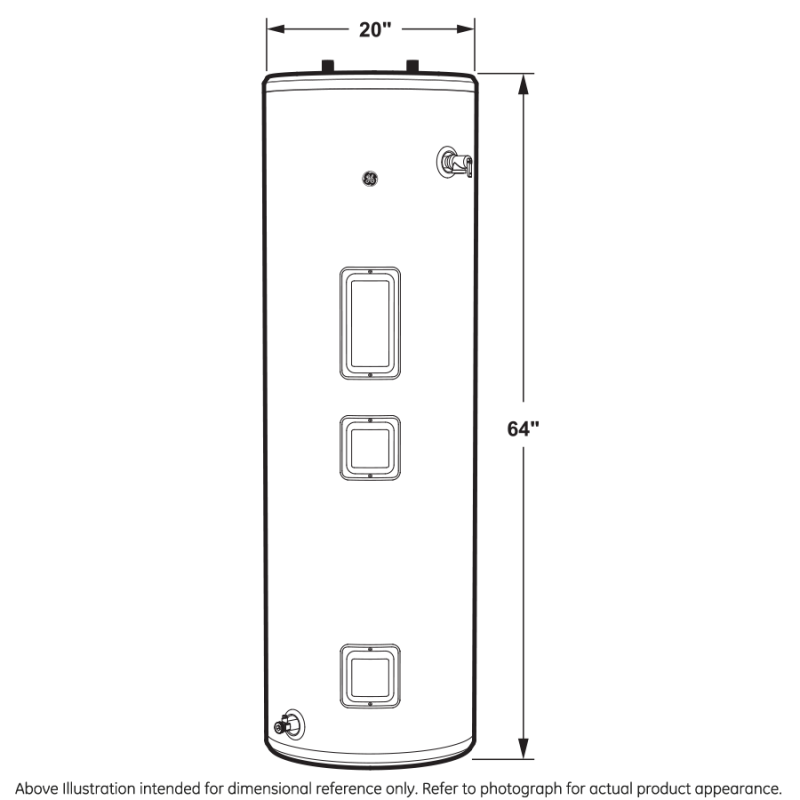

WEIGHTS & DIMENSIONS
| Overall Width | 20 in |
| Overall Height | 65.5 in |
| Product Height (to top of unit) | 64 in |
| Overall Depth | 20 in |
| Product Height (to top of water inlet/outlet connections) | 65.5 in |
| Approximate Shipping Weight | 139 lb |
| Net Weight | 127 lb |
| Product Diameter | 20 in |

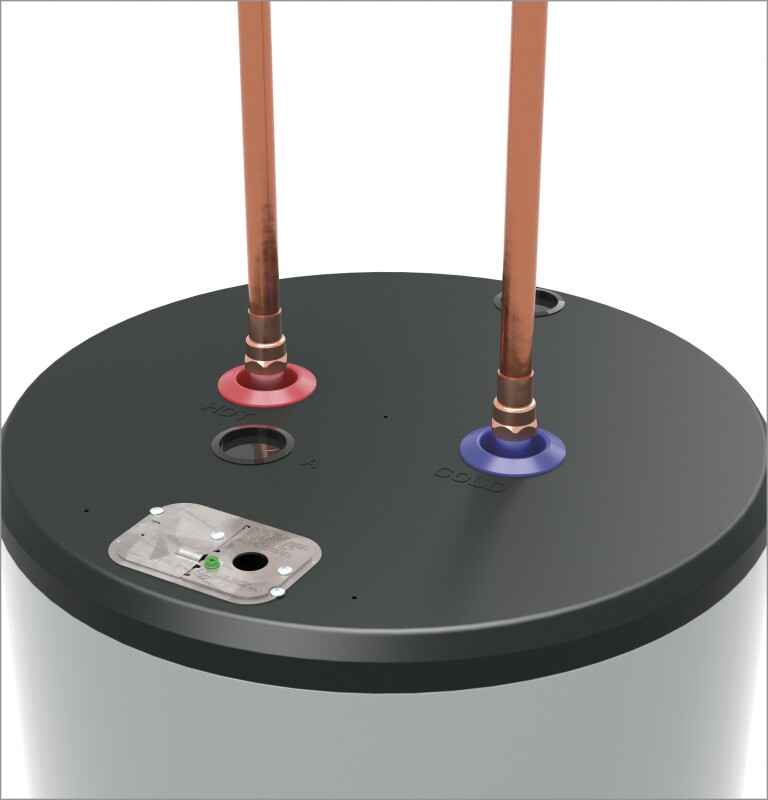

| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
Other
| Product Diameter | 20 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 20 in. |
| Height | 65.5 in. |
| Length | 20 in. |
| Weight | 127 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25 in. |
| Shipping Height | 70.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 167 lbs. |
| Total of Shipping Weight | 167 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 15.16 ft³ |
| Dimensional Weight | 188.49 lbs. |
| Total of Cubes | 15.16 ft³ |
| Total of Dimensional Weight | 188.49 lbs. |
FEATURES
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Tall |
| Heating Element | Copper |
| Fuel Type | Electric |
| Configuration | Tall |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 40 |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Product Type | Electric Thermostat |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 in |
| Drain Valve Type | Brass |
| Temperature Setting | Factory Default 120° F |
POWER / RATINGS
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 65 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 3531 |
CAPACITY
| Unit Capacity | 40 Gallons |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts (Tank) | 8 Year |
| Labor (Entire Appliance) | 1 Year |
