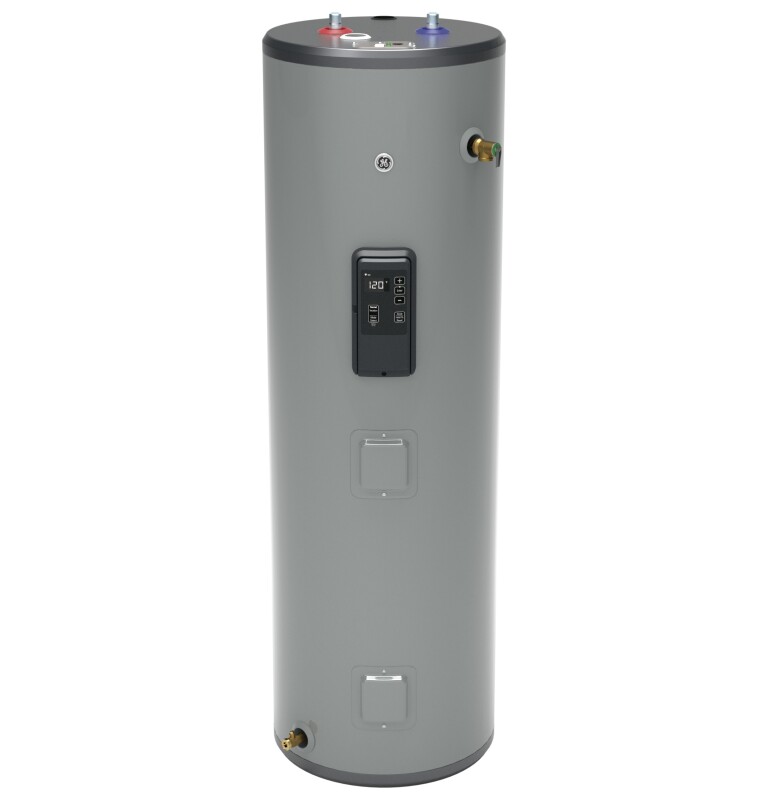

Smart 40 Gallon Tall Electric Water Heater - GE40T12BLM
Smart 40 Gallon Tall Electric Water Heater
Model: GE40T12BLM
Product Video
Smart 40 Gallon Tall Electric Water Heater
Model: GE40T12BLM
Color : Gray
Key Features
Real Capacity
Built-in WiFi
Leading Performance
Quick Recovery
Household Size
Anode Sensing
Stainless Steel Heating Elements
Inlet Tube
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

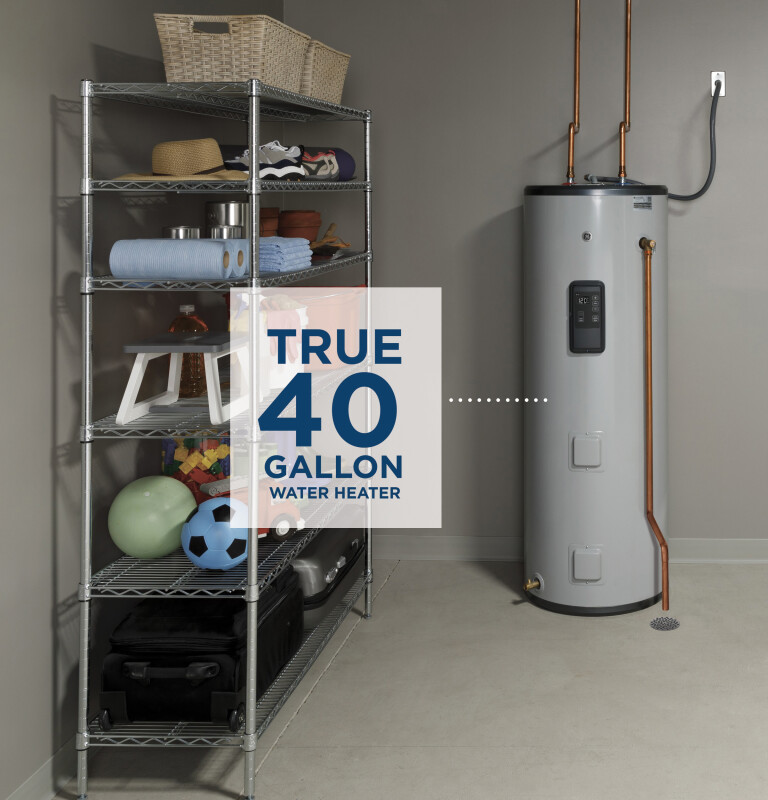

Real Capacity
Get the most hot showers from the only water heater that holds a true 40 gallons of water (Compared to 40 gallon electric steel tank water heaters per DOE rated gallon capacity)

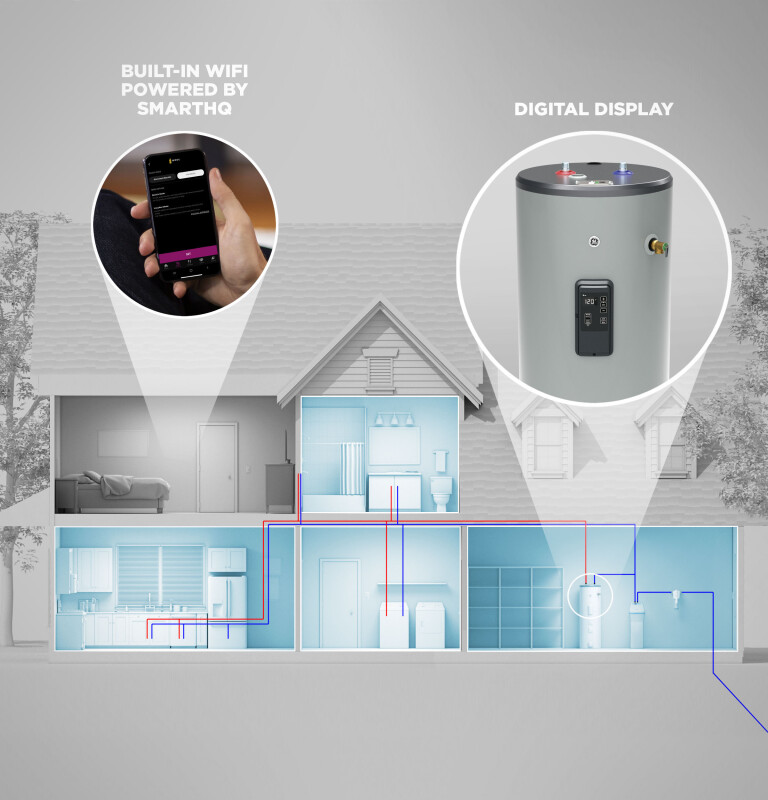

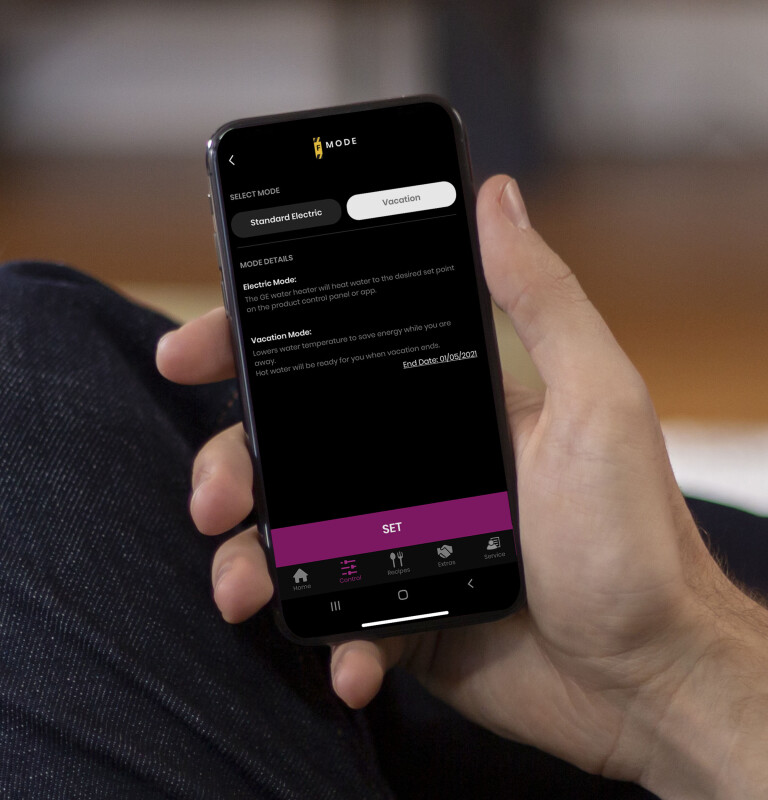

Built-in WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ
Leading Performance
Live comfortably with this best in class unit that delivers 66 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

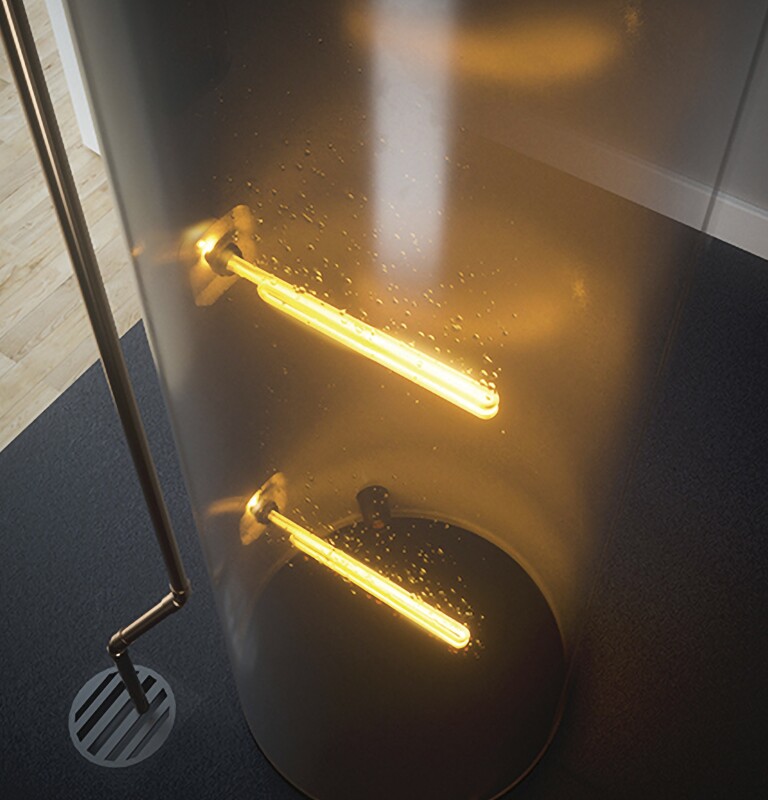

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 2 to 4 persons

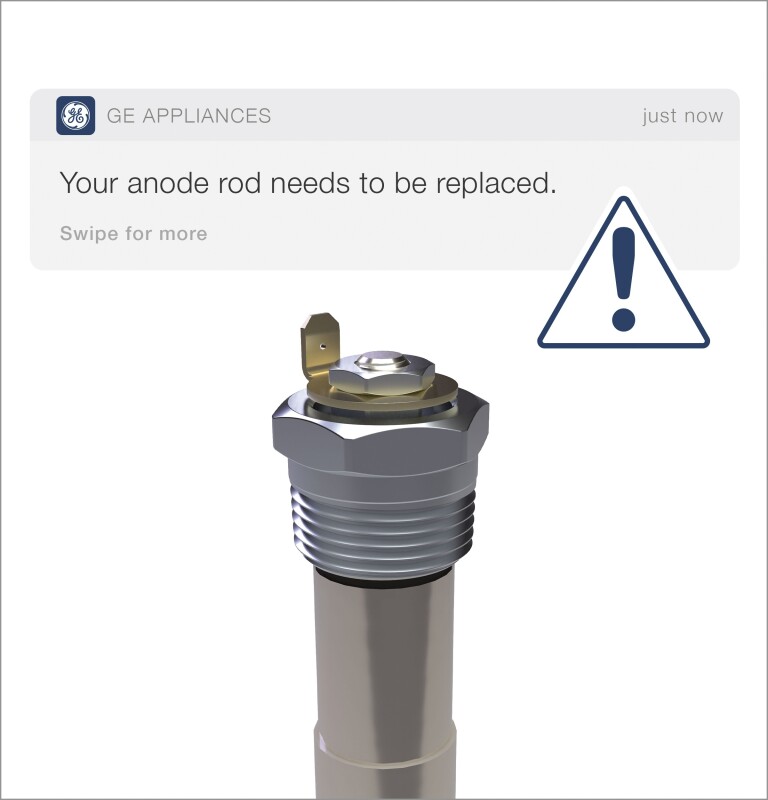

Anode Sensing
Notifies you when your anode rod needs replacing to help extend the life of your tank

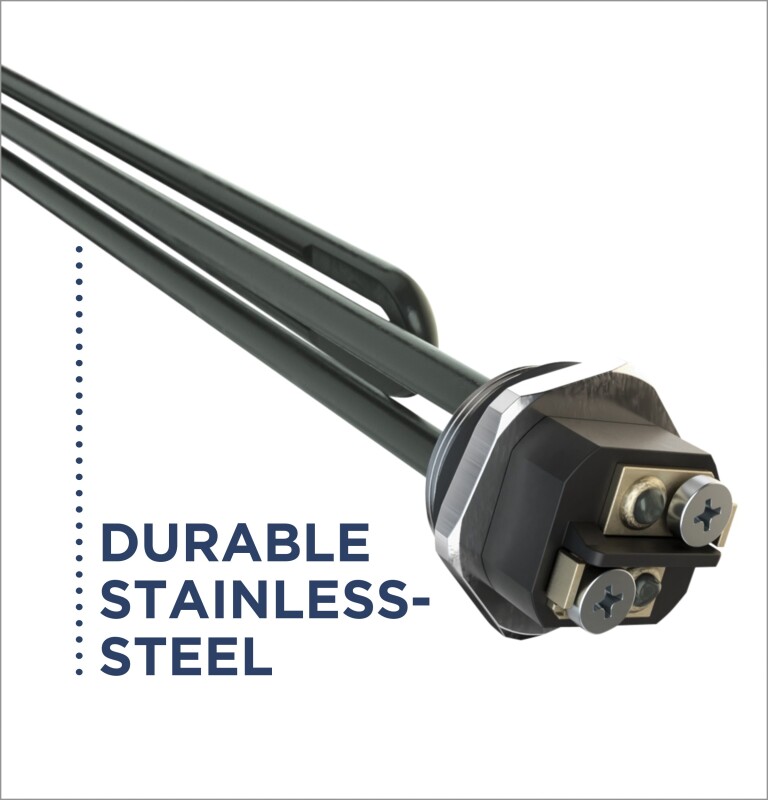

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion

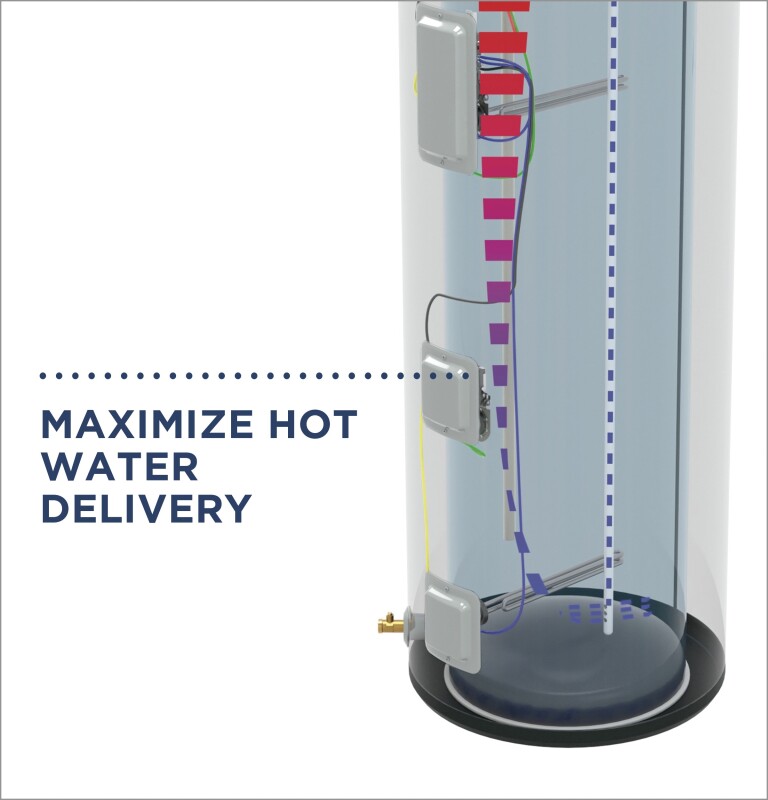

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

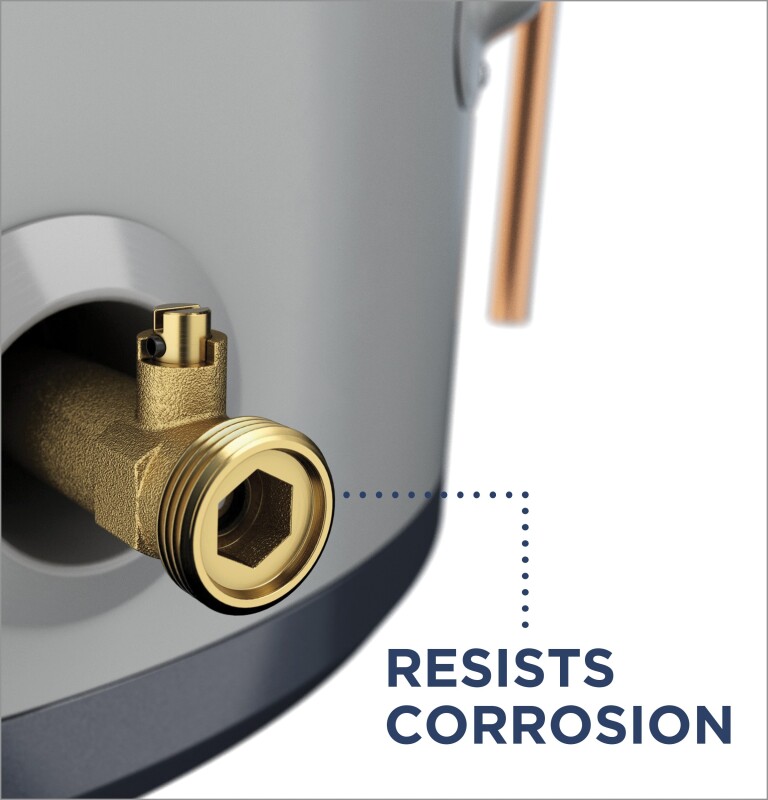

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

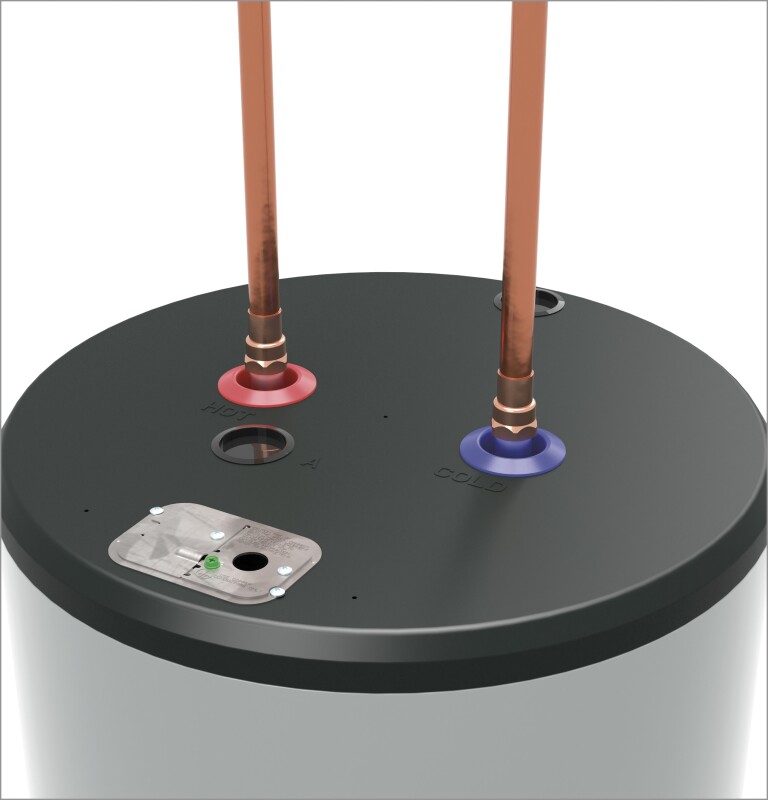

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

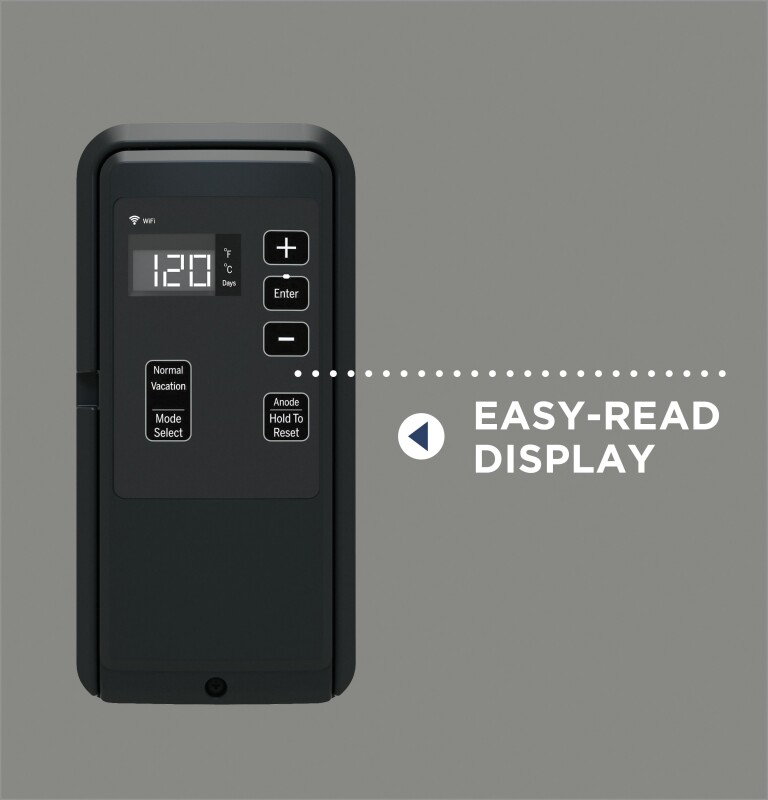

Digital Display
Make easy, accurate adjustments at the touch of a button
Certifications
California Prop 65
Specifications

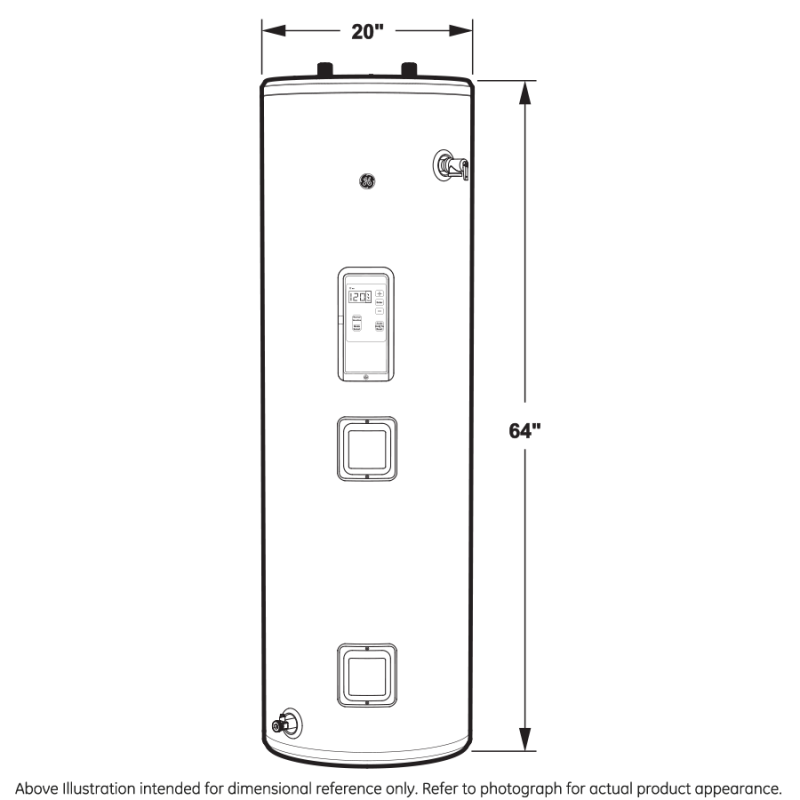

WEIGHTS & DIMENSIONS
| Overall Width | 20 in |
| Overall Height | 65.5 in |
| Product Height (to top of unit) | 64 in |
| Overall Depth | 20 in |
| Product Height (to top of water inlet/outlet connections) | 65.5 in |
| Approximate Shipping Weight | 139 lb |
| Net Weight | 127 lb |
| Product Diameter | 20 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
FEATURES
| Control Type | Electronic with Digital Display |
| Height Description | Tall |
| Fuel Type | Electric |
| Configuration | Tall |
| Operating Modes | Vacation |
| Drain Valve Type | Brass |
| Sensing Anode | Yes |
| Product Type | Electric Electronic |
| WiFi Connect | Built-In |
| Family Size | 2-4 People |
| Water Connection Location | Top |
| Overheat Protection | Yes |
| Vacation Setting | Yes |
| Diagnostic Feedback | Yes |
| Temperature Setting | 100-140° F Range |
| Connected Capabilities | Google Home |
| Operating Modes | Normal |
| Connected Capabilities | Amazon Alexa |
| Temperature Setting | Factory Default 120° F |
POWER / RATINGS
| Integrated Energy Factor | 0.92 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Operating Water Pressure | 20-125 PSI |
| Electrical Connection | Direct-Wire |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 66 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 3531 |
CAPACITY
| Unit Capacity | 40 Gallons |
APPEARANCE
| Color Appearance | Gray |
Other
| Product Diameter | 20 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 20 in. |
| Height | 65.5 in. |
| Length | 20 in. |
| Weight | 127 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25 in. |
| Shipping Height | 70.5 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 167 lbs. |
| Total of Shipping Weight | 167 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 15.16 ft³ |
| Dimensional Weight | 188.49 lbs. |
| Total of Cubes | 15.16 ft³ |
| Total of Dimensional Weight | 188.49 lbs. |
Warranty
| Parts (Tank) | 12 Year |
| Labor (Entire Appliance) | 1 Year |
