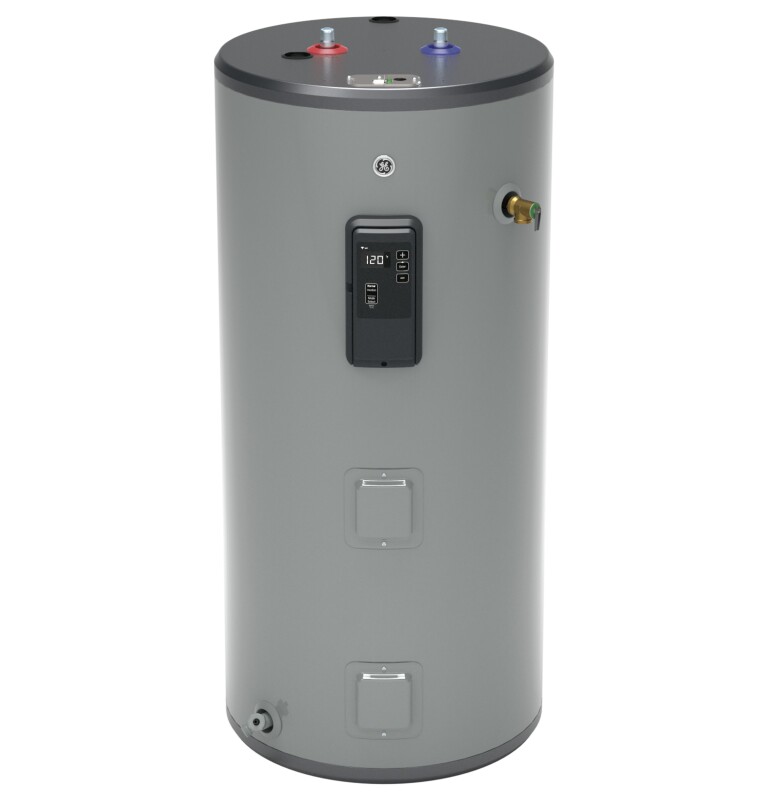

GE Smart 50 Gallon Short Electric Water Heater
Model: GE50S10BLM
Product Video
Color : Gray
Key Features
Real Capacity
Built-in WiFi
Leading Performance
Quick Recovery
Household Size
Inlet Tube
Easy Set Up
Anode Rod
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water (Compared to 50 gallon electric steel tank water heaters per DOE rated gallon capacity)

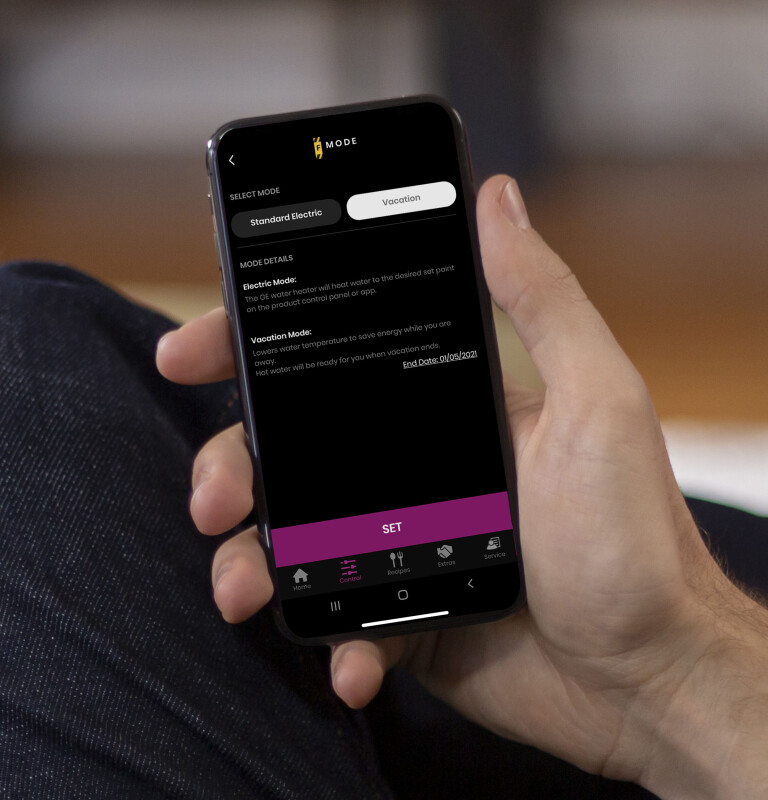

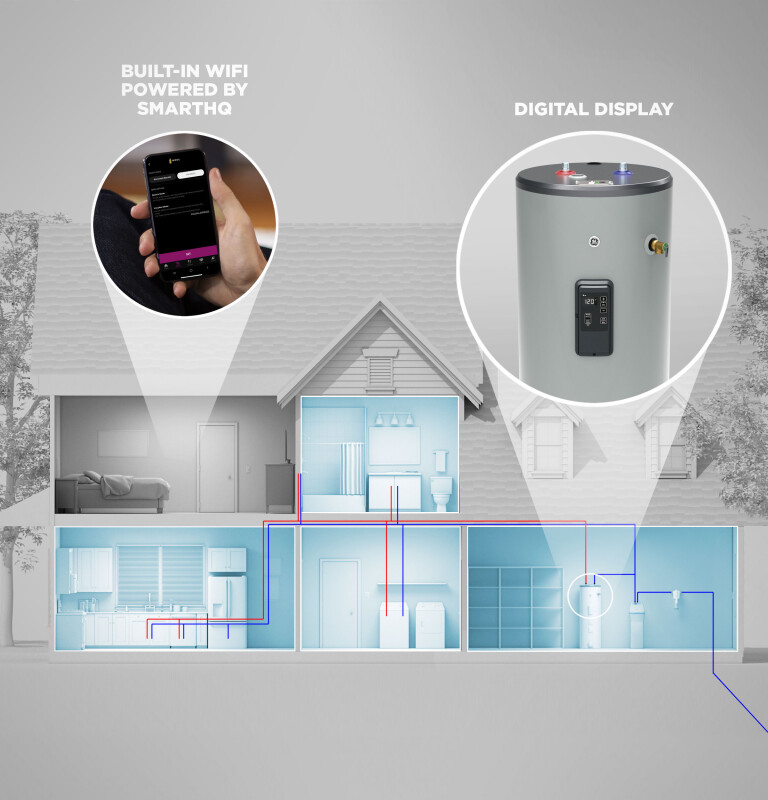

Built-in WiFi
Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ
Leading Performance
Live comfortably with this best in class unit that delivers 75 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

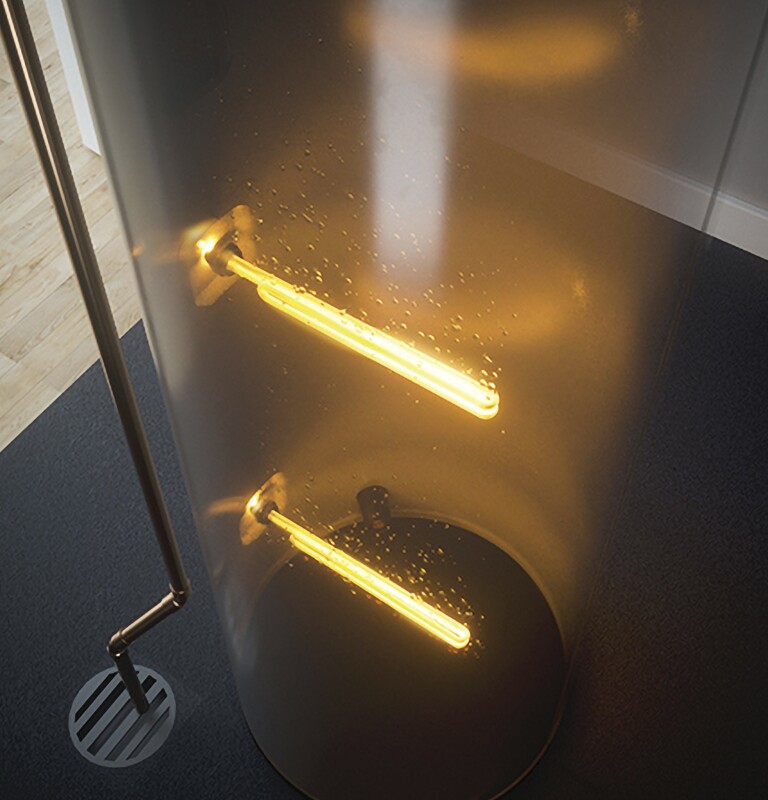

Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 3 to 5 persons

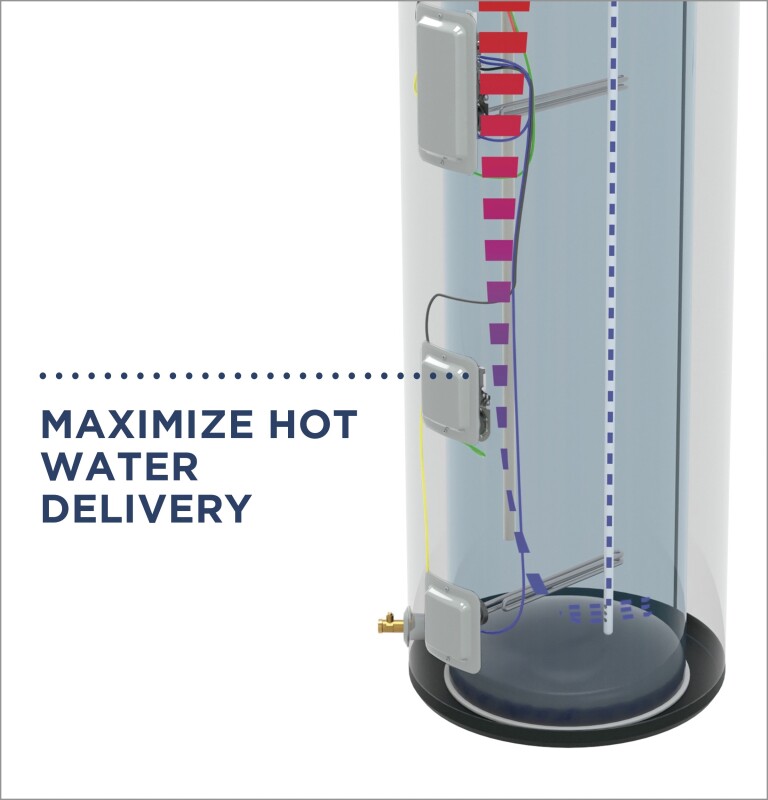

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

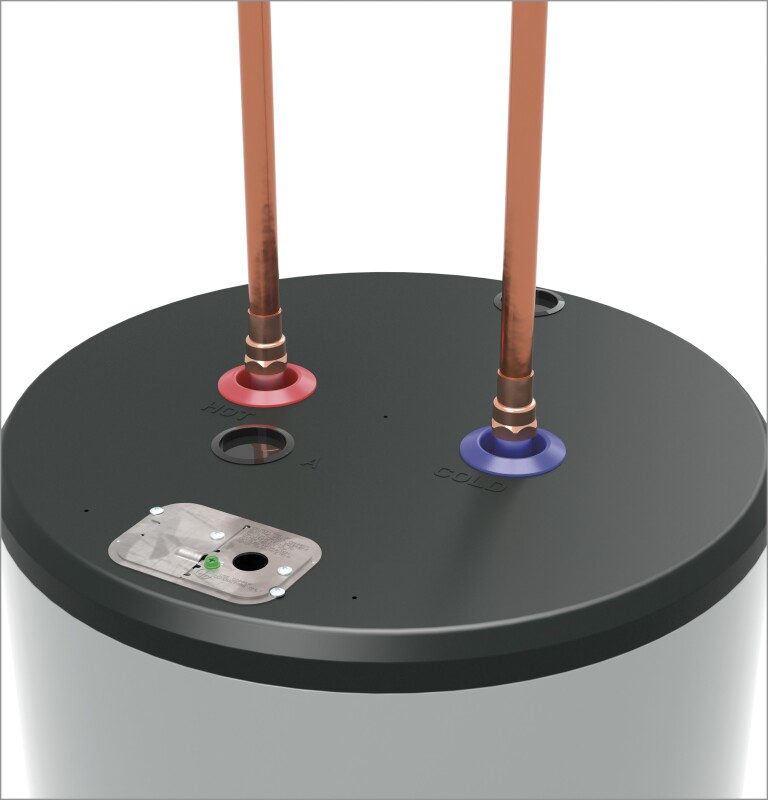

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

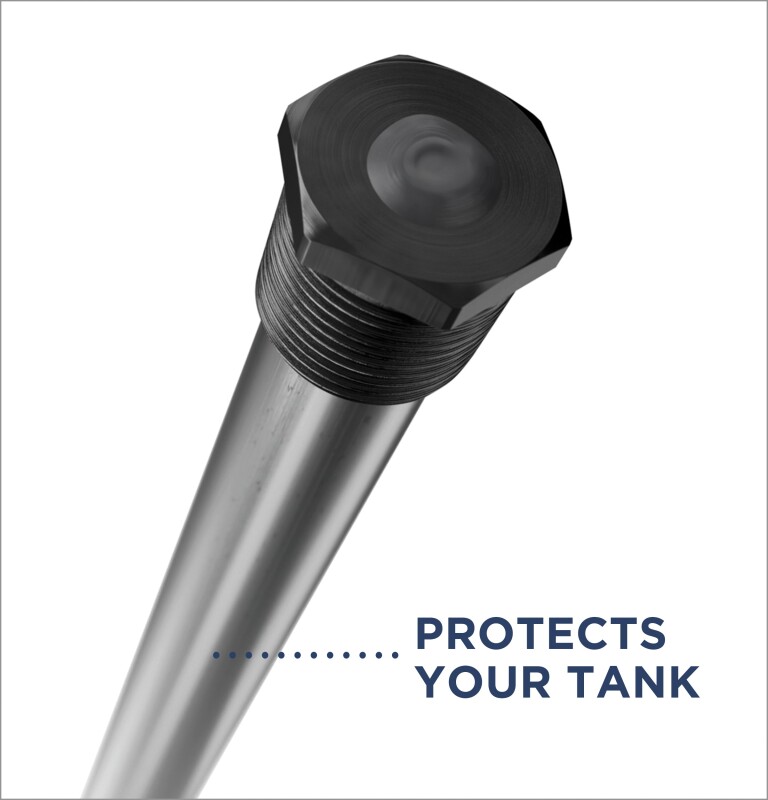

Anode Rod
Durable design offers long-lasting protection against corrosion

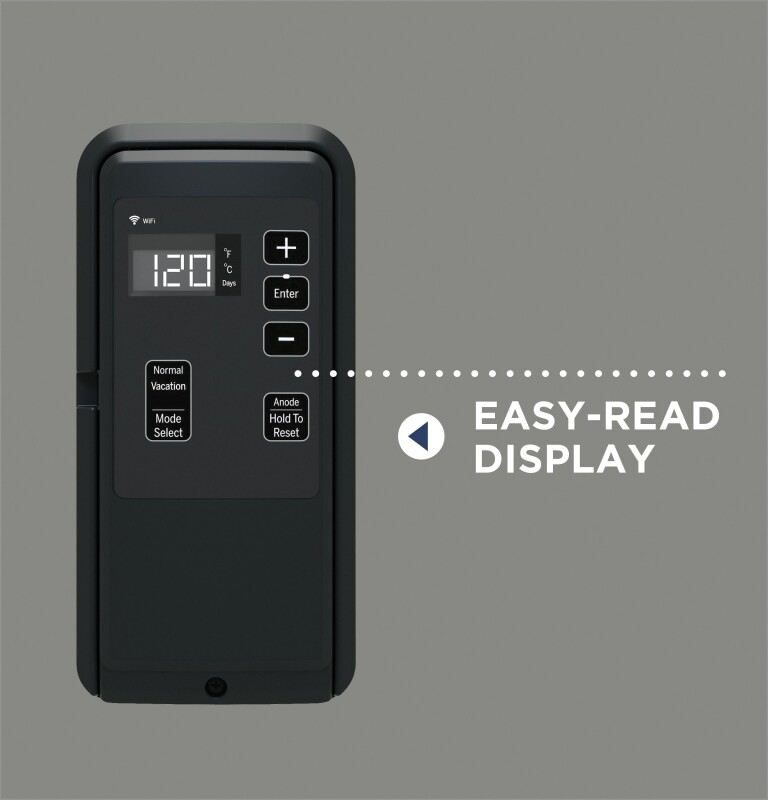

Digital Display
Make easy, accurate adjustments at the touch of a button

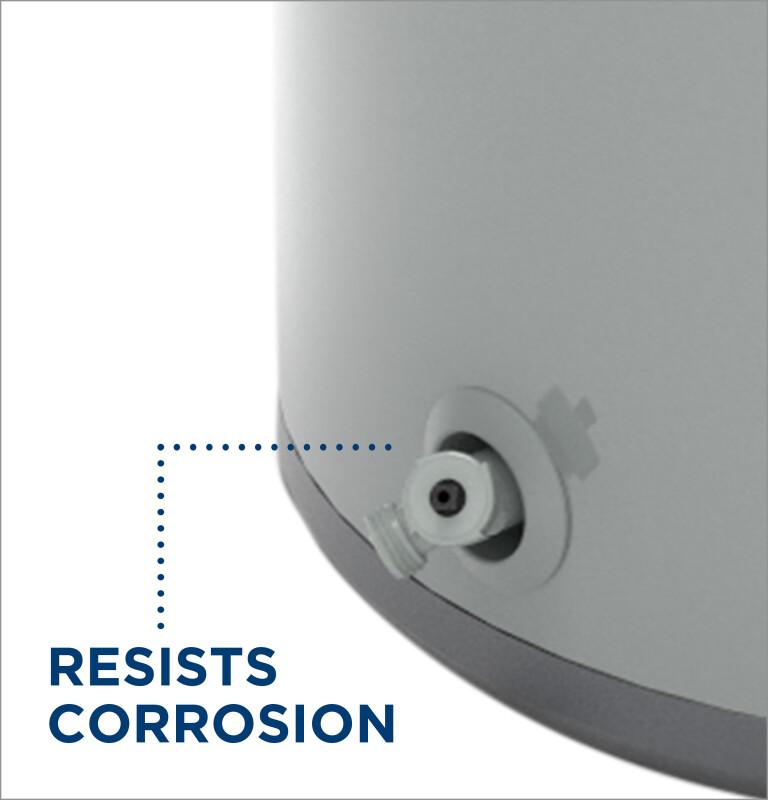

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Certifications
California Prop 65
Specifications

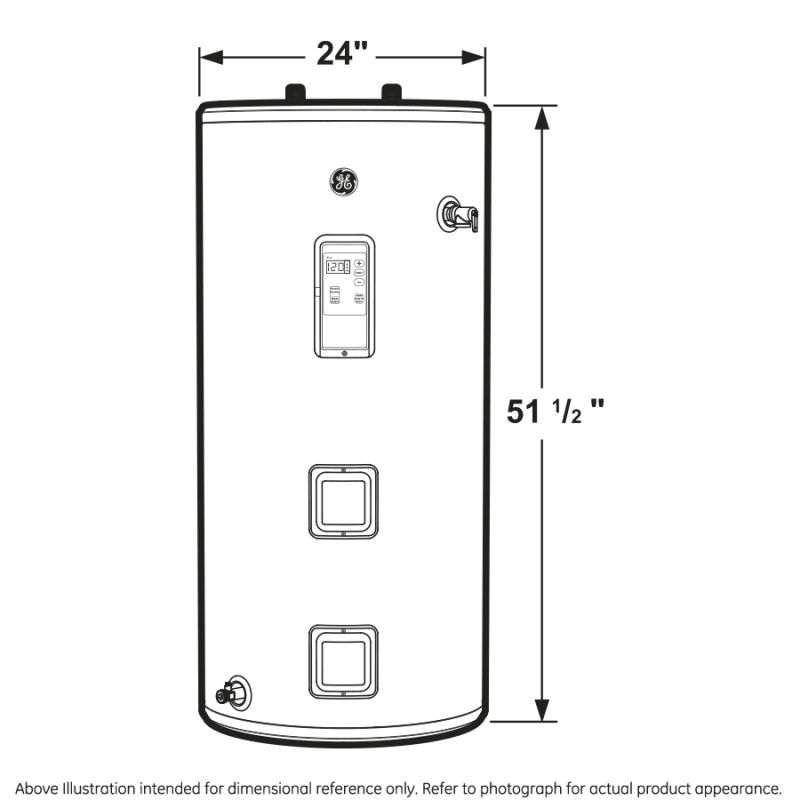

WEIGHTS & DIMENSIONS
| Overall Width | 24 in |
| Overall Height | 53 in |
| Product Height (to top of unit) | 51.5 in |
| Overall Depth | 24 in |
| Product Height (to top of water inlet/outlet connections) | 53 in |
| Approximate Shipping Weight | 161 lb |
| Net Weight | 150 lb |
| Product Diameter | 24 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
Other
| Product Diameter | 24 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 24 in. |
| Height | 53 in. |
| Length | 24 in. |
| Weight | 150 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 29 in. |
| Shipping Height | 58 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 190 lbs. |
| Total of Shipping Weight | 190 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.67 ft³ |
| Dimensional Weight | 219.63 lbs. |
| Total of Cubes | 17.67 ft³ |
| Total of Dimensional Weight | 219.63 lbs. |
FEATURES
| Control Type | Electronic with Digital Display |
| Height Description | Short |
| Fuel Type | Electric |
| Configuration | Short |
| Operating Modes | Vacation |
| Product Type | Electric Electronic |
| WiFi Connect | Built-In |
| Family Size | 3-5 People |
| Water Connection Location | Top |
| Overheat Protection | Yes |
| Vacation Setting | Yes |
| Diagnostic Feedback | Yes |
| Temperature Setting | 100-140° F Range |
| Connected Capabilities | Google Home |
| Operating Modes | Normal |
| Connected Capabilities | Amazon Alexa |
| Drain Valve Type | Brass |
| Temperature Setting | Factory Default 120° F |
POWER / RATINGS
| Integrated Energy Factor | 0.93 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 75 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 5334 |
CAPACITY
| Unit Capacity | 50 Gallons |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts (Tank) | 10 Year |
| Labor (Entire Appliance) | 1 Year |
