Smart 50 Gallon Electric Water Heater with Flexible Capacity - GE50S10BMM

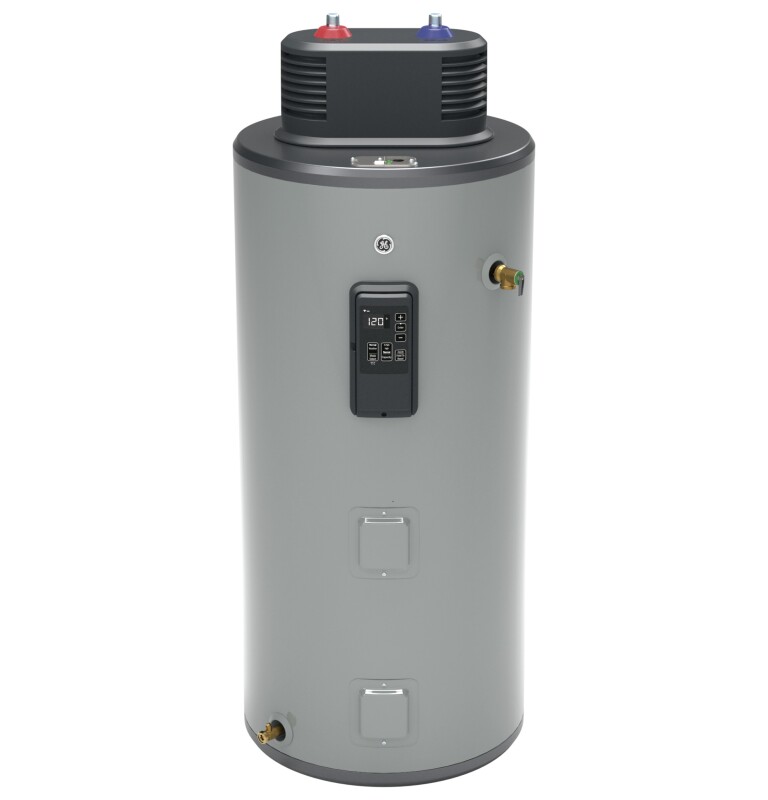

Smart 50 Gallon Electric Water Heater with Flexible Capacity
Model: GE50S10BMM
Product Video
Smart 50 Gallon Electric Water Heater with Flexible Capacity
Model: GE50S10BMM
Color : Gray
Key Features
Flexible Capacity
Real Capacity
Built-in WiFi
Quick Recovery
Leading Performance
Household Size
Anode Sensing
Stainless Steel Heating Elements
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

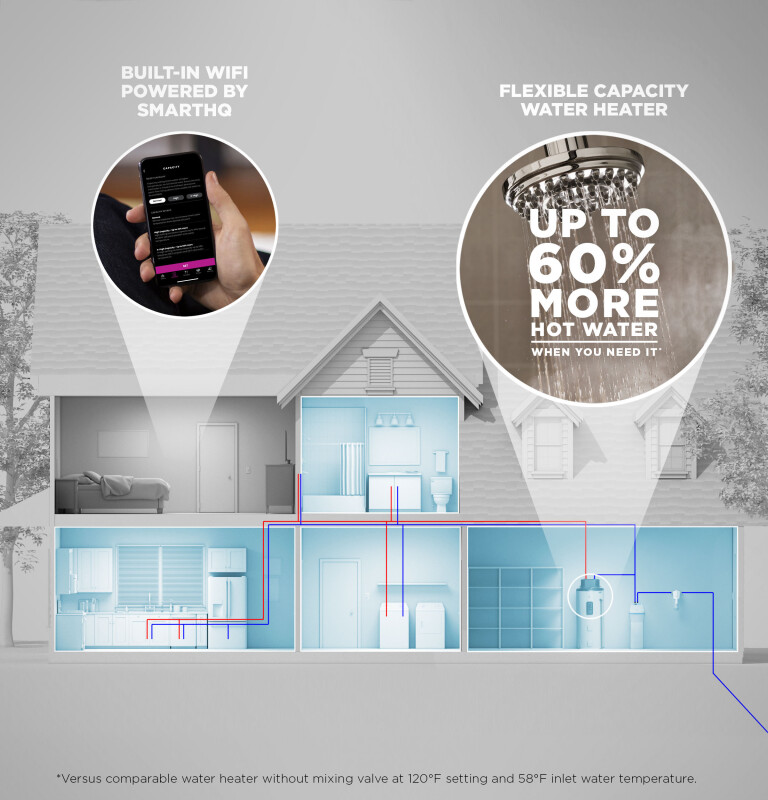

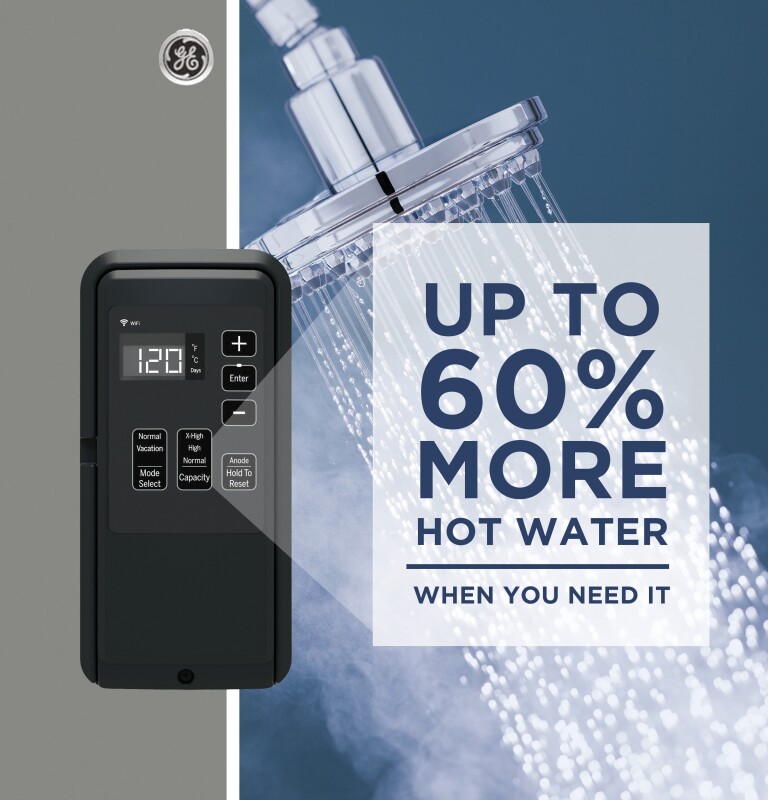

Flexible Capacity

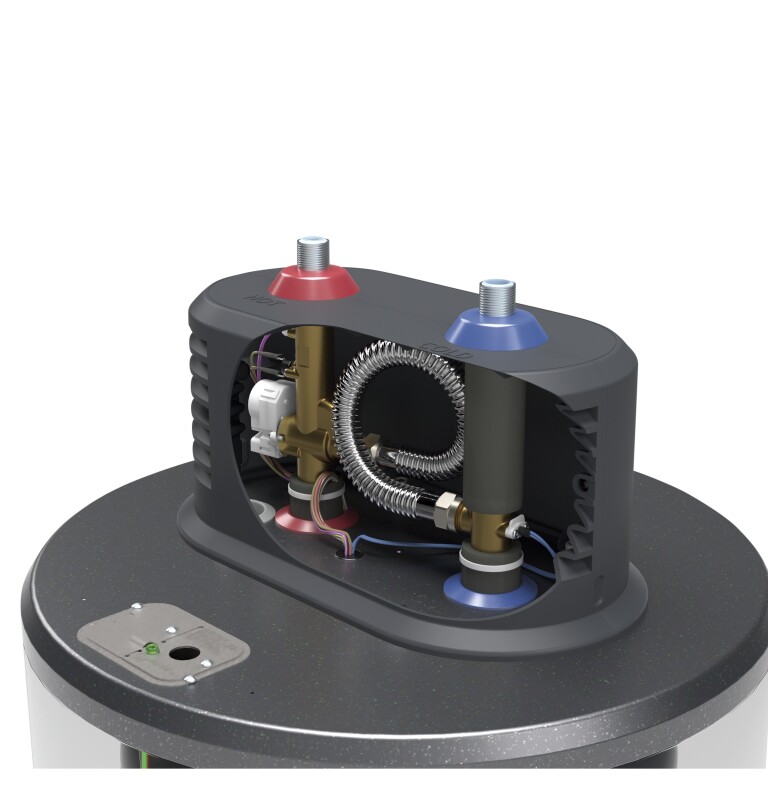

Choose from three capacity settings to enjoy up to 60% additional hot water when you need it* *vs comparable water heaters without mixing valve at 120°F set and 58°F water temperature

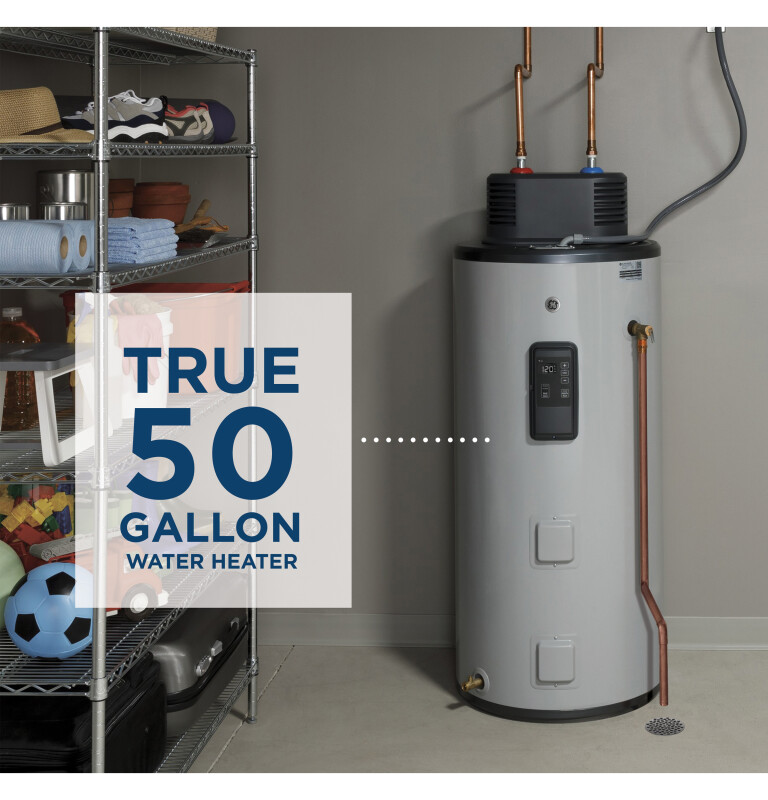

Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water (Compared to 50 gallon electric steel tank water heaters per DOE rated gallon capacity)
Built-in WiFi

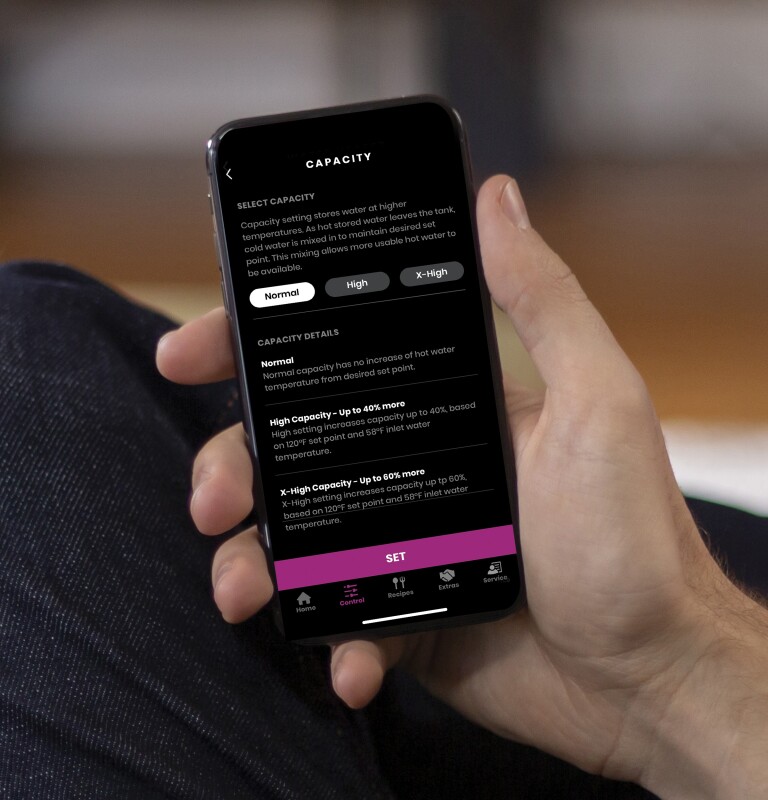

Easily adjust temperatures, set vacation mode schedules and receive notifications with Built-in WiFi powered by SmartHQ
Quick Recovery

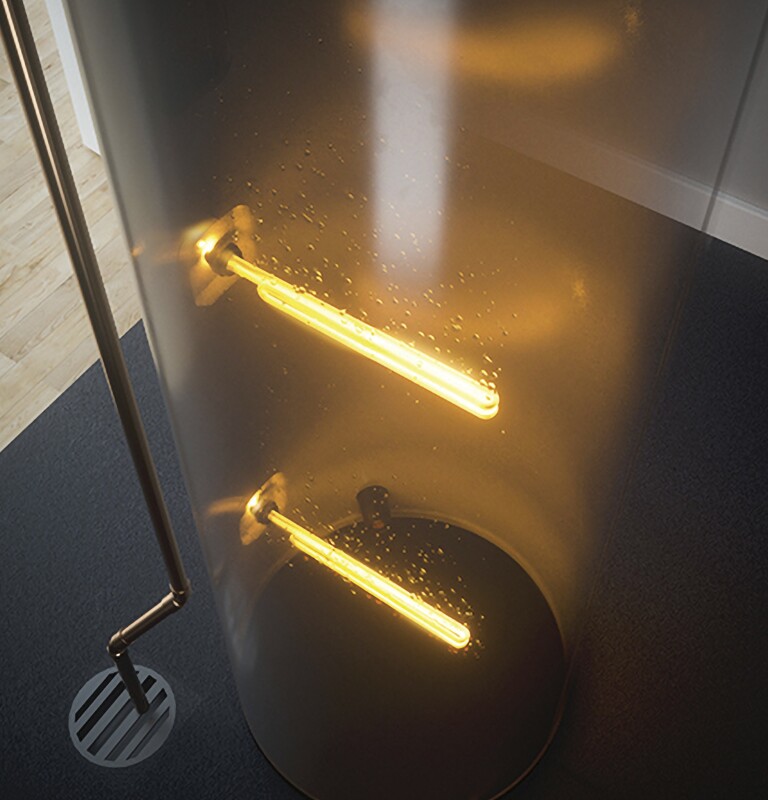

Two 5500W heating elements quickly increase water temperature for hot water when you need it
Leading Performance
Live comfortably with this best in class unit that delivers 75 gallons of hot water in the first hour (Measured through DOE First Hour Rating)
Household Size
Provide hot water for the whole family up to 6 persons on X-High setting

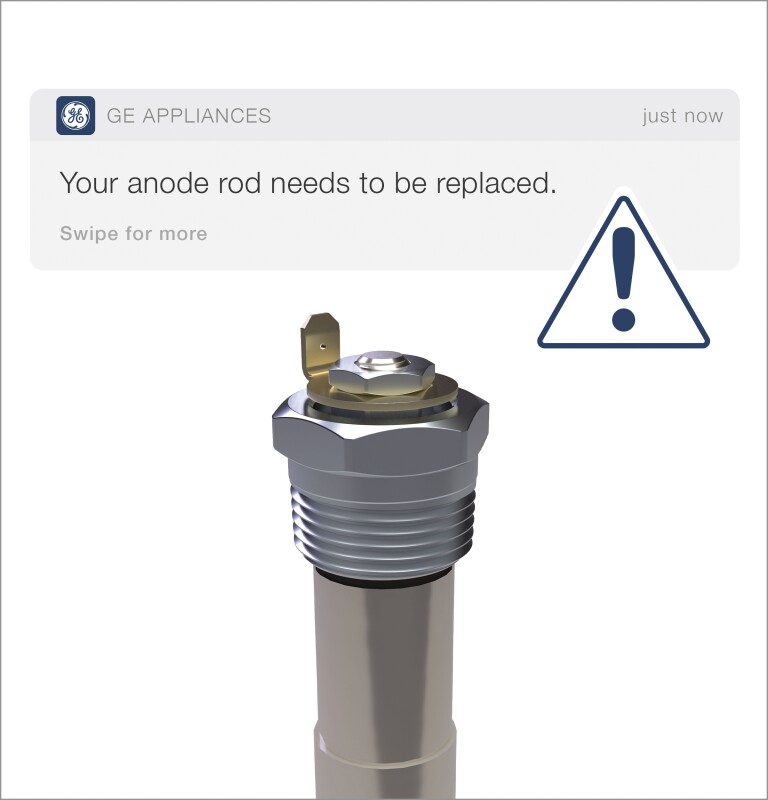

Anode Sensing
Notifies you when your anode rod needs replacing to help extend the life of your tank

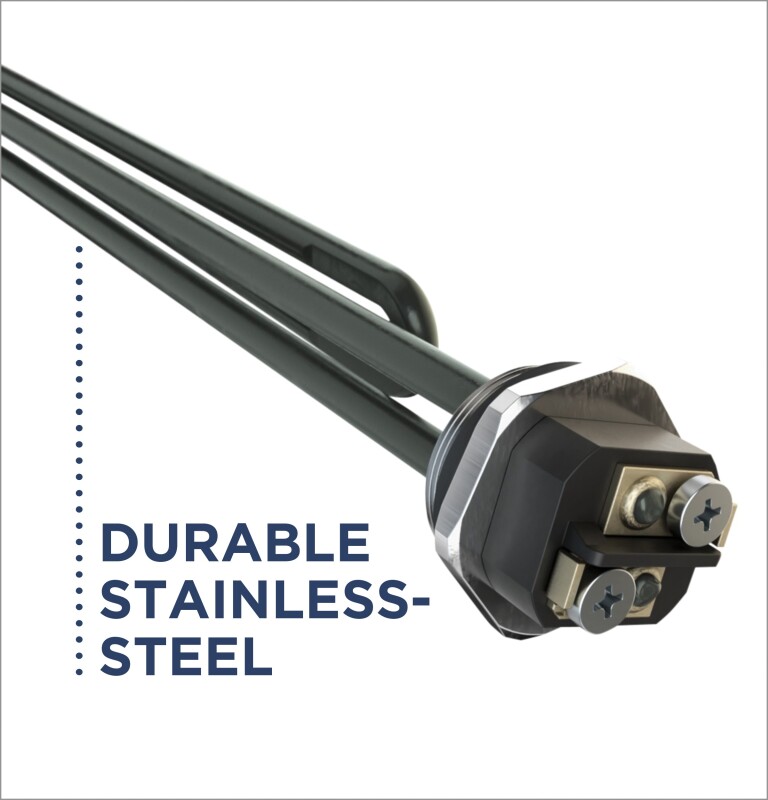

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion

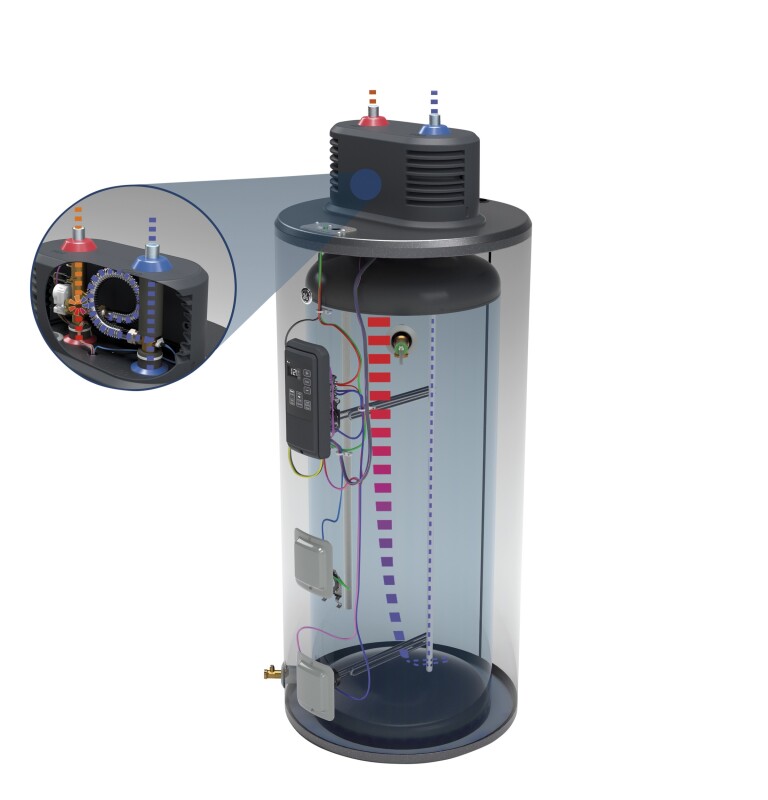

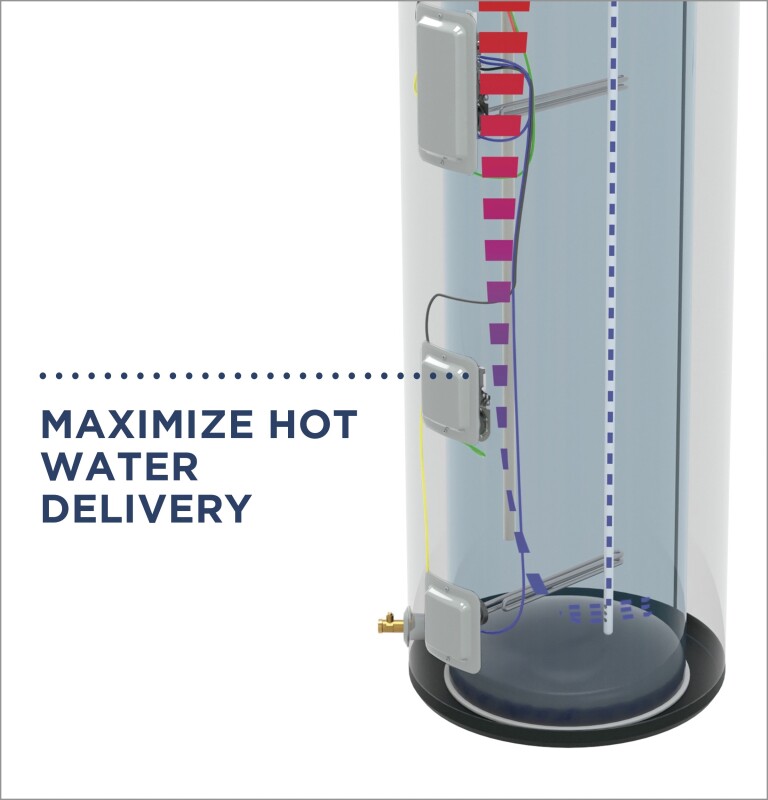

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

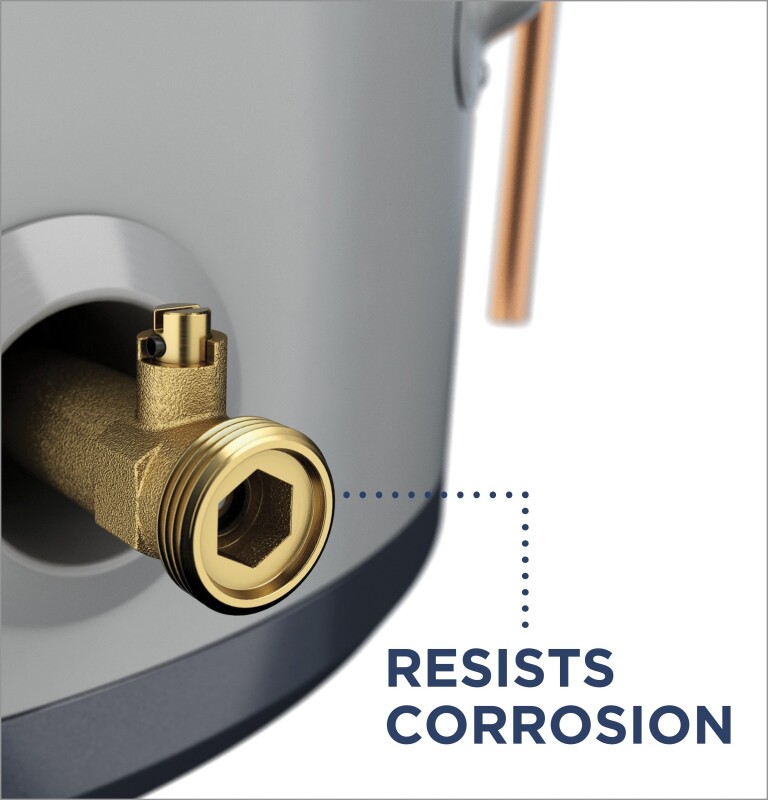

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

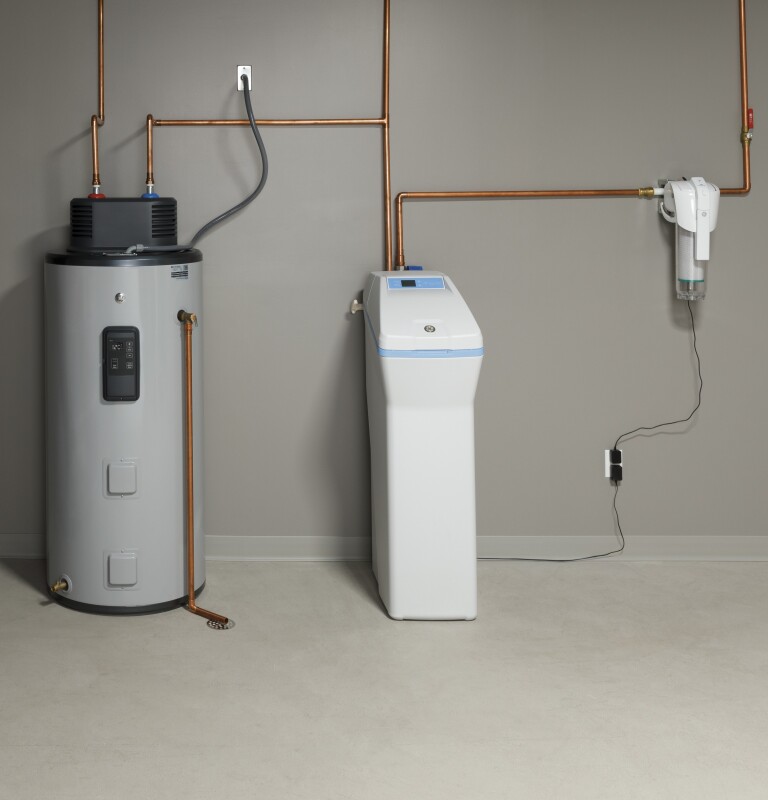

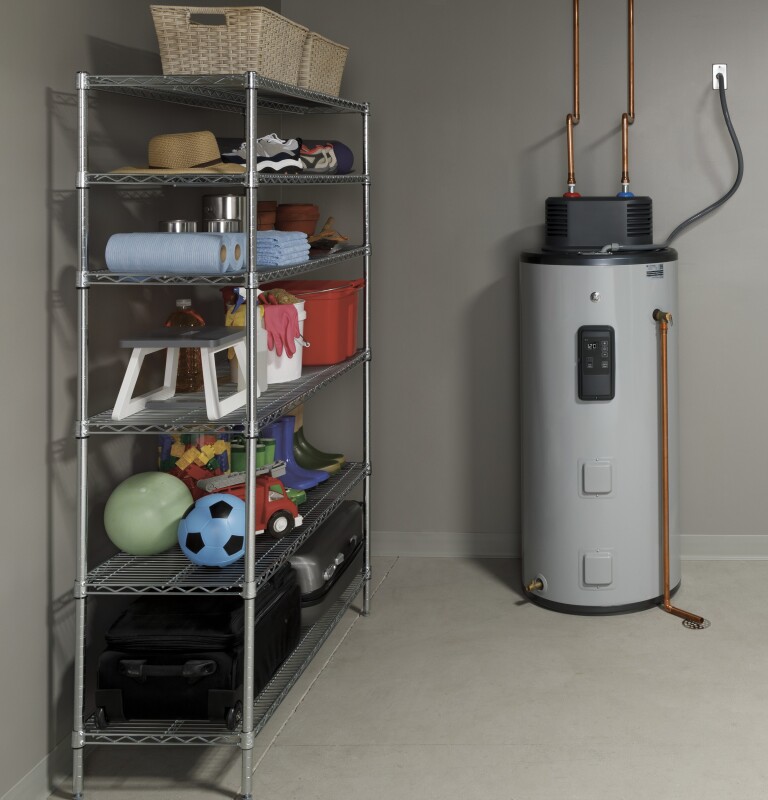

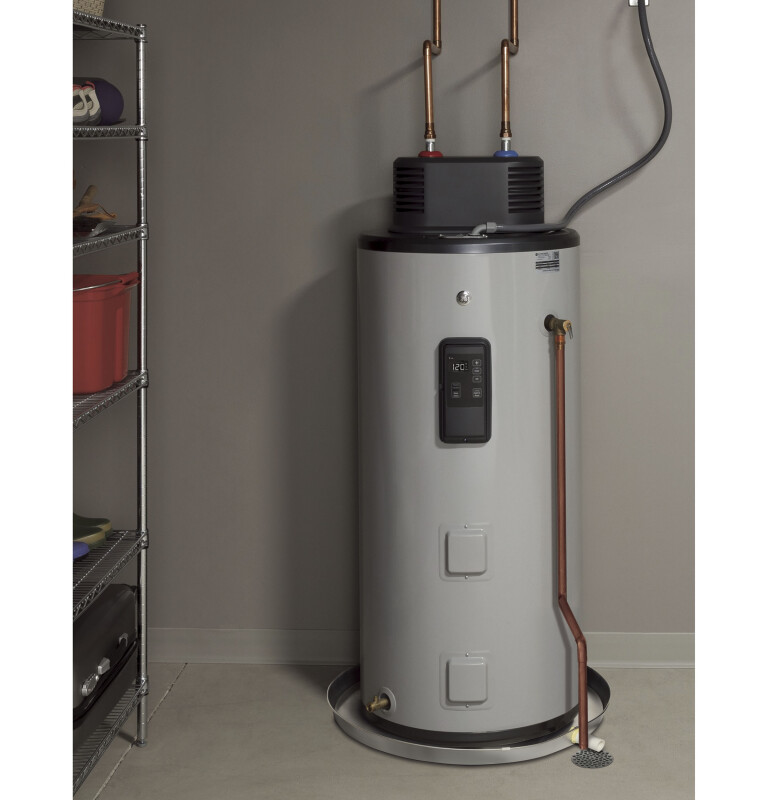

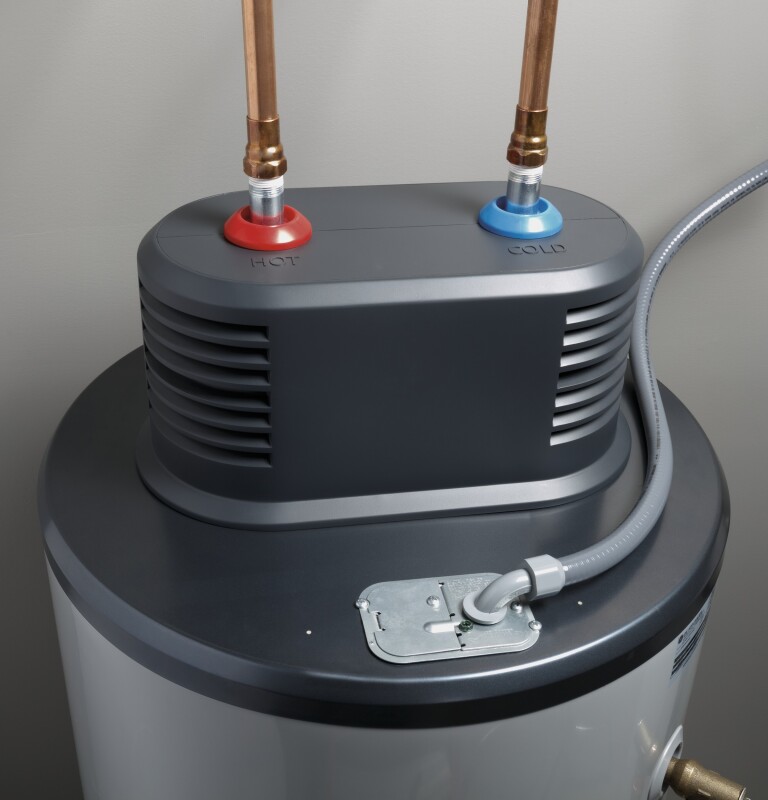

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 24 in |
| Overall Height | 61 in |
| Product Height (to top of unit) | 59.5 in |
| Overall Depth | 24 in |
| Product Height (to top of water inlet/outlet connections) | 61 in |
| Approximate Shipping Weight | 171 lb |
| Net Weight | 160 lb |
| Product Diameter | 24 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
Other
| Product Diameter | 24 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 24 in. |
| Height | 61 in. |
| Length | 24 in. |
| Weight | 160 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 29 in. |
| Shipping Height | 66 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 200 lbs. |
| Total of Shipping Weight | 200 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 20.33 ft³ |
| Dimensional Weight | 252.78 lbs. |
| Total of Cubes | 20.33 ft³ |
| Total of Dimensional Weight | 252.78 lbs. |
FEATURES

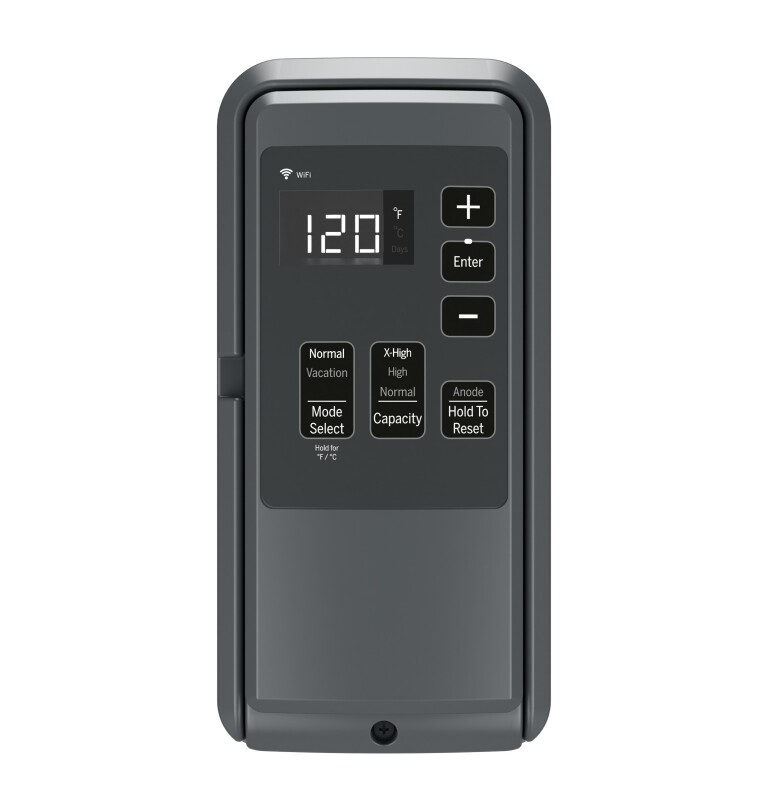

| Control Type | Electronic with Digital Display |
| EcoBalance Compatible | Yes |
| Fuel Type | Electric |
| Configuration | Short |
| Operating Modes | Vacation |
| Electronic, Integrated Mixing Valve | Yes |
| Drain Valve Type | Brass |
| Sensing Anode | Yes |
| Product Type | Electric Flexible Capacity |
| WiFi Connect | Built-In |
| Family Size | 5-6 People |
| Water Connection Location | Top |
| Overheat Protection | Yes |
| Vacation Setting | Yes |
| Effective Capacity Settings | Normal/High/X-High¶Flexible Capacity |
| Diagnostic Feedback | Yes |
| Temperature Setting | 100-140° F Range |
| Connected Capabilities | Google Home |
| Family Size | 3-5 People |
| Operating Modes | Normal |
| Connected Capabilities | Amazon Alexa |
| Temperature Setting | Factory Default 120° F |
POWER / RATINGS
| Integrated Energy Factor | 0.93 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Element Type | Stainless Steel |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 75 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 5334 |
CAPACITY
| Unit Capacity | 50 Gallons |
| Effective Capacity at X-High Setting (gallons) | 80 |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts (Tank) | 10 Year |
| Labor (Entire Appliance) | 1 Year |
