GE GeoSpring Pro hybrid electric water heater
Model: GEH80DEEJSC












Key Features
3.26 Energy Factor
Saves an average home $396* every year in water-heating expenses (*Based on DOE test procedure and comparison of a standard electric tank water heater using 4647 kWh per year vs. the GeoSpring Pro hybrid electric water heater using 1407 kWh per year.)
71% more efficient than a standard electric 50-gallon water heater
Provides the same amount of hot water as a traditional 80-gallon standard electric water heater with 94 gallons first-hour delivery
Installs like a standard electric water heater with the same top water and electrical connections, making replacing your old standard water heater quick and easy
Electronic controls with 4 operating modes plus a vacation setting make it simple to select the temperature and optimal energy savings performance

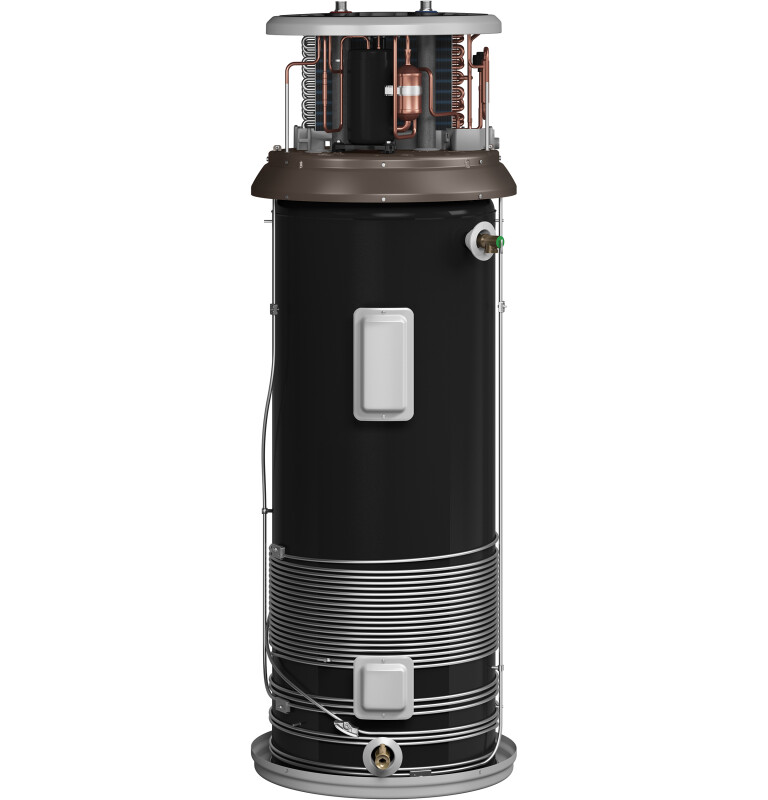

Utilizes heat pump technology to absorb the heat in ambient air and transfers it into water, making GeoSpring an efficient and environmentally friendly water heater
Qualifies for state and local utility rebates and tax credits
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
3.26 Energy Factor
Saves an average home $396* every year in water-heating expenses (*Based on DOE test procedure and comparison of a standard electric tank water heater using 4647 kWh per year vs. the GeoSpring Pro hybrid electric water heater using 1407 kWh per year.)
71% more efficient than a standard electric 50-gallon water heater
Provides the same amount of hot water as a traditional 80-gallon standard electric water heater with 94 gallons first-hour delivery
Installs like a standard electric water heater with the same top water and electrical connections, making replacing your old standard water heater quick and easy

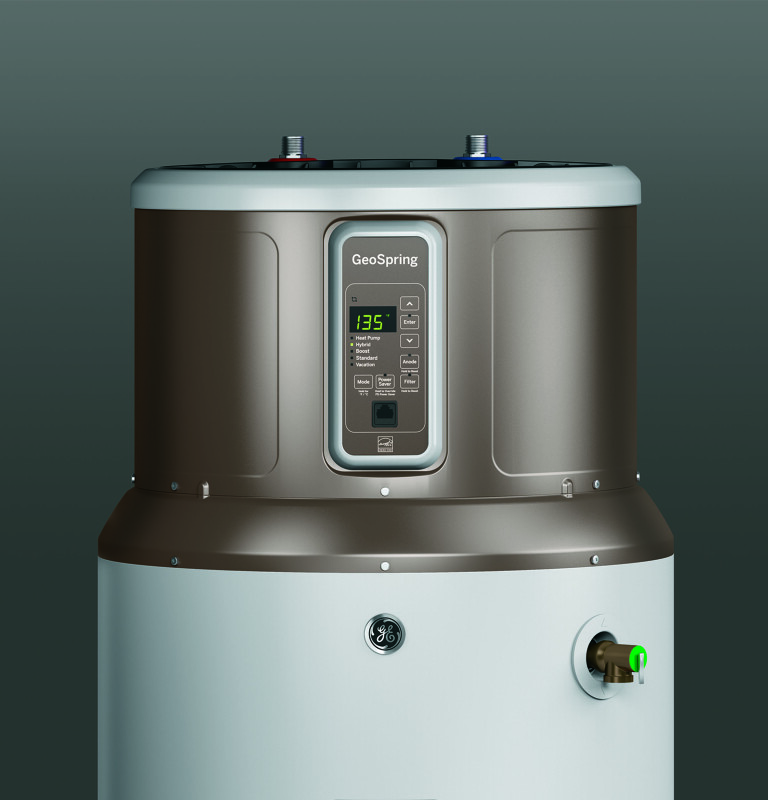

Electronic controls with 4 operating modes plus a vacation setting make it simple to select the temperature and optimal energy savings performance
Utilizes heat pump technology to absorb the heat in ambient air and transfers it into water, making GeoSpring an efficient and environmentally friendly water heater
Qualifies for state and local utility rebates and tax credits

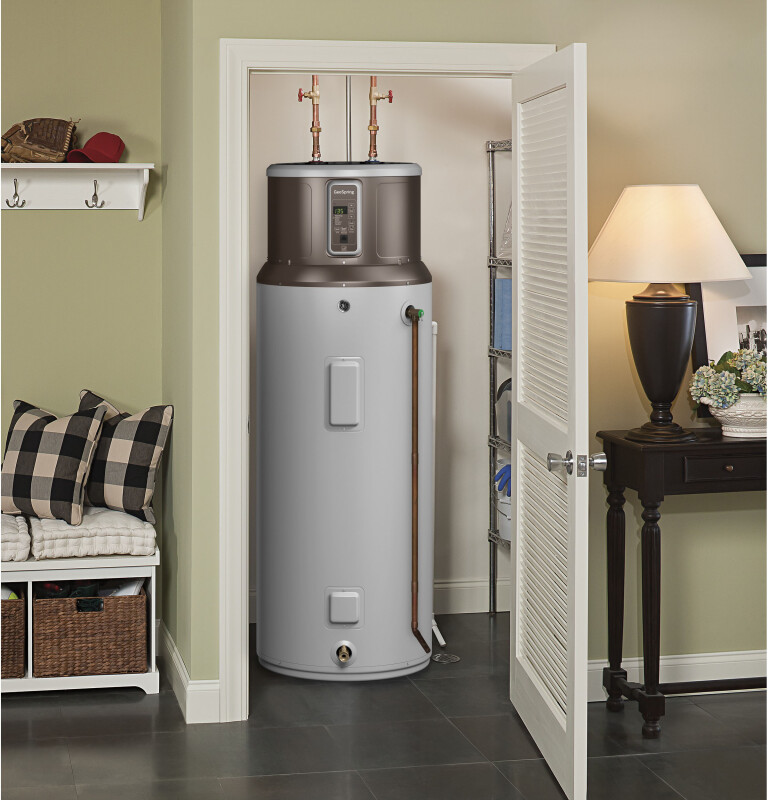

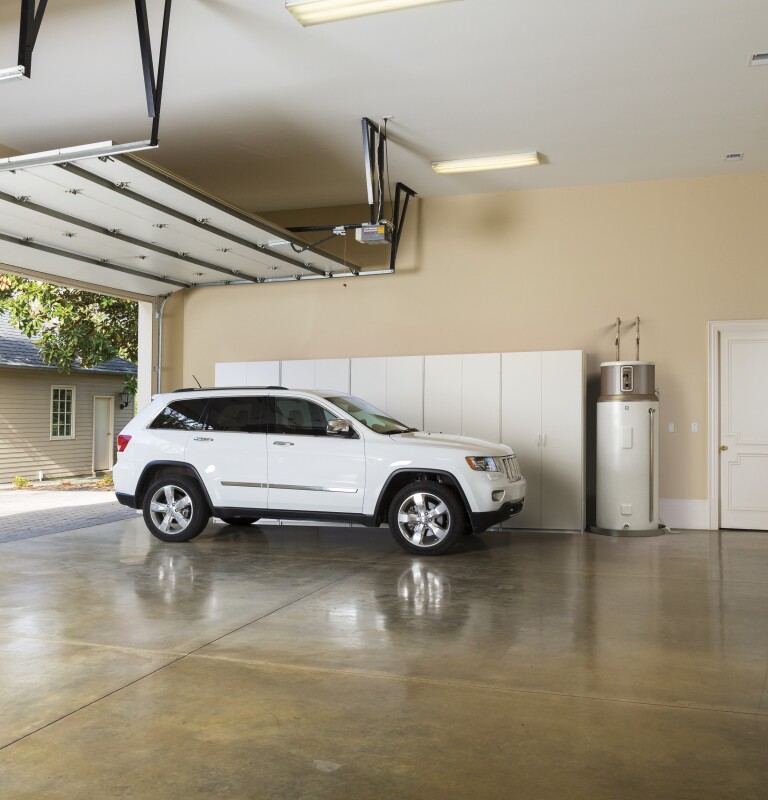

Designed for common indoor installation in areas such as: basement, garage, closet, utility room, attic, etc
Limited 1-year labor warranty on entire appliance, 10 year parts warranty
Exceeds 2015 ENERGY STAR requirements
Reduces an average household's water heating expenses by 71%
Saves approximately $396 per year - that's a savings of $3,960 in operating costs over a 10-year period
Certifications
California Prop 65
ENERGY STARĀ® Qualified
UL
Specifications
FEATURES
| PreciseTemp | +/- 3°F |
| Condensate Collector | Integrated (tubing not included) |
| Vacation Setting | 1 to 199 days |
| Fuel Type | Electric |
| Temperature Setting | 100-140° F Range |
| Control Type | Electronic |
| Control Type | LED |
| Temperature Setting Factory Default | 120° F |
| Demand Response Capable | Yes |
| Renewable Air Filter | Washable (included) |
| Remote Access | 2-way communication |
| Operating Modes | Boost |
| Operating Modes | Electric (Fan Off) |
| Operating Modes | Heat Pump |
| Operating Modes | Hybrid (Default Mode) |
| Operating Modes | Vacation |
POWER / RATINGS
| Electrical Consumption Heat Pump | 550 Watts |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Electrical Consumption - Upper Element | 4,500 Watts |
| Operating Water Pressure | 20-125 PSI (30-80 PSI recommended) |
| First Hour Rate (FHR) | 94 Gallons |
| Energy Factor (hybrid mode) | 3.2599999904633 |
| Operating Air Temperature Range | Heat Pump 35° F to 120° F (Unit operates in Standard/Electric Mode outside of this range) |
| Electrical Consumption - Lower Element | 4,000 Watts |
APPEARANCE
| Color Appearance | Charcoal |
| Installation | Free-Standing |
ECONOMICAL / QUIET
| Operating Sound Level | 54 DBA |
FILTER
| App Filter - Product Type | Water Heaters GeoSpring Heat Pump Electric |
| App Filter - Capacity | Water Heater 70 gallons and above |
| App Filter - Vacation Mode | Yes |
CAPACITY
| Unit Capacity | 80 Gallons |

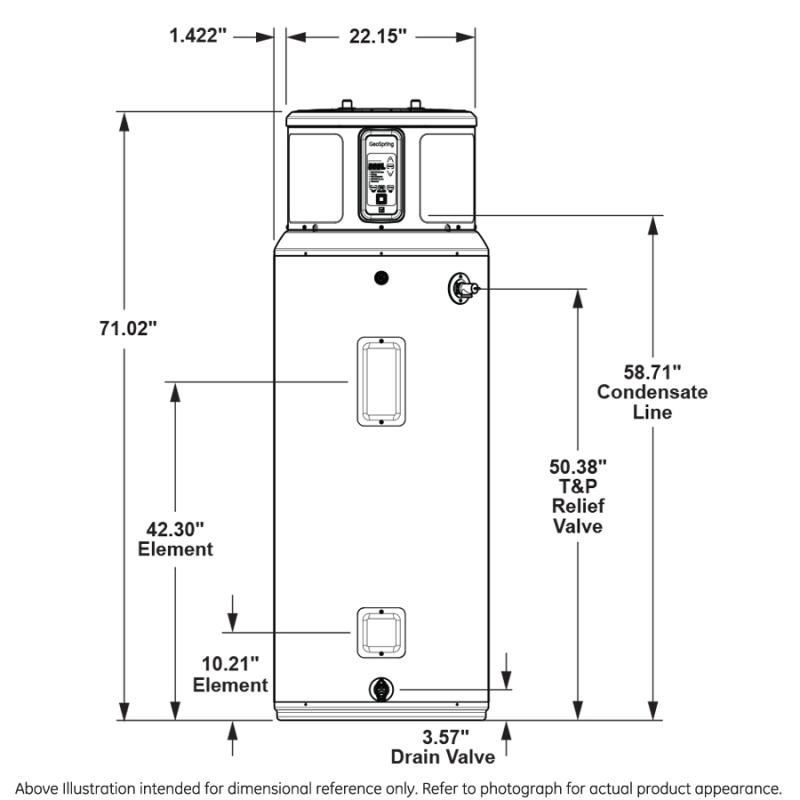

Dimensions & Weight
| Width | 25 in. |
| Height | 72.5 in. |
| Length | 27 in. |
| Weight | 235 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 30 in. |
| Shipping Height | 77.5 in. |
| Shipping Length | 32 in. |
| Shipping Weight | 275 lbs. |
| Total of Shipping Weight | 275 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 28.32 ft³ |
| Dimensional Weight | 352.07 lbs. |
| Total of Cubes | 28.32 ft³ |
| Total of Dimensional Weight | 352.07 lbs. |
Warranty
| Labor (Entire Appliance) | 1 Year |
| Parts (Entire Appliance) | 10 Year |
